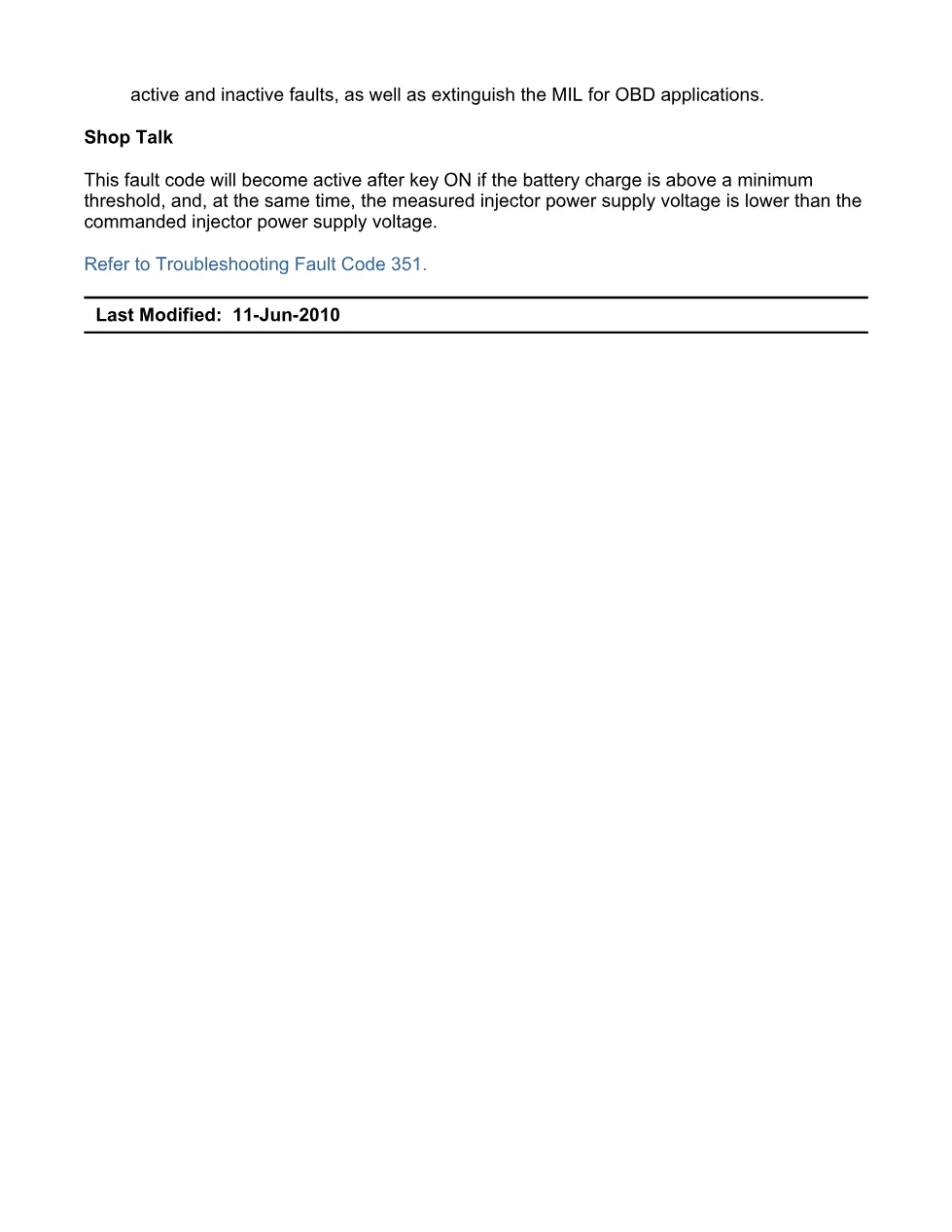

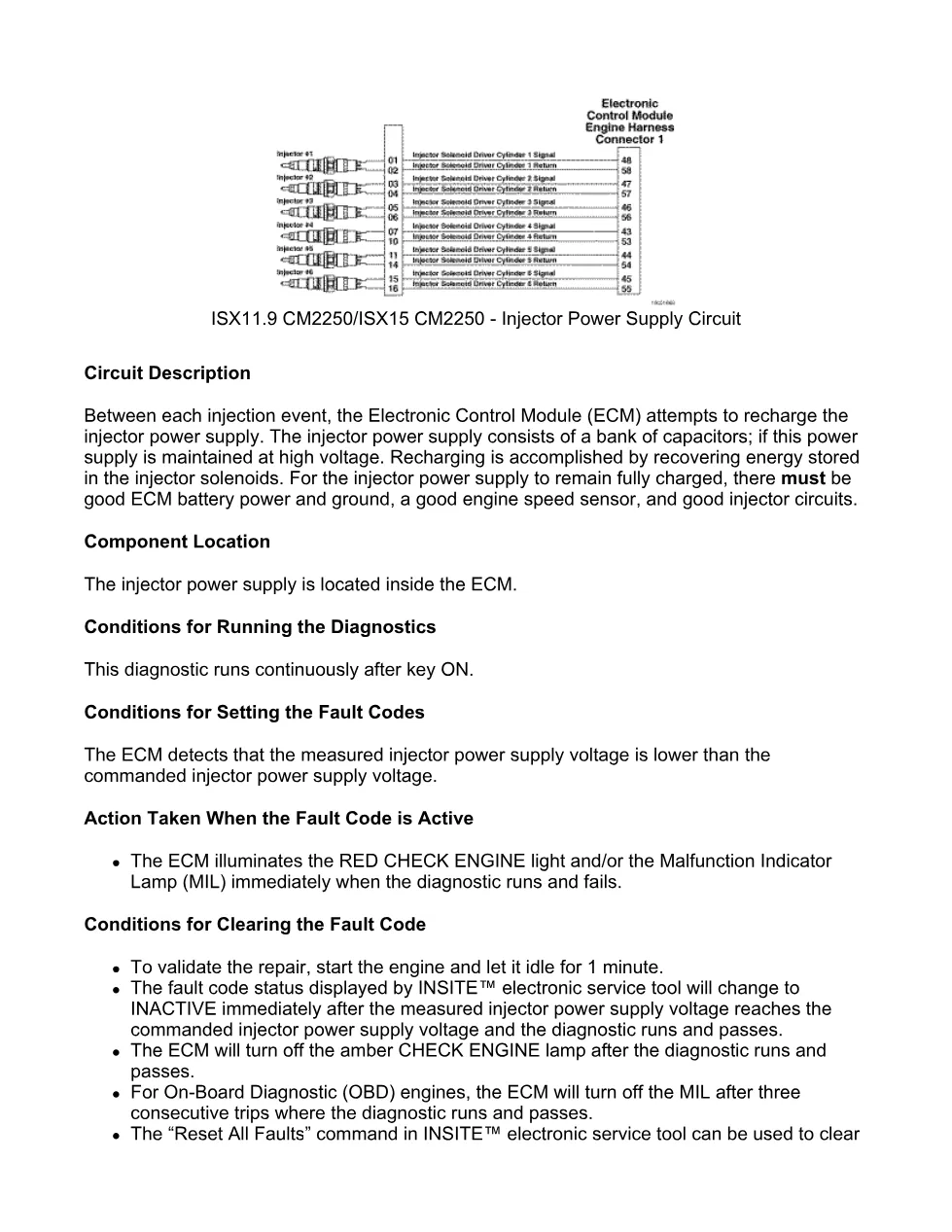

The fault code 351 DTCs troubleshooting manual is the official Cummins diagnostic procedure for the injector power supply circuit on the ISX11.9 CM2250 engine platform. Between injection events the ECM recharges the injector power supply, a bank of capacitors held at high voltage inside the module to fire the injectors. This 13-page PDF walks a technician from symptom to verified repair.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | Cummins ISX11.9 CM2250 (2010-12), Cummins ISX12 CM2250 (2010-12) |
| System / Group | injector power supply circuit, DTCs |
| Fault code reference | Fault Code 351 — SPN 627, FMI 12 |
| Warning lamp | a red STOP lamp |
| Revision (Last Modified) | 11-Jun-2010 |
| Pages | 13 |
| File size | 0.23 MB |
| Format | |
| Language | English |
fault code 351 DTCs document contents
- Overview and Circuit Description
- Component Location
- Conditions for Running the Diagnostics
- Conditions for Setting the Fault Code
- Action Taken When the Fault Code Is Active
- Conditions for Clearing the Fault Code
- Shop Talk and possible causes
- Associated Procedures table
- Guided troubleshooting steps
- Verify the repair
Applicable truck models covered
This procedure applies to Cummins engines that report Fault Code 351 (SPN 627, FMI 12), including the Cummins ISX11.9 CM2250 (2010-12), Cummins ISX12 CM2250 (2010-12). Always confirm the exact calibration and publication for your engine on the official Cummins engine support site before ordering parts.
Common causes and symptoms
This fault reports a bad intelligent device or component in the injector power supply and commands the red STOP lamp because injector operation is affected. Shop Talk in the document lists the most likely causes:
- An internal ECM injector power supply failure
- Poor power or ground supply to the ECM
Who needs the fault code 351 DTCs manual
Diesel technicians and workshop owners diagnosing Fault Code 351 on ISX11.9 CM2250 trucks need this manual to follow the guided steps, use the correct connector pins and verify the repair with INSITE electronic service tool instead of guessing.
Downloading the complete procedure gives you the exact wiring diagrams, connector pin identification and INSITE service-tool checks referenced throughout the document. The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
