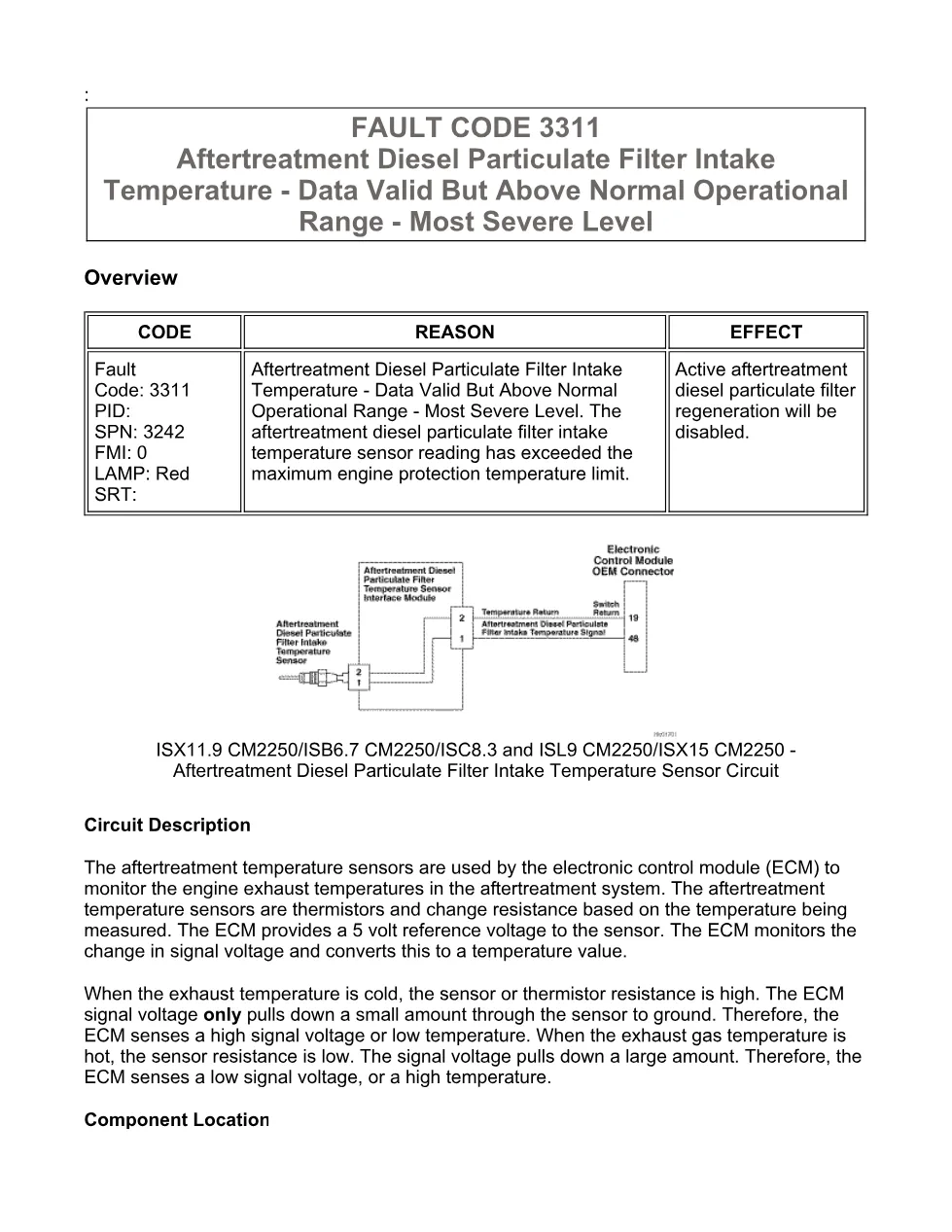

This fault code 3311 DTCs document is a troubleshooting PDF for aftertreatment diesel particulate filter intake temperature faults. It explains the circuit, diagnostic conditions, possible causes, guided checks, and repair validation for the Code 3311 complaint.
Official fault code 3311 DTCs document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB6.7 CM2250, with associated coverage shown for ISX11.9 CM2250, ISC8.3 and ISL9 CM2250, ISX15 CM2250, GX CM2250, QSL9 CM2250, and QSB6.7 CM2250 procedures |
| System/Group | ISB6.7 CM2250 (2010-12) / DTCs; aftertreatment diesel particulate filter intake temperature sensor circuit |
| Publication no. | Not specified in the extract; associated bulletin numbers include 4022254, 4022257, 4022250, 2883445, 4022256, and 4022255 |
| Year/Revision | Last modified 11-Jun-2010 and 18-Jan-2011; model year unknown |
| Pages | 13 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Overview
- Circuit Description
- Component Location
- FAULT CODE 3311

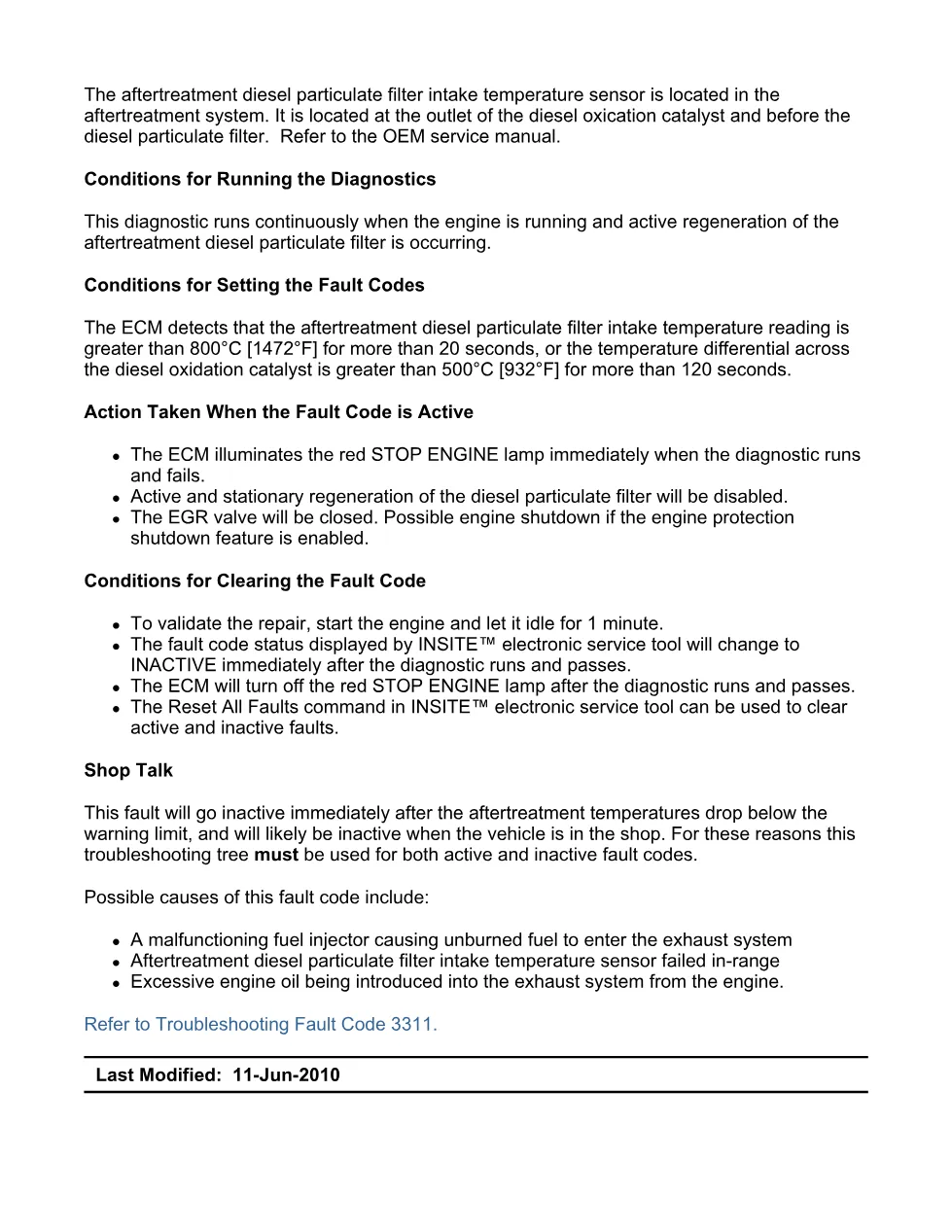

- Conditions for Running the Diagnostics
- Conditions for Setting the Fault Codes
- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code
- Shop Talk

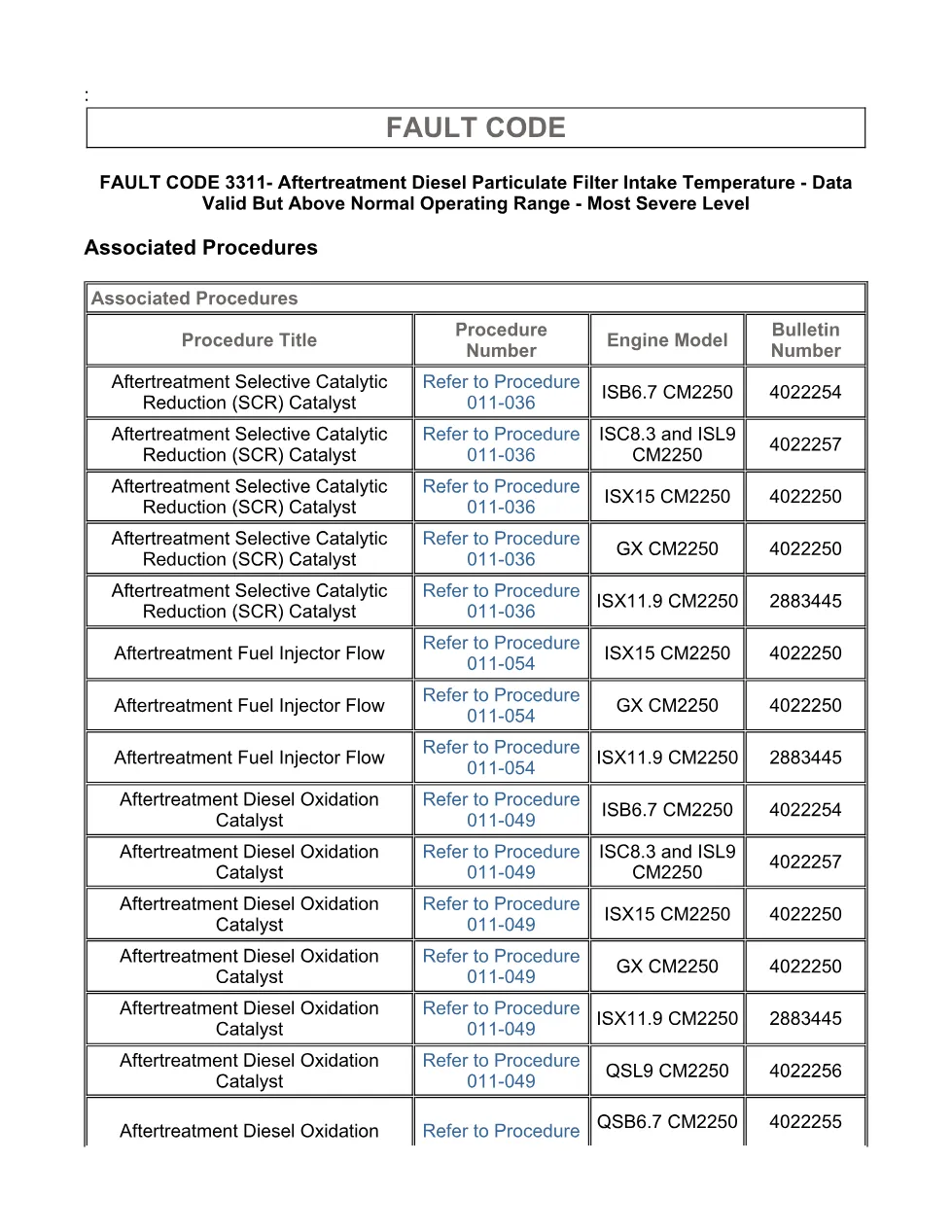

- Associated Procedures
- Troubleshooting Steps
- Guided Step 1 – Check the aftertreatment system.
- Guided Step 2 – Check the fuel system.
- Guided Step 4 – Check the aftertreatment fuel injector.
- Guided Step 5B – Inspect the aftertreatment diesel oxidation catalyst for cracks in the cell wall.
- Guided Step 6B – Disable the fault code.
Applicable truck models
The file is indexed under Cummins ISB6.7 CM2250 DTCs and the extract also lists related CM2250 engine applications for shared aftertreatment procedures: ISX11.9 CM2250, ISC8.3 and ISL9 CM2250, ISX15 CM2250, GX CM2250, QSL9 CM2250, and QSB6.7 CM2250. The fault concerns the aftertreatment diesel particulate filter intake temperature sensor located at the outlet of the diesel oxidation catalyst and before the diesel particulate filter, with OEM service manual guidance required for exact vehicle location. See the manufacturer at Cummins official website.
Who needs this fault code 3311 DTCs manual
This manual is useful for diesel technicians, fleet workshops, and repair shops diagnosing a red STOP ENGINE lamp with SPN 3242 FMI 0. It supports checks with INSITE™ electronic service tool, aftertreatment exhaust gas temperature sensor comparison, injector misfire inspection, turbocharger outlet contamination inspection, aftertreatment fuel injector leak testing, diesel oxidation catalyst inspection, ECM calibration review, and final fault clearing.
The PDF describes a fault that sets when the aftertreatment diesel particulate filter intake temperature is above the maximum engine protection temperature limit. It notes that active and stationary regeneration are disabled, the EGR valve is closed, and engine shutdown is possible if protection shutdown is enabled. Possible causes include a malfunctioning fuel injector allowing unburned fuel into the exhaust, an in-range failed temperature sensor, and excessive engine oil entering the exhaust system.
