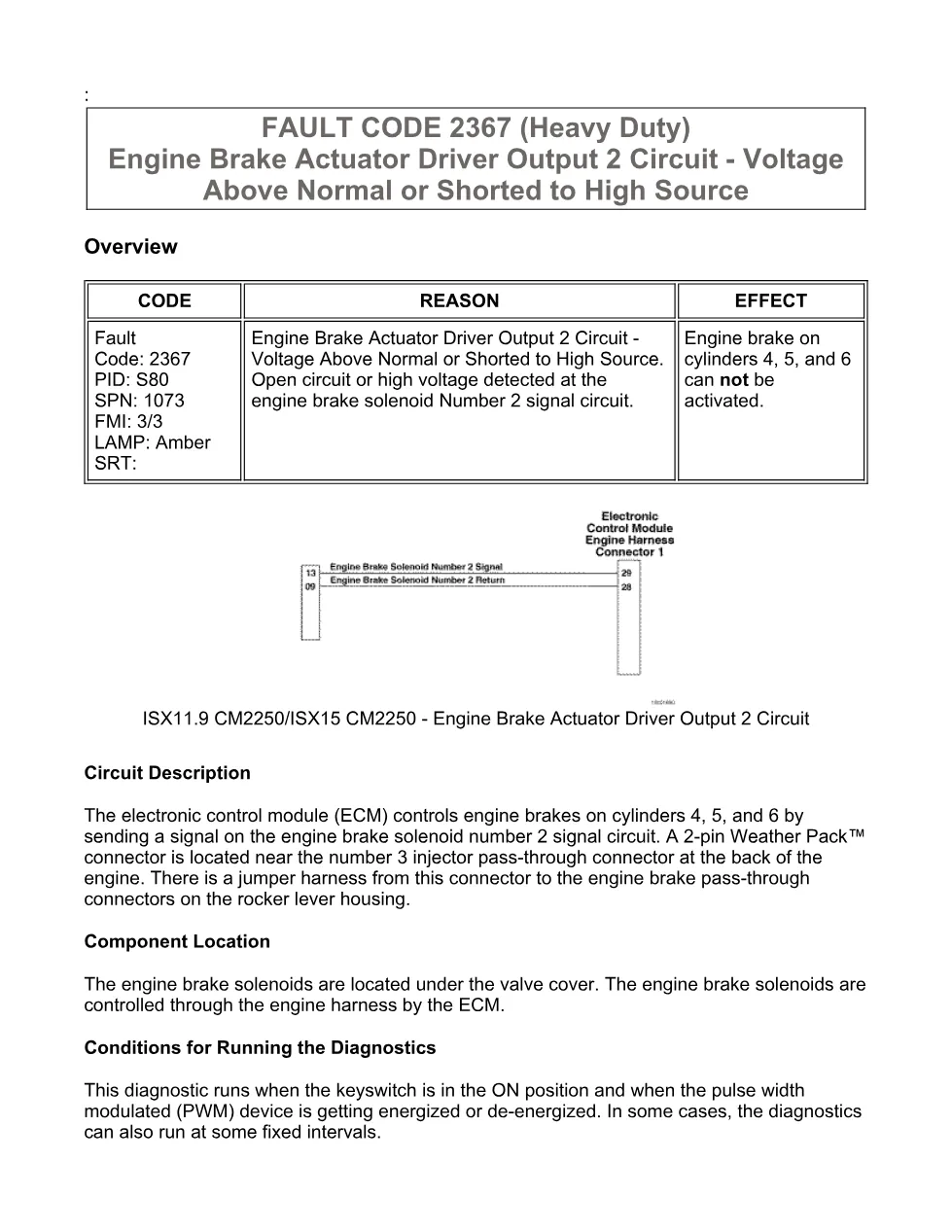

fault code 2367 DTCs is documented in this official Cummins ISX11.9 CM2250 diagnostic and troubleshooting manual. The 28-page PDF explains the Engine Brake Actuator Driver Output 2 Circuit – Voltage Above Normal or Shorted to High Source condition on the engine brake actuator driver output 2 circuit, including the SPN, FMI and PID identifiers a technician reads with the Cummins INSITE electronic service tool.
fault code 2367 DTCs document details
| Brand | Cummins |
| Model coverage | ISX11.9 CM2250 and ISX15 CM2250 |
| System / group | Engine brake actuator driver output 2 circuit |
| Fault code | 2367 (PID S80) |
| SPN | SPN 1073 |
| FMI | FMI 3/3 |
| Warning lamp | Amber |
| Pages | 28 |
| Revision | Last modified 28-Dec-2010 |
| Format | |
| Language | English |

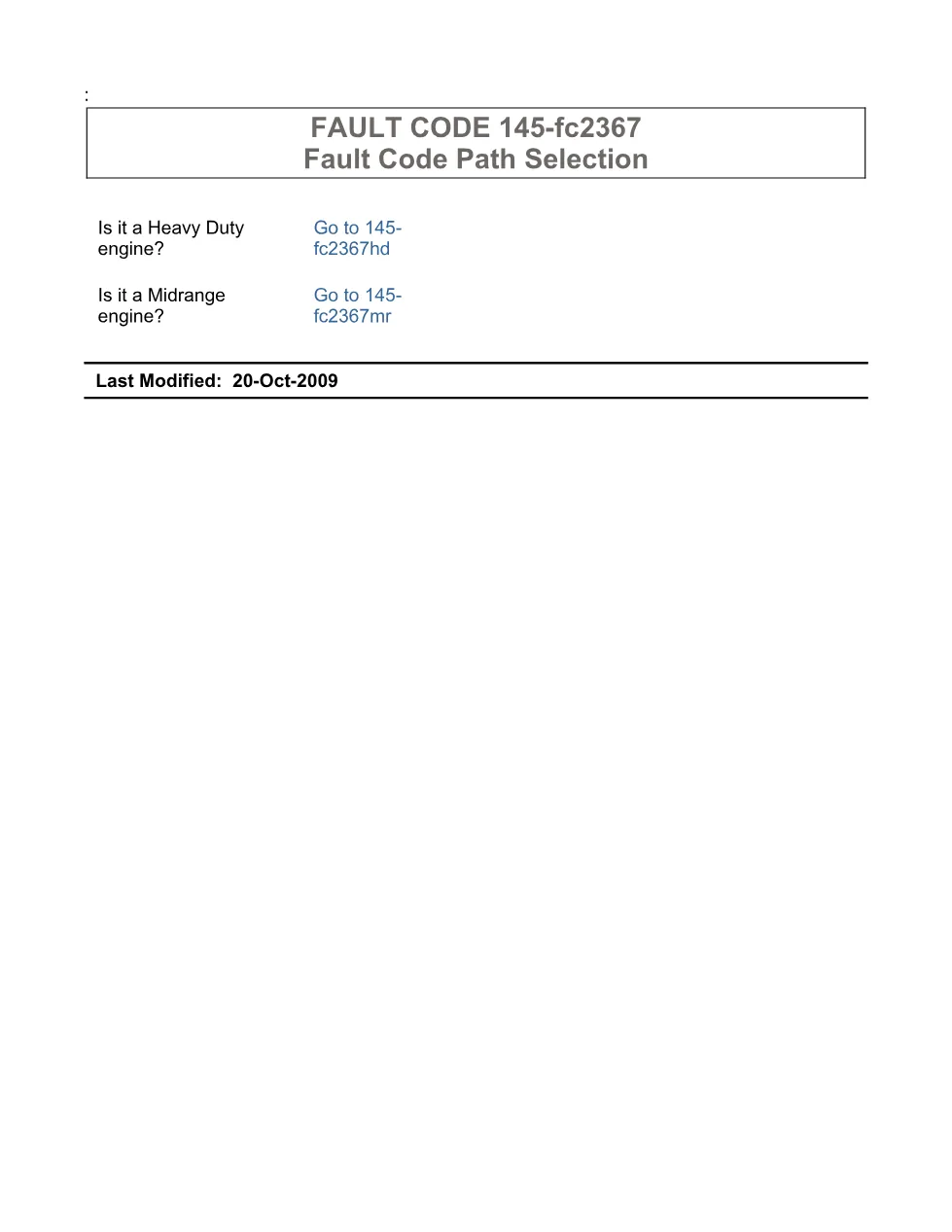

Document table of contents
- Circuit description and component location
- Conditions for running the diagnostics

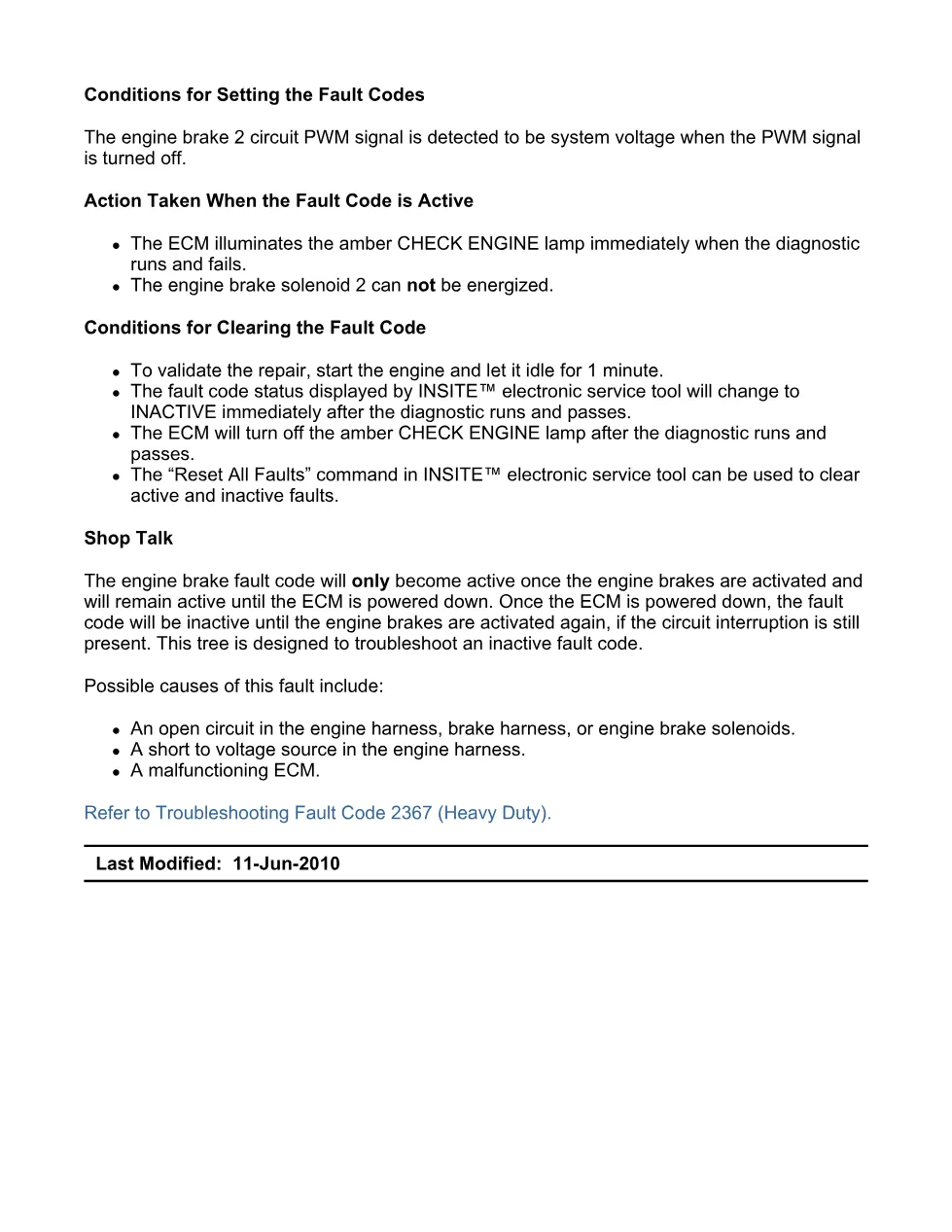

- Conditions for setting the fault code
- Action taken when the fault code is active
- Conditions for clearing the fault code
- Shop Talk and possible causes
- Associated procedures table
- Guided troubleshooting steps
Common causes and symptoms
- An open circuit at the engine brake solenoid number 2 signal circuit
- High voltage on the engine brake number 2 signal circuit
Applicable truck models and engines
This document applies to the ISX11.9 CM2250 and ISX15 CM2250 engine families running the CM2250 electronic control module. When SPN 1073 / FMI 3/3 sets, the engine brake on cylinders 4, 5, and 6 cannot be activated. Coverage and part numbers should always be verified against current service data on the Cummins official support site before ordering components.
Who needs this fault code 2367 DTCs manual
Fleet technicians, mobile mechanics and workshop owners use this code 2367 DTCs reference to confirm the engine brake solenoid number 2 diagnosis before replacing parts, and to follow the same clearing steps Cummins publishes for INSITE. Reading the live data and freeze-frame with INSITE before any parts replacement helps avoid unnecessary repairs and repeat shop visits. The revision date of 28-Dec-2010 and the SPN, FMI and PID values make it a reliable bench reference for ISX11.9 CM2250 diagnostics.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
