fault code 222 DTCs manual — Barometric Pressure Sensor – PDF

The fault code 222 DTCs troubleshooting manual is the official Cummins procedure for diagnosing Barometric Pressure Sensor Circuit – Voltage Below Normal or Shorted to Low Source. The amber warning lamp behaviour, the exact conditions that set and clear the code, and the guided steps that isolate the Barometric Pressure Sensor Circuit are documented in order.

fault code 222 DTCs document details

Brand Cummins
Model coverage Cummins ISX11.9 CM2250 (2010-12), ISX12 CM2250 (2010-12) engines
System / Group ISX11.9 CM2250 (2010-12) / DTCs
Fault code 222 — SPN 108, FMI 4/4
PID P108
Warning lamp Amber
Year / Revision 2010-12 (CM2250)
Pages 34
File size 0.6 MB
Format PDF
Language English

Document table of contents

  • Overview and Circuit Description
  • Component Location
  • Conditions for Running the Diagnostics
  • Conditions for Setting the Fault Codes
  • Action Taken When the Fault Code is Active
  • Associated Procedures and Troubleshooting Steps
  • Guided circuit-response and connector checks
  • Conditions for Clearing the Fault Code

Applicable truck models covered

This document applies to Cummins ISX11.9 CM2250 (2010-12), ISX12 CM2250 (2010-12) engines, within the shared Cummins CM2250 platform diagnostics. The guided steps rely on the Cummins INSITE electronic service tool to read active fault codes, monitor sensor data and confirm the repair once the Barometric Pressure Sensor Circuit has been serviced. Always confirm engine and calibration coverage against the official Cummins engine support site before ordering parts.

Who needs this fault code 222 DTCs manual

Diesel technicians and workshop owners servicing Cummins CM2250 platform engines use this file to work SPN 108, FMI 4/4 in the correct order instead of guessing at parts. It lists every conditions block, associated procedure and guided circuit-response check, with the connector and harness inspection points and the specification each step expects. Following the troubleshooting steps in sequence keeps the repair accountable and lets the technician confirm the fault is inactive once verified with the Cummins INSITE electronic service tool.

The full PDF, including the complete guided troubleshooting tree and specifications, is available in the DiagTechPro manuals library; a free account is required to download it.

fault code 222 DTCs manual — Barometric Pressure Sensor – PDF 1 / 6

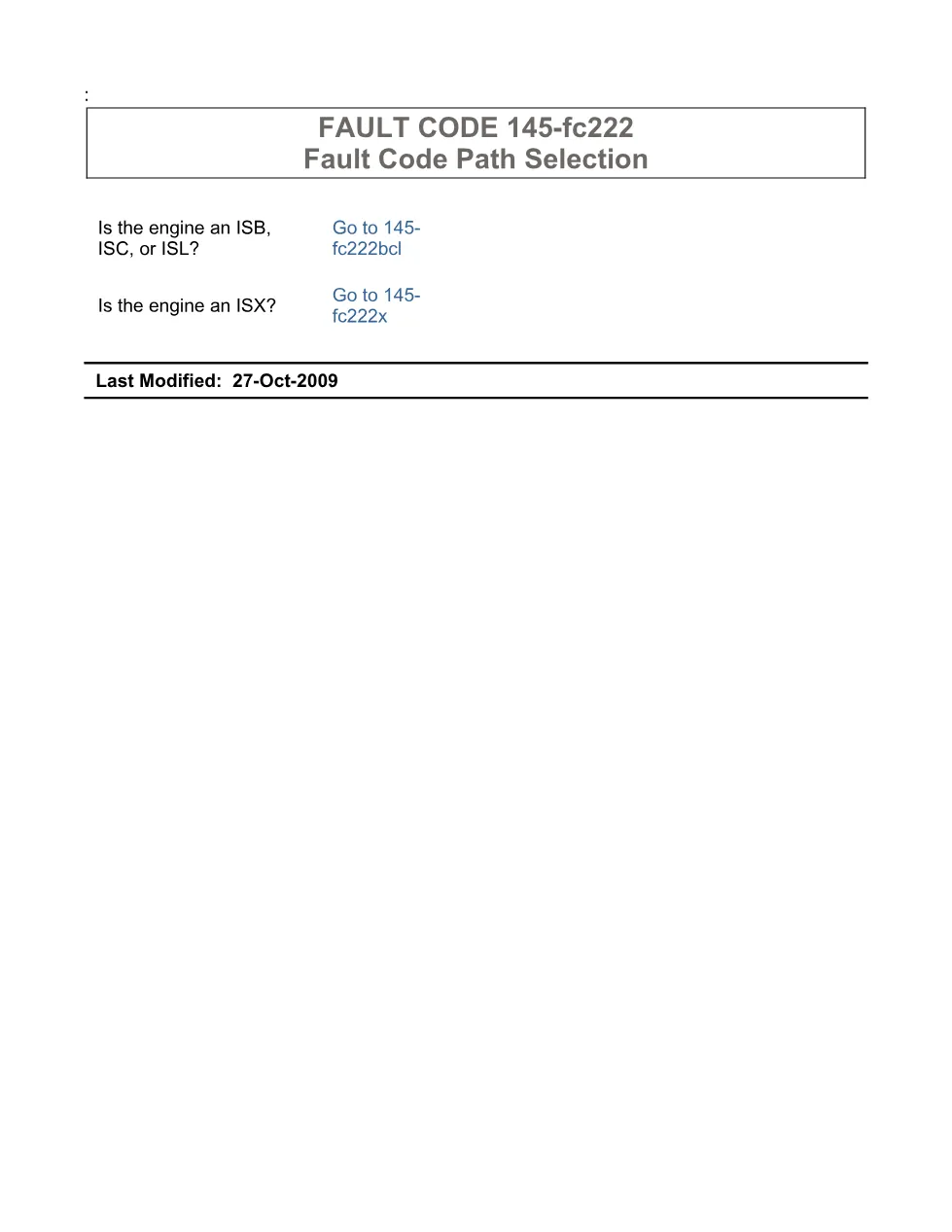

fault code 222 DTCs manual — Barometric Pressure Sensor – PDF - preview page 1 of 6

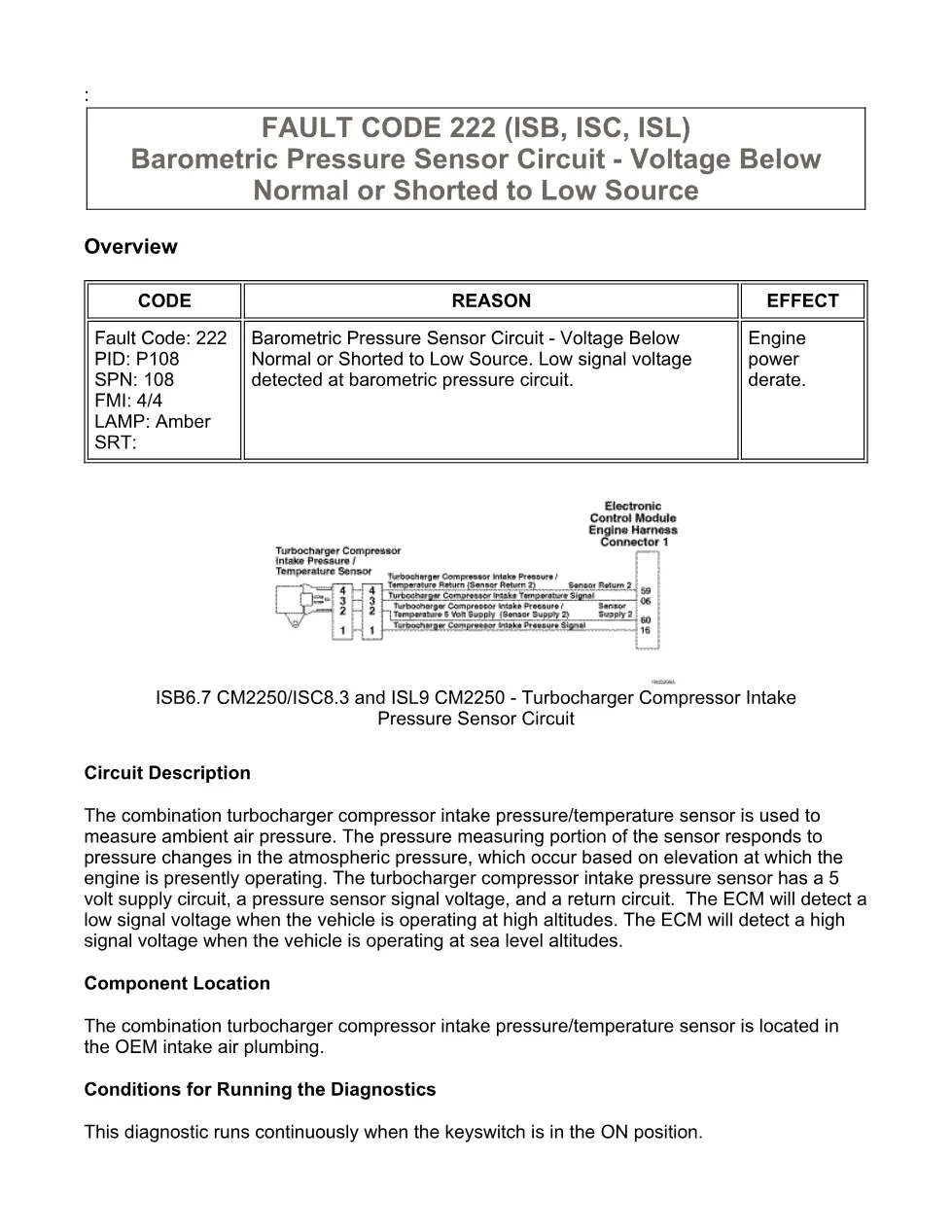

fault code 222 DTCs manual — Barometric Pressure Sensor – PDF - preview page 2 of 6

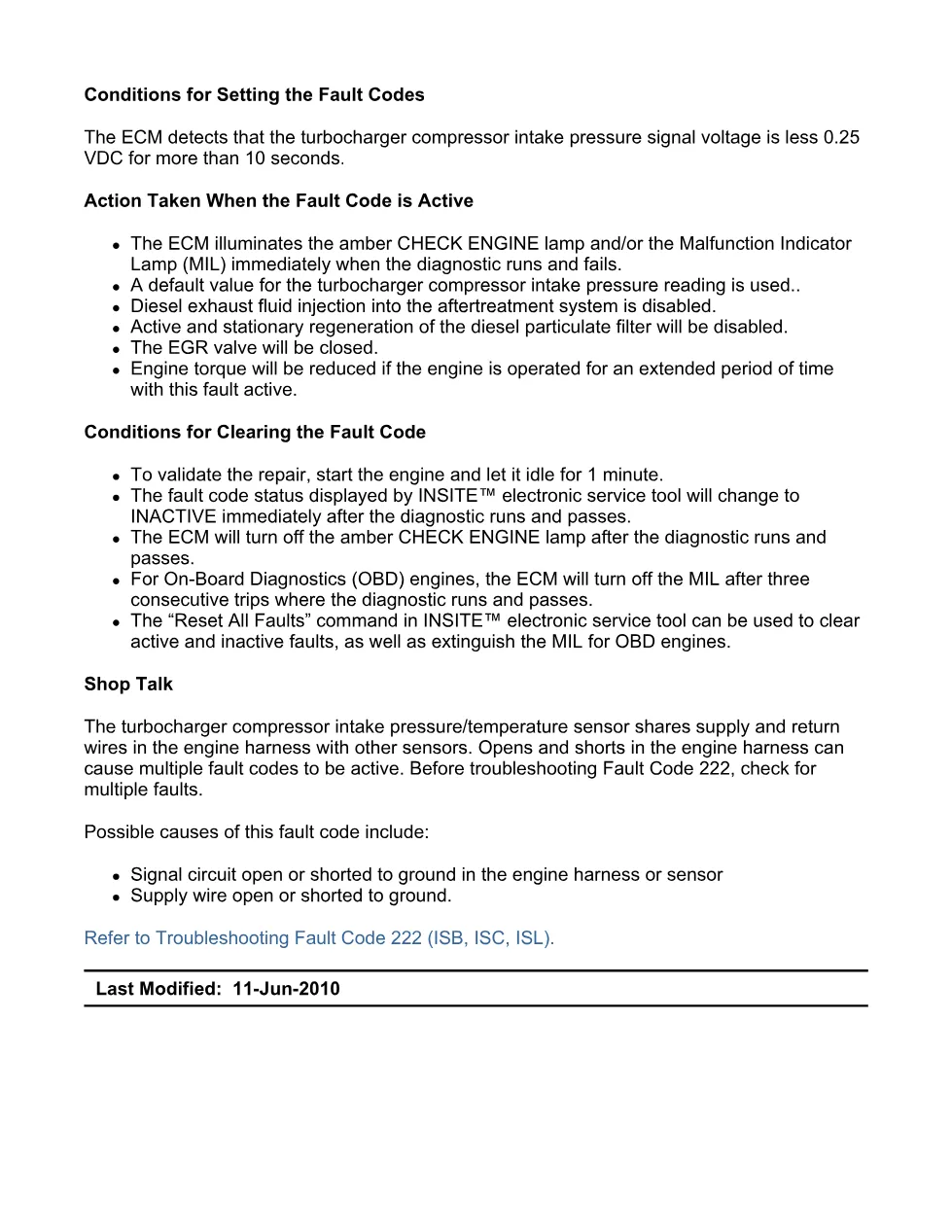

fault code 222 DTCs manual — Barometric Pressure Sensor – PDF - page 3 is available after signing in
Free preview - 2 of 6 pages. Sign in to download the full PDF. Create a free account to download the full PDFNo credit card required · Instant download
