Cummins vehicle speed sensor troubleshooting is covered in this 7-page Fault Code 241 PDF for the ISB CM550 vehicle speed sensor circuit. The document identifies PID P084, SPN 084, FMI 2, describes VSS operation, and gives step-by-step checks for sensor adjustment, resistance, shorts, OEM harness interference, and final fault clearing.
Official Cummins vehicle speed sensor document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB CM550 (1990-94) |
| System/Group | DTCs; Vehicle Speed Sensor Circuit |
| Year/Revision | Unknown |
| Pages | 7 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Document table of contents
- FAULT CODE: 241
- PID: P084
- SPN: 084
- FMI: 2

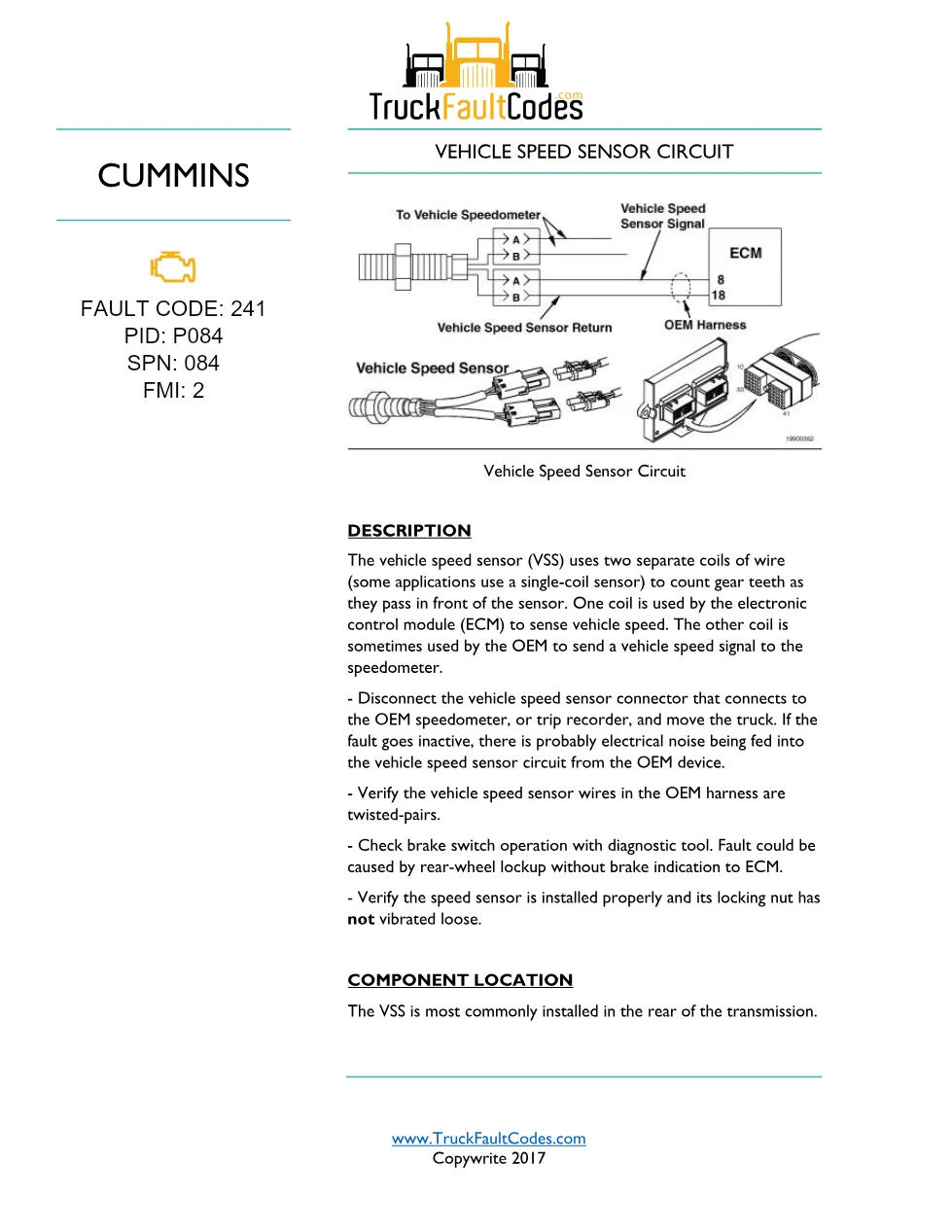

- VEHICLE SPEED SENSOR CIRCUIT
- DESCRIPTION
- COMPONENT LOCATION
- TROUBLESHOOTING STEPS
- Step 1A: Inspect the OEM harness and sensor connectors

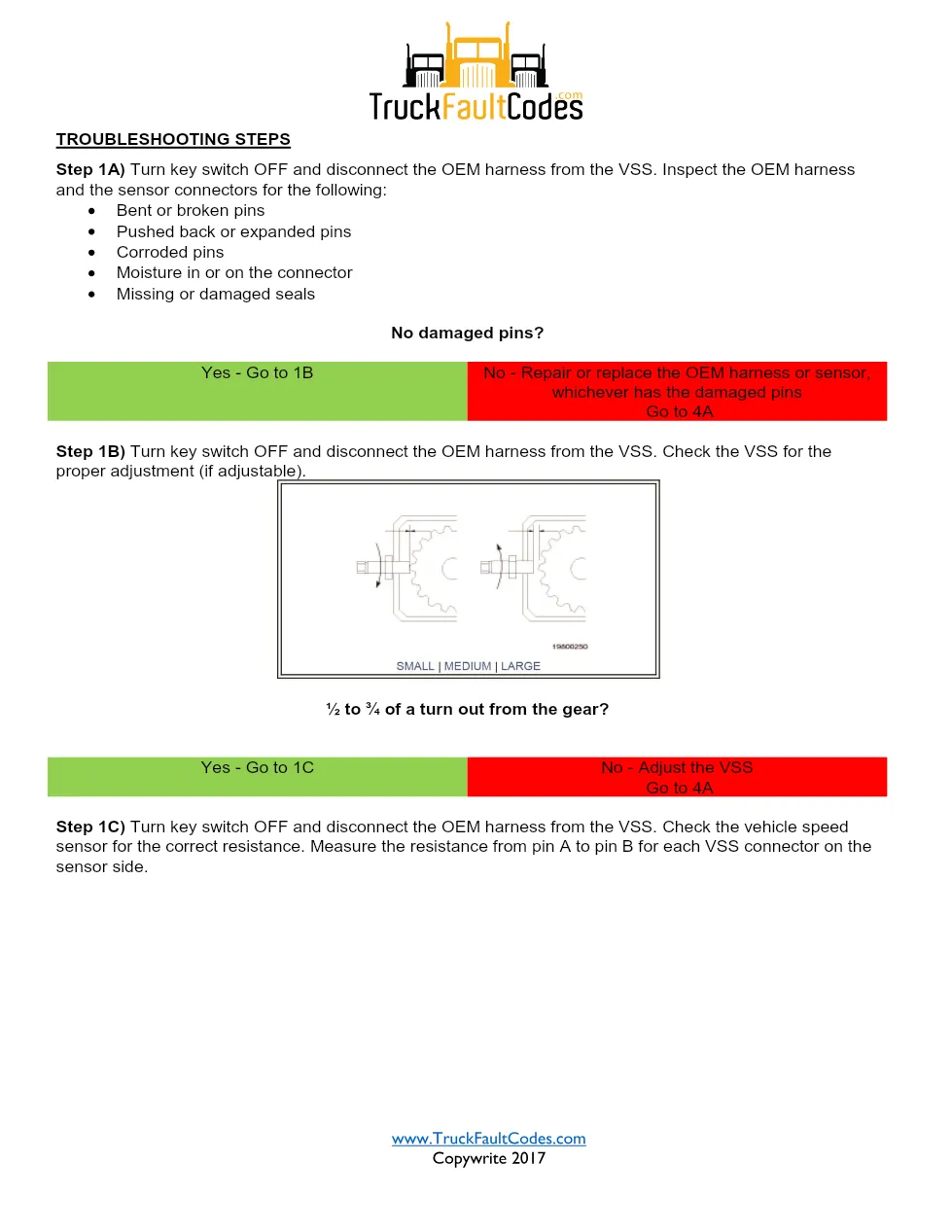

- Step 1B: Check the VSS for the proper adjustment

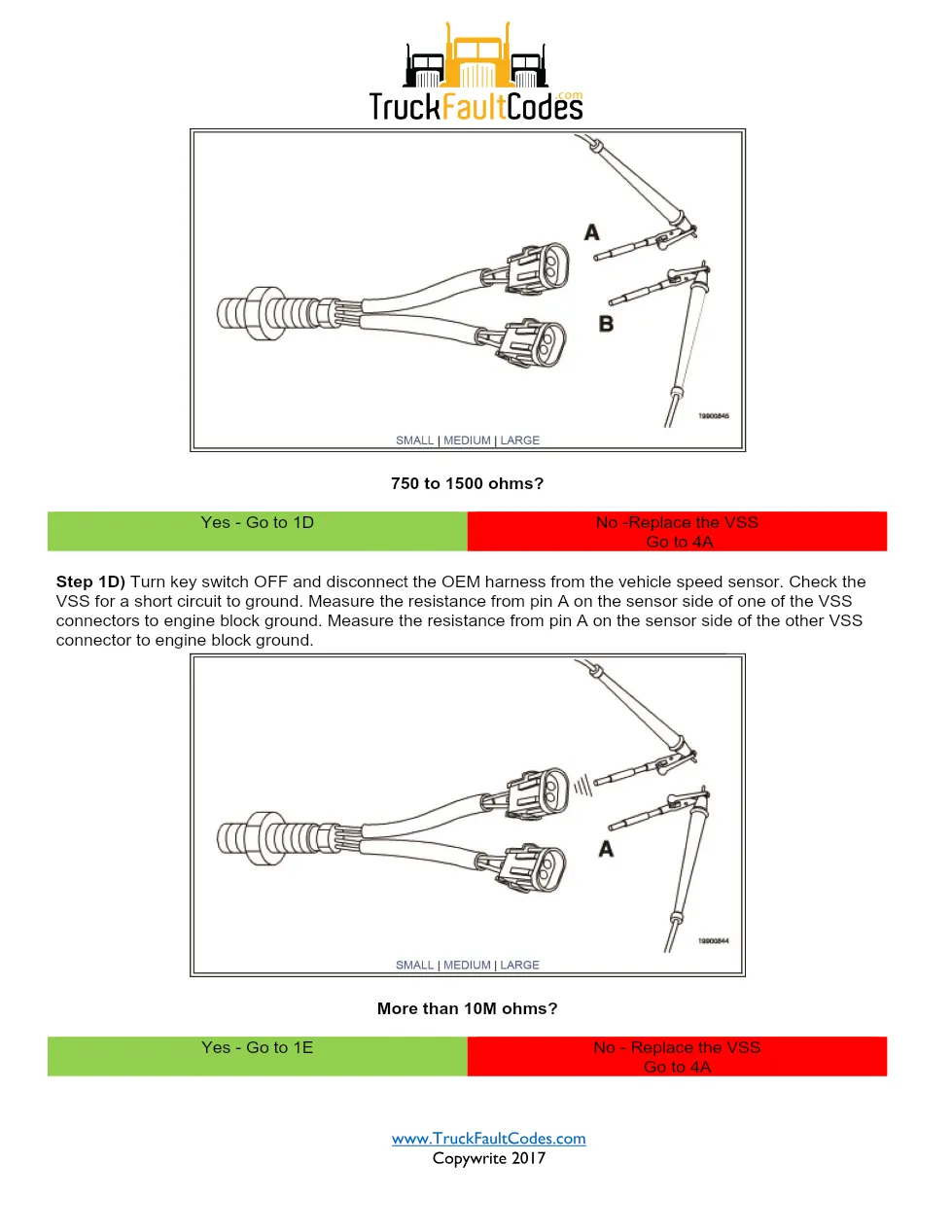

- Step 1C: Check the vehicle speed sensor for the correct resistance
- Step 1D: Check the VSS for a short circuit to ground
- Step 1E: Check the VSS for a short circuit between coils
- Step 2A: Inspect the harness and the ECM connectors
- Step 2B: Check for the correct circuit resistance
- Step 2C: Check the harness for a short circuit to ground
- Step 2D: Check for a short circuit from pin to pin
- Step 3A: Check for an external recording device or similar devices
- Step 3B: Check for the transmission tail shaft gear slipping on its shaft
- Step 3C: Check for interference on the OEM harness
- Step 3C-1: Drive the vehicle and verify Fault Code is inactive
- Step 4A: Disable the fault code and drive the vehicle
- Step 4B: Clear the inactive fault codes using the diagnostic tool
Applicable truck models
This file applies to Cummins ISB CM550 engines in the 1990-94 group where Fault Code 241 is logged for the vehicle speed sensor circuit. The extract states that the VSS is most commonly installed in the rear of the transmission, and the checks reference the OEM harness, ECM connector pins 8 and 18, speedometer connector, transmission tail shaft gear, and test drives above 16 kph [10 mph]. See the manufacturer information at Cummins official site.
Who needs this Cummins vehicle speed sensor manual
This manual is useful for diesel technicians, fleet maintenance staff, and workshop owners diagnosing an active or inactive Fault Code 241 on an ISB CM550. It supports connector inspection, VSS resistance testing from pin A to pin B, ground-short checks, OEM harness replacement decisions, interference isolation with twisted jumper wires, and repair verification with a diagnostic tool.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
