Cummins M11 code 434 — Unswitched Battery Supply Circuit (S251,

This Cummins M11 code 434 sheet documents the unswitched battery supply circuit fault (PID S251, SPN 627, FMI 4, SRT 00-614) on the CELECT Plus engine. It is a 6-page yellow-lamp troubleshooting chart covering constant and switched battery inputs.

Official document details

Document table of contents

• Circuit description
• Component location
• Shop talk diagnostic notes
• Step-by-step troubleshooting
• Fault verification and clearing codes

Cummins M11 code 434 diagnosis

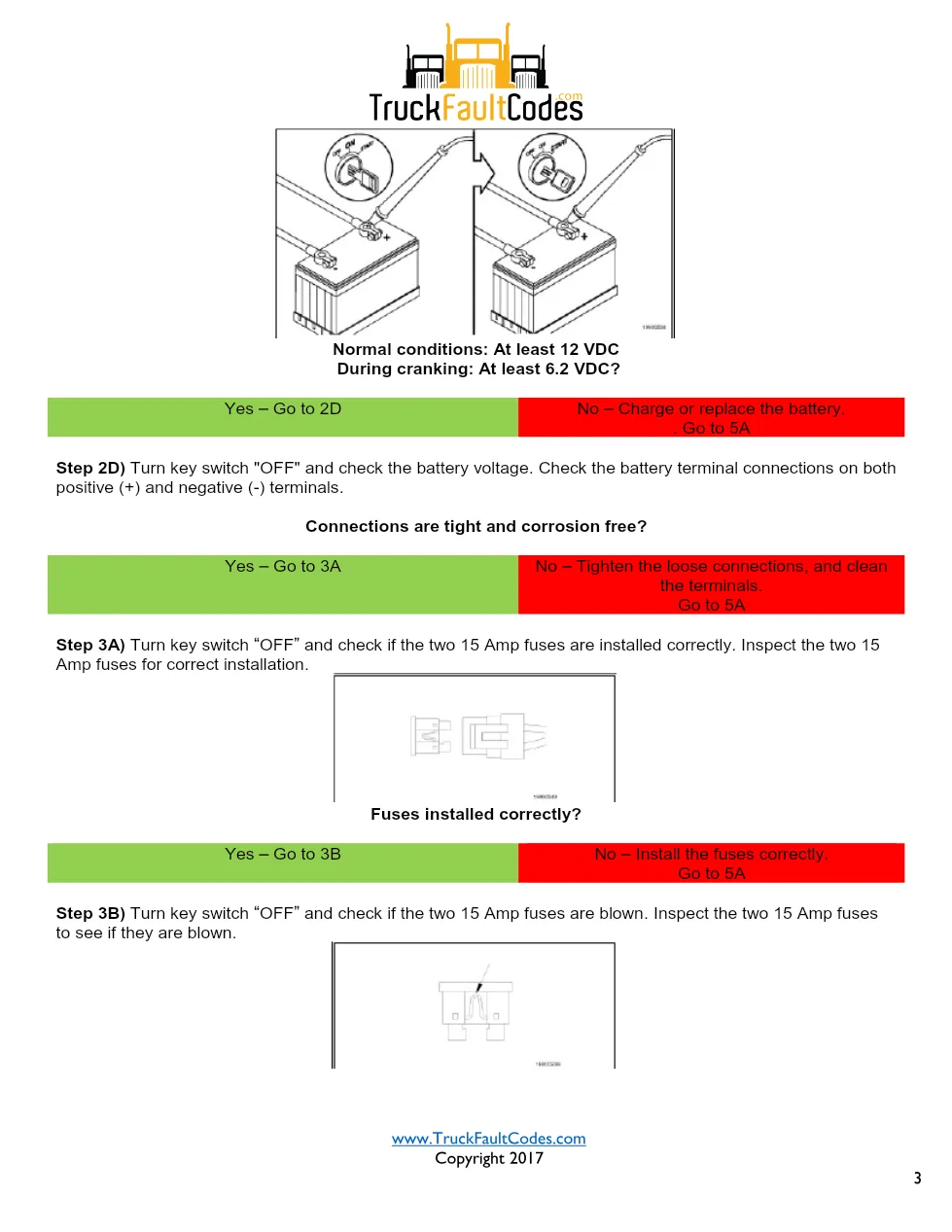

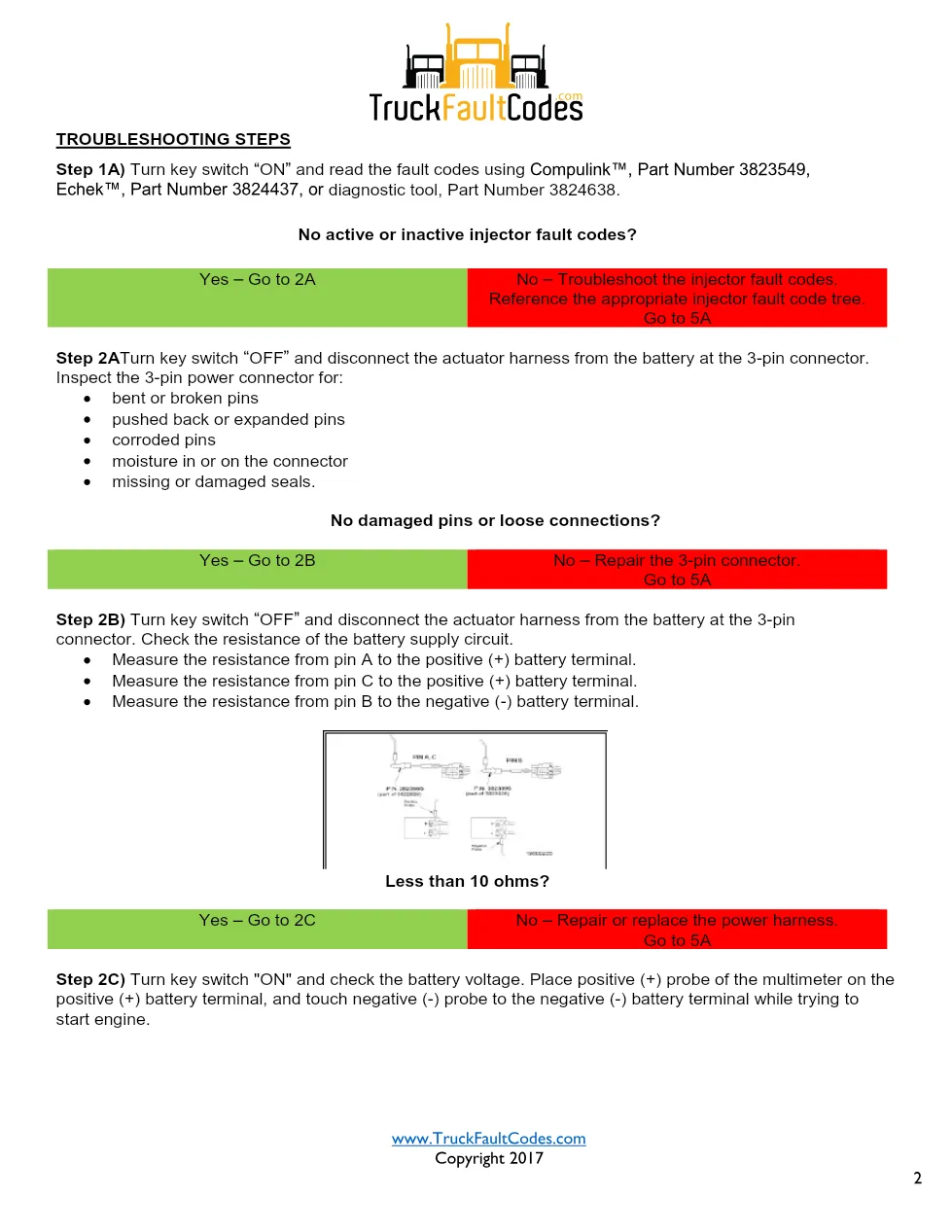

The ECM receives constant voltage from the batteries through unswitched wires tied directly to the positive battery post, protected by two in-line 15 Amp fuses, and switched input through the vehicle keyswitch wire; the return wires connect to the negative post. Shop talk directs the technician to examine the injector pigtail nuts for correct torque and check that the pigtail nuts and solenoid posts have undamaged threads, and it warns against taking the ECM supply from the starter. The steps then move through battery-post and harness inspection with reference to the OEM manual.

Applicable truck models

Coverage is the Cummins M11 CELECT Plus (1995-98) engine and actuator harness. Confirm torque values and wiring routing on the official Cummins website.

Who needs this M11 code 434 manual

Technicians diagnosing supply-voltage faults, loose injector pigtail nuts, or starter-sourced power errors on M11 CELECT Plus trucks use this chart.

The full PDF is available in the DiagTechPro manuals library; a free account is required to download.

Applies to these truck models

This is the manufacturer document shared across 2 model families. It applies to:

• Cummins DTCs
• Cummins M11 CELECT Plus (1995-98)

Related manuals library

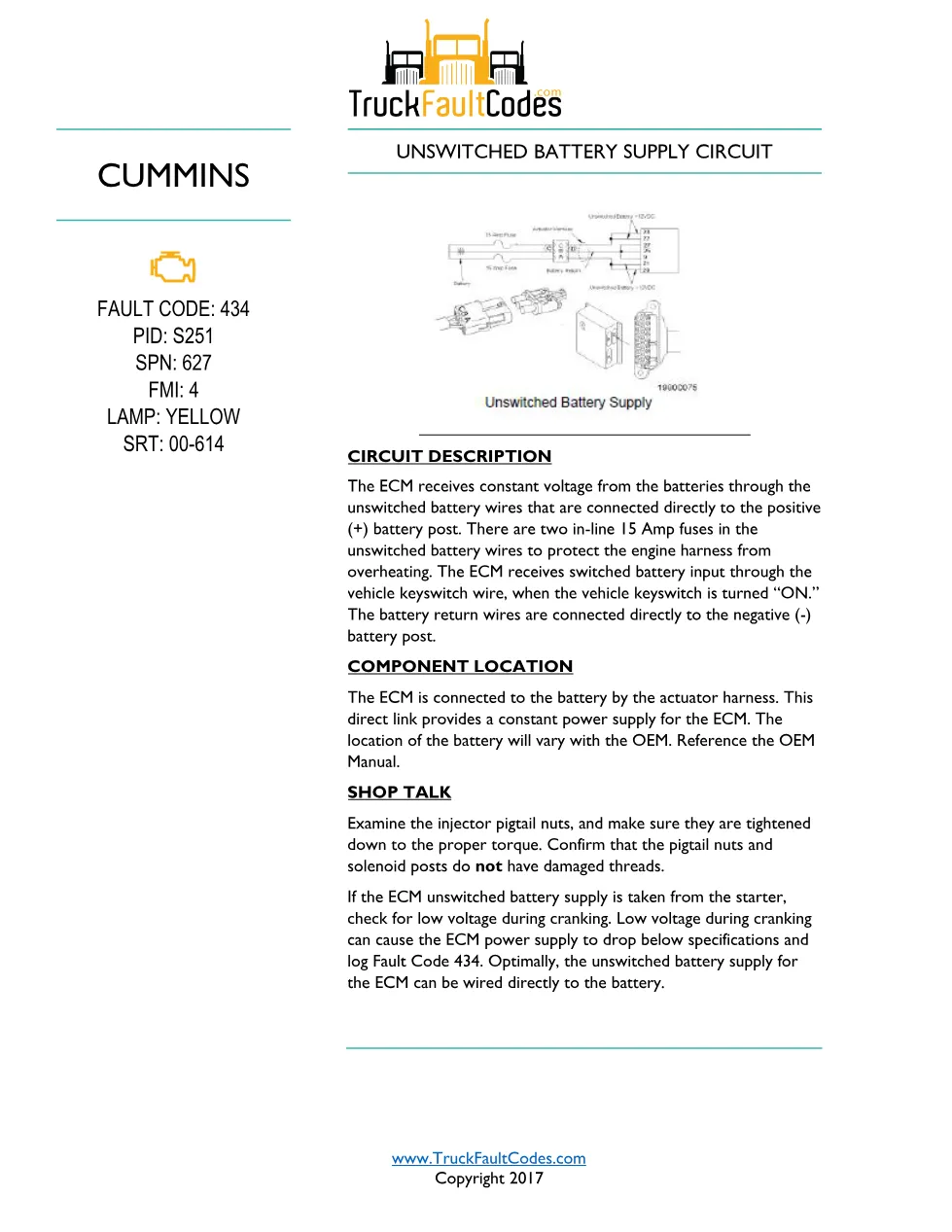

Cummins M11 code 434 — Unswitched Battery Supply Circuit (S251, 1 / 6 − +
