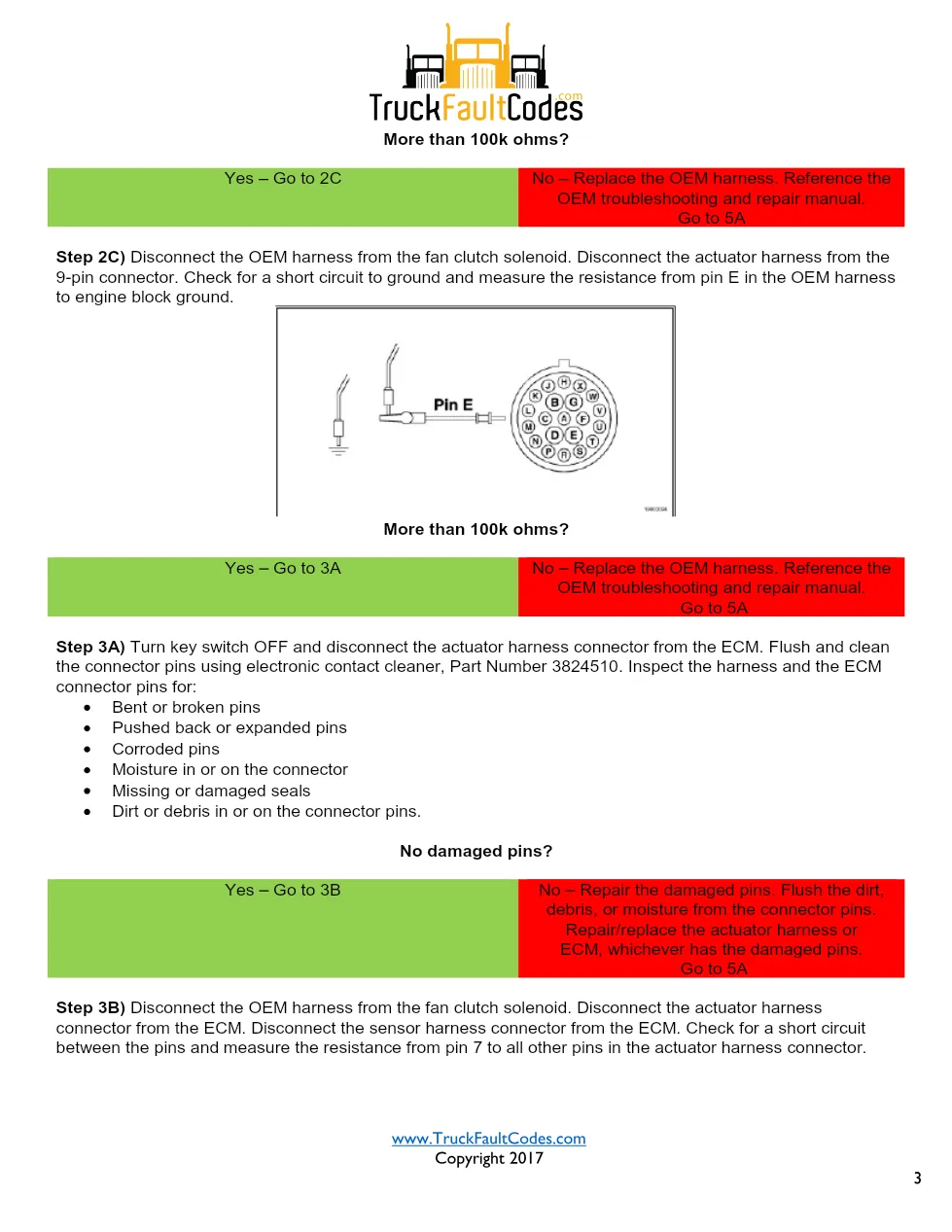

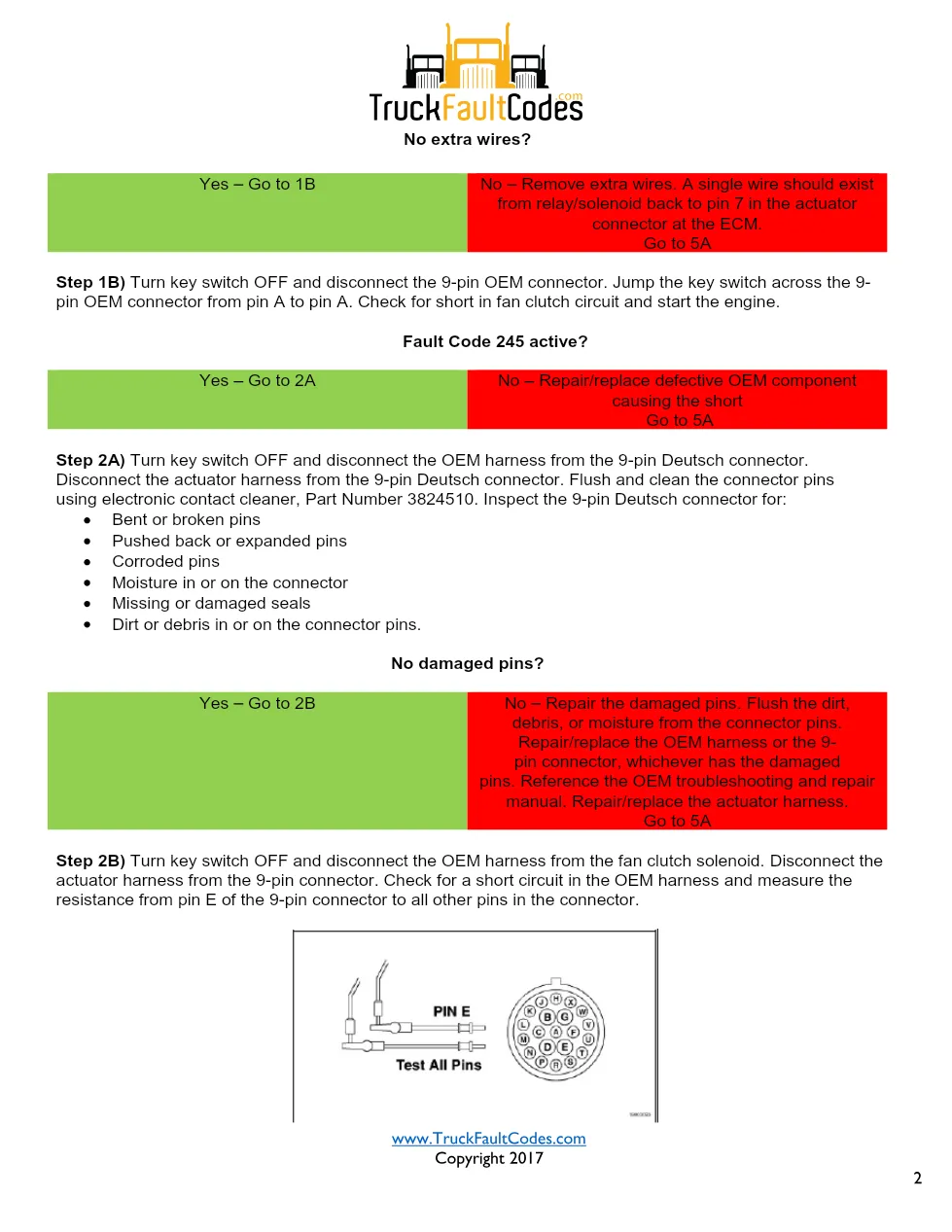

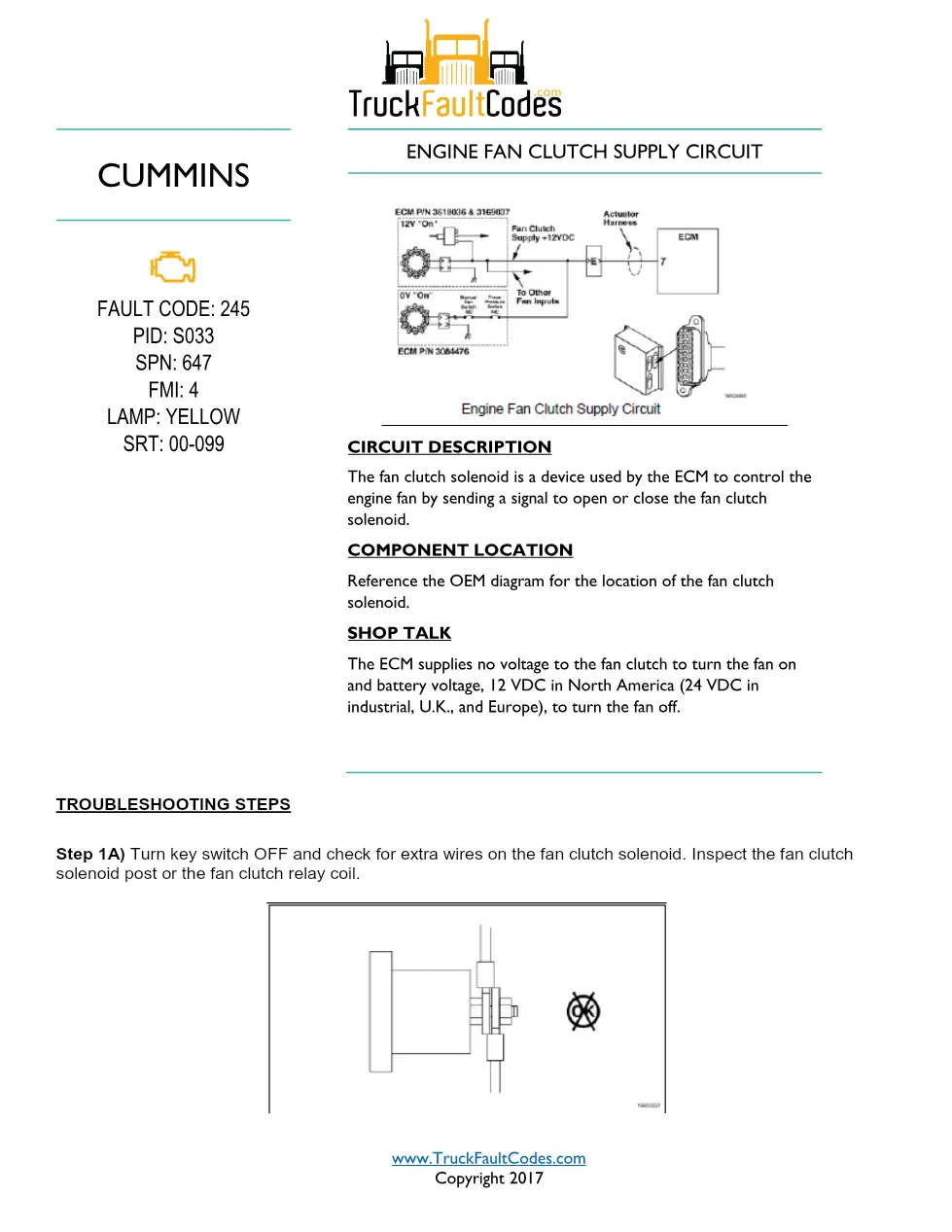

The Cummins M11 code 245 troubleshooting document is a 5-page factory-style fault code guide covering the engine fan clutch supply circuit (PID S033, SPN 647, FMI 4) on Cummins CELECT engines. The fan clutch solenoid lets the ECM control the engine fan by signalling the solenoid to open or close; the OEM diagram gives its location on the vehicle. It reproduces the circuit description, component location and the full step-by-step diagnostic procedure a technician follows to confirm the fault and verify the repair. The guide moves through connector inspection, harness continuity and resistance measurements, sensor and ECM checks, and then explains how to disable, re-run and clear the code once the repair has been confirmed on a diagnostic tool.
Cummins M11 code 245 document details
| Brand | Cummins |
| Model coverage | M11 CELECT (1990-94) |
| System / Group | Engine Fan Clutch Supply Circuit |
| Fault code identifiers | Fault Code 245 · PID S033 · SPN 647 · FMI 4 · Yellow lamp · SRT 00-099 |
| Source publication | TruckFaultCodes.com (Copyright 2017) |
| Year / Revision | 1990-94 platform |
| Pages | 5 |
| File size | 0.3 MB |
| Format | |
| Language | English |
