Cummins ISX11.9 code 2183 is the diagnostic fault code for the engine brake actuator driver 1 circuit reading below normal (Heavy Duty), and this page describes the official Cummins troubleshooting document for it. This fault is reported as SPN 1072 / FMI 4, and PID S079. The 29-page PDF gives the circuit description, the conditions that set fault code 2183, the action taken when it is active, and the guided troubleshooting steps needed to confirm and repair it.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISX11.9 CM2250 (2010-12), ISX12 CM2250 (2010-12) |
| System / Group | DTCs — Fault Code 2183 |
| SPN / FMI | 1072 / 4 |
| PID | S079 |
| Warning lamp | Amber |
| Pages | 29 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Document table of contents

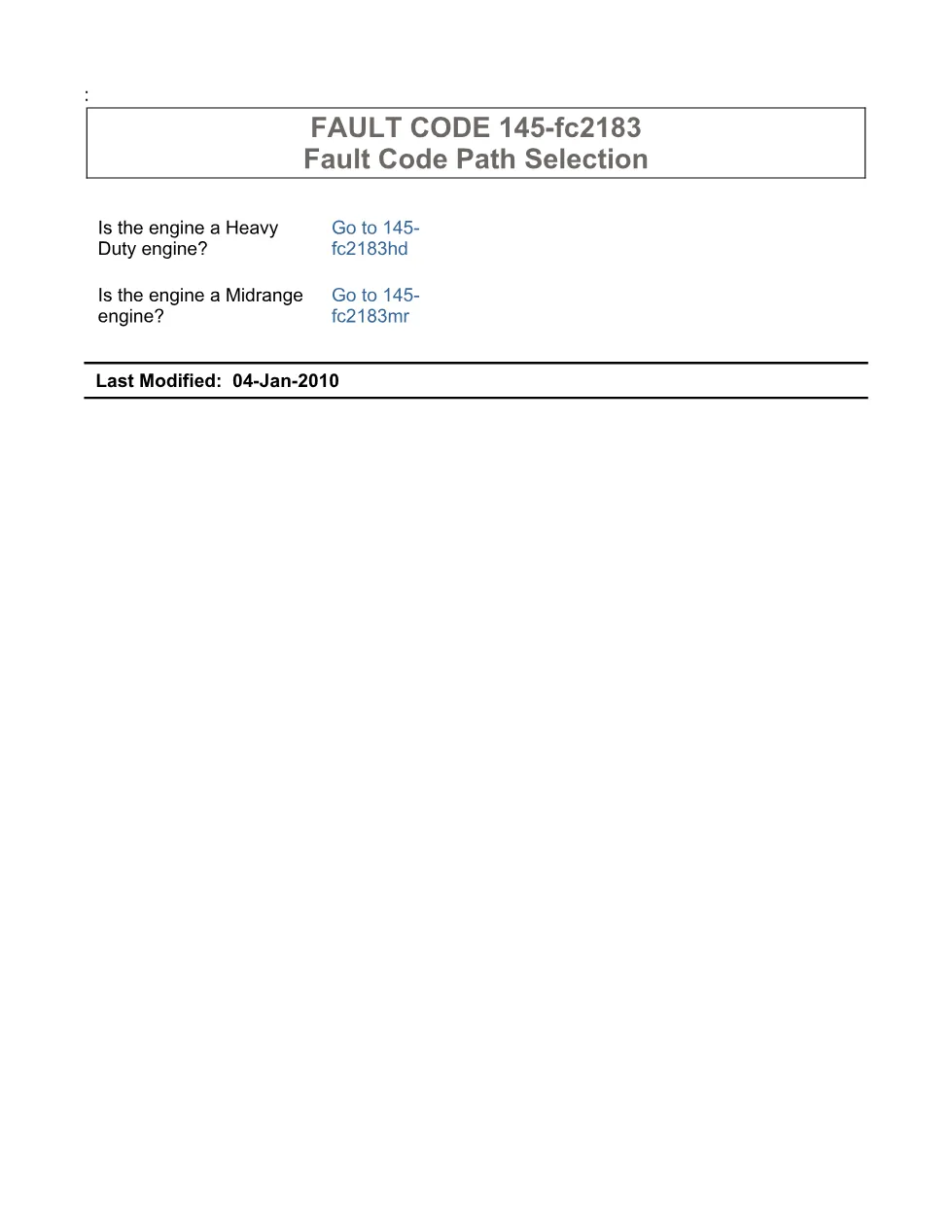

- Overview and circuit description
- Fault code 2183 — reason, cause and effect
- Conditions for running the diagnostics

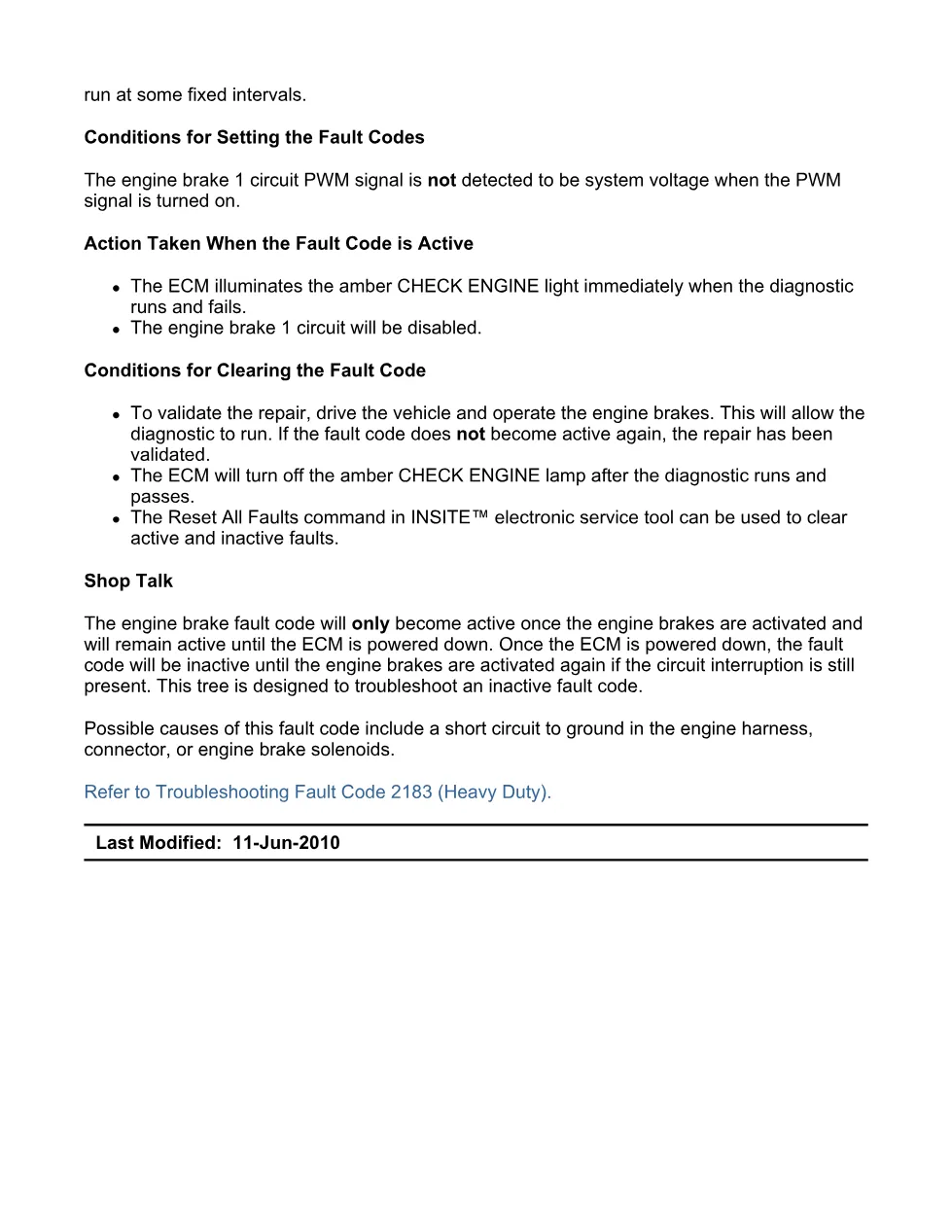

- Conditions for setting the fault code
- Action taken when the fault code is active
- Conditions for clearing the fault code
- Shop Talk — possible causes
- Associated procedures and guided troubleshooting steps
Cummins ISX11.9 code 2183 coverage

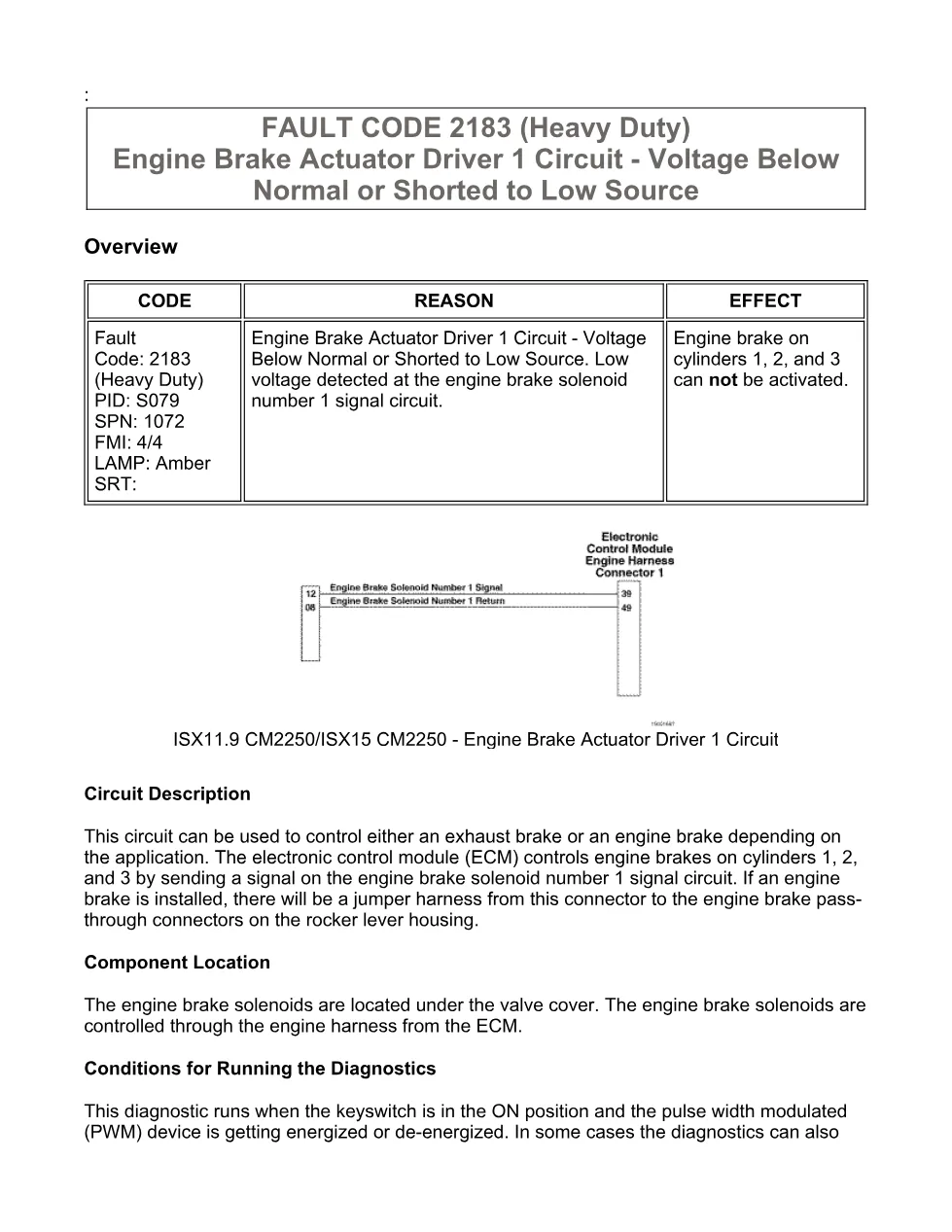

This circuit can control either an exhaust brake or an engine brake; the ECM operates the engine brakes on cylinders 1, 2, and 3 through the engine brake solenoid number 1 signal circuit. The procedure covers ISX11.9 CM2250 (2010-12) and ISX12 CM2250 (2010-12) engines and is shared across the CM2250 engine family listed in the associated procedures table. Cummins publishes the full specifications and service procedures for this engine family; see the manufacturer at Cummins.
The document lists the possible causes the factory tree checks:
- a short circuit to ground in the engine harness or connector
- a fault in the engine brake solenoids
- a malfunctioning engine brake actuator circuit
Who needs this Cummins ISX11.9 code 2183 manual
Fleet technicians and workshop owners will use this guide to read the amber-lamp fault with the INSITE electronic service tool, inspect the engine brake actuator circuit and its wiring, and decide whether the sensor, harness, or ECM is at fault. Confirm ISX11.9 code 2183 against live data before replacing any part, and follow the guided troubleshooting steps in the order the document gives them.
