Cummins ISX11.9 code 1981 is the diagnostic fault code for the aftertreatment diesel particulate filter system reading above the normal range, and this page describes the official Cummins troubleshooting document for it. This fault is reported as SPN 3936 / FMI 15. The 12-page PDF gives the circuit description, the conditions that set fault code 1981, the action taken when it is active, and the guided troubleshooting steps needed to confirm and repair it.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISX11.9 CM2250 (2010-12), ISX12 CM2250 (2010-12) |
| System / Group | DTCs — Fault Code 1981 |
| SPN / FMI | 3936 / 15 |
| PID | Not listed |
| Warning lamp | Amber |
| Pages | 12 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Overview and circuit description
- Fault code 1981 — reason, cause and effect
- Conditions for running the diagnostics
- Conditions for setting the fault code
- Action taken when the fault code is active
- Conditions for clearing the fault code
- Shop Talk — possible causes

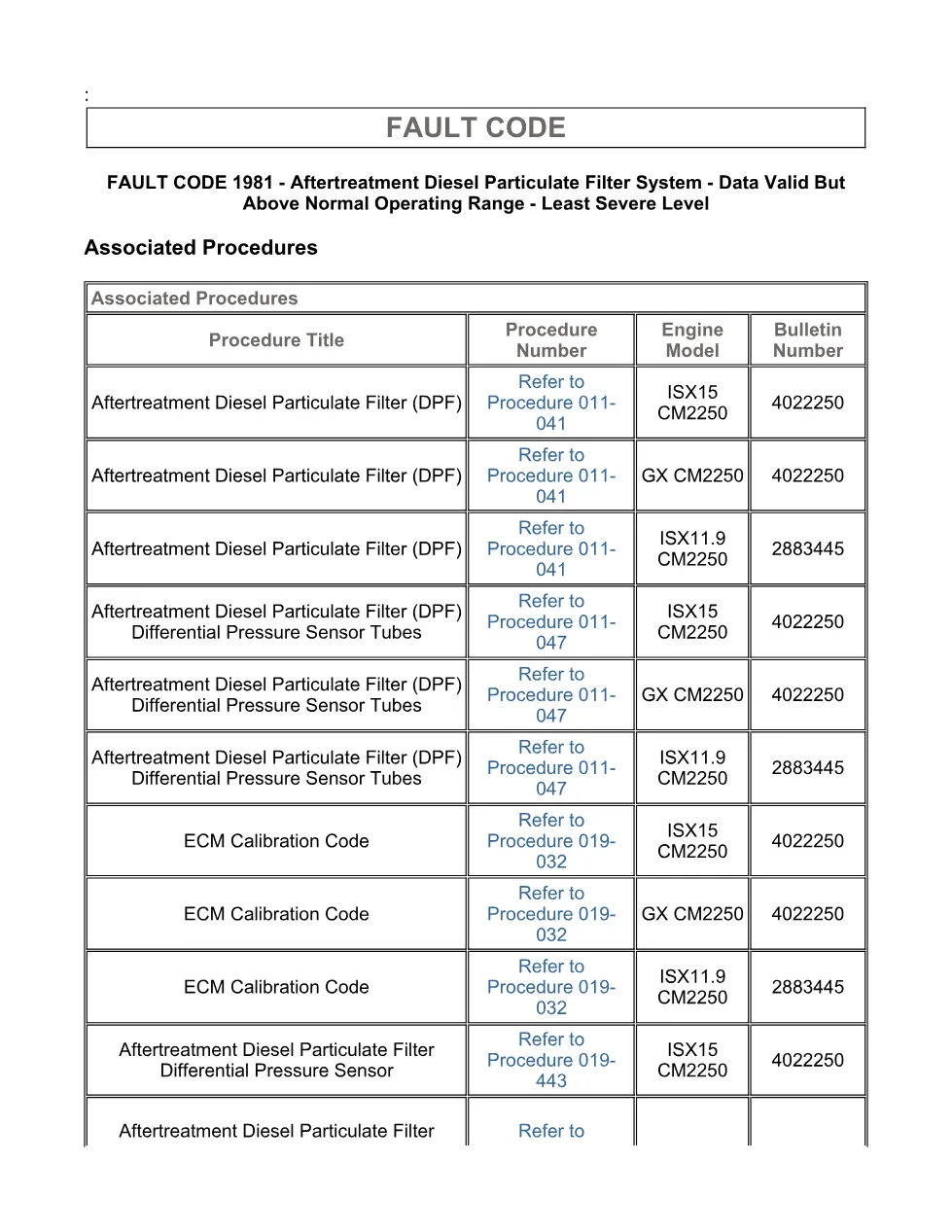

- Associated procedures and guided troubleshooting steps
Cummins ISX11.9 code 1981 coverage

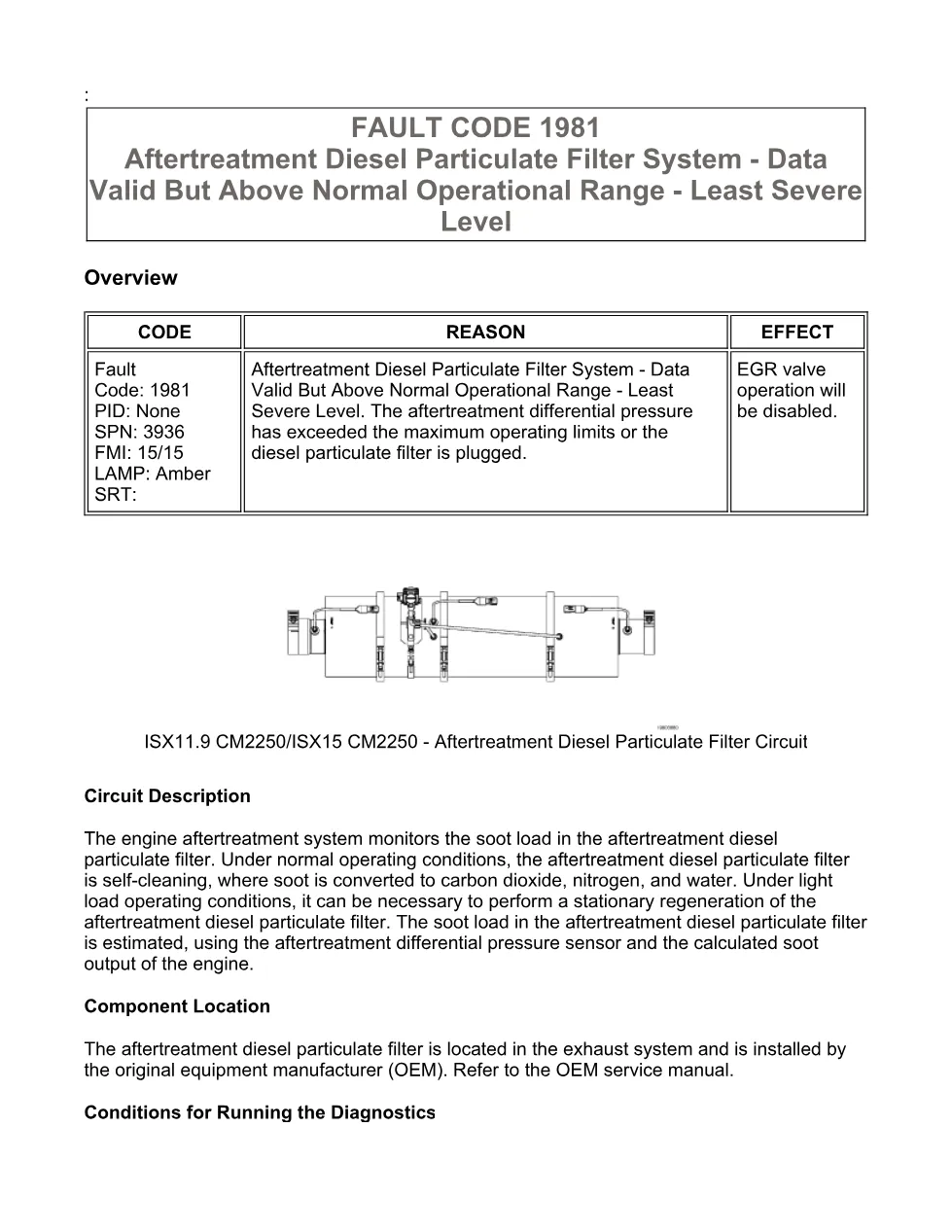

The aftertreatment system monitors the soot load in the diesel particulate filter, which normally self-cleans by converting soot to carbon dioxide, nitrogen, and water. The procedure covers ISX11.9 CM2250 (2010-12) and ISX12 CM2250 (2010-12) engines and is shared across the CM2250 engine family listed in the associated procedures table. Cummins publishes the full specifications and service procedures for this engine family; see the manufacturer at Cummins.

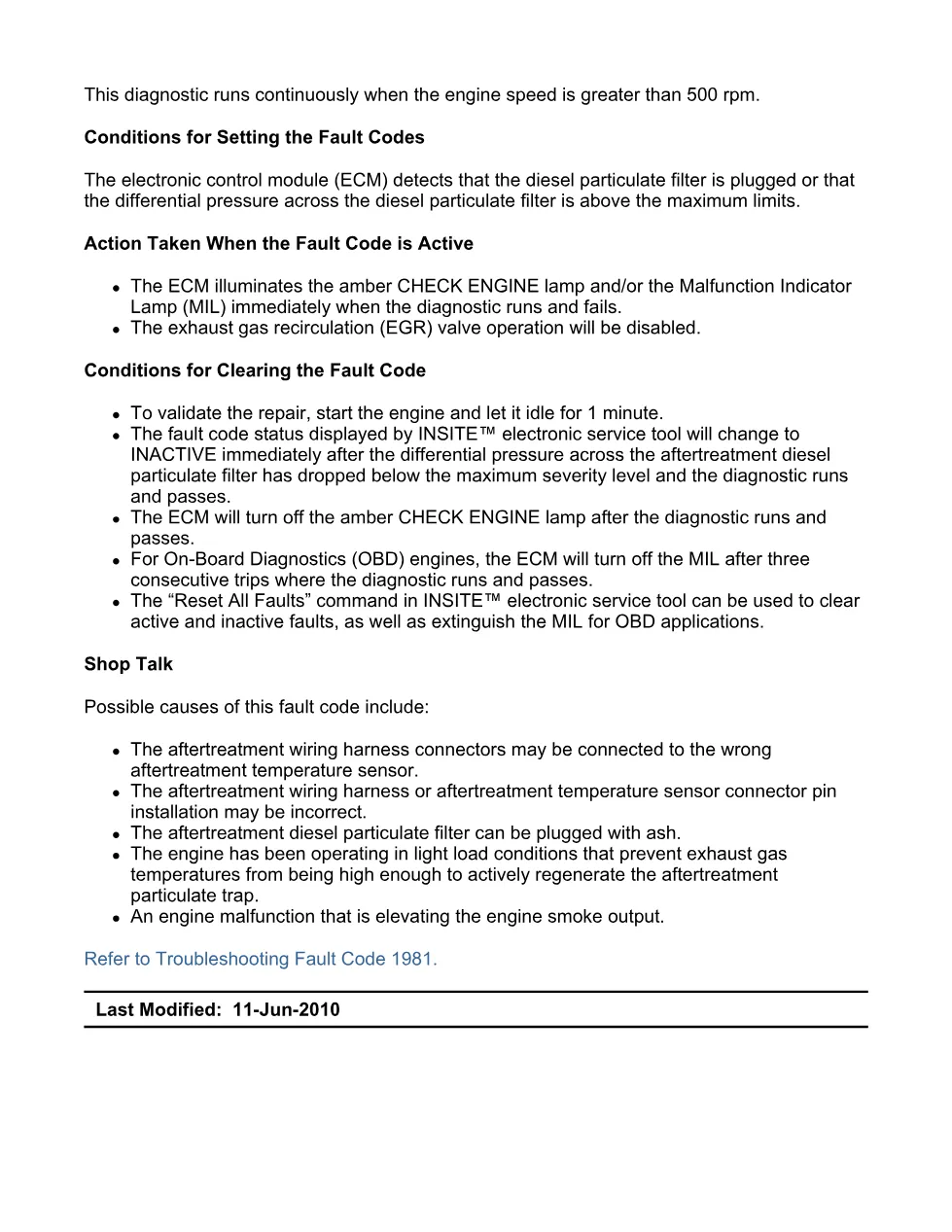

The document lists the possible causes the factory tree checks:
- aftertreatment harness connectors attached to the wrong temperature sensor
- incorrect connector pin installation
- an aftertreatment diesel particulate filter plugged with ash
Who needs this Cummins ISX11.9 code 1981 manual
Fleet technicians and workshop owners will use this guide to read the amber-lamp fault with the INSITE electronic service tool, inspect the aftertreatment diesel particulate filter and its wiring, and decide whether the sensor, harness, or ECM is at fault. Confirm ISX11.9 code 1981 against live data before replacing any part, and follow the guided troubleshooting steps in the order the document gives them.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
