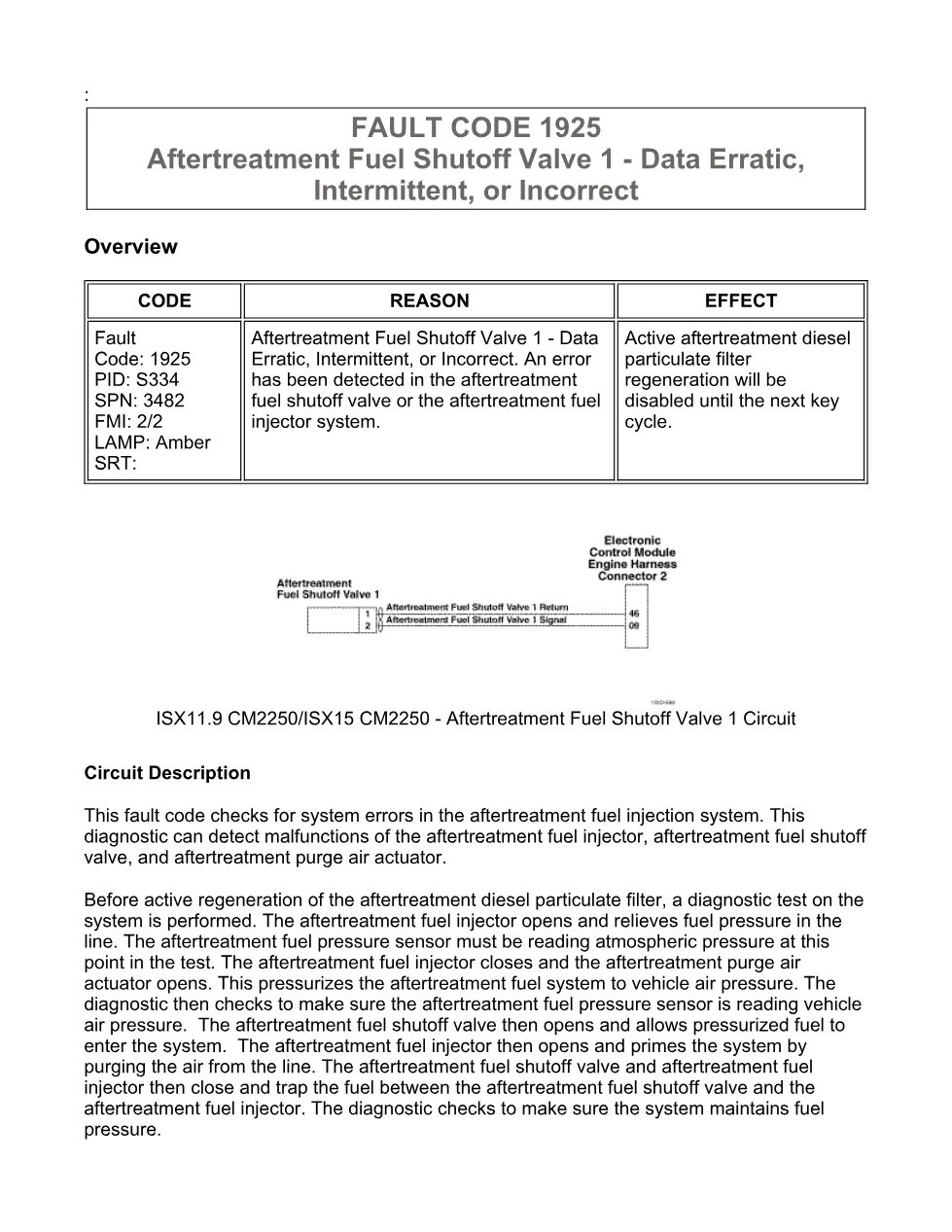

Cummins ISX11.9 code 1925 is the diagnostic fault code for the aftertreatment fuel shutoff valve 1 signal that is erratic, intermittent, or incorrect, and this page describes the official Cummins troubleshooting document for it. This fault is reported as SPN 3482 / FMI 2, and PID S334. The 12-page PDF gives the circuit description, the conditions that set fault code 1925, the action taken when it is active, and the guided troubleshooting steps needed to confirm and repair it.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISX11.9 CM2250 (2010-12), ISX12 CM2250 (2010-12) |
| System / Group | DTCs — Fault Code 1925 |
| SPN / FMI | 3482 / 2 |
| PID | S334 |
| Warning lamp | Amber |
| Pages | 12 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Overview and circuit description
- Fault code 1925 — reason, cause and effect
- Conditions for running the diagnostics
- Conditions for setting the fault code
- Action taken when the fault code is active
- Conditions for clearing the fault code
- Shop Talk — possible causes
- Associated procedures and guided troubleshooting steps

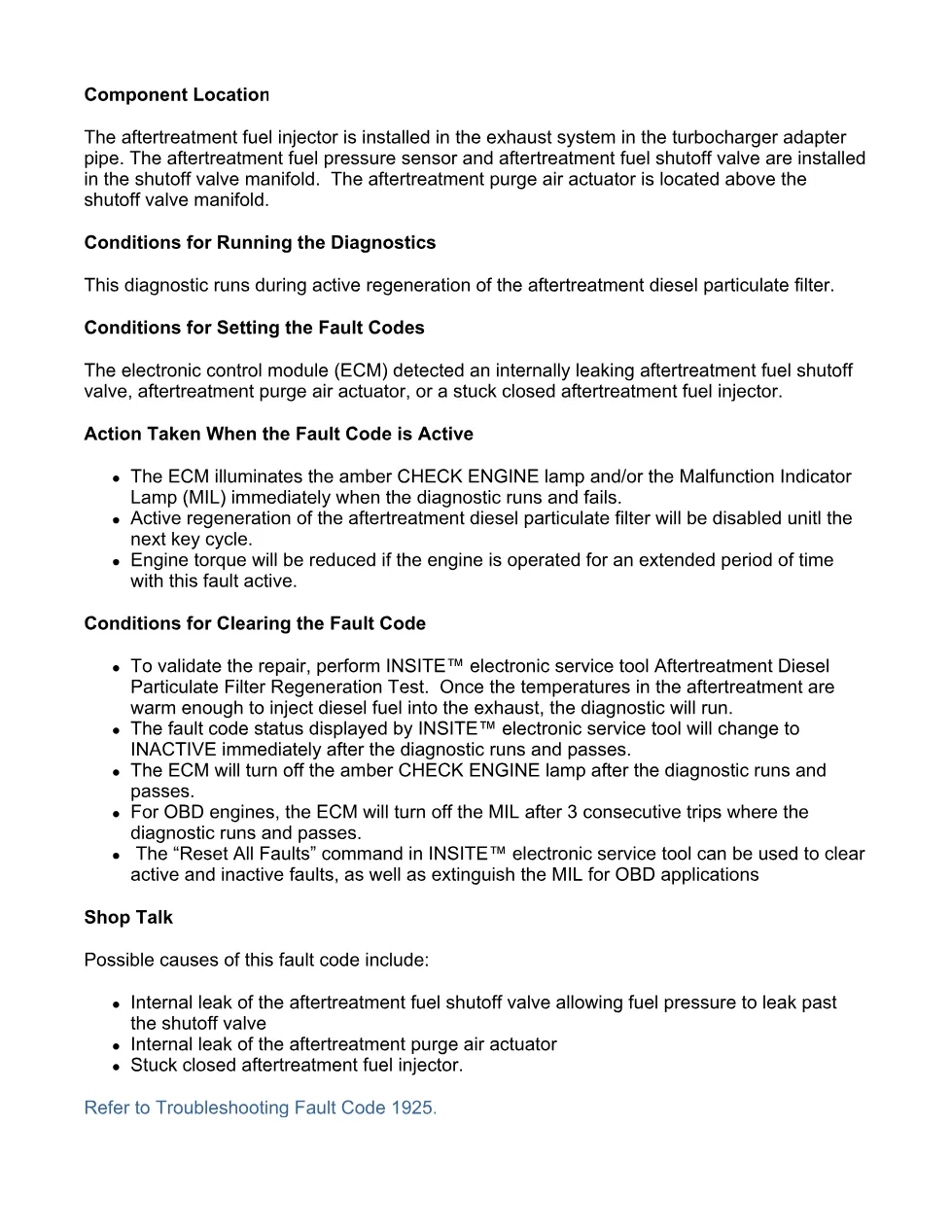

Cummins ISX11.9 code 1925 coverage
This diagnostic checks the aftertreatment fuel injection system for errors and can detect malfunctions of the fuel injector, the fuel shutoff valve, and the purge air actuator. The procedure covers ISX11.9 CM2250 (2010-12) and ISX12 CM2250 (2010-12) engines and is shared across the CM2250 engine family listed in the associated procedures table. Cummins publishes the full specifications and service procedures for this engine family; see the manufacturer at Cummins.
The document lists the possible causes the factory tree checks:
- an internal leak of the aftertreatment fuel shutoff valve
- an internal leak of the aftertreatment purge air actuator
- a stuck-closed aftertreatment fuel injector
Who needs this Cummins ISX11.9 code 1925 manual
Fleet technicians and workshop owners will use this guide to read the amber-lamp fault with the INSITE electronic service tool, inspect the aftertreatment fuel shutoff valve and its wiring, and decide whether the sensor, harness, or ECM is at fault. Confirm ISX11.9 code 1925 against live data before replacing any part, and follow the guided troubleshooting steps in the order the document gives them.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
