The Cummins ISX code 3726 manual is a 7-page PDF that documents fault code 3726, the aftertreatment intake NOx fault reported as data valid but above normal operating range at a moderately severe level. It explains that the aftertreatment intake NOx smart sensor reports over the J1939 data link, and that this code is set when the ECM detects engine-out NOx levels higher than expected while exhaust temperature is above 150 C (302 F). The procedure is credited to TruckFaultCodes.com and covers the circuit description, component location and full troubleshooting steps.
Official document details
| Brand | Cummins |
| Model coverage | Cummins ISX11.9 CM2250 and ISX12 CM2250 (2010-12) engines |
| System / group | ISX11.9 CM2250 (2010-12) / DTCs |
| Fault code | 3726 (SPN 3216, FMI 16) |
| Warning lamp | Amber |
| Pages | 7 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code 3726 description

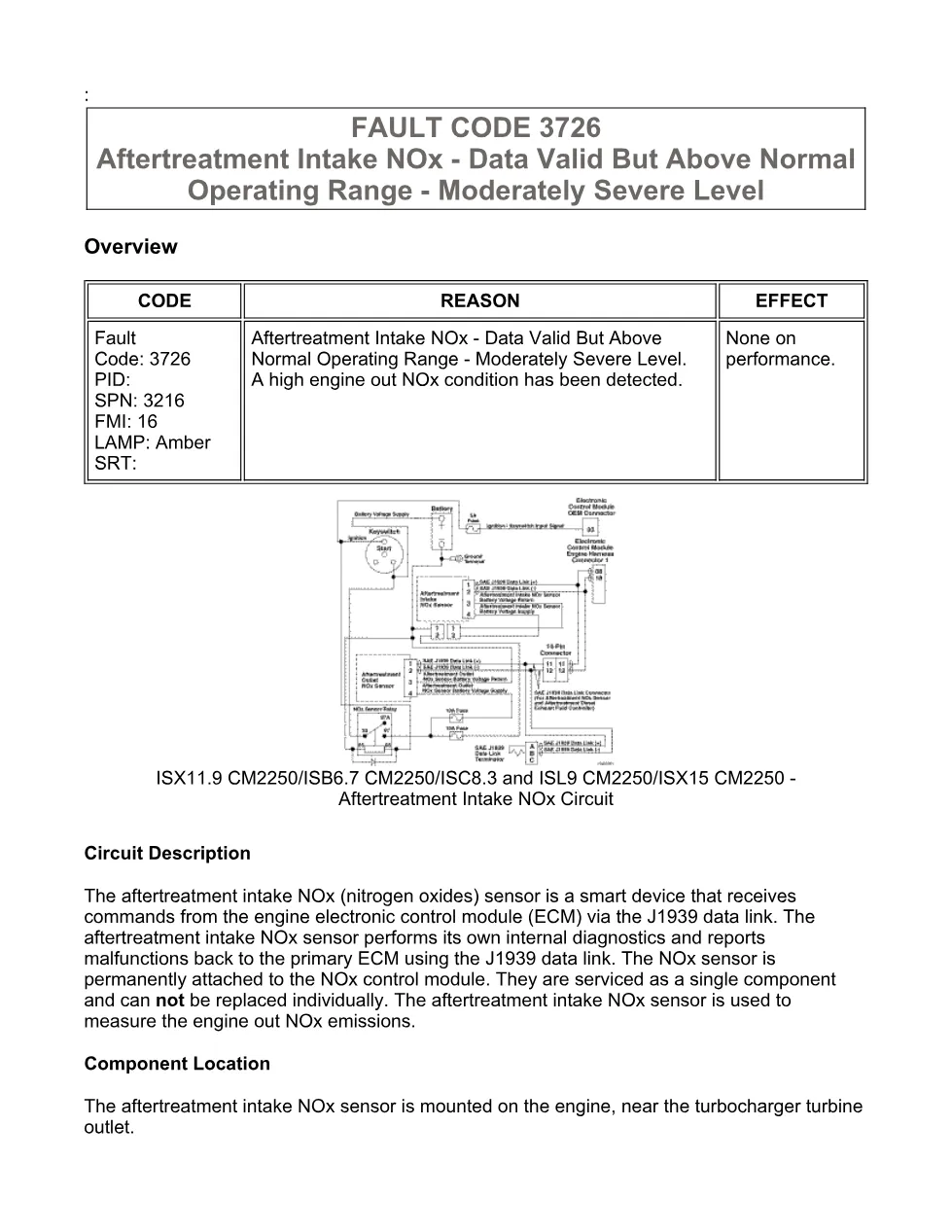

- Circuit description and ECM operation
- Component location

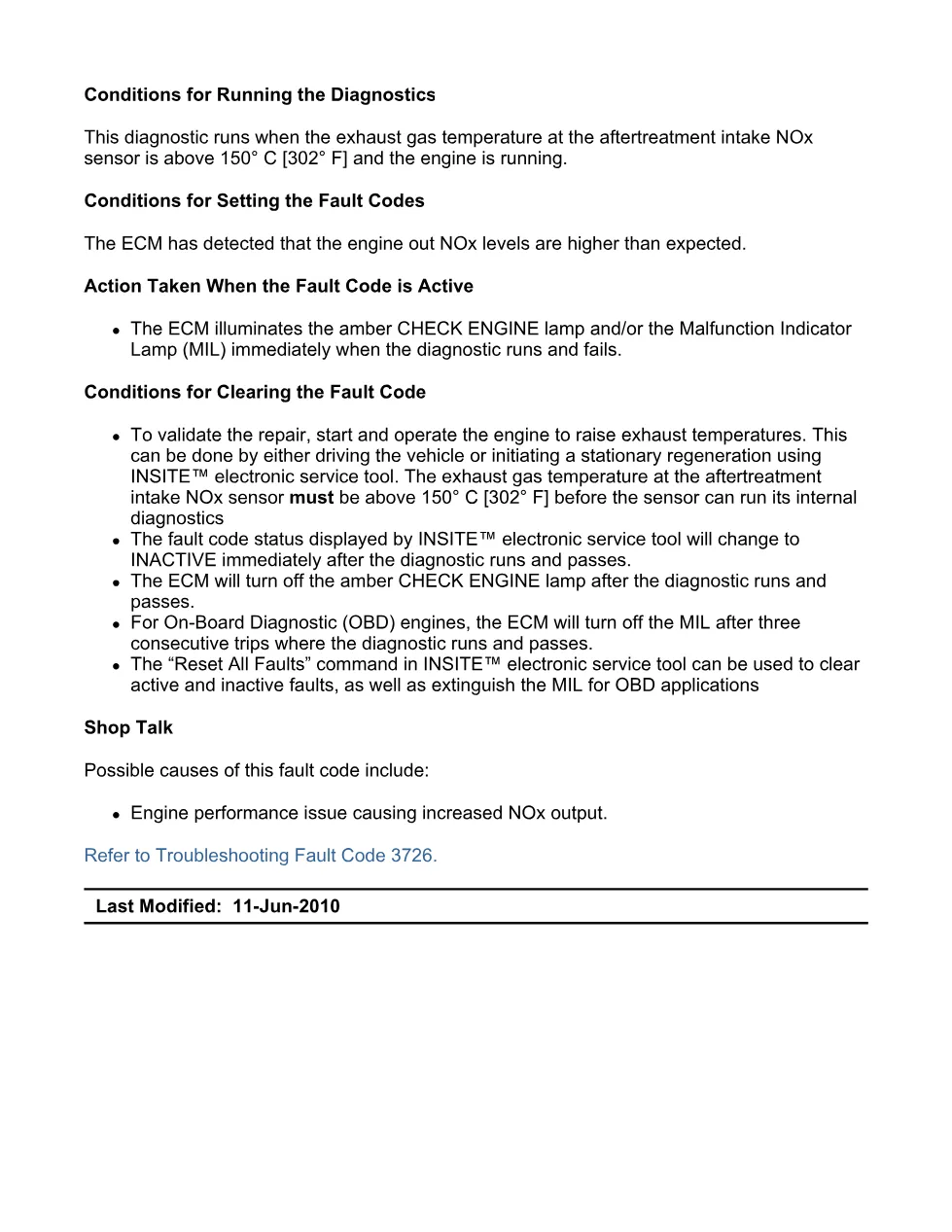

- Shop talk and possible causes

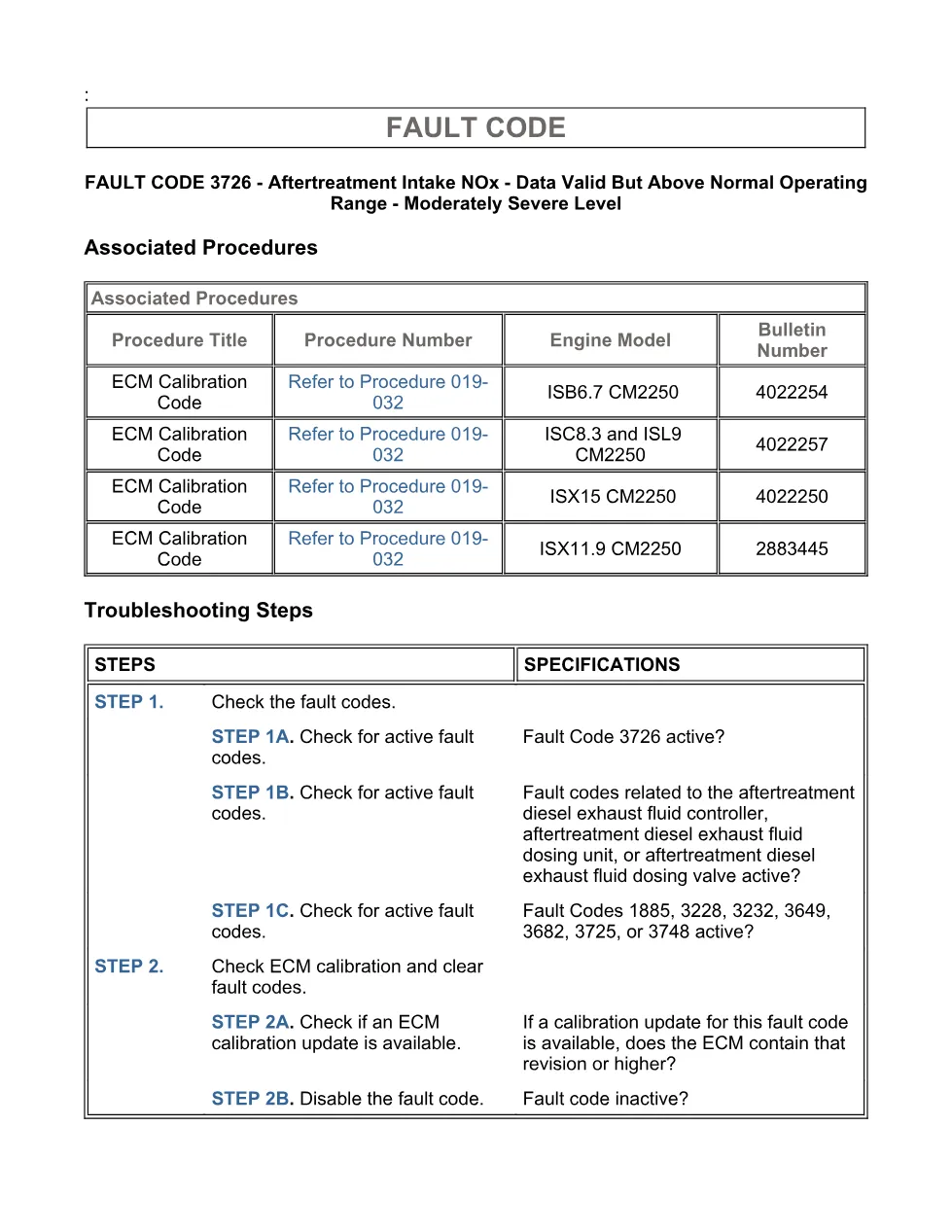

- Step-by-step troubleshooting flow
Applicable truck models
This diagnostic applies to Cummins ISX11.9 CM2250 and ISX12 CM2250 (2010-12) engines. The aftertreatment intake NOx sensor is mounted near the turbocharger turbine outlet and is serviced only with its NOx control module. The reported condition is a high engine-out NOx level, with no direct effect on performance. For engine data and authorised service, visit the Cummins official website.
Who needs this Cummins ISX code 3726 manual
Heavy-duty diesel technicians, fleet workshops and owner-operators reach for this manual when fault code 3726 is logged and the amber warning lamp is on. It helps an emissions technician investigate high engine-out NOx by checking combustion, EGR and sensor factors before condemning the sensor.
Download the ISX code 3726 PDF
The complete procedure, wiring detail and step tables are available in the DiagTechPro manuals library; a free account is required to download the PDF. Keep it alongside the related ISX11.9 CM2250 fault-code sheets listed below.
