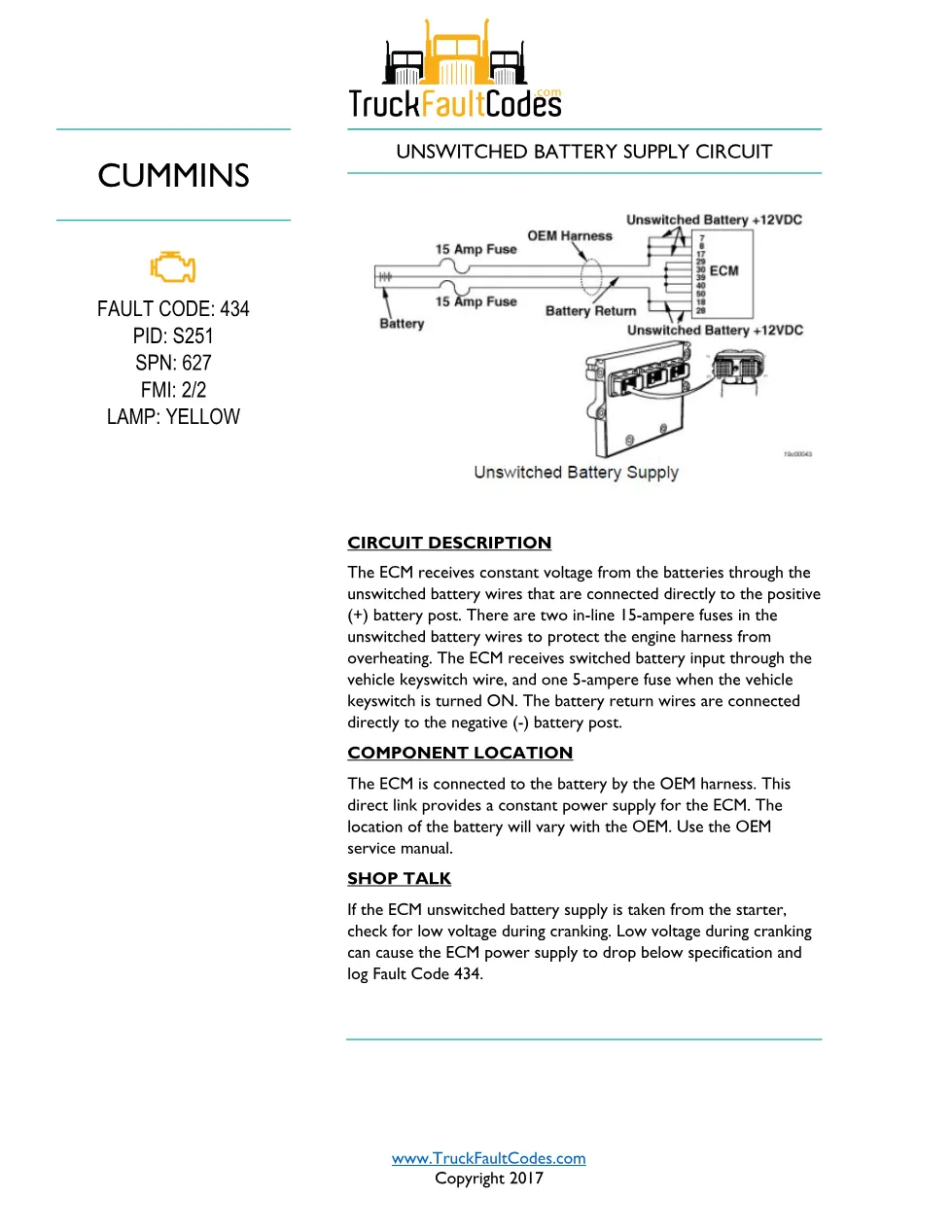

The Cummins ISM code 434 manual is a 9-page diagnostic PDF for the unswitched battery supply circuit on the ISM CM570 (1999–2002) engine. It addresses the combined switched and unswitched battery feed to the electronic control module (ECM), including the keyswitch circuit and the effect of low cranking voltage.
Cummins ISM code 434 document details
| Brand | Cummins |
| Model coverage | ISM CM570 (1999–2002) |
| System / group | Unswitched battery supply circuit — DTCs |
| DTC number | 434 |
| PID / SPN | S251 / 627 |
| FMI | 2/2 |
| Warning lamp | YELLOW |
| Pages | 9 |
| File format | |
| Language | English |
Document table of contents
- Circuit description and component location
- Shop talk on starter-fed supply
- Actuator fault-code pre-check
- Fuse, harness and connector checks
Applicable truck models
This procedure applies to the ISM CM570 (1999–2002) engine and the shared CM570 fuel-system platform found in on-highway trucks. The same fault-code logic is carried across related CM570 engine families of that era. For engine identification and factory service references, see the manufacturer at the Cummins official website.
Who needs this Cummins ISM code 434 manual

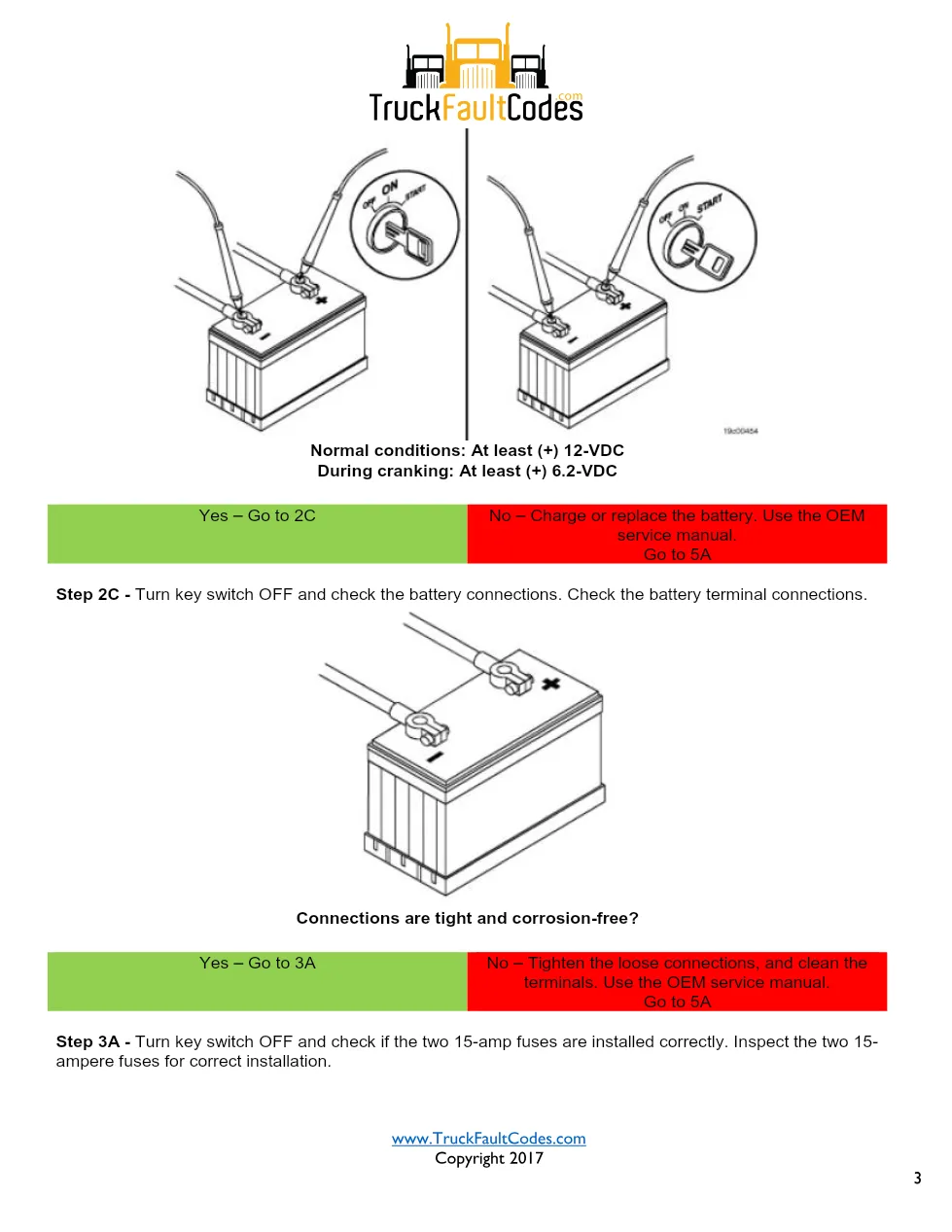

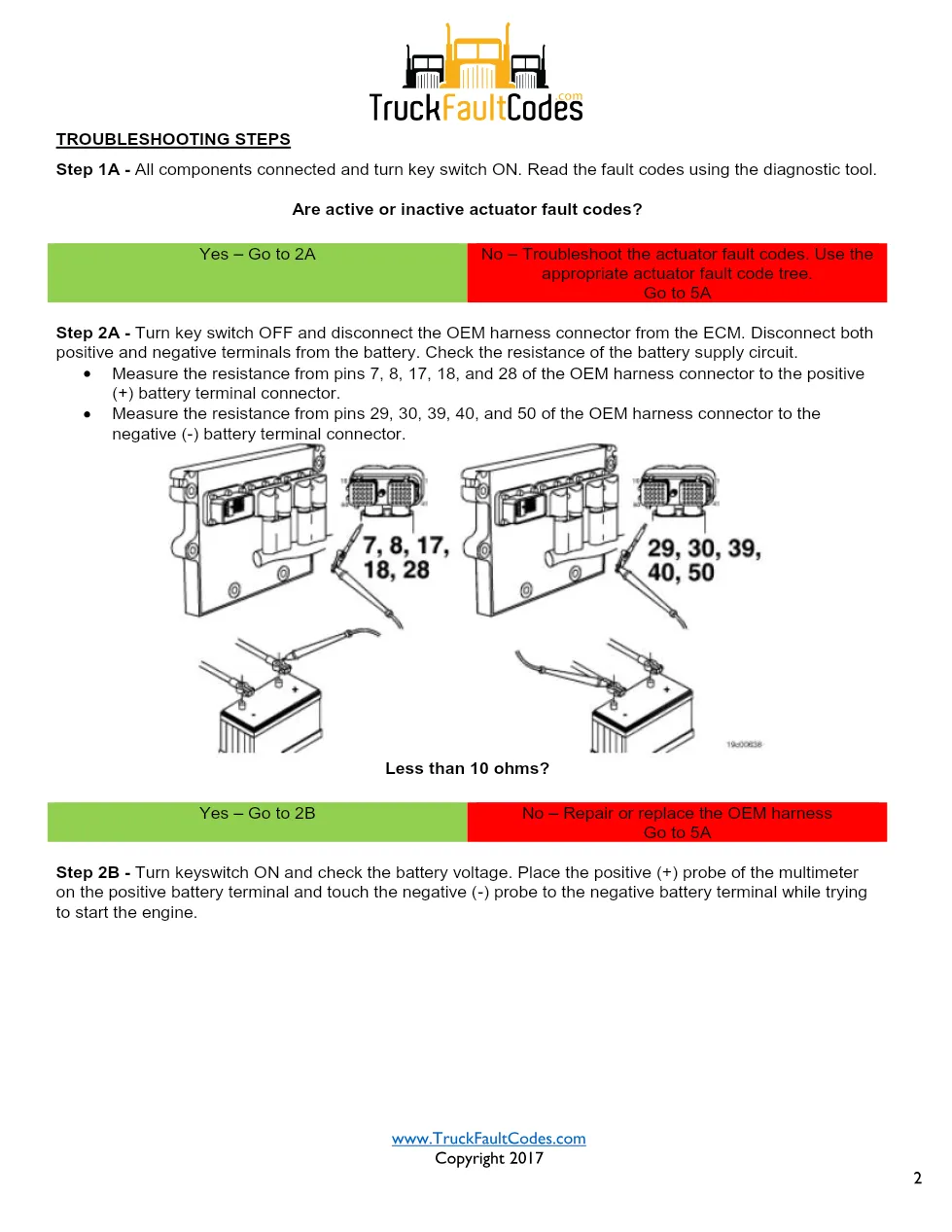

The document describes constant voltage arriving through two in-line 15-amp fuses on the unswitched wires and switched power arriving through the keyswitch wire and one 5-amp fuse. Its shop-talk note warns that if the unswitched supply is taken from the starter, low voltage during cranking can drop the ECM below specification and log this fault. The nine-page tree first reads any actuator fault codes, then checks the OEM harness, fuses, and connector pins in sequence.
This guide suits diesel technicians and workshop owners who face a power-supply fault tied to cranking voltage and need to separate the switched keyswitch feed from the unswitched battery feed. It reads as fault code 434 troubleshooting steps for the unswitched battery supply circuit, keeping the diagnosis ordered and evidence-based.
The full PDF is available in the DiagTechPro manuals library, where a free account is required to download it.
