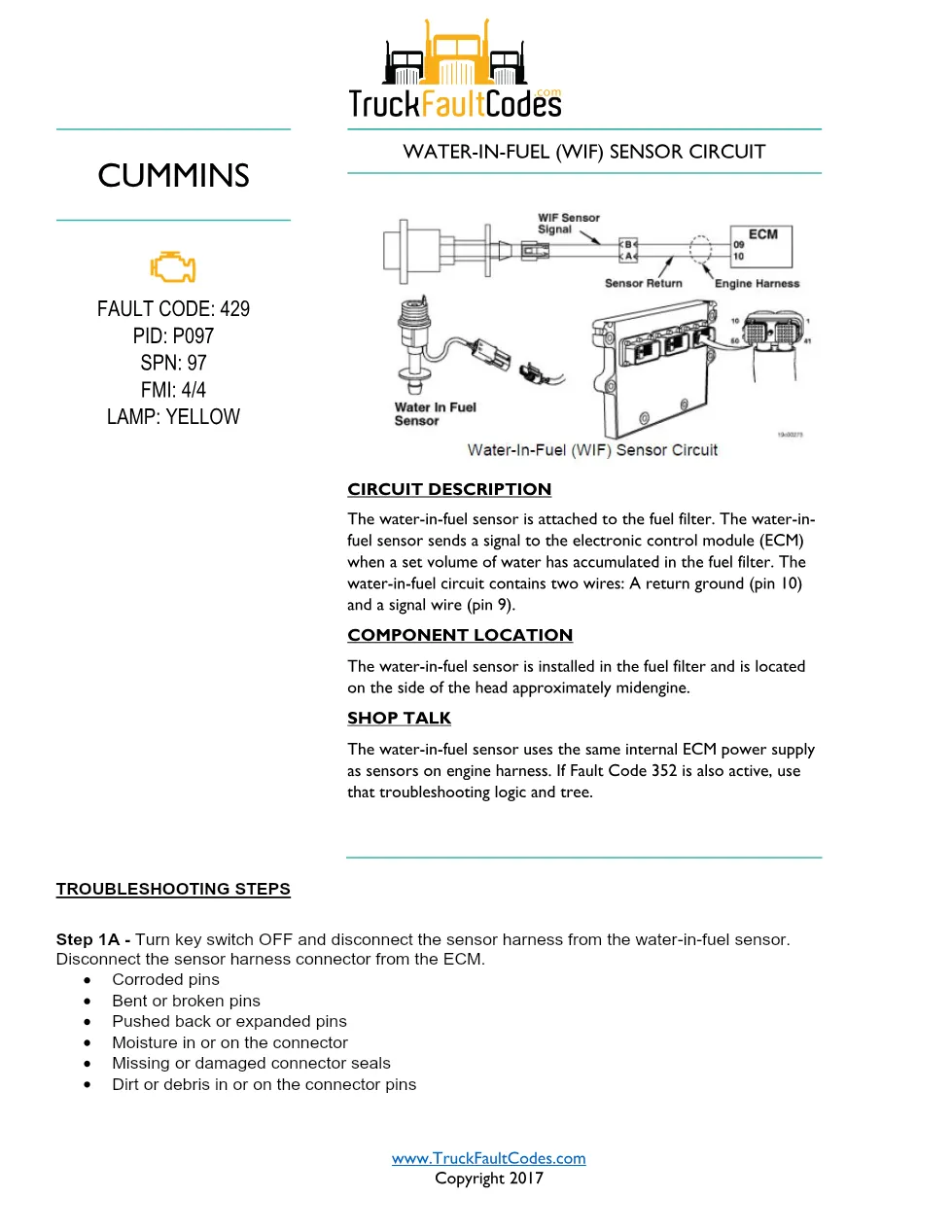

The Cummins ISM code 429 manual is a 4-page diagnostic PDF for the water-in-fuel (WIF) sensor circuit on the ISM CM570 (1999–2002) engine. It describes the water-in-fuel (WIF) sensor mounted on the fuel filter, which signals the electronic control module (ECM) once a set volume of water collects in the filter.
Cummins ISM code 429 document details
| Brand | Cummins |
| Model coverage | ISM CM570 (1999–2002) |
| System / group | Water-in-fuel (WIF) sensor circuit — DTCs |
| DTC number | 429 |
| PID / SPN | P097 / 97 |
| FMI | 4/4 |
| Warning lamp | YELLOW |
| Pages | 4 |
| File format | |
| Language | English |
Document table of contents
- Circuit description and component location
- Shop talk and shared 5-volt supply note

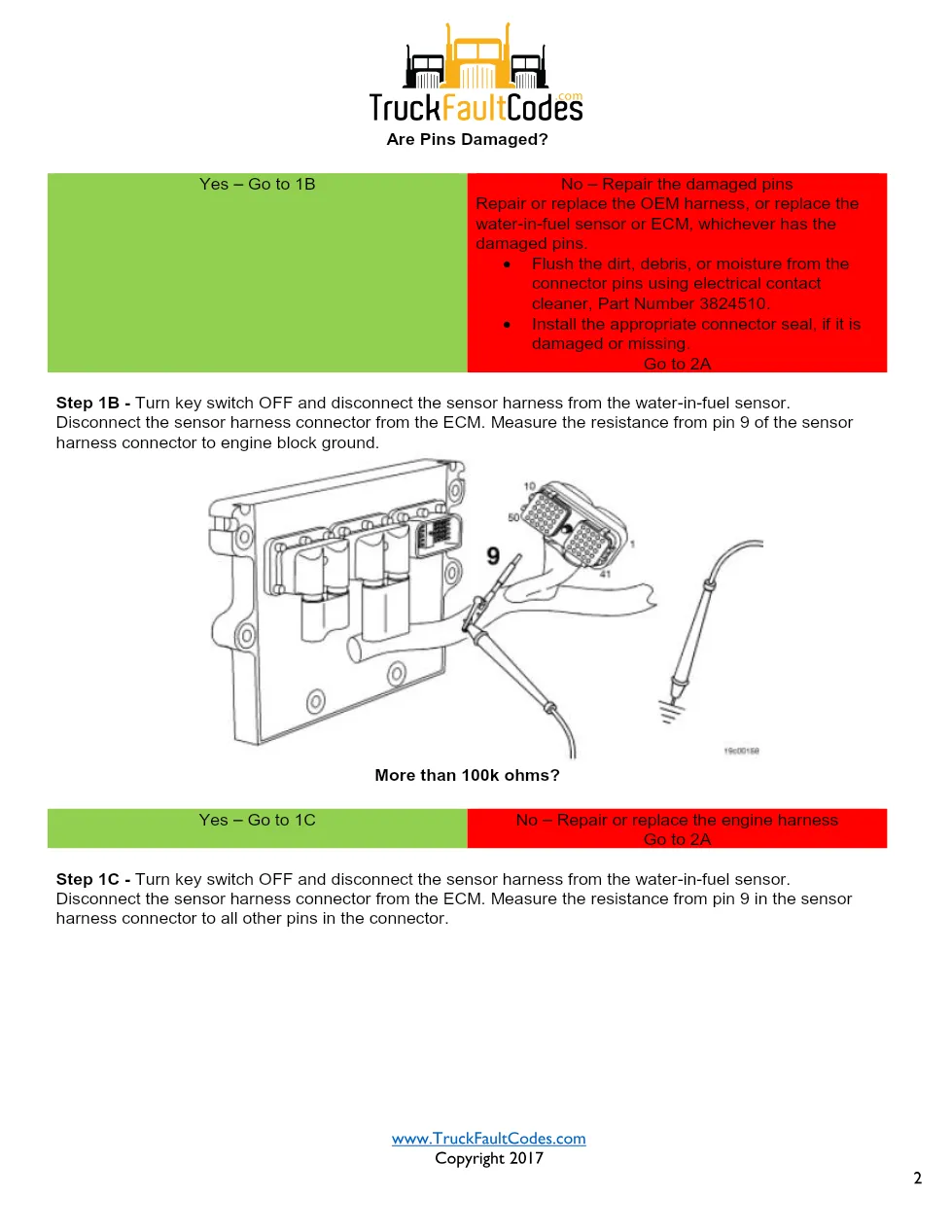

- Sensor and ECM connector pin inspection

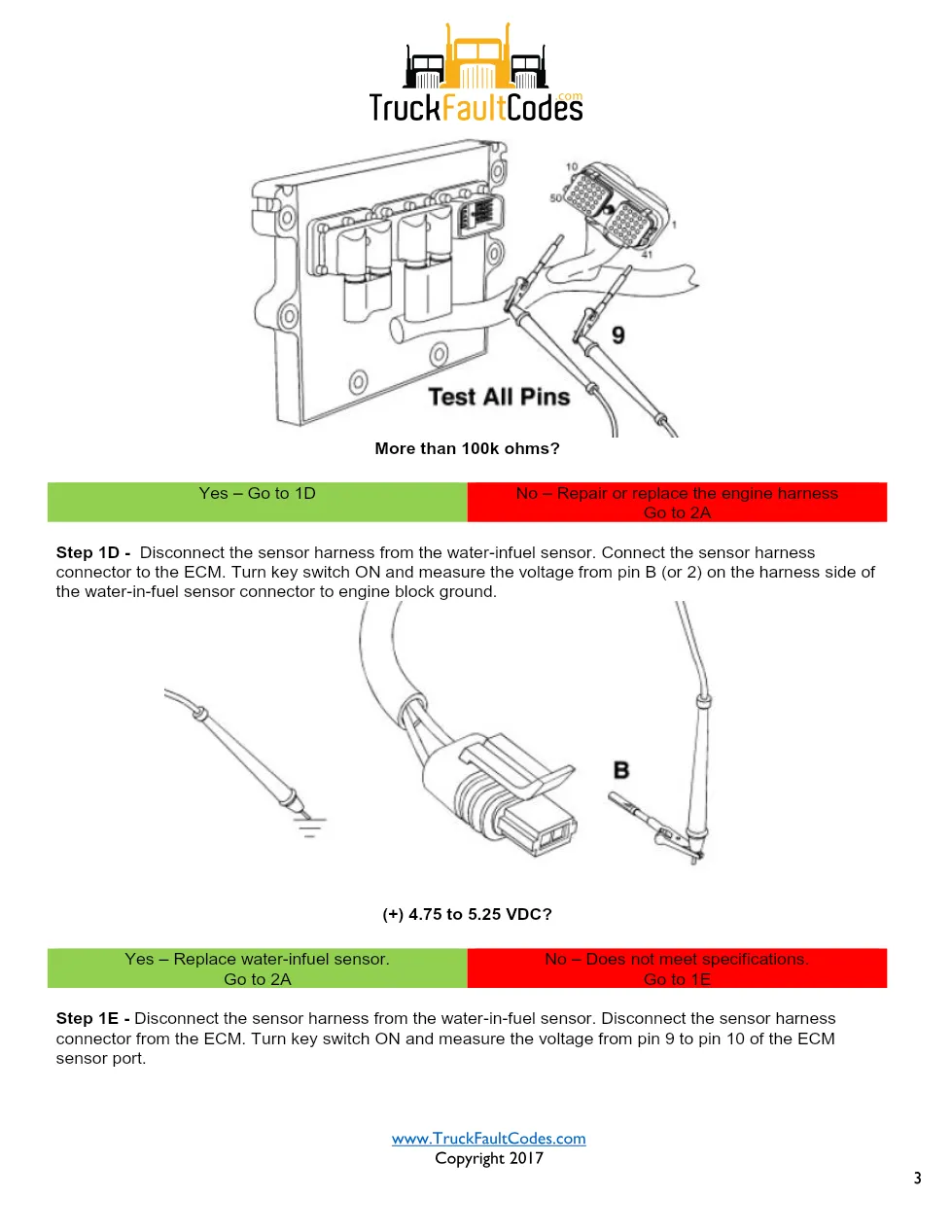

- Resistance and signal-wire checks
Applicable truck models
This procedure applies to the ISM CM570 (1999–2002) engine and the shared CM570 fuel-system platform found in on-highway trucks. The same fault-code logic is carried across related CM570 engine families of that era. For engine identification and factory service references, see the manufacturer at the Cummins official website.
Who needs this Cummins ISM code 429 manual
The document identifies the two-wire circuit as a return ground on pin 10 and a signal wire on pin 9, with the sensor located on the side of the head roughly mid-engine. Because the water-in-fuel sensor shares the internal ECM 5-volt supply used by other sensors, the shop-talk note advises that if Code 352 is also active the technician should follow that tree first. The steps inspect the sensor and ECM connector pins for corrosion, bent pins, moisture and debris, flushing contacts with Part Number 3824510.
This guide suits diesel technicians and workshop owners who face a low-signal water-in-fuel reading and want to confirm wiring before replacing the sensor. It reads as fault code 429 troubleshooting steps for the water-in-fuel (WIF) sensor circuit, keeping the diagnosis ordered and evidence-based.
The full PDF is available in the DiagTechPro manuals library, where a free account is required to download it.
