Cummins ISM Code 352 is the official Cummins fault code troubleshooting PDF that documents the sensor voltage supply on ISM CM570 (1999-02) engines. This 5-page reference from the Cummins service literature explains the circuit, the likely causes behind the yellow warning lamp, and the step-by-step checks a technician follows to confirm the repair.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570 and Signature CM570 (1999-02) |
| System / Group | Sensor Voltage Supply (DTCs) |
| Fault code | Code 352 · PID S232 · SPN 620 · FMI 4/4 |
| Warning lamp | Yellow |
| Year / Revision | Copyright 2017 |
| Pages | 5 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit description
- Component location
- Shop talk – possible causes

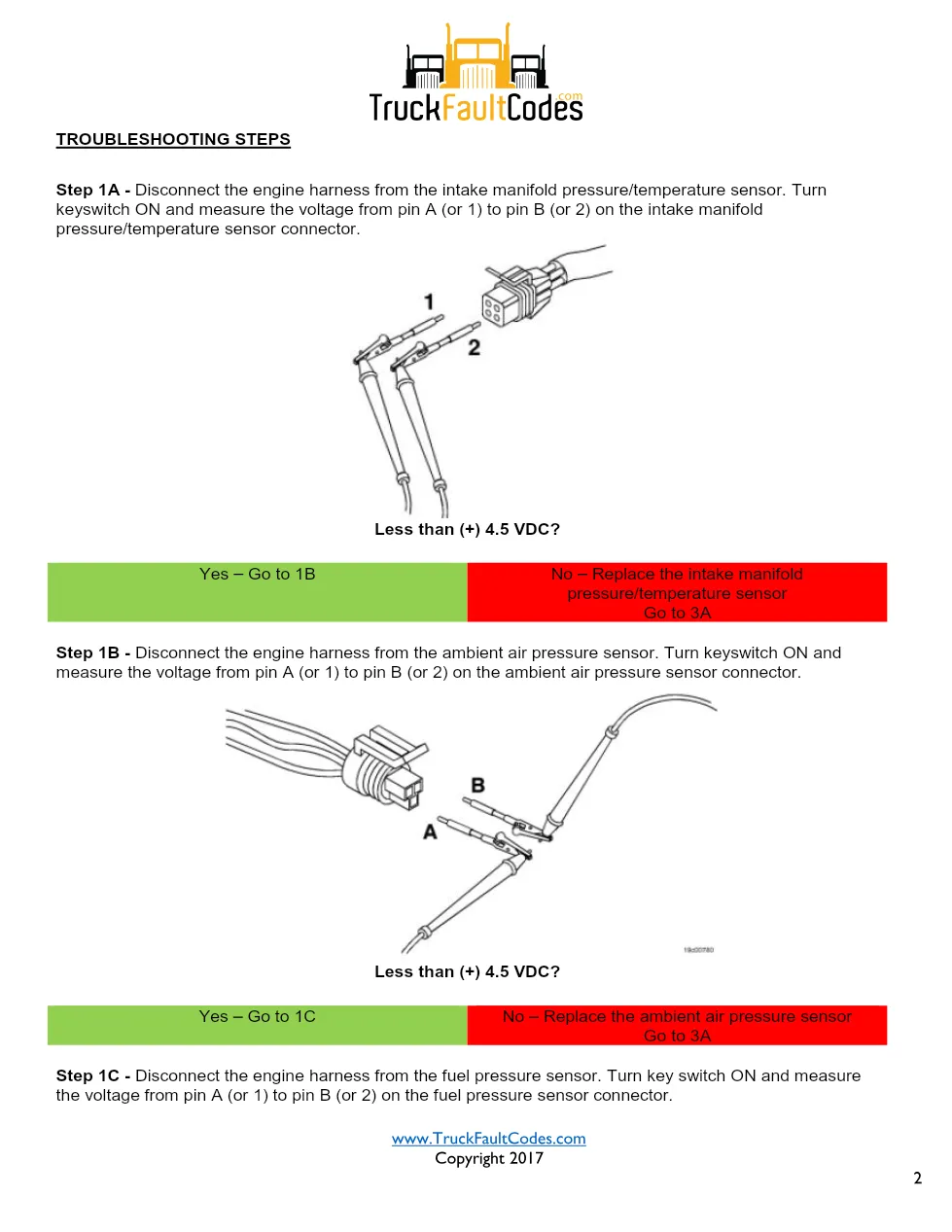

- Troubleshooting steps

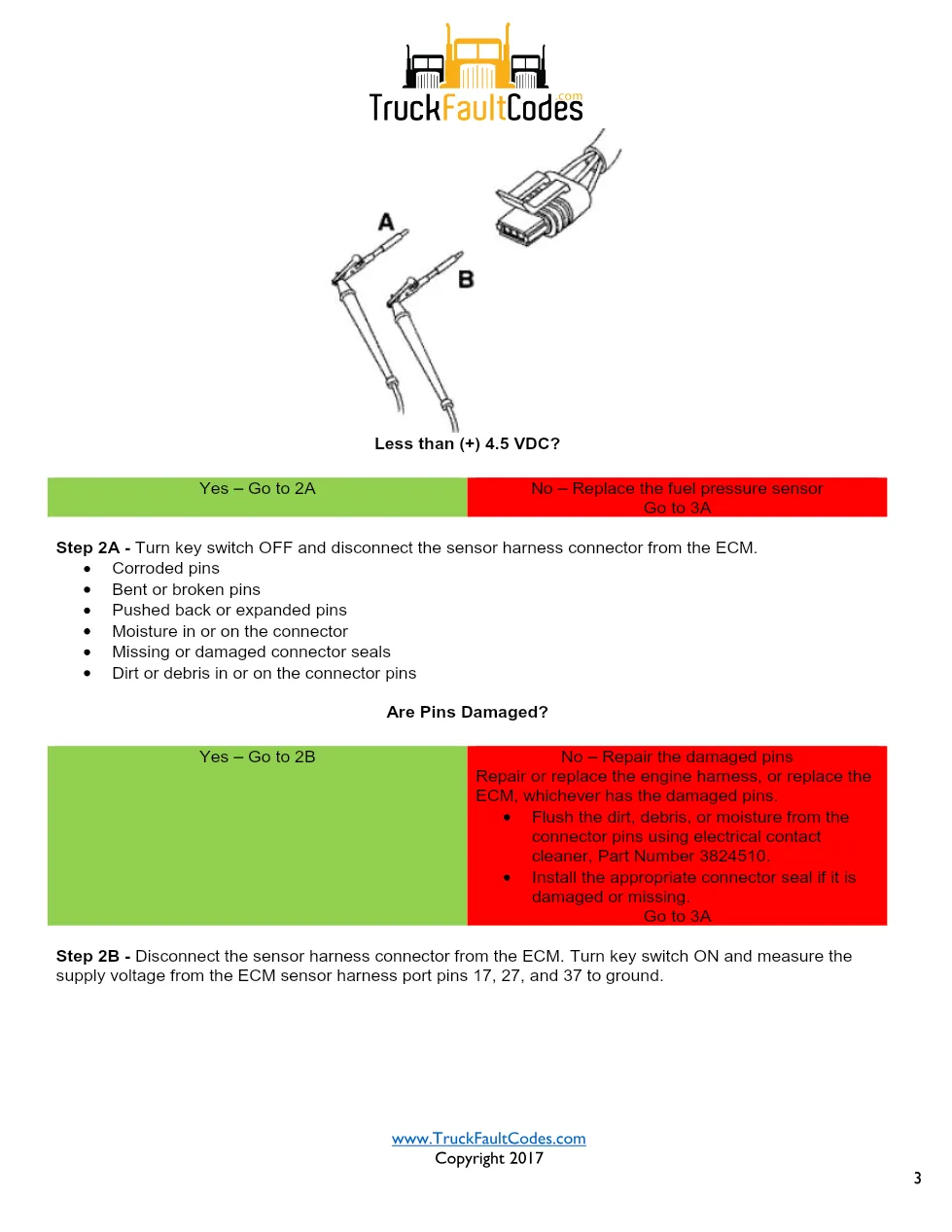

- Fault code verification and clearing
Cummins ISM Code 352 troubleshooting summary

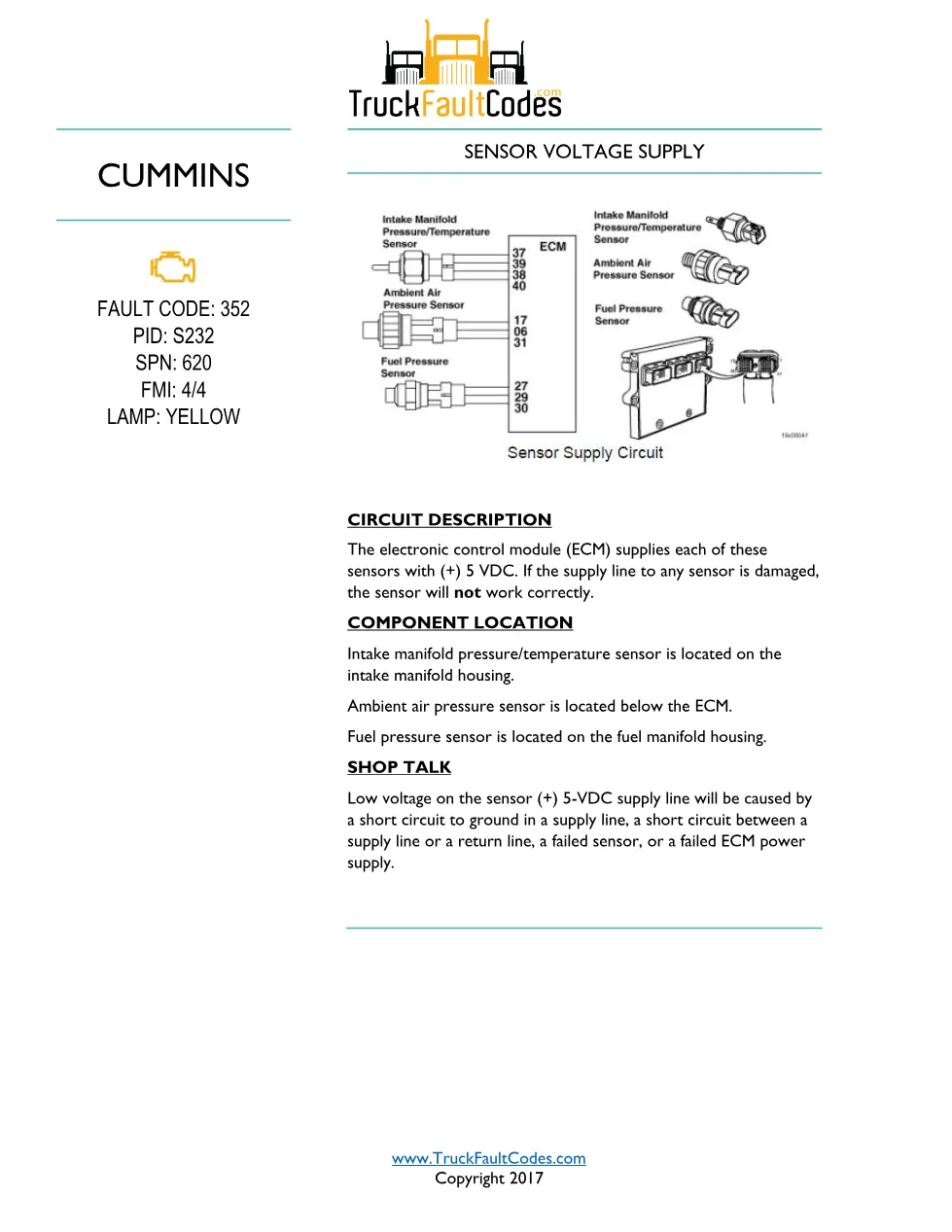

The electronic control module (ECM) supplies each of these sensors with (+) 5 VDC. If the supply line to any sensor is damaged, the sensor will not work correctly. Intake manifold pressure/temperature sensor is located on the intake manifold housing. The manual walks through 9 labelled troubleshooting steps that inspect connectors and pins, measure circuit resistance, and verify the fault code is inactive after the repair.
Low voltage on the sensor (+) 5-VDC supply line will be caused by
a short circuit to ground in a supply line, a short circuit between a
supply line or a return line, a failed sensor, or a failed ECM power
supply. — 1 of 5 —
www.TruckFaultCodes.com
Copyright 2017
2
Referenced Cummins service tools and part numbers: 3824510.
