Cummins ISM Code 298 is the official Cummins fault code troubleshooting PDF that documents the oem pressure sensor circuit on ISM CM570 (1999-02) engines. This 8-page reference from the Cummins service literature explains the circuit, the likely causes behind the yellow warning lamp, and the step-by-step checks a technician follows to confirm the repair.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570 and Signature CM570 (1999-02) |
| System / Group | Oem Pressure Sensor Circuit (DTCs) |
| Fault code | Code 298 · PID S223 · SPN 1084 · FMI 4/4 |
| Warning lamp | Yellow |
| Year / Revision | Copyright 2017 |
| Pages | 8 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit description
- Component location
- Shop talk – possible causes
- Troubleshooting steps
- Fault code verification and clearing
Cummins ISM Code 298 troubleshooting summary

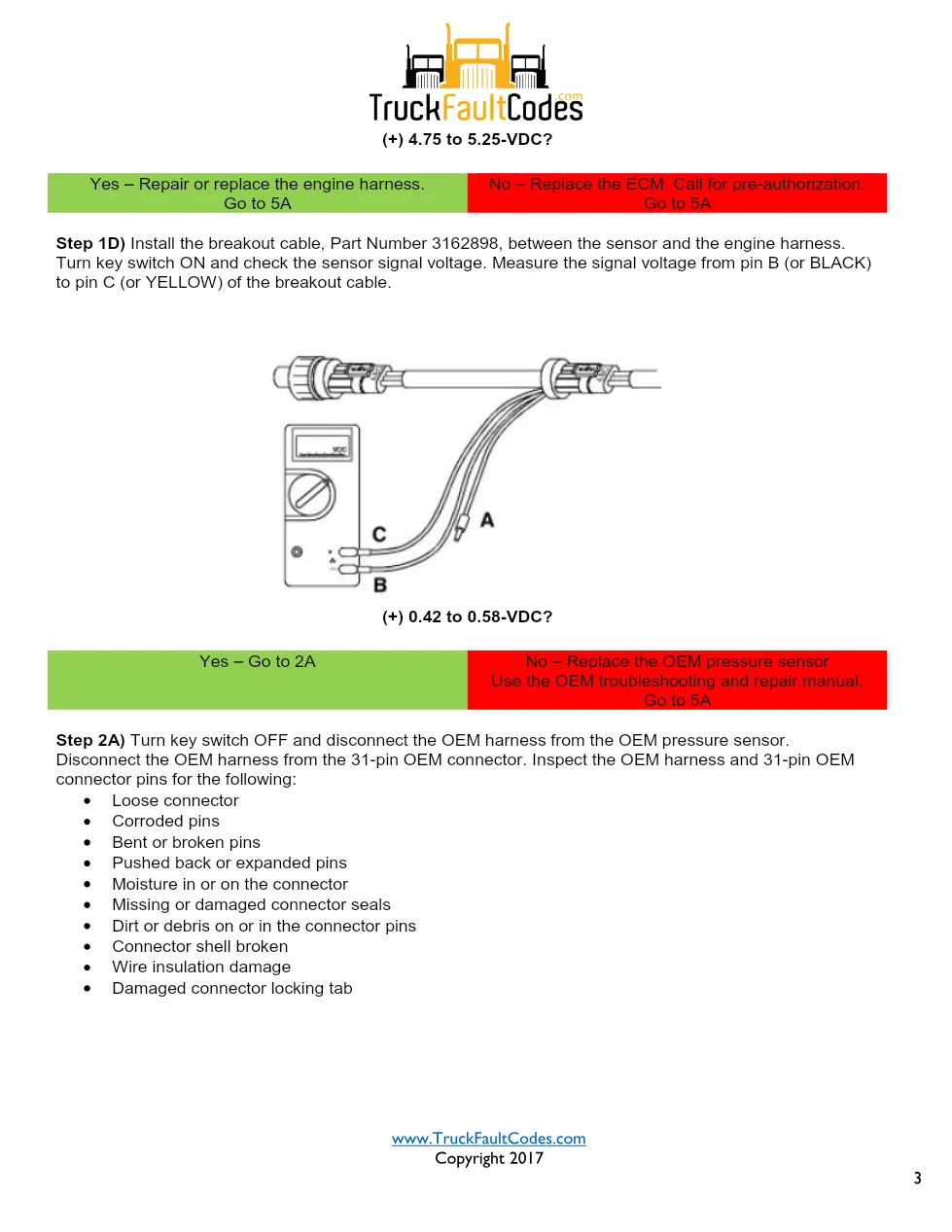

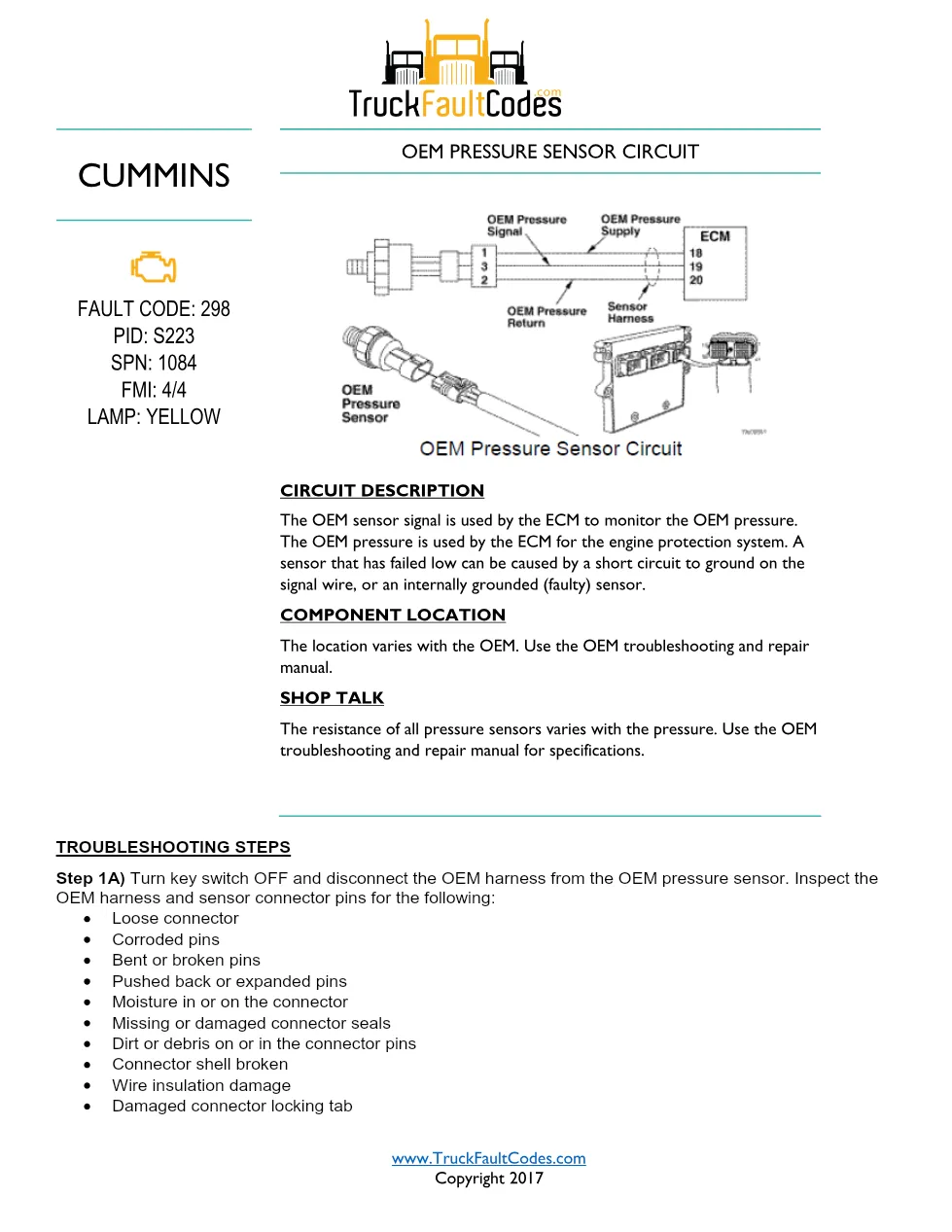

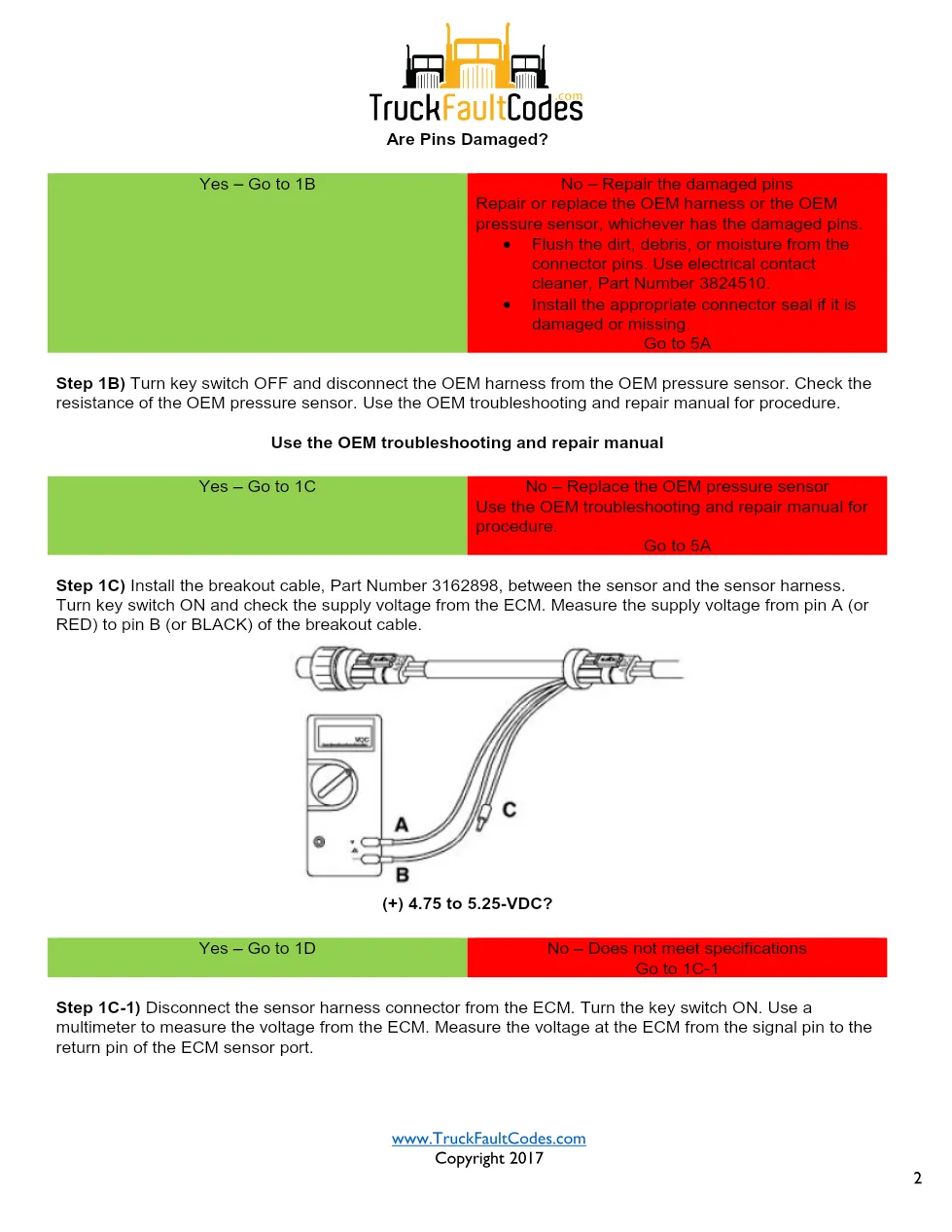

The OEM sensor signal is used by the ECM to monitor the OEM pressure. The OEM pressure is used by the ECM for the engine protection system. The location varies with the OEM. The manual walks through 17 labelled troubleshooting steps that inspect connectors and pins, measure circuit resistance, and verify the fault code is inactive after the repair.
