Cummins ISM Code 295 is the official Cummins fault code troubleshooting PDF that documents the ambient air pressure sensor on ISM CM570 (1999-02) engines. This 2-page reference from the Cummins service literature explains the circuit, the likely causes behind the yellow warning lamp, and the step-by-step checks a technician follows to confirm the repair.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570 and Signature CM570 (1999-02) |
| System / Group | Ambient Air Pressure Sensor (DTCs) |
| Fault code | Code 295 · PID P108 · SPN 108 · FMI 2 |
| Warning lamp | Yellow |
| Year / Revision | Copyright 2017 |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit description
- Component location
- Shop talk – possible causes
- Troubleshooting steps
- Fault code verification and clearing

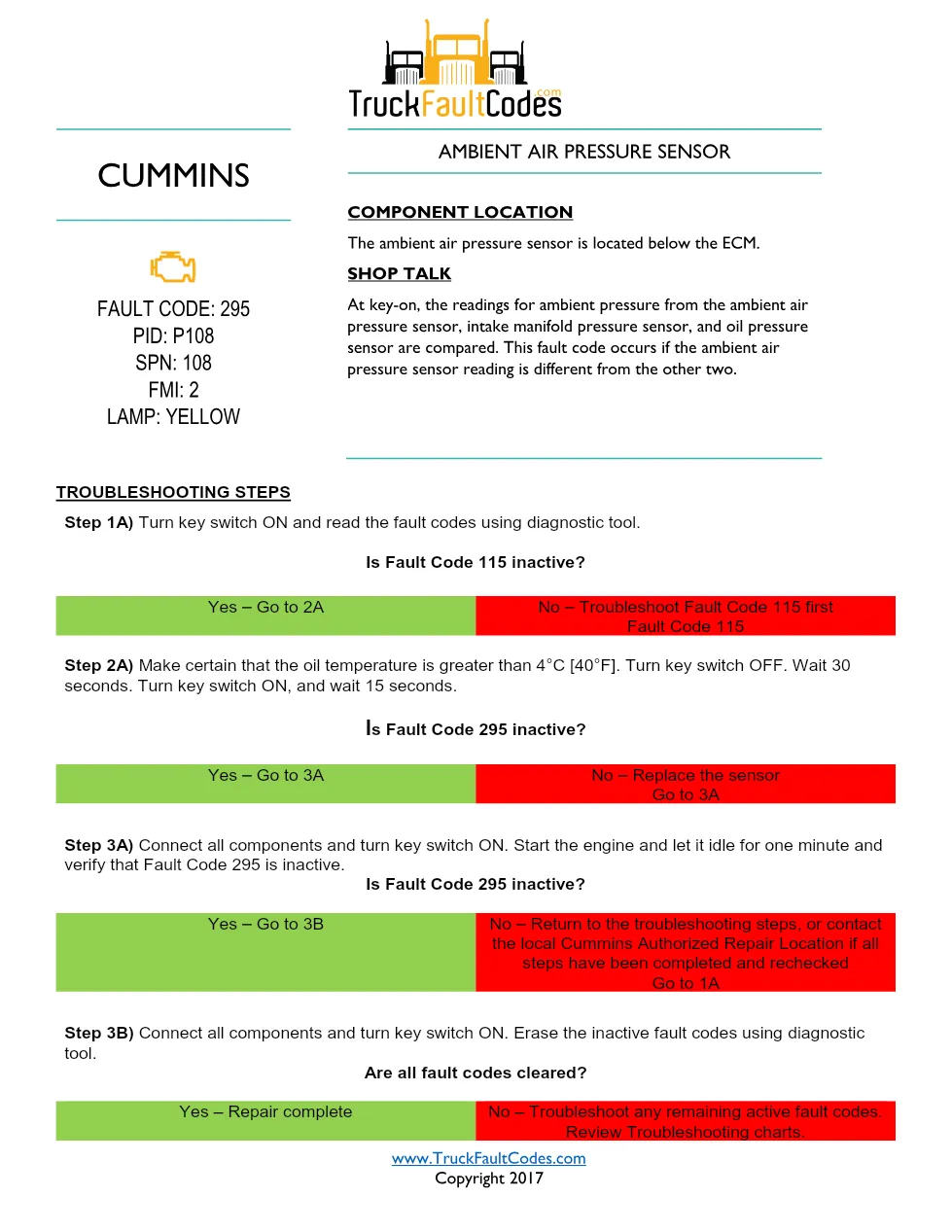

Cummins ISM Code 295 troubleshooting summary
The ambient air pressure sensor is located below the ECM. The manual walks through 4 labelled troubleshooting steps that inspect connectors and pins, measure circuit resistance, and verify the fault code is inactive after the repair.
At key-on, the readings for ambient pressure from the ambient air
pressure sensor, intake manifold pressure sensor, and oil pressure
sensor are compared. This fault code occurs if the ambient air
pressure sensor reading is different from the other two.
