Cummins ISM Code 227 documents the Sensor 5-Volt Supply Circuit diagnostic and troubleshooting procedure for the Cummins ISM CM570 (1999-02) engine platform. This 5-page fault code sheet from TruckFaultCodes.com (Copyright 2017) covers fault code 227 (PID S232, SPN 620, FMI 3/3, YELLOW lamp) and the checks used to confirm and clear it.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570, Signature CM570 (1999-02) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Fault code | 227 — PID S232, SPN 620, FMI 3/3 |
| Warning lamp | YELLOW |
| Pages | 5 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents

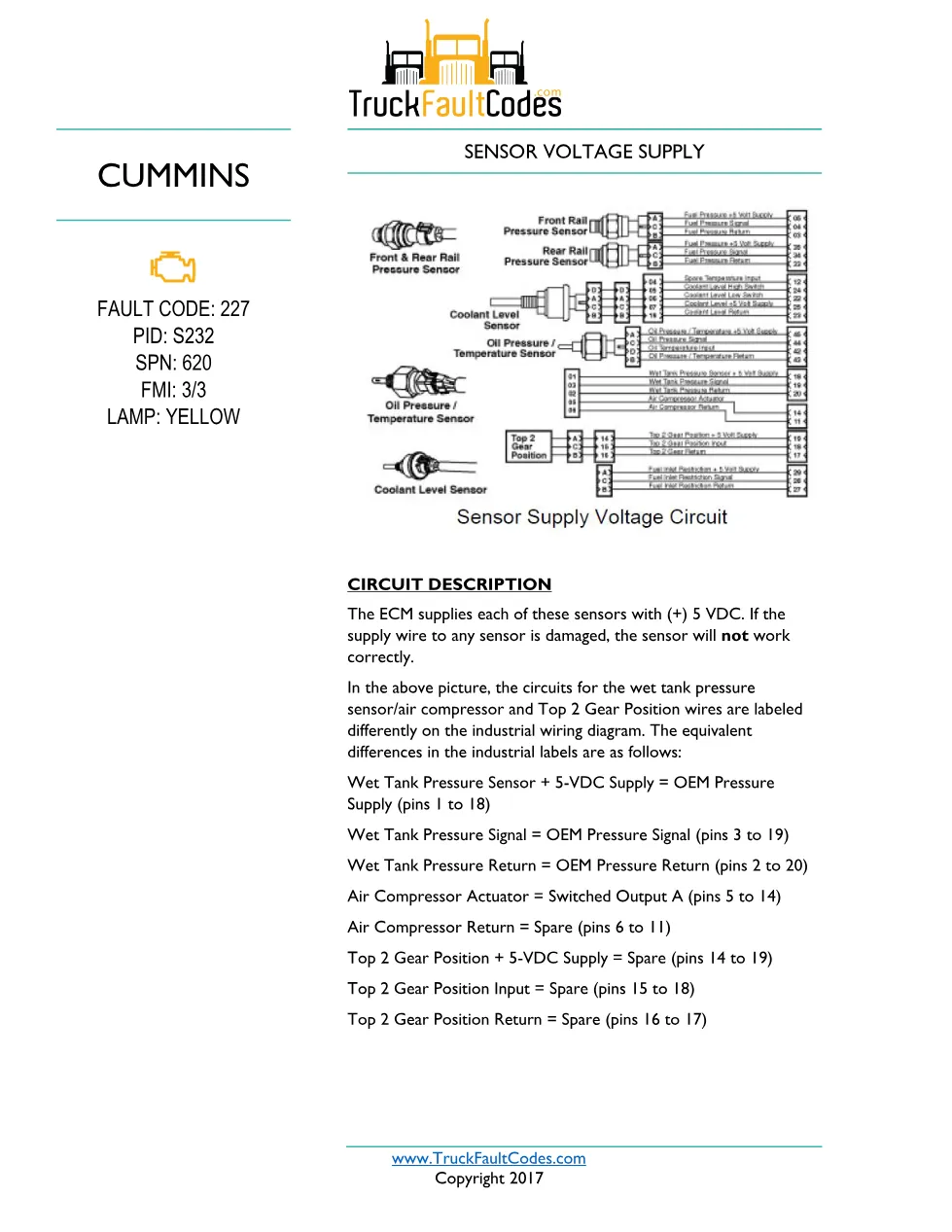

- Circuit description

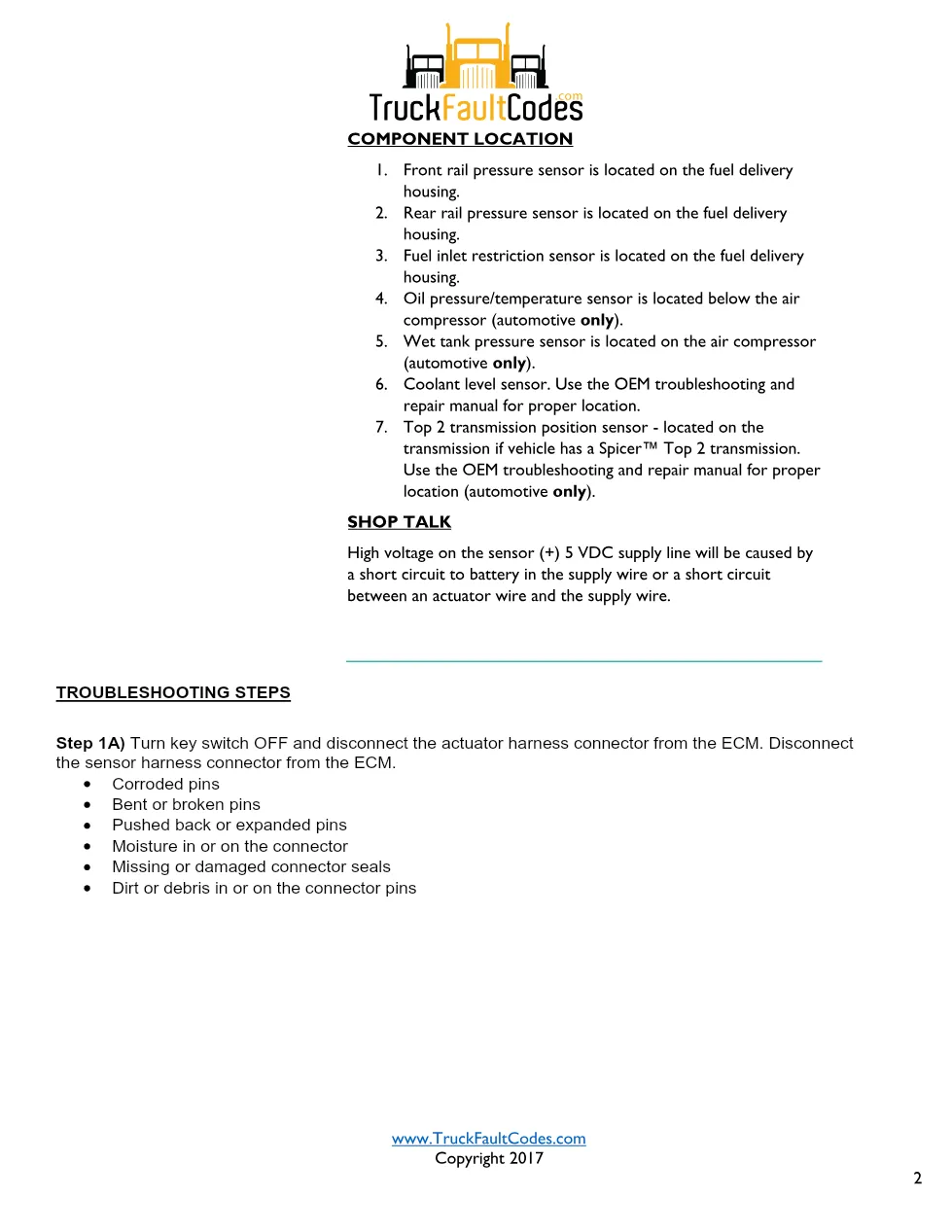

- Component location
- Shop talk
- Troubleshooting steps
- Fault code verification and clearing

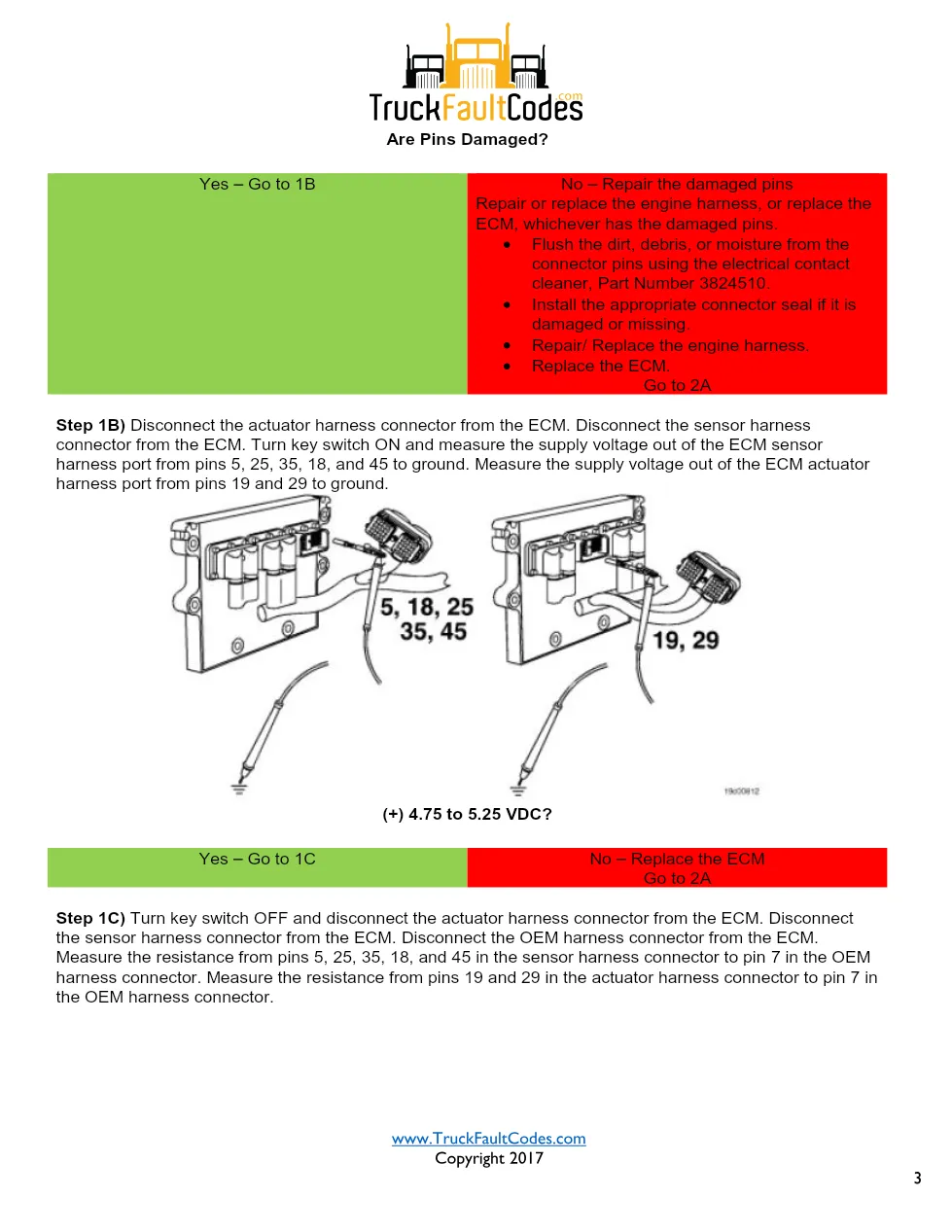

Cummins ISM Code 227 diagnostic steps
The ECM supplies each sensor with +5 VDC, and a damaged supply line stops the affected sensor working. This procedure covers the front and rear rail pressure sensors on the fuel delivery housing and maps the industrial wiring-diagram pin labels for the wet tank pressure and Top 2 gear position circuits. Technicians isolate the shorted supply line, inspect the connector pins, and verify circuit integrity before the code is cleared with a diagnostic tool.
Applicable truck models
This sheet applies to Cummins ISM CM570, ISX CM570, and Signature CM570 (1999-02) engines built around the CM570 ECM and the sensor voltage supply. The front and rear rail pressure sensors are on the fuel delivery housing. The document is laid out with a circuit description, a component location note, shop-talk tips, and a step-by-step troubleshooting chart whose go-to branches route the technician through each measurement. Refer to the official Cummins engine support site for wiring diagrams and component part numbers.
Who needs this Cummins ISM Code 227 manual
Heavy-duty diesel technicians, fleet service teams, and owner-operators diagnosing a yellow-lamp sensor voltage supply fault will use this sheet to follow the factory decision tree, confirm the reading, and repair the harness, connector, or component instead of replacing parts on guesswork. It spells out each measurement threshold and its pass or fail branch, so the fault can be verified active, the repair validated, and the inactive code cleared with the diagnostic tool.
