Cummins ISM code 1866 is the Cummins ISM CM871 (2007-09) diagnostic reference for fault code 1866, the EGR differential pressure sensor DTC that indicates the EGR valve delta pressure data is erratic, intermittent, or incorrect. This 6-page PDF from the Cummins ISX and ISM Troubleshooting and Repair documentation lists the fault identifiers, component description, and step-by-step checks. It carries PID P411, SPN 411, FMI 2/2, and lights Amber warning lamp.
Official document details
| Brand | Cummins |
| Model coverage | ISM CM871 (2007-09) and ISX CM871 engines |
| System / group | ISM CM871 (2007-09) / DTCs |
| Fault code | 1866 — SPN 411, FMI 2/2, PID P411 |
| Warning lamp | AMBER |
| Pages | 6 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (PID, SPN, FMI, warning lamp)
- Description
- Shop Talk
- Component location

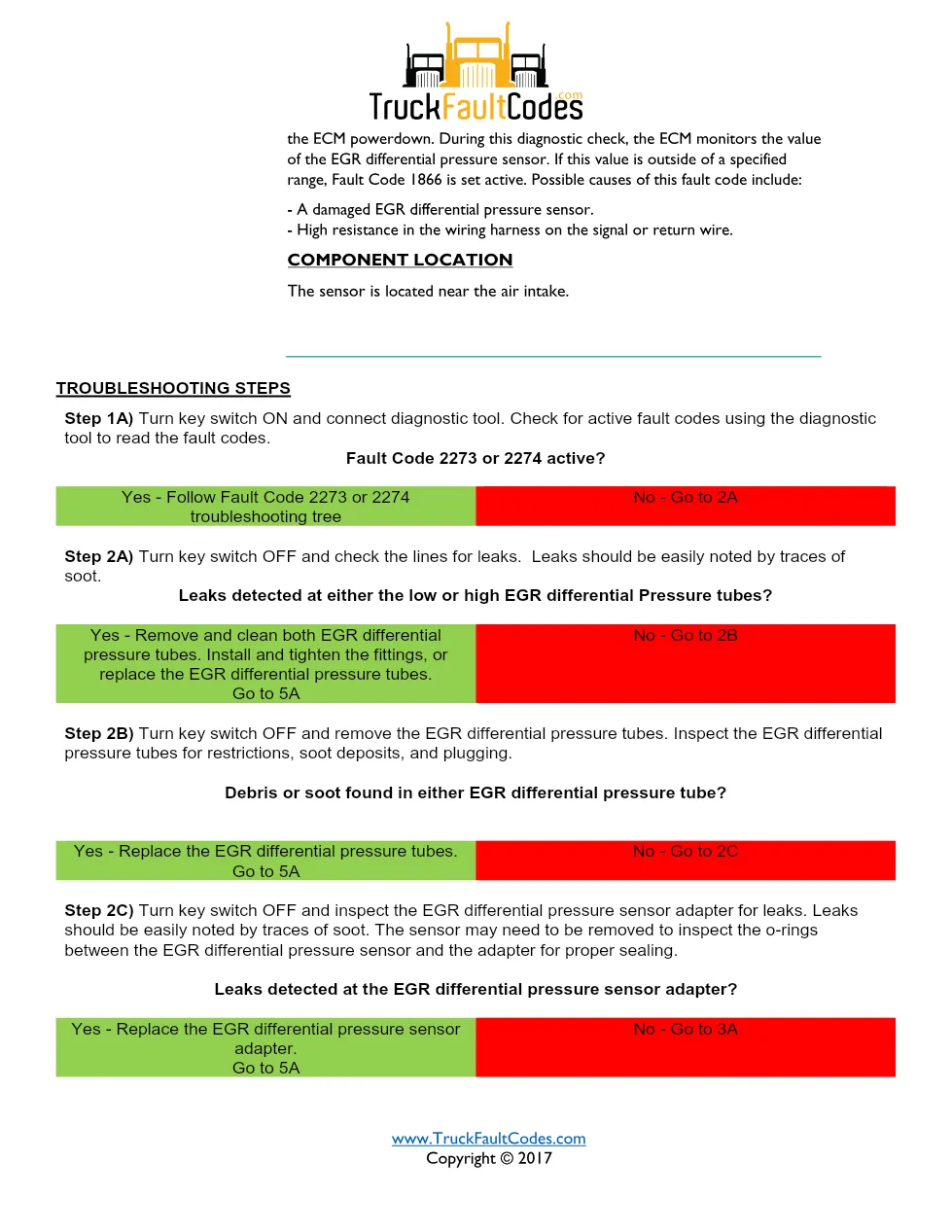

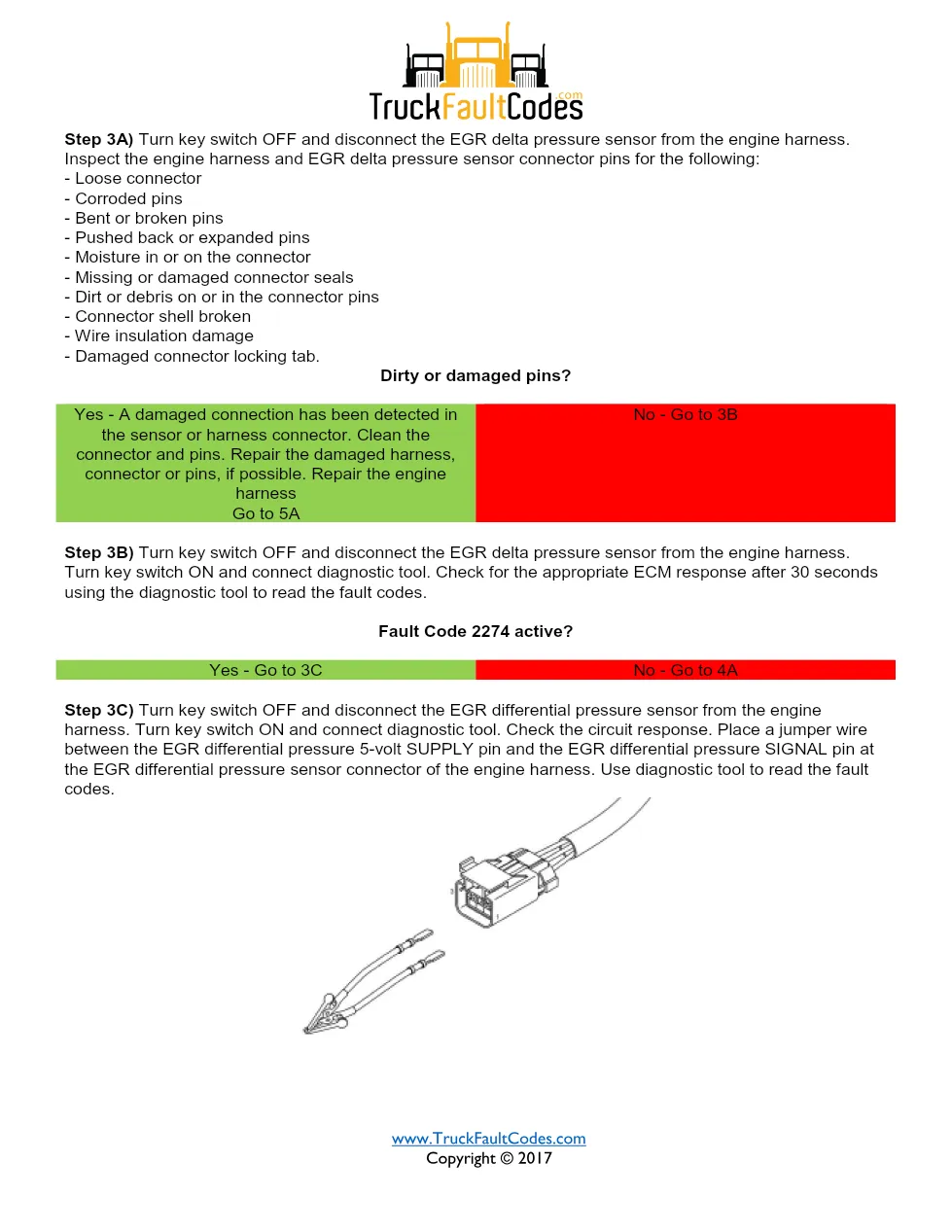

- Troubleshooting steps
Cummins ISM code 1866 diagnosis

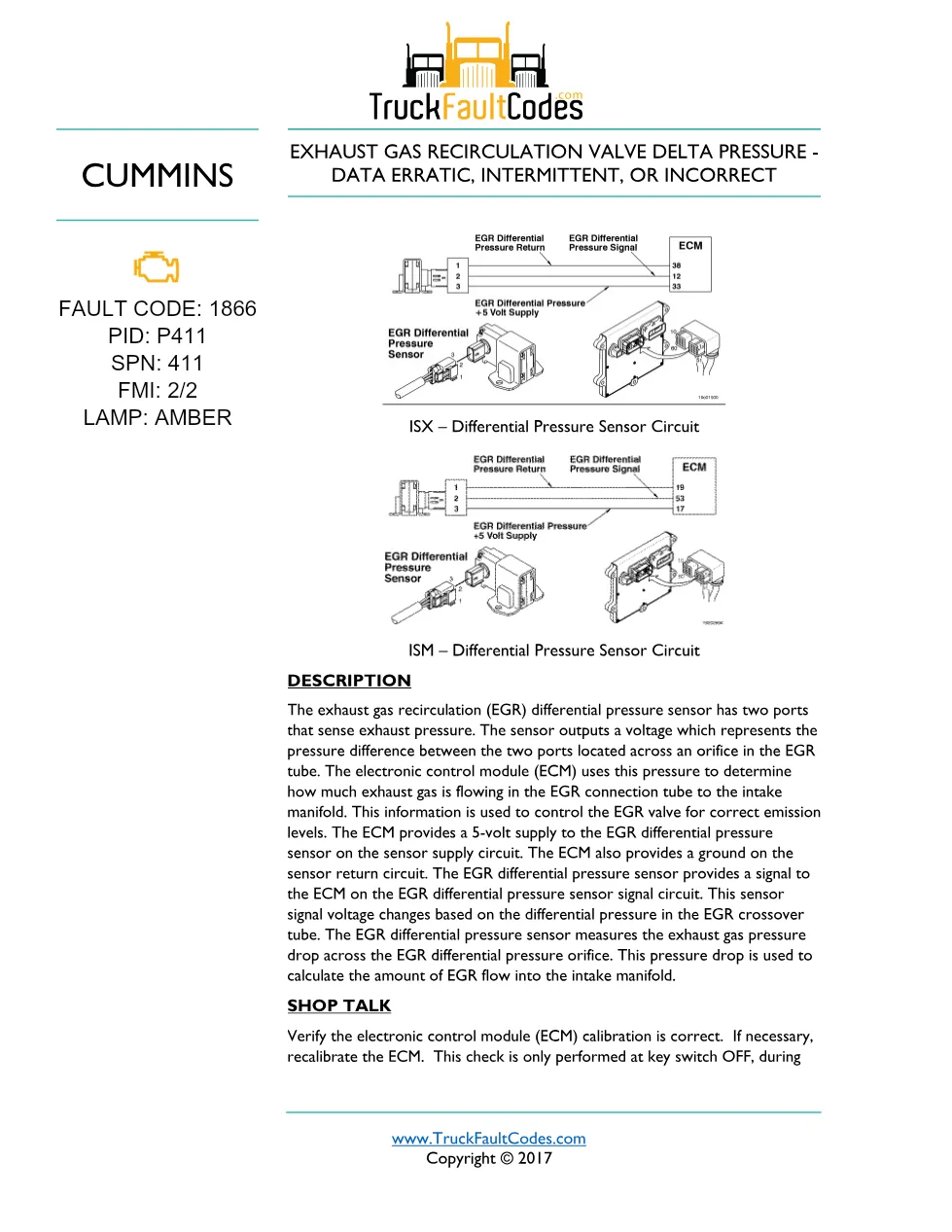

Fault code 1866 indicates the EGR valve delta pressure data is erratic, intermittent, or incorrect. The EGR differential pressure sensor has two ports that sense exhaust pressure across an orifice in the EGR tube, and the ECM uses the measured pressure drop to calculate EGR flow into the intake manifold and control the EGR valve for correct emission levels. According to the Cummins Shop Talk guidance, technicians should first verify that the ECM calibration is correct and recalibrate if necessary before component replacement. Possible causes listed in the document include:
- A signal reading outside the expected range for current engine conditions.
- Wiring or connector faults on the sensor supply, return, or signal circuit.
Applicable truck models and engines
This document applies to Cummins ISM CM871 (2007-09) engines and the closely related ISX CM871 platform used in on-highway trucks, so it suits heavy-duty tractors and vocational trucks fitted with these engines and their aftertreatment systems. Always confirm the engine dataplate and refer to the OEM troubleshooting and repair manual for chassis-specific pin numbers. Full specifications are published on the Cummins official website.
Who needs this Cummins ISM code 1866 manual
Diesel technicians, fleet mechanics, and workshop owners diagnosing the EGR differential pressure sensor on ISM CM871 engines will use this reference to read the fault identifiers correctly and follow the factory test sequence for code 1866.
