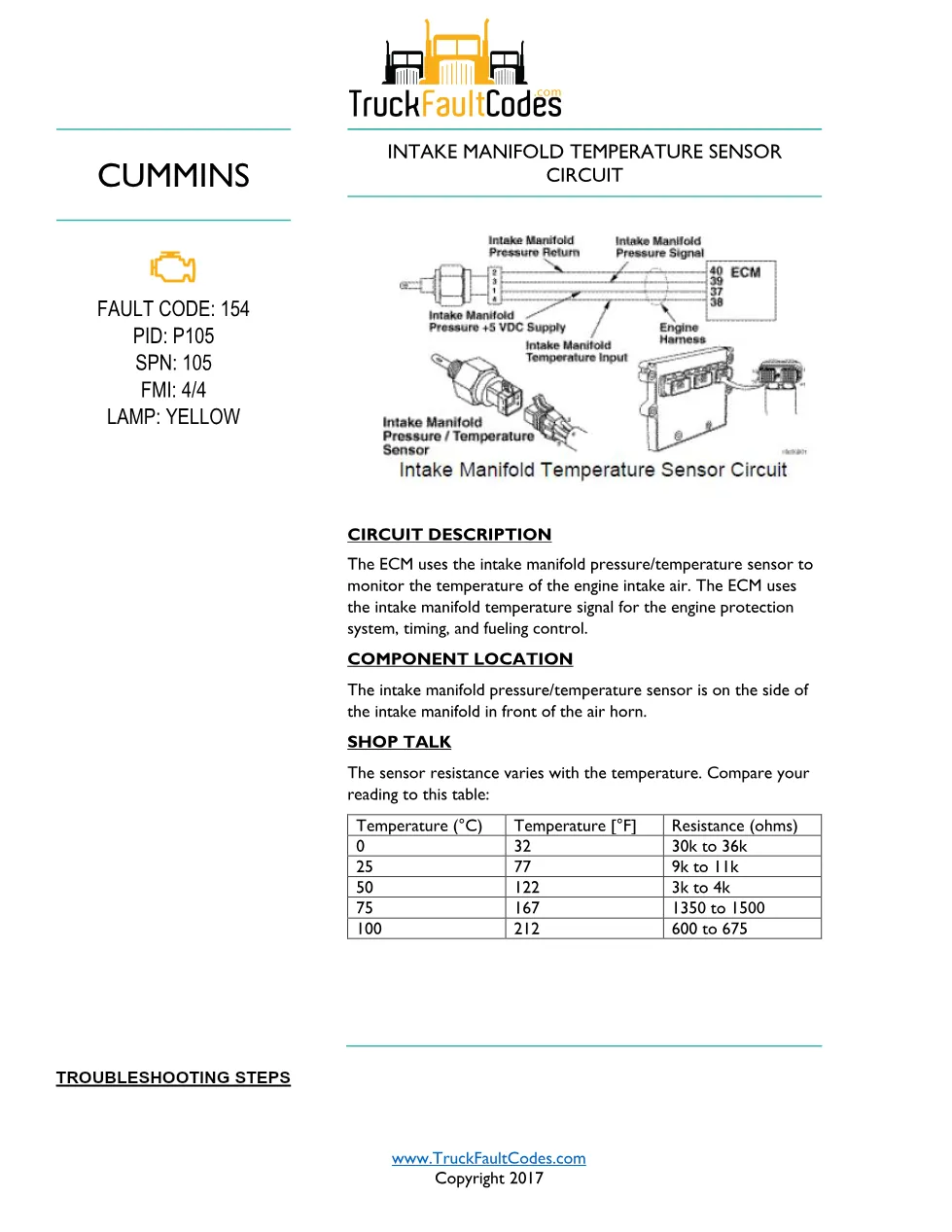

Cummins ISM code 154 is the DiagTechPro reference page for this Cummins diagnostic fault code 154 document, a 6-page PDF sourced from TruckFaultCodes.com (Copyright 2017) that covers the intake manifold temperature sensor circuit. The ECM uses the intake manifold pressure/temperature sensor to monitor the temperature of the engine intake air. The ECM uses the intake manifold temperature signal for the engine protection system, timing, and fueling control. When the condition is detected the ECM logs the fault and turns on the yellow warning lamp to alert the driver and technician.
Cummins ISM code 154 document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570 (1999-02) / DTCs; ISX CM570 (1999-02) / DTCs; Signature CM570 (1999-02) / DTCs |
| System / Group | ISM CM570 (1999-02) / DTCs |
| Fault identifier | Code 154 (PID P105, SPN 105, FMI 4) |
| Warning lamp | Yellow |
| Source | TruckFaultCodes.com |
| Year / Revision | Copyright 2017 |
| Pages | 6 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit Description
- Component Location
- Shop Talk
- Troubleshooting Steps
- Repair verification and clearing fault codes
Applicable truck models

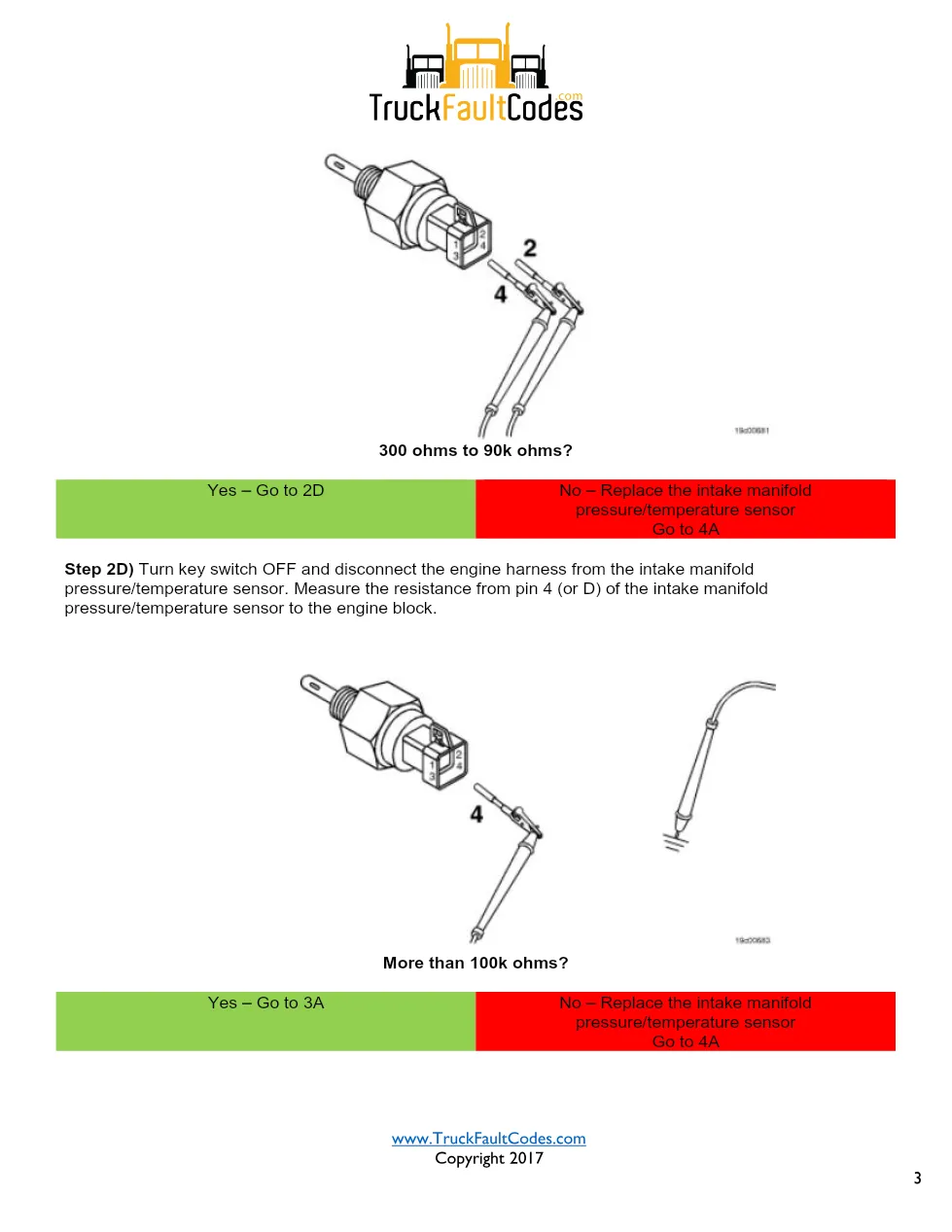

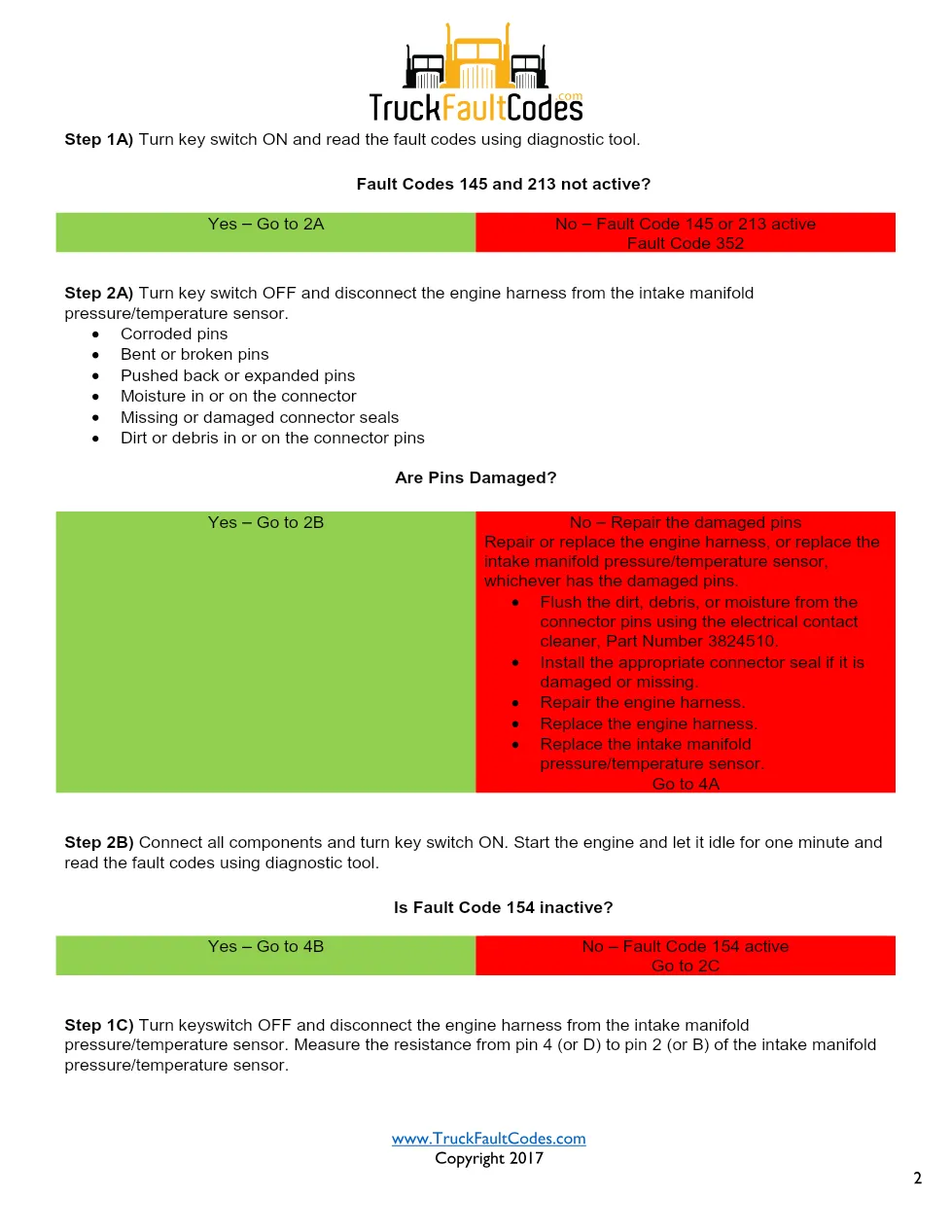

This document applies to Cummins ISM CM570 (1999-02) / DTCs; ISX CM570 (1999-02) / DTCs; Signature CM570 (1999-02) / DTCs electronic engines used in on-highway and vocational trucks. The intake manifold pressure/temperature sensor is on the side of the intake manifold in front of the air horn. The troubleshooting section walks through connector and pin inspection, engine-harness resistance measurements and pin-to-pin continuity checks, and ends with a road test that confirms the code is inactive and all fault codes are cleared. Because the same procedure isolates the sensor, the harness and the ECM in turn, it prevents replacing parts that are still good. Verify engine calibration and coverage against the official Cummins engine support site before ordering parts.
