This Cummins ISB67 fault 3245 document is a Cummins troubleshooting file for Fault Code 3245 on CM2250 aftertreatment diesel particulate filter systems. It explains the fault reason, ECM response, clearing conditions, likely causes, associated procedures, and guided diagnostic steps using INSITE™ electronic service tool.
Official Cummins ISB67 fault 3245 document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB6.7 CM2250; also references ISC8.3 and ISL9 CM2250, ISX15 CM2250, GX CM2250, ISX11.9 CM2250, QSL9 CM2250, and QSB6.7 CM2250 in associated procedures. |
| System/Group | ISB6.7 CM2250 (2010-12) / DTCs; Aftertreatment Diesel Particulate Filter System Circuit. |
| Publication no. | 4022254 for ISB6.7 CM2250 associated procedures. |
| Year/Revision | Year unknown; summary last modified 11-Jun-2010; troubleshooting section last modified 06-Dec-2010. |
| Pages | 11 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Overview

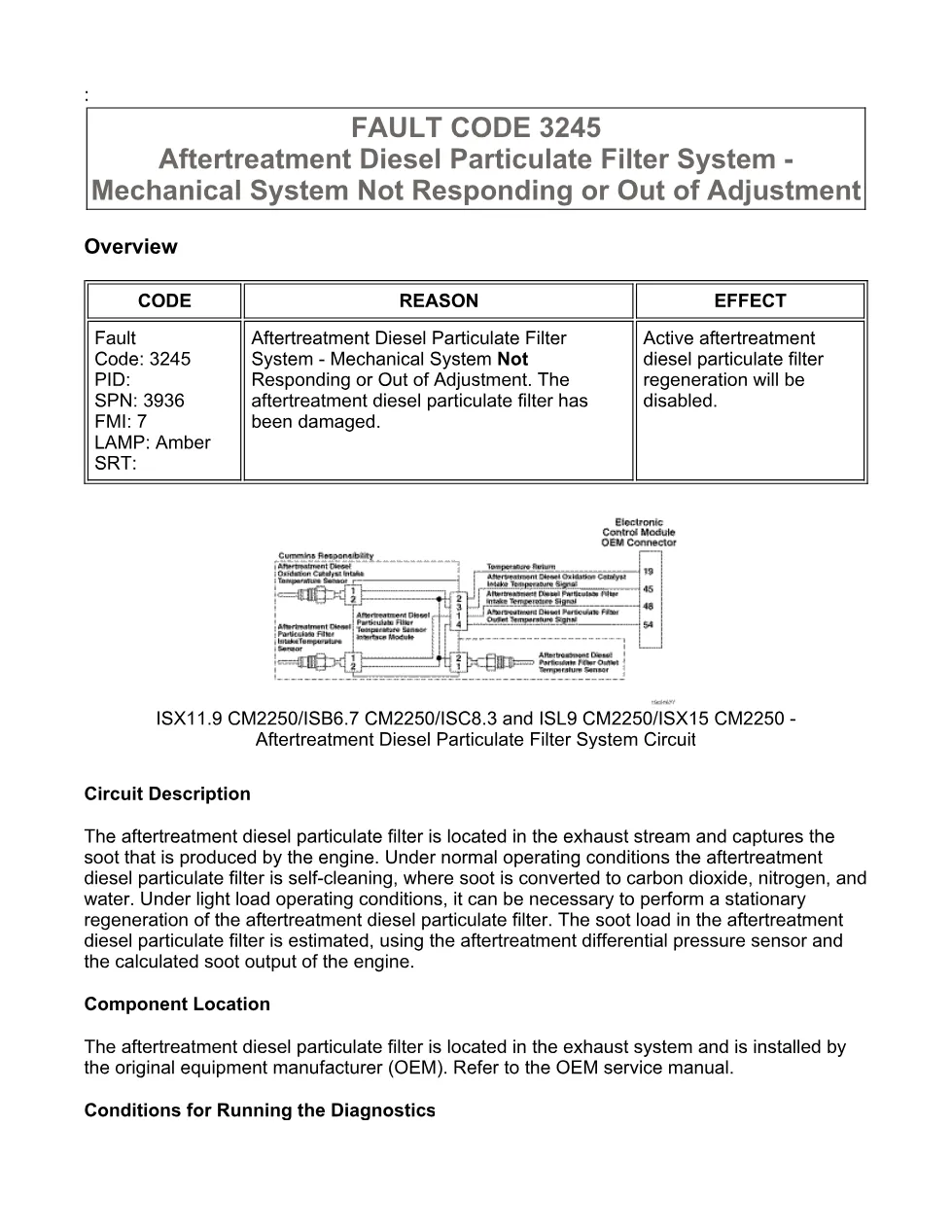

- Circuit Description
- Component Location
- Conditions for Running the Diagnostics

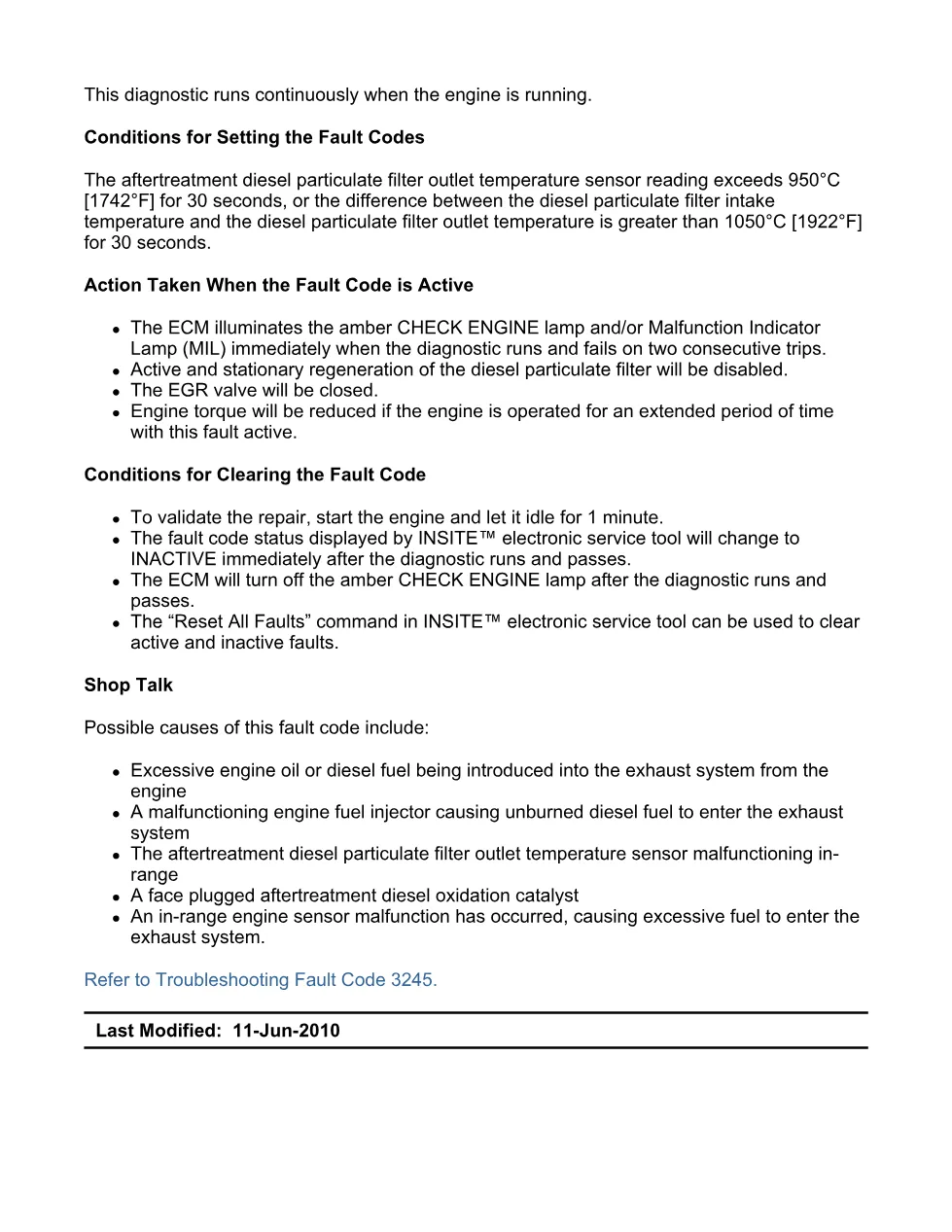

- Conditions for Setting the Fault Codes
- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code
- Shop Talk

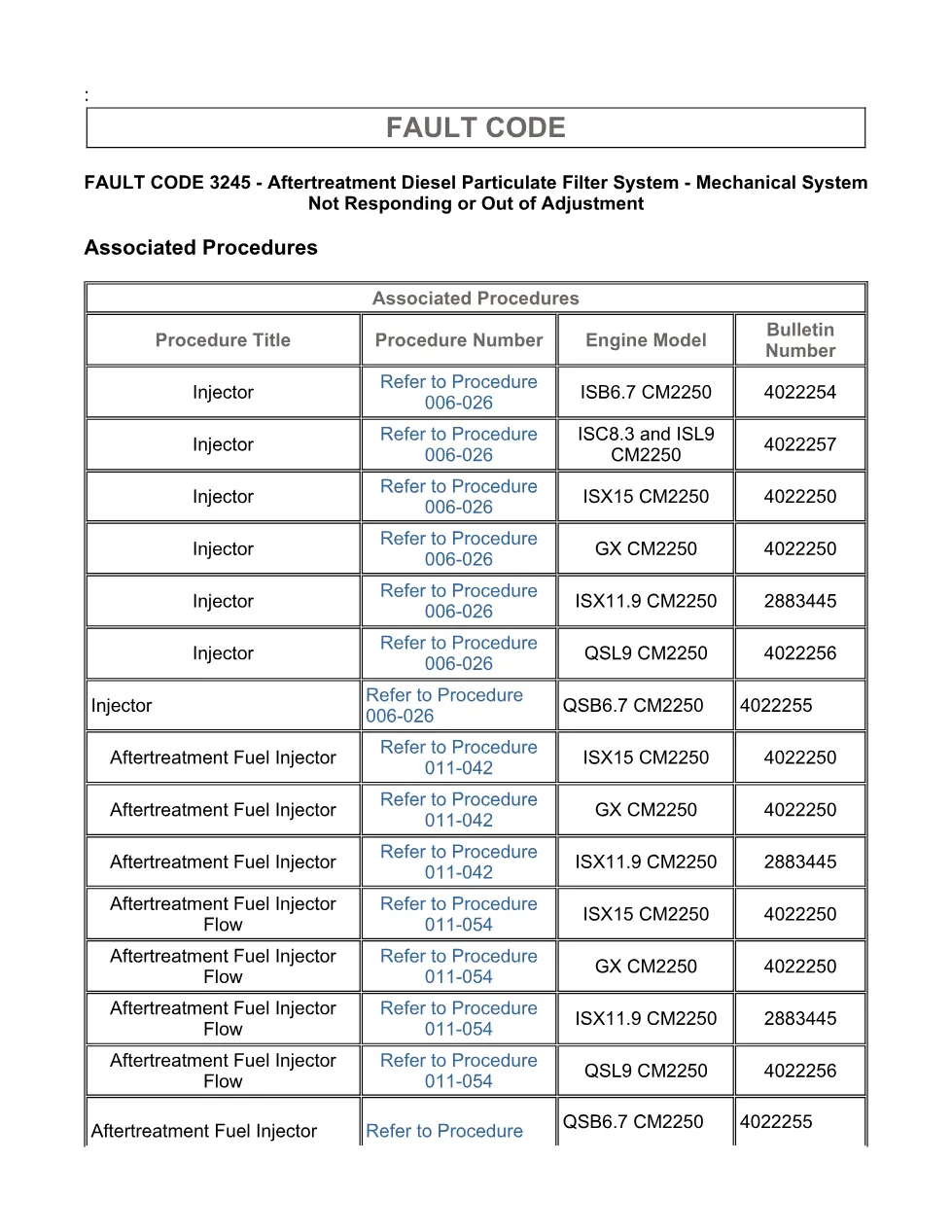

- Associated Procedures
- STEP 1. Check the aftertreatment system.
- STEP 2. Check the fuel system.
- STEP 3. Check the turbocharger outlet.
- STEP 4. Check the aftertreatment fuel injector (if equipped).
- STEP 5. Check ECM calibration and clear fault codes.
Applicable truck models
The document applies to Cummins CM2250 engines where Fault Code 3245 is used for an aftertreatment diesel particulate filter mechanical system not responding or out of adjustment condition. The file identifies ISB6.7 CM2250 and lists associated procedure coverage for ISC8.3 and ISL9 CM2250, ISX15 CM2250, GX CM2250, ISX11.9 CM2250, QSL9 CM2250, and QSB6.7 CM2250. The DPF is installed in the exhaust system by the OEM, so vehicle-specific component access may require the OEM service manual. See the official manufacturer website at Cummins official website.
