This 12-page PDF is a complete Cummins ISB6.7 132 132 troubleshooting document covering the accelerator pedal or lever position sensor 1 circuit when voltage is below normal or shorted to low source. It applies to CM2350-equipped ISB6.7 engines (2013–2017) and provides circuit descriptions, diagnostic conditions, step-by-step fault isolation procedures, and repair verification instructions.
Official Cummins ISB6.7 132 132 document details
| Brand | Cummins |
| Model coverage | ISB6.7 with CM2350 ECM (2013–2017) |
| System / Group | Diagnostic Trouble Codes (DTCs) — Accelerator Pedal Position Sensor 1 Circuit |
| Publication no. | Not specified |
| Year / Revision | Copyright 2017 |
| Pages | 12 |
| File size | 0.7 MB |
| Format | |
| Language | English |
Document table of contents

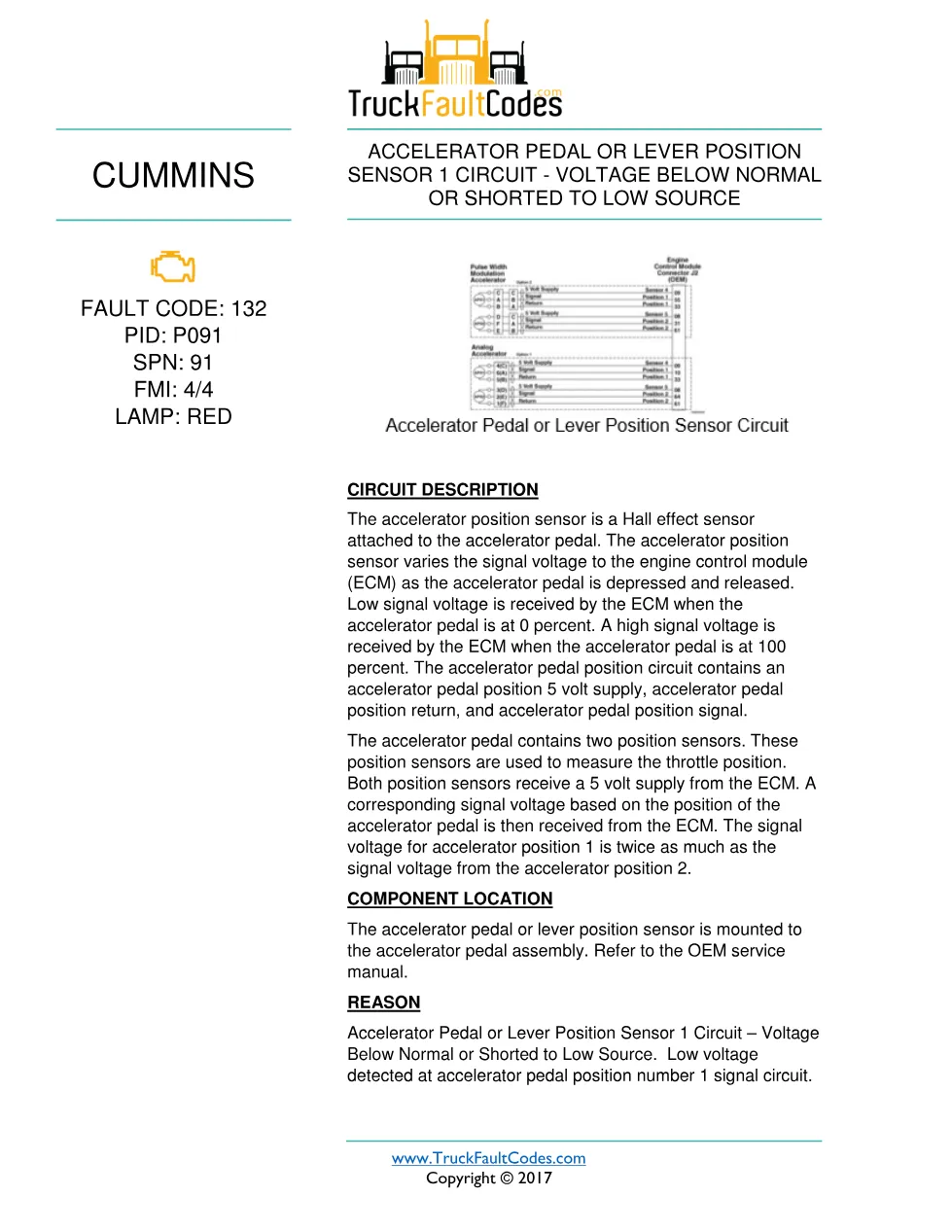

- Circuit Description — Hall effect accelerator pedal position sensor operation and 5-volt supply
- Component Location
- Reason — SPN 91 / FMI 4, PID P091, voltage below normal or shorted to low source

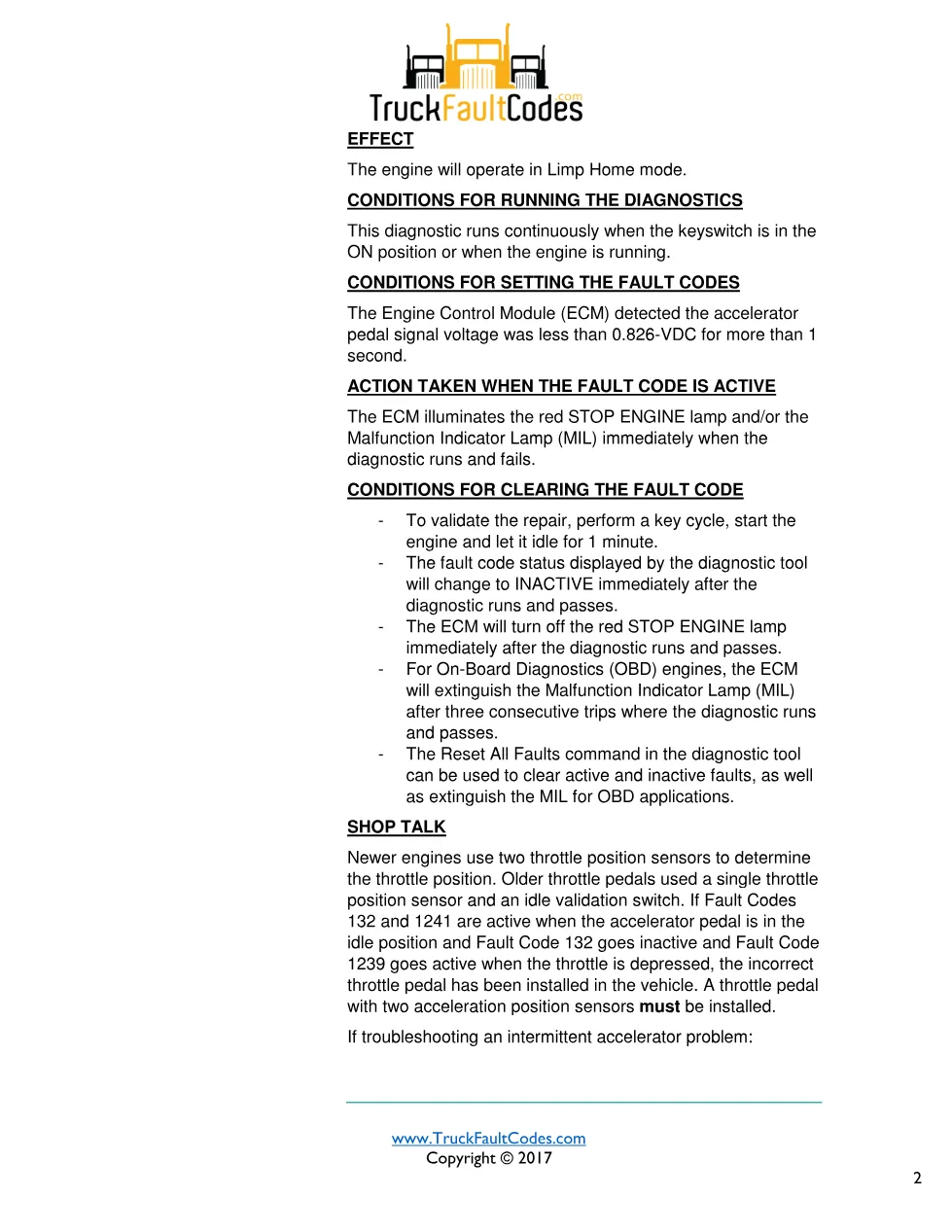

- Effect — Engine operates in Limp Home mode
- Conditions for Running the Diagnostics
- Conditions for Setting the Fault Code — Signal voltage less than 0.826 VDC for more than 1 second
- Action Taken When the Fault Code Is Active — Red STOP ENGINE lamp and MIL illumination
- Conditions for Clearing the Fault Code
- Shop Talk — Dual vs. single throttle position sensor pedals, intermittent fault guidance
- Troubleshooting Steps 1A–1B: Check for sensor supply fault codes 2185/2186 and active status
- Step 2A: Inspect accelerator pedal position sensor and connector pins
- Steps 2B–2D: Verify 4.75–5.25 VDC supply voltage, circuit response with jumper wire, pedal condition
- Step 3A: Inspect ECM and OEM harness connector pins
- Steps 3B–3C: Check for open circuits in supply and signal lines (resistance less than 10 ohms)
- Steps 3D–3E: Check for pin-to-pin and pin-to-ground short circuits (resistance greater than 100k ohms)
- Step 3F: Check for inactive fault code after reconnection
- Step 4A: Verify ECM calibration update availability
- Step 4B: Disable and clear the fault code, verify repair completion
Applicable truck models
This document applies to any vehicle equipped with the Cummins ISB6.7 engine using the CM2350 electronic control module, typically found in medium-duty trucks and buses manufactured between 2013 and 2017. The accelerator pedal assembly and OEM harness routing are vehicle-specific; the guide directs technicians to consult the OEM service manual for exact component locations and wiring diagrams. For official engine specifications and service support, visit Cummins official website.
Who needs this Cummins ISB6.7 132 132 manual
Diesel mechanics and workshop owners diagnosing a red STOP ENGINE lamp triggered by an accelerator pedal position sensor voltage fault on CM2350-controlled ISB6.7 engines will find the systematic troubleshooting tree, resistance and voltage thresholds, and connector inspection checklists essential for efficient repair.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
