This Cummins fault code 784 reference documents the Cummins fault code 784 adaptive cruise control circuit fault (SPN 1590, FMI 2, amber lamp) on ISM CM570 engines. It is part of the DiagTechPro truck manuals library and preserves the original Cummins ISM CM570 fault-code reference republished by TruckFaultCodes.com (Copyright 2017).
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | Cummins ISM CM570 (1999-2002) engines. |
| System / Group | ISM CM570 (1999-02) / DTCs |
| Fault code | Code 784 (SPN 1590, FMI 2) |
| Source | Cummins ISM CM570 fault-code reference republished by TruckFaultCodes.com (Copyright 2017) |
| Pages | 3 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents

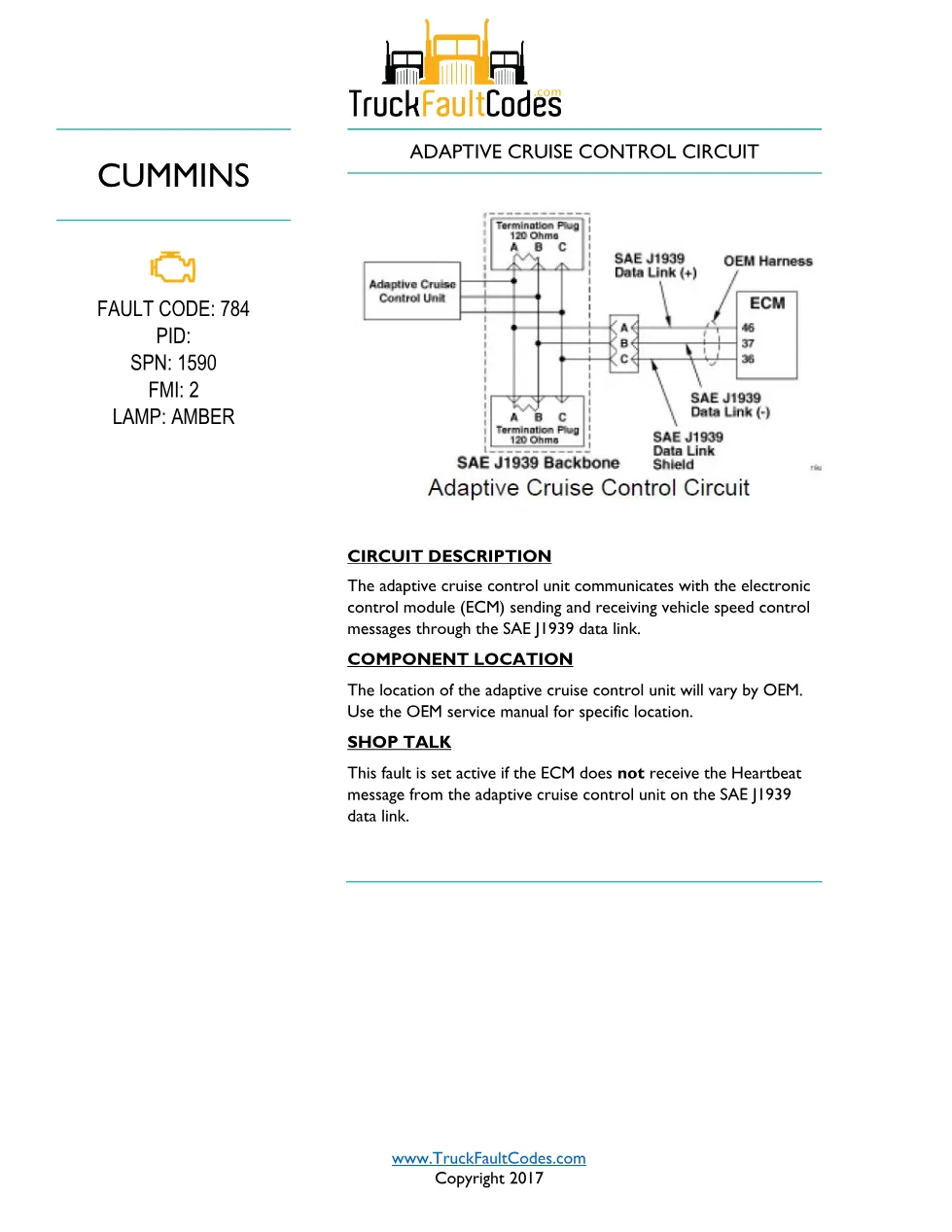

- Circuit description and component location
- Shop talk – J1939 heartbeat
- J1939 communication checks
- Connector inspection and verification
Diagnostic steps in the Cummins fault code 784 document

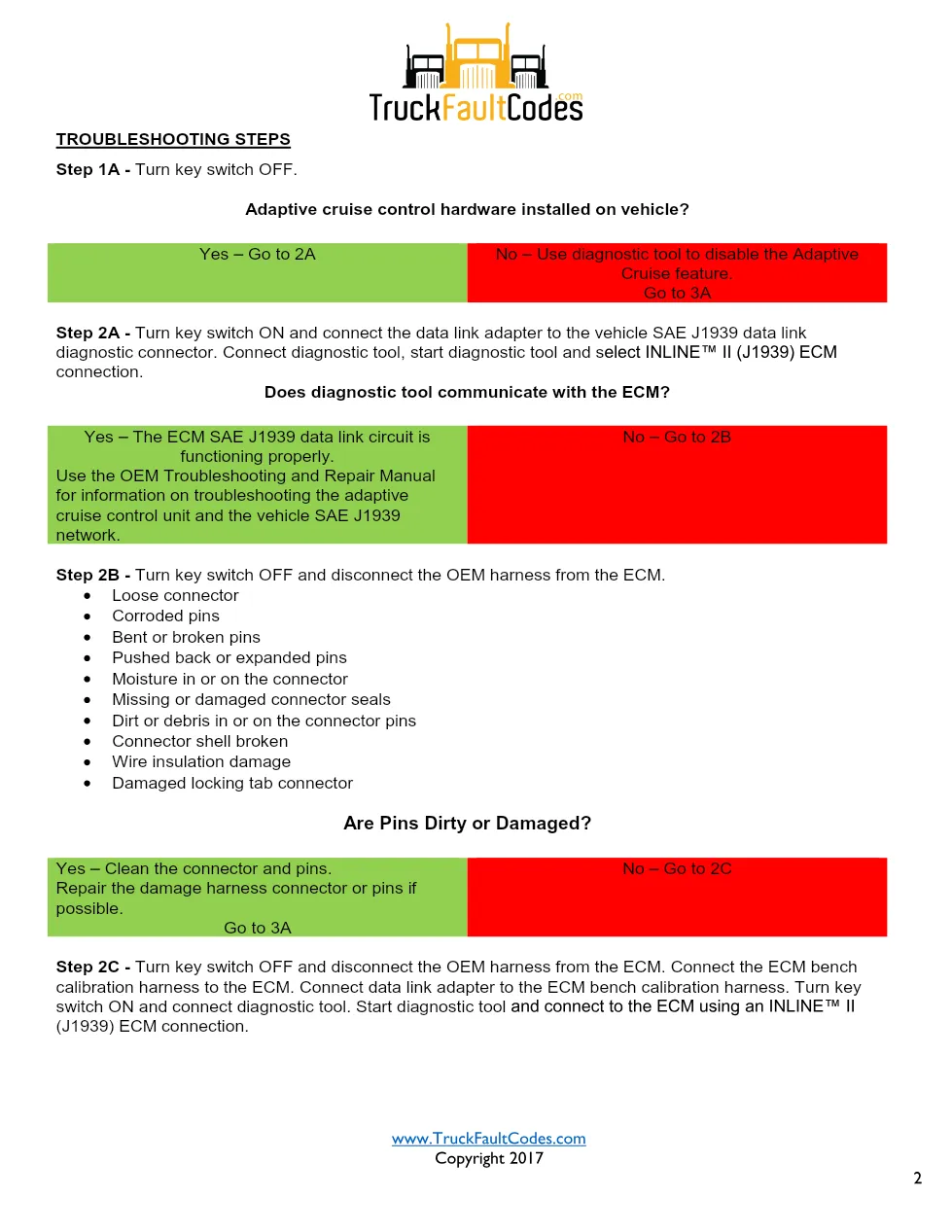

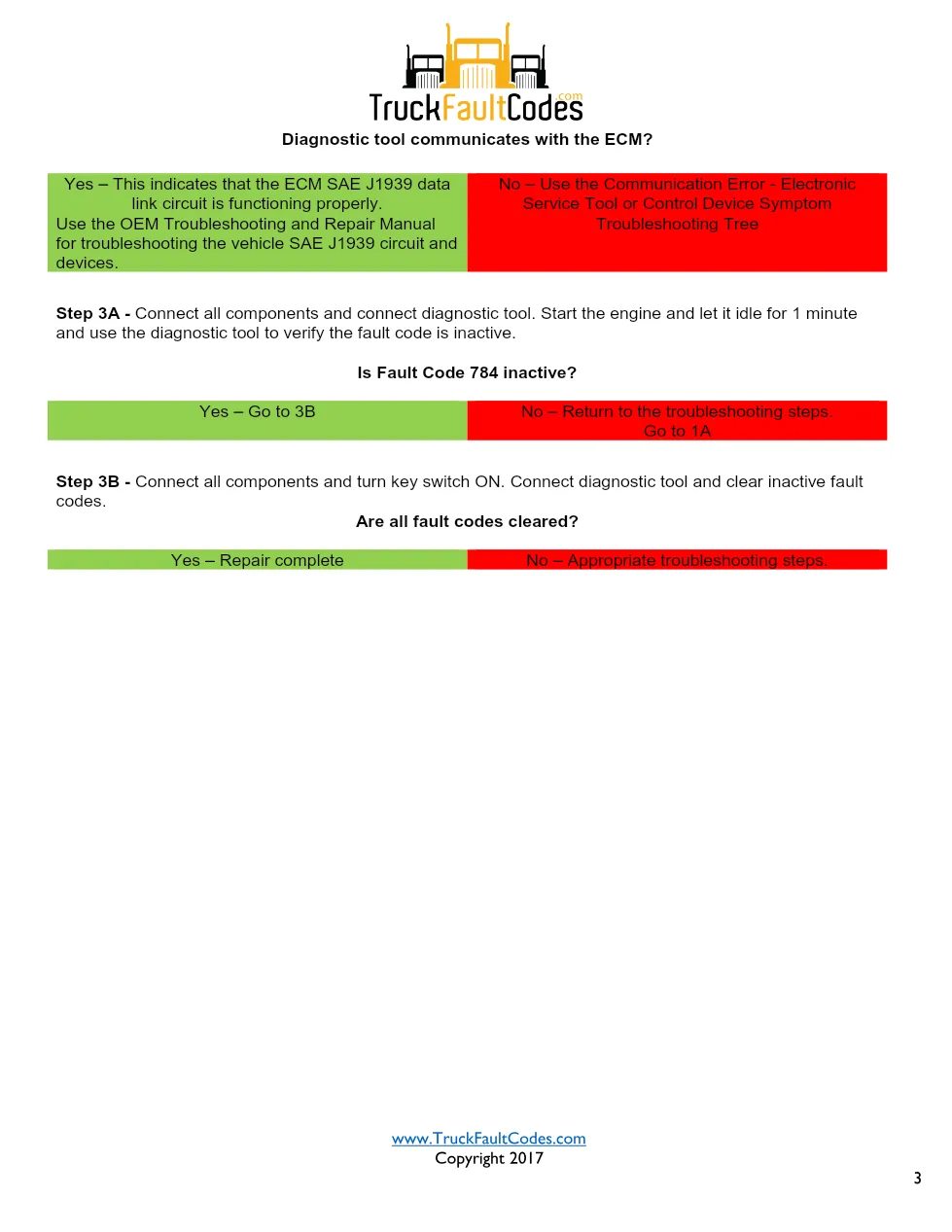

The adaptive cruise control unit exchanges vehicle speed control messages with the electronic control module (ECM) over the SAE J1939 data link, and the code sets active when the ECM stops receiving the heartbeat message. Troubleshooting confirms whether adaptive cruise hardware is fitted, checks ECM communication with an INLINE II adapter, inspects the OEM harness connector, and verifies the code is inactive after repair.
The Adaptive cruise control circuit code on Cummins ISM CM570 engines is read with INSITE and the INLINE datalink adapter; the PID, SPN and FMI values identify the affected circuit and failure type. Work each troubleshooting step in the published order, inspect every connector for corroded, bent or pushed-back pins, and re-verify after the repair by starting the engine, reaching the stated conditions and confirming the code goes inactive before clearing stored codes. Keep the diagnostic log with the repair order for warranty and quality tracking.
Applicable truck models and engines
This document applies to Cummins ISM CM570 (1999-2002) engines. For factory service data, parts and warranty information, consult the official Cummins support site.
Who needs the fault code 784 manual
This page is for technicians diagnosing an adaptive-cruise datalink dropout on a Cummins ISM CM570 truck or disabling the feature when no hardware is fitted.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
