This Cummins fault code 583 PDF is the official Fuel Inlet Restriction Sensor Circuit troubleshooting chart for the Cummins ISM CM570 (1999-02) engine platform, covering PID P015, SPN 1381, FMI 1/18 and the Yellow warning lamp. It is a step-by-step diagnostic flow, not a general manual, and it takes a technician from symptom to confirmed repair on this specific code.
Cummins fault code 583 explained

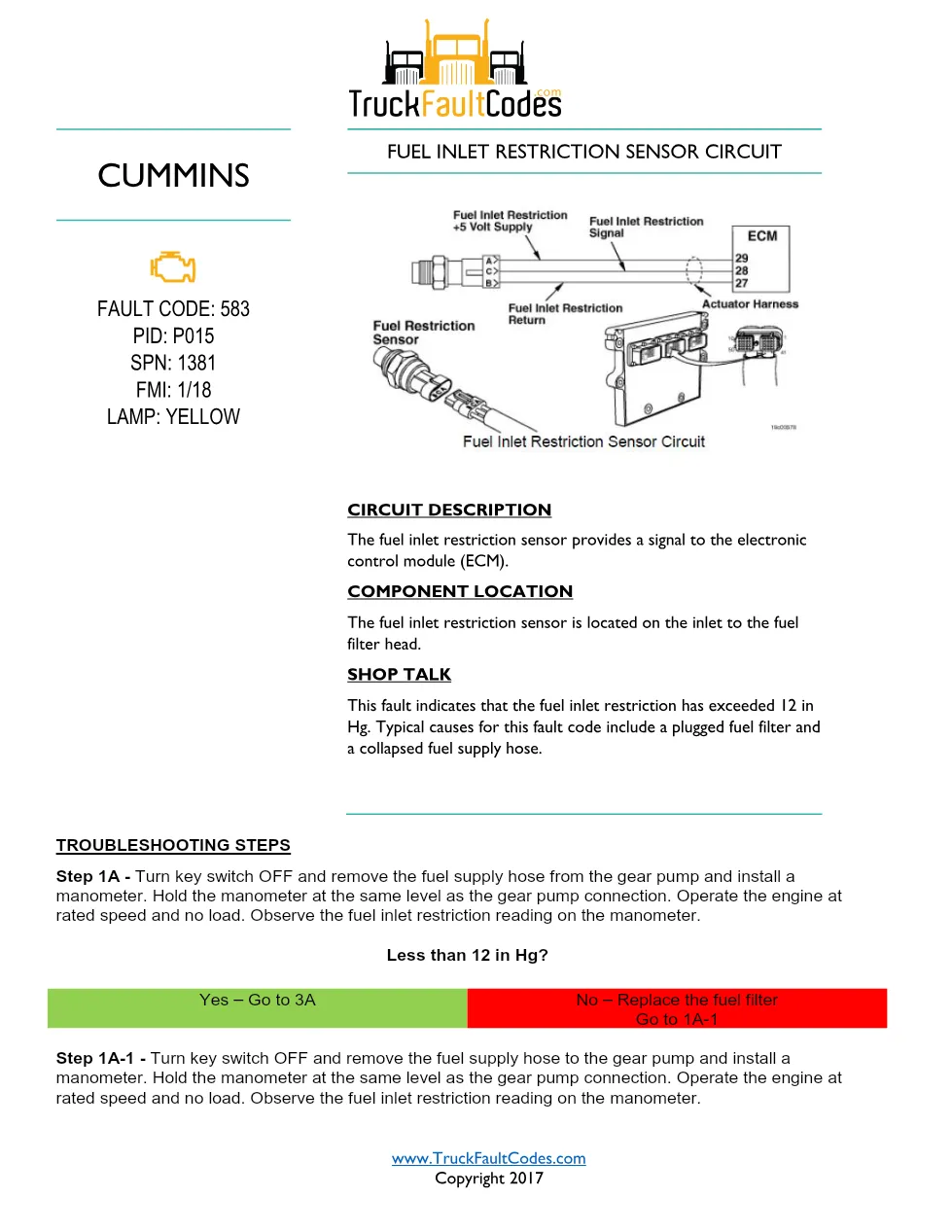

The fuel inlet restriction sensor supplies a signal to the electronic control module (ECM). The fuel inlet restriction sensor is located on the inlet to the fuel filter head. This fault indicates the fuel inlet restriction has exceeded 12 in Hg; typical causes are a plugged fuel filter or a collapsed fuel supply hose. Restriction is measured with a manometer at the gear pump connection with the engine at rated speed and no load.
Official document details
| Brand | Cummins |
| Model coverage | ISM, ISX and Signature CM570 (1999-02) |
| System / Group | DTCs — Fuel Inlet Restriction Sensor Circuit |
| Fault identifiers | Fault Code 583, PID P015, SPN 1381, FMI 1/18, Yellow lamp |
| Source / Revision | TruckFaultCodes.com, Copyright 2017 |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit Description
- Component Location
- Shop Talk
- Troubleshooting Steps
- Fault code verification and clearing
Applicable truck models
This chart applies to on-highway trucks and equipment built on the Cummins ISM, ISX and Signature CM570 (1999-02) engines with the CM570 electronic control module. Because component and battery locations vary by chassis maker, the document repeatedly refers you to the OEM manual for exact positions. For engine specifications and dealer support, see the official Cummins engine site.
Who needs this Cummins fault code 583 manual
Heavy-duty diesel technicians and workshop owners servicing ISM, ISX or Signature CM570 engines need this chart to diagnose the Fuel Inlet Restriction Sensor Circuit correctly instead of guessing at parts. It pairs with a diagnostic scan tool and standard shop meters.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
