This Cummins fault code 538 PDF is the official Autoshift Neutral Actuator Circuit troubleshooting chart for the Cummins ISM CM570 (1999-02) engine platform, covering PID S045, SPN 719, FMI 11/11 and the Yellow warning lamp. It is a step-by-step diagnostic flow, not a general manual, and it takes a technician from symptom to confirmed repair on this specific code.
Cummins fault code 538 explained

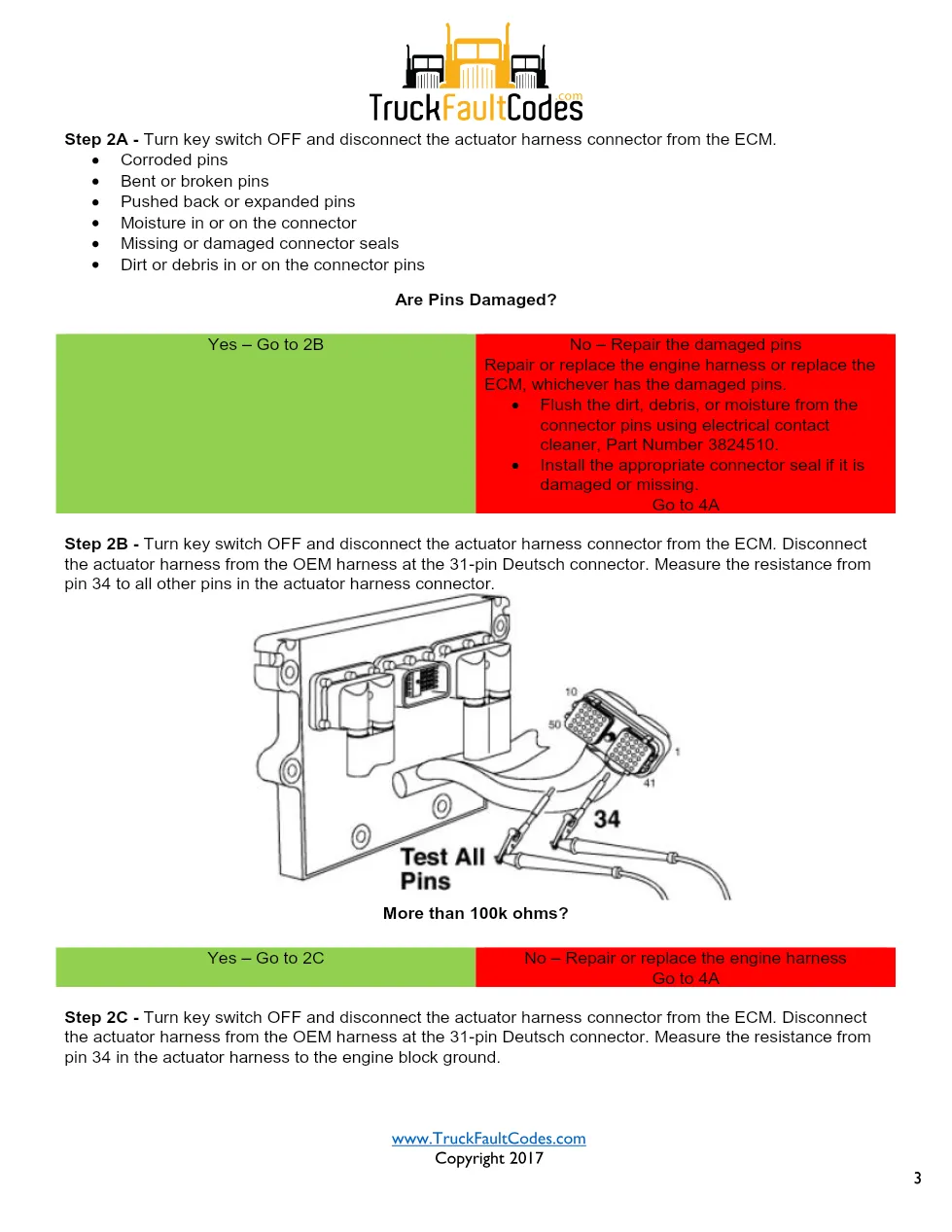

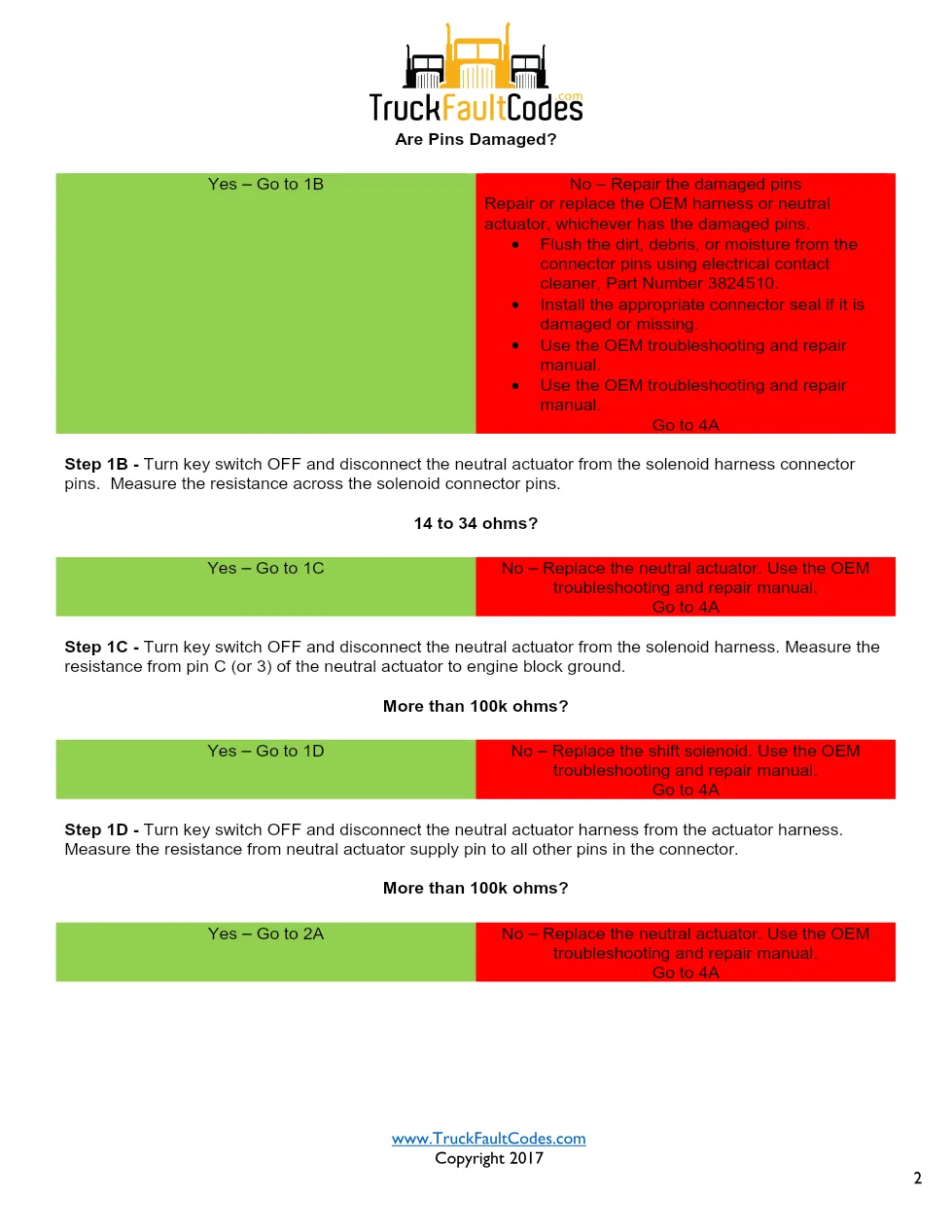

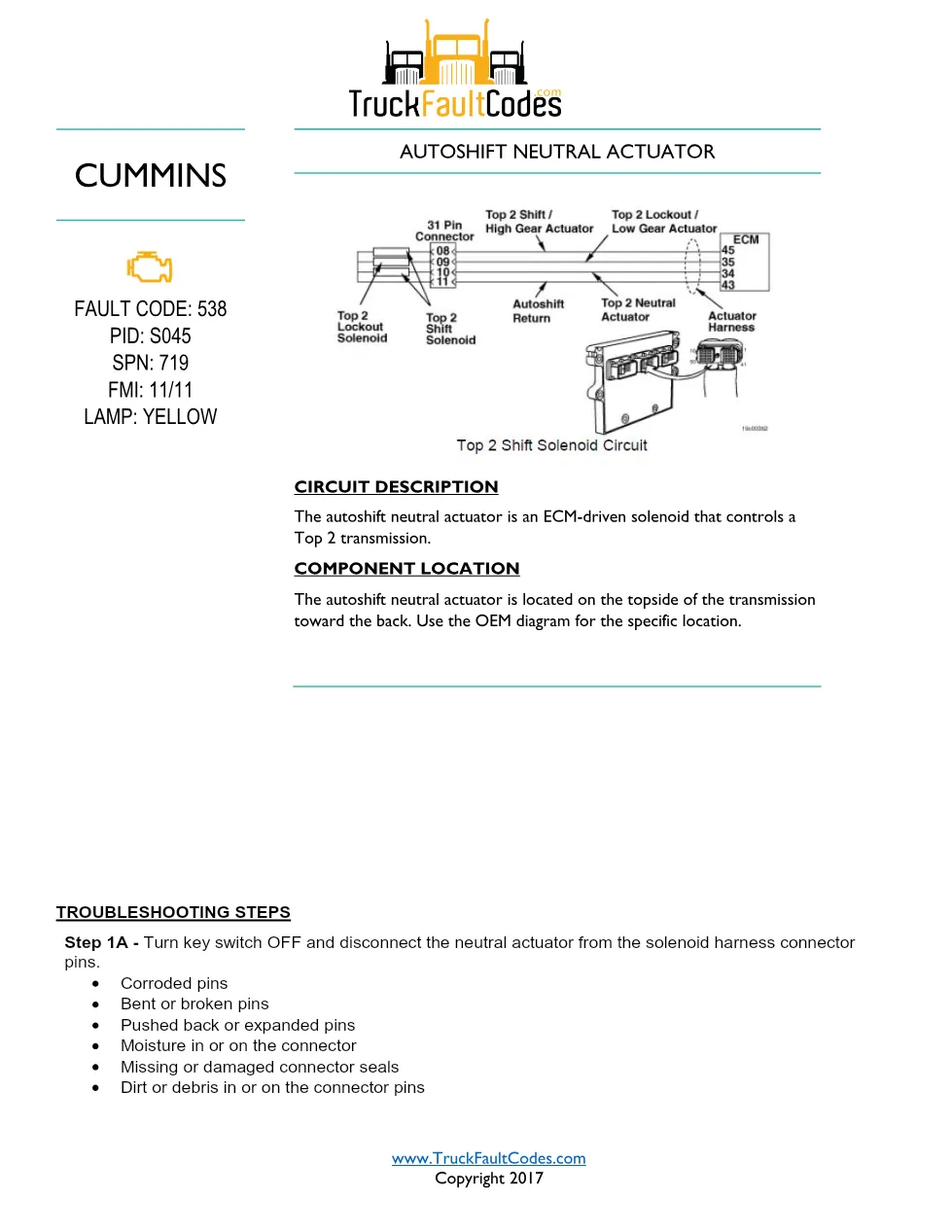

The autoshift neutral actuator is an ECM-driven solenoid that controls a Top 2 transmission. The autoshift neutral actuator is on the topside of the transmission toward the back; use the OEM diagram for the specific location. The chart starts by disconnecting the neutral actuator from the solenoid harness and inspecting the connector pins for corrosion, damage, moisture and debris.
Official document details
| Brand | Cummins |
| Model coverage | ISM, ISX and Signature CM570 (1999-02) |
| System / Group | DTCs — Autoshift Neutral Actuator Circuit |
| Fault identifiers | Fault Code 538, PID S045, SPN 719, FMI 11/11, Yellow lamp |
| Source / Revision | TruckFaultCodes.com, Copyright 2017 |
| Pages | 6 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit Description
- Component Location
- Shop Talk
- Troubleshooting Steps
- Fault code verification and clearing
Applicable truck models
This chart applies to on-highway trucks and equipment built on the Cummins ISM, ISX and Signature CM570 (1999-02) engines with the CM570 electronic control module. Because component and battery locations vary by chassis maker, the document repeatedly refers you to the OEM manual for exact positions. For engine specifications and dealer support, see the official Cummins engine site.
Who needs this Cummins fault code 538 manual
Heavy-duty diesel technicians and workshop owners servicing ISM, ISX or Signature CM570 engines need this chart to diagnose the Autoshift Neutral Actuator Circuit correctly instead of guessing at parts. It pairs with a diagnostic scan tool and standard shop meters.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
