Cummins fault code 528 is a yellow-lamp diagnostic trouble code for the Cummins ISM CM570 (1999-02) engine platform, documented in this 6-page troubleshooting PDF covering the switched output B error. The manual gives the circuit description, component notes and the full step-by-step test sequence a technician follows to diagnose and clear the fault.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570 and Signature CM570 (1999-02) |
| System / Group | ISM CM570 (1999-02) / DTCs |
| Fault code / DTC | 528 |
| Identifiers | PID P093 · SPN 93 · FMI 2/2 |
| Warning lamp | YELLOW |
| Pages | 6 |
| File size | 0.4 MB |
| Format | |
| Language | English |
| Source | TruckFaultCodes.com fault code library, Copyright 2017 |
Document table of contents
- Circuit Description
- Component Location
- Shop Talk
- Troubleshooting Steps
- Fault Code Verification and Reset

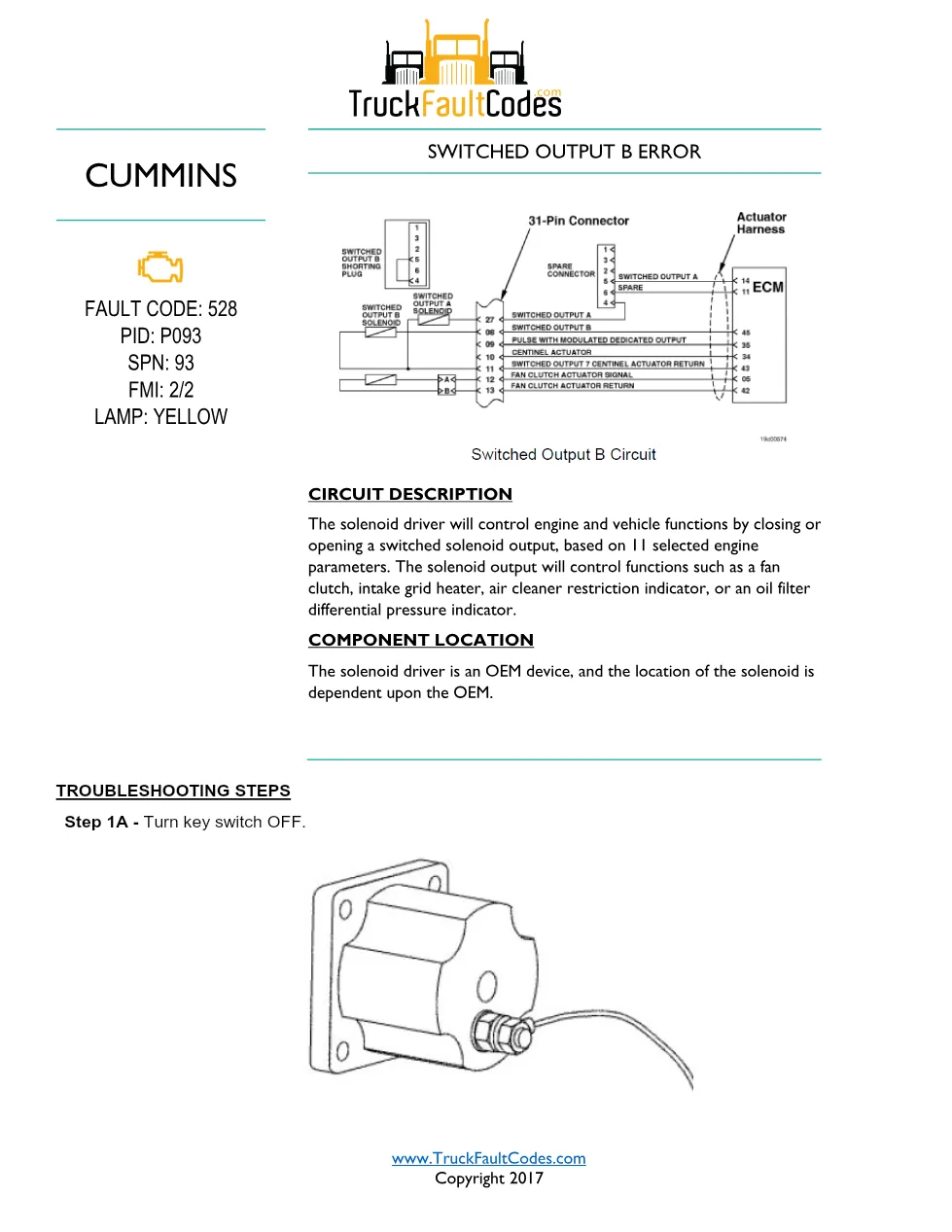

Cummins fault code 528 circuit description
The solenoid driver will control engine and vehicle functions by closing or opening a switched solenoid output, based on 11 selected engine parameters. The solenoid output will control functions such as a fan clutch, intake grid heater, air cleaner restriction indicator, or an oil filter differential pressure indicator. The ISM CM570 diagnostics in this file are indexed as PID P093, SPN 93 and FMI 2/2, so it slots directly into the wider set of ISM CM570 fault codes on the platform.
Applicable truck models and engines
The procedure applies to Cummins ISM, ISX and Signature engines built on the CM570 (1999-02) electronic control module, fitted to a wide range of Class 7 and Class 8 on-highway trucks. Because component locations vary by chassis, the document repeatedly directs the technician to the OEM troubleshooting and repair manual for exact positions. Verify engine and calibration data against the official Cummins engine support resources before ordering parts.
Who needs this Cummins fault code 528 manual
Heavy-duty truck technicians, fleet maintenance teams and independent workshop owners use this reference when a yellow warning lamp and this DTC appear on the diagnostic tool, or when validating a repair on an ISM CM570 engine.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download the full document.
