Cummins fault code 472 is a maintenance-lamp diagnostic trouble code for the Cummins ISM CM570 (1999-02) engine platform, documented in this 7-page troubleshooting PDF covering the crankcase oil level sensor circuit. The manual gives the circuit description, component notes and the full step-by-step test sequence a technician follows to diagnose and clear the fault.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570 and Signature CM570 (1999-02) |
| System / Group | ISM CM570 (1999-02) / DTCs |
| Fault code / DTC | 472 |
| Identifiers | PID S017 · SPN 1380 · FMI 2/2 |
| Warning lamp | MAINTENANCE |
| Pages | 7 |
| File size | 0.4 MB |
| Format | |
| Language | English |
| Source | TruckFaultCodes.com fault code library, Copyright 2017 |
Document table of contents
- Circuit Description
- Component Location
- Shop Talk

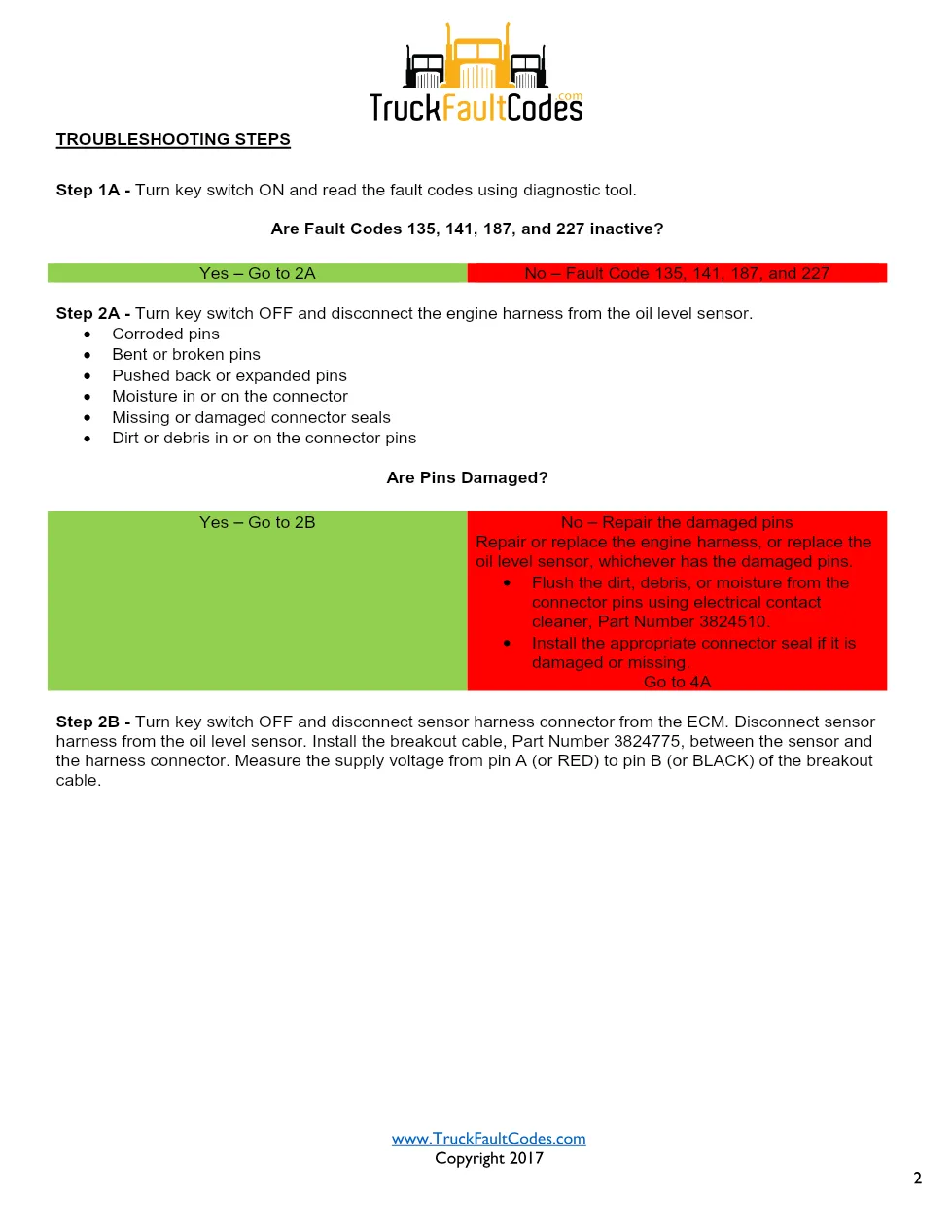

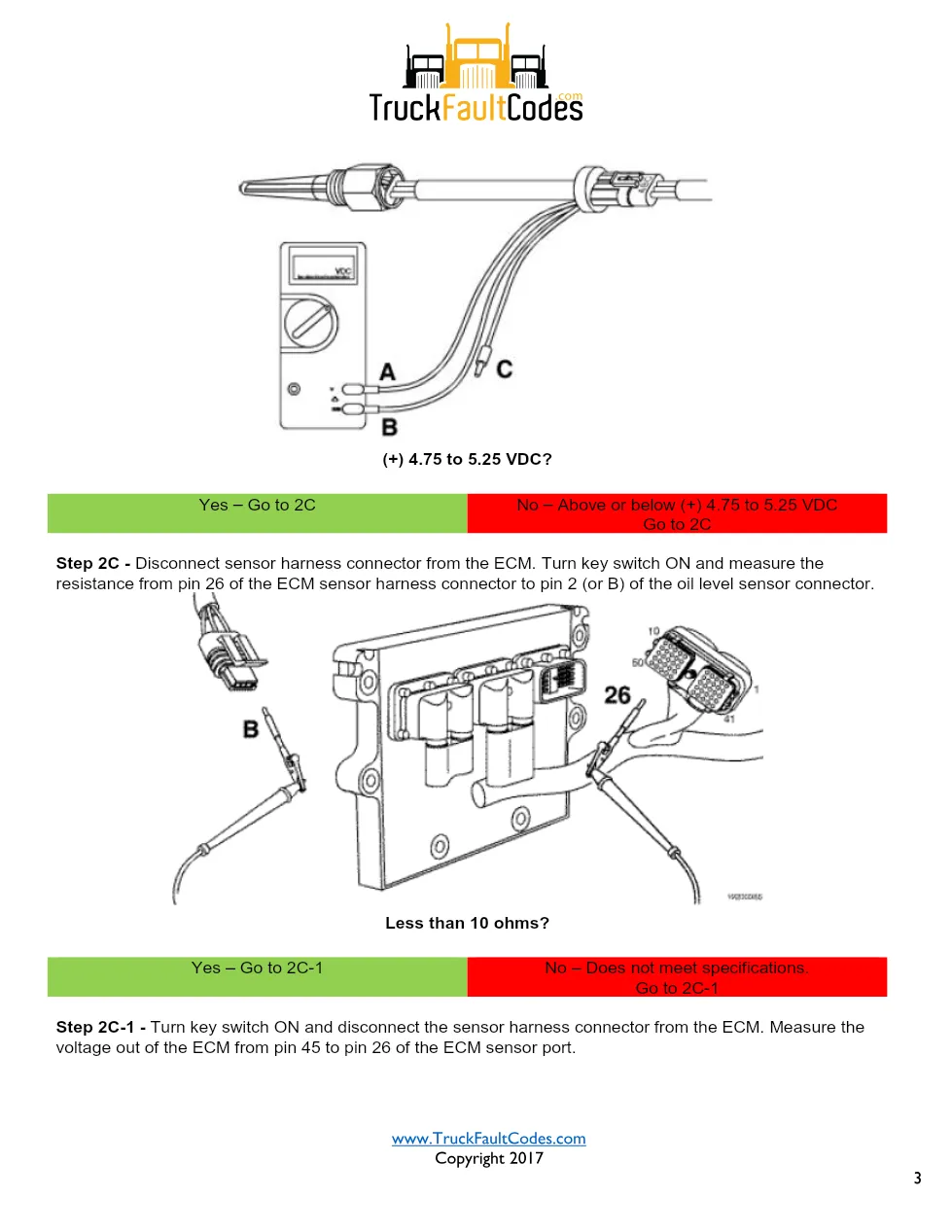

- Troubleshooting Steps
- Fault Code Verification and Reset

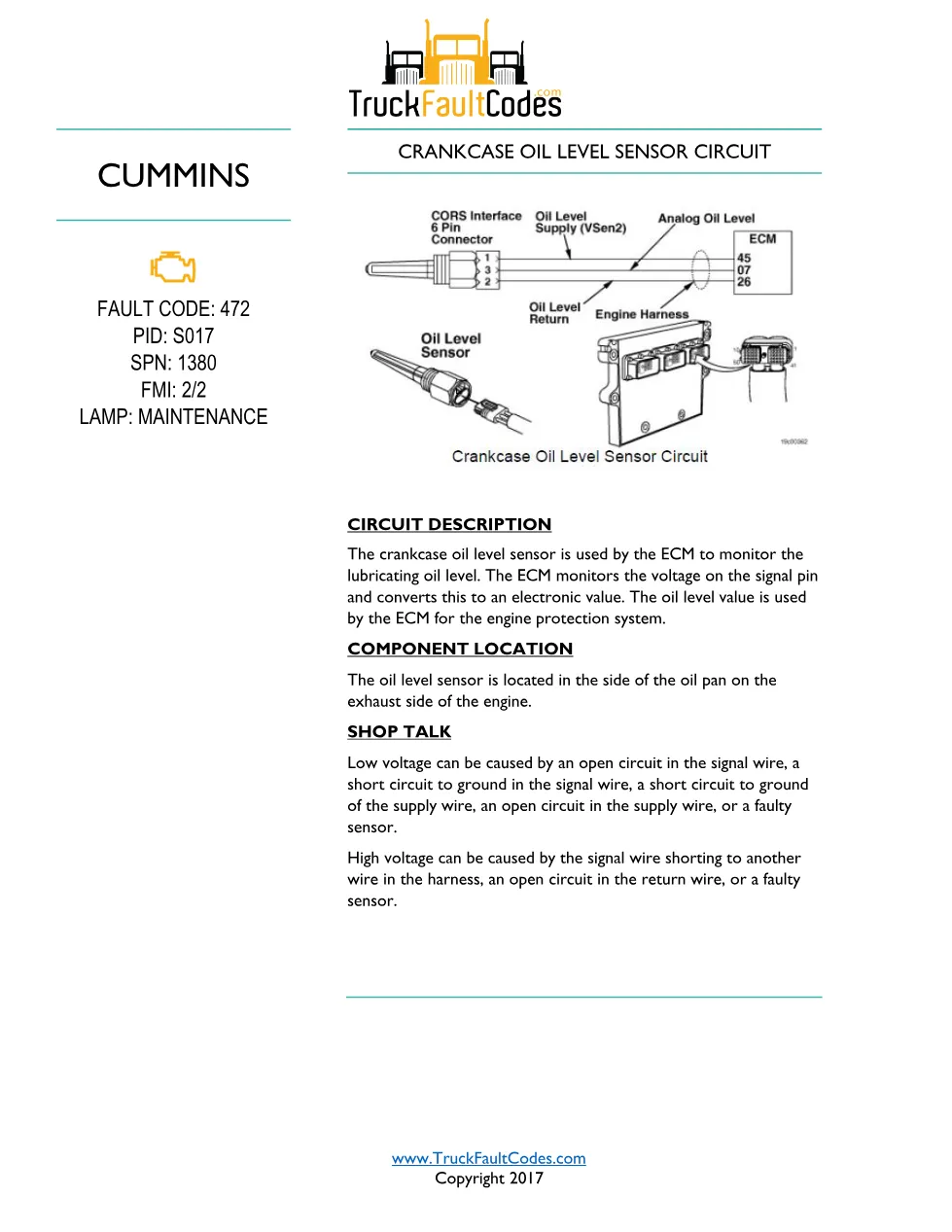

Cummins fault code 472 circuit description
The crankcase oil level sensor is used by the ECM to monitor the lubricating oil level. The ECM monitors the voltage on the signal pin and converts this to an electronic value. The oil level value is used by the ECM for the engine protection system. Low voltage can be caused by an open circuit in the signal wire, a short circuit to ground in the signal wire, a short circuit to ground of the supply wire, an open circuit in the supply wire, or a faulty sensor. High voltage can be caused by the signal wire shorting to another wire in the harness, The ISM CM570 diagnostics in this file are indexed as PID S017, SPN 1380 and FMI 2/2, so it slots directly into the wider set of ISM CM570 fault codes on the platform.
Applicable truck models and engines
The procedure applies to Cummins ISM, ISX and Signature engines built on the CM570 (1999-02) electronic control module, fitted to a wide range of Class 7 and Class 8 on-highway trucks. Because component locations vary by chassis, the document repeatedly directs the technician to the OEM troubleshooting and repair manual for exact positions. Verify engine and calibration data against the official Cummins engine support resources before ordering parts.
Who needs this Cummins fault code 472 manual
Heavy-duty truck technicians, fleet maintenance teams and independent workshop owners use this reference when a maintenance warning lamp and this DTC appear on the diagnostic tool, or when validating a repair on an ISM CM570 engine.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download the full document.
