Cummins fault code 449 is a yellow-lamp diagnostic trouble code for the Cummins ISM CM570 (1999-02) engine platform, documented in this 3-page troubleshooting PDF covering the high fuel pressure. The manual gives the circuit description, component notes and the full step-by-step test sequence a technician follows to diagnose and clear the fault.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570 and Signature CM570 (1999-02) |
| System / Group | ISM CM570 (1999-02) / DTCs |
| Fault code / DTC | 449 |
| Identifiers | PID P094 · SPN 94 · FMI 0/16 |
| Warning lamp | YELLOW |
| Pages | 3 |
| File size | 0.2 MB |
| Format | |
| Language | English |
| Source | TruckFaultCodes.com fault code library, Copyright 2017 |
Document table of contents
- Circuit Description
- Component Location
- Shop Talk

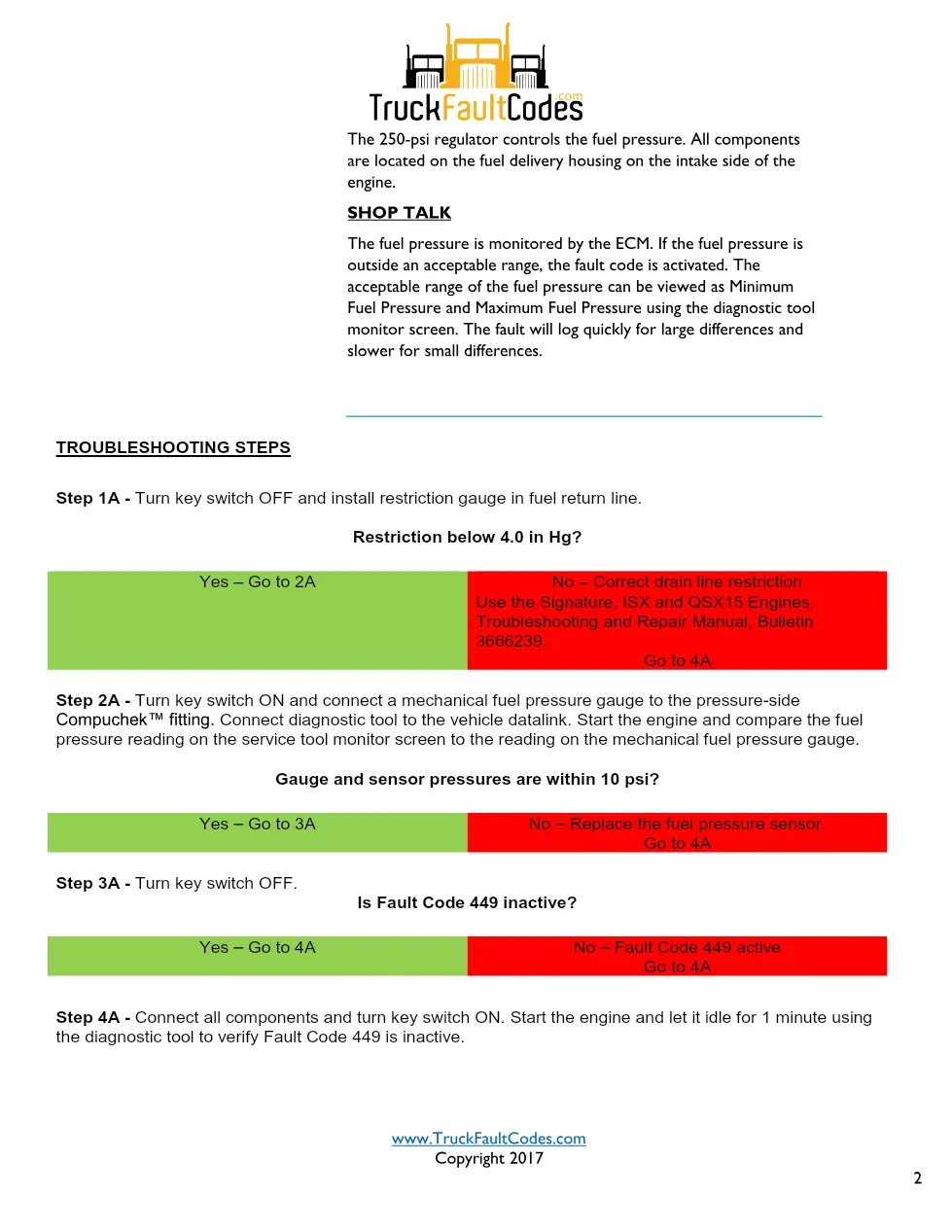

- Troubleshooting Steps

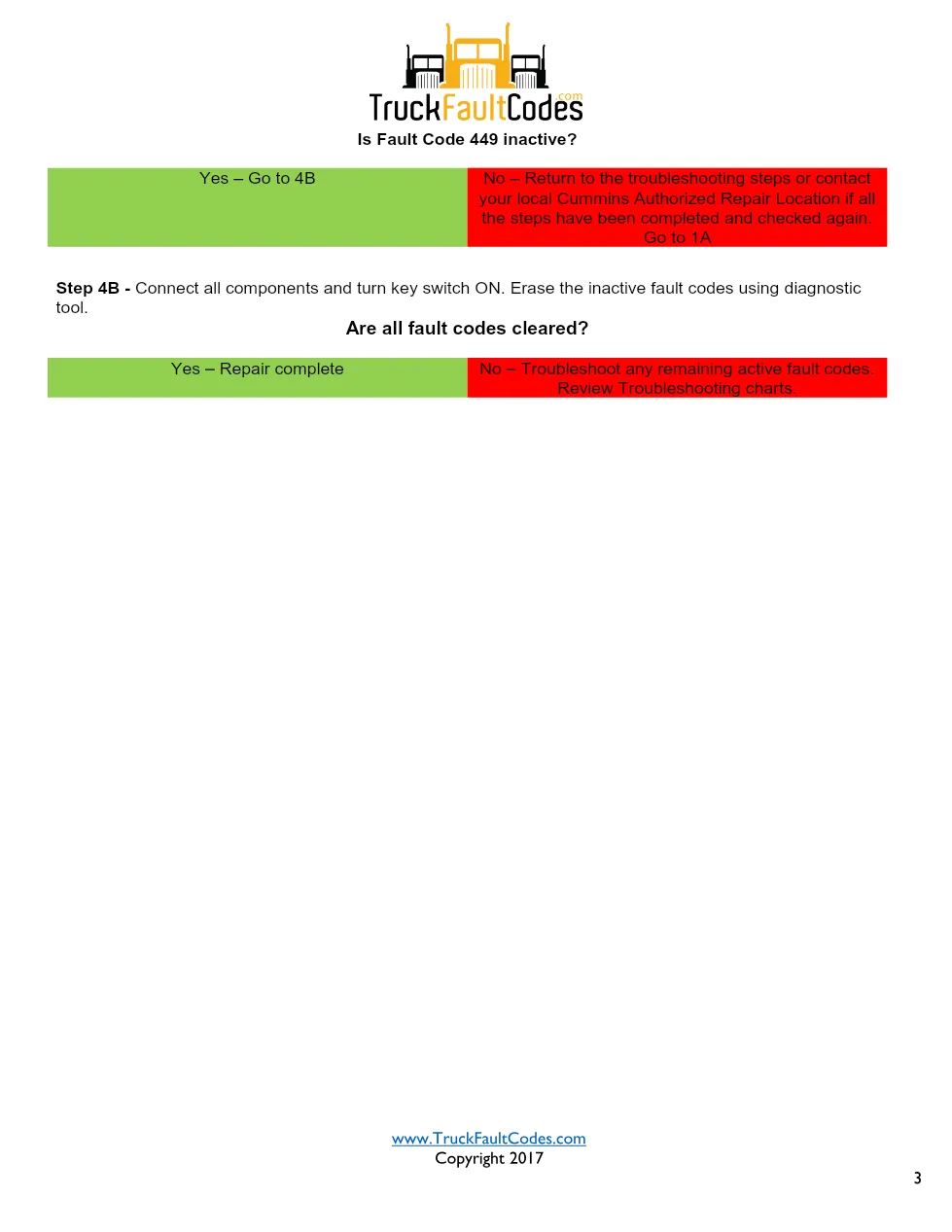

- Fault Code Verification and Reset
Cummins fault code 449 circuit description

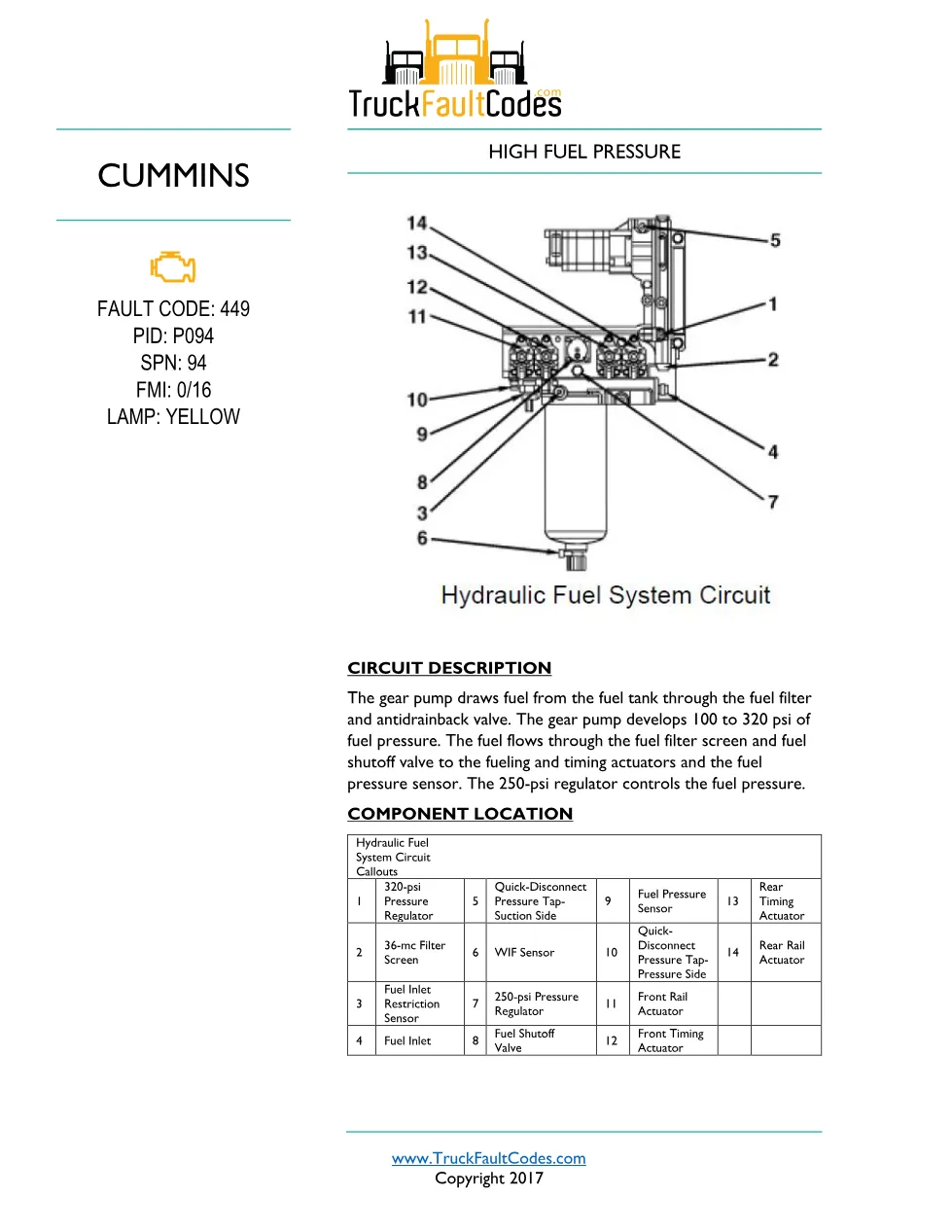

The gear pump draws fuel from the fuel tank through the fuel filter and antidrainback valve. The gear pump develops 100 to 320 psi of fuel pressure. The fuel flows through the fuel filter screen and fuel shutoff valve to the fueling and timing actuators and the fuel pressure sensor. The 250-psi regulator controls the fuel pressure. The fuel pressure is monitored by the ECM. If the fuel pressure is outside an acceptable range, the fault code is activated. The acceptable range of the fuel pressure can be viewed as Minimum Fuel Pressure and Maximum Fuel Pressure using the diagnostic tool monitor screen. The fault will log quickly The ISM CM570 diagnostics in this file are indexed as PID P094, SPN 94 and FMI 0/16, so it slots directly into the wider set of ISM CM570 fault codes on the platform.
