This Cummins fault code 3844 document is a diagnostic manual section for the Cruise Control Pause Command condition on CM2250 engines. It explains the adaptive cruise control pause fault, the J1939 command path to the ECM, fault-setting logic, clearing conditions, and INSITE™ service-tool checks. The file is a 6-page English PDF for workshop reference.
Official Cummins fault code 3844 document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB6.7 CM2250; ISC8.3 and ISL9 CM2250; ISX11.9 CM2250; ISX15 CM2250; GX CM2250 |
| System/Group | Adaptive Cruise Control Mode Circuit / DTCs |
| Publication no. | 4022254, 4022257, 4022250, 2883445 listed as related bulletin numbers for ECM Calibration Code procedures |
| Year/Revision | Last Modified: 28-Jan-2011 |
| Pages | 6 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Overview
- Circuit Description
- Component Location
- Conditions for Running the Diagnostics
- Conditions for Setting the Fault Codes
- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code
- Shop Talk
- FAULT CODE 3844 – Cruise Control Pause Command – Condition Exists
- Associated Procedures
- Troubleshooting Steps
- Guided Step 1 – Check the fault codes.
- Guided Step 2 – Check ECM calibration and clear fault.
- Guided Step 2B – Disable the fault code.
Applicable truck models

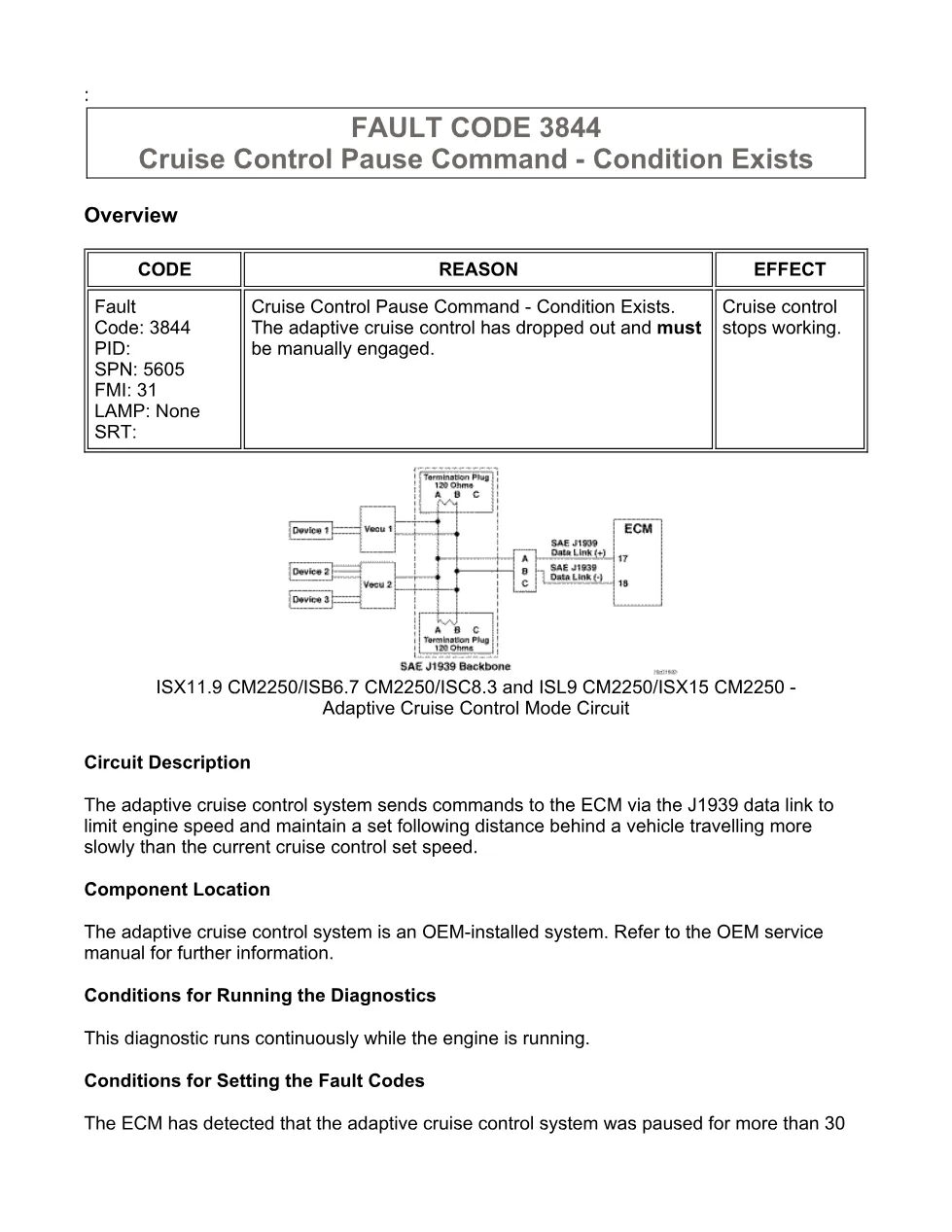

This procedure applies to the Cummins engine control platforms named in the document: ISB6.7 CM2250, ISC8.3 and ISL9 CM2250, ISX11.9 CM2250, ISX15 CM2250, and GX CM2250. The adaptive cruise control system is described as an OEM-installed system, so component location information must be checked in the relevant OEM service manual. The circuit description states that adaptive cruise control sends commands to the ECM through the J1939 data link to limit engine speed and maintain following distance when a vehicle ahead is travelling more slowly than the cruise control set speed. For manufacturer information, visit Cummins official website.
Who needs this Cummins fault code 3844 manual

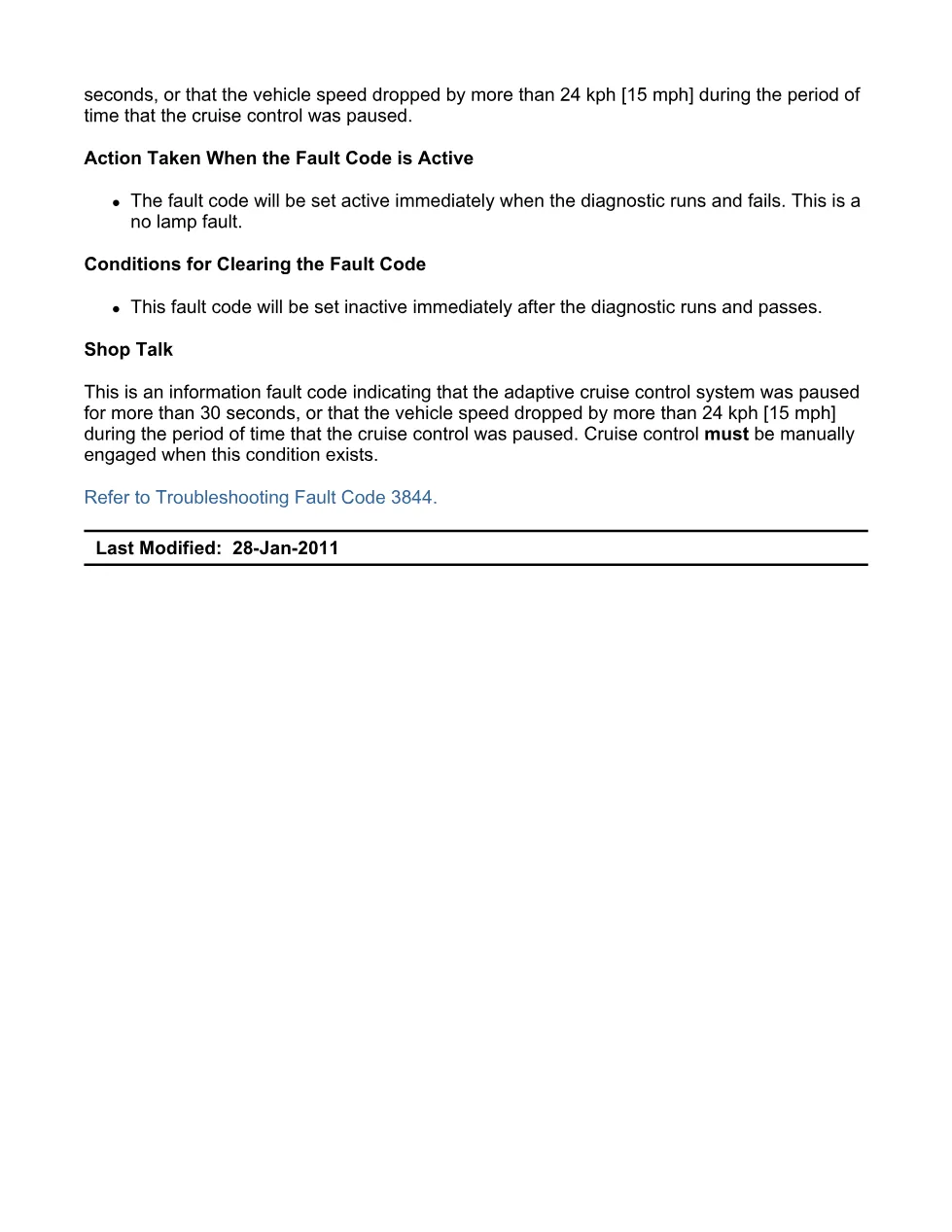

Workshop owners, diesel technicians, and fleet maintenance staff need this Cummins fault code 3844 manual when a CM2250-powered truck logs SPN 5605 FMI 31 with no lamp and cruise control stops working. The procedure helps confirm whether the event was caused by adaptive cruise control being paused for more than 30 seconds or by vehicle speed dropping more than 24 kph [15 mph] while cruise control was paused.

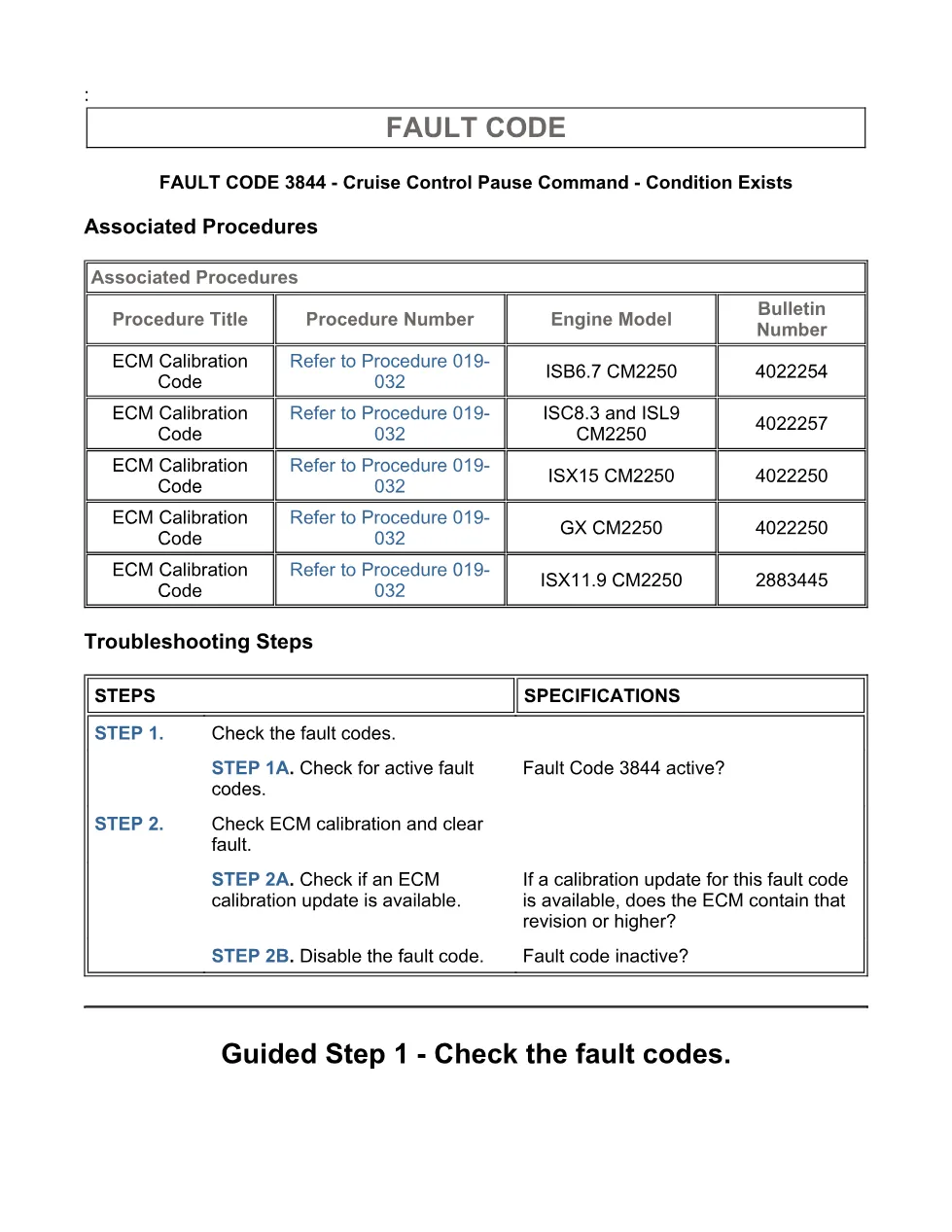

The troubleshooting flow uses INSITE™ electronic service tool checks, active fault-code confirmation, ECM calibration revision comparison, and fault clearing. It also points technicians to Procedure 019-032 when an ECM calibration update is required. The full PDF is available in the DiagTechPro manuals library, free account required to download.
