Cummins fault code 3712 is logged by the electronic control module (ECM) on Cummins ISX11.9 and ISX15 CM2250 engines when it detects a SCR operator inducement problem recorded as Aftertreatment SCR Operator Inducement – Data Valid But Above Normal Operational Range – Most Severe Level. This page in the DiagTechPro manuals library explains the SPN, FMI and lamp behaviour so a technician can plan the repair before the truck reaches the bay. Every entry in this library follows the same layout, so a workshop can move quickly from the dashboard warning to the correct wiring or component test.

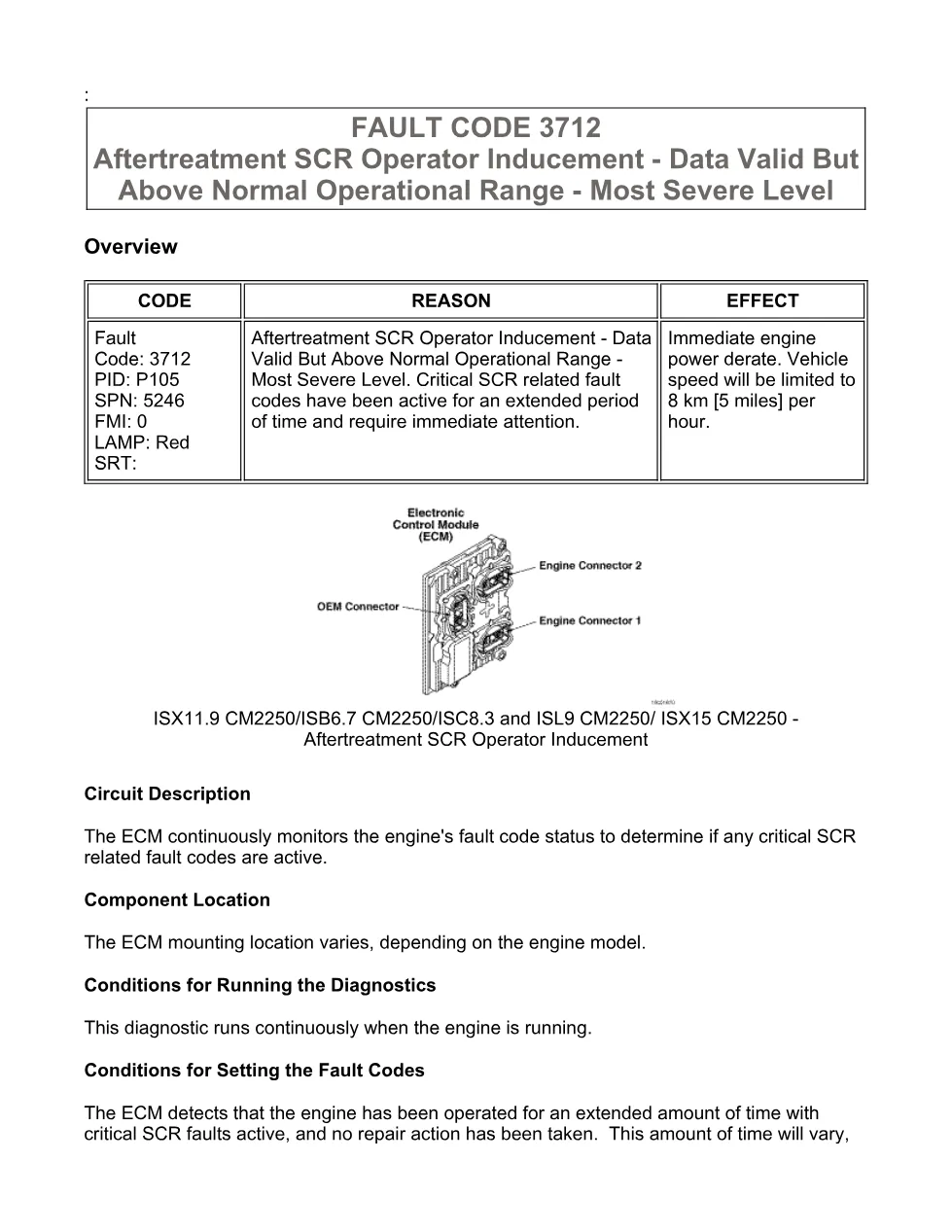

What Cummins fault code 3712 means
Cummins identifies this event as SPN 5246, FMI 0, with an red warning lamp. The ECM illuminates the red STOP ENGINE lamp, derates engine power and limits vehicle speed to about 8 km per hour (5 mph).
How the ECM sets this code
This is an information-only code showing that the SCR operator inducement strategy has forced an engine power derate and a vehicle speed limit to make the active SCR-related fault codes be repaired quickly. Reading the exact SPN and FMI with a Cummins INSITE electronic service tool is the fastest way to confirm you are chasing the right circuit rather than a related aftertreatment code.
Possible causes and shop talk
Repair the active SCR and diesel exhaust fluid fault codes first; the inducement and its speed limit lift once those root causes are resolved. This entry behaves as an informational status rather than a hard component failure, so read every active code with INSITE and work the highest-priority faults first.

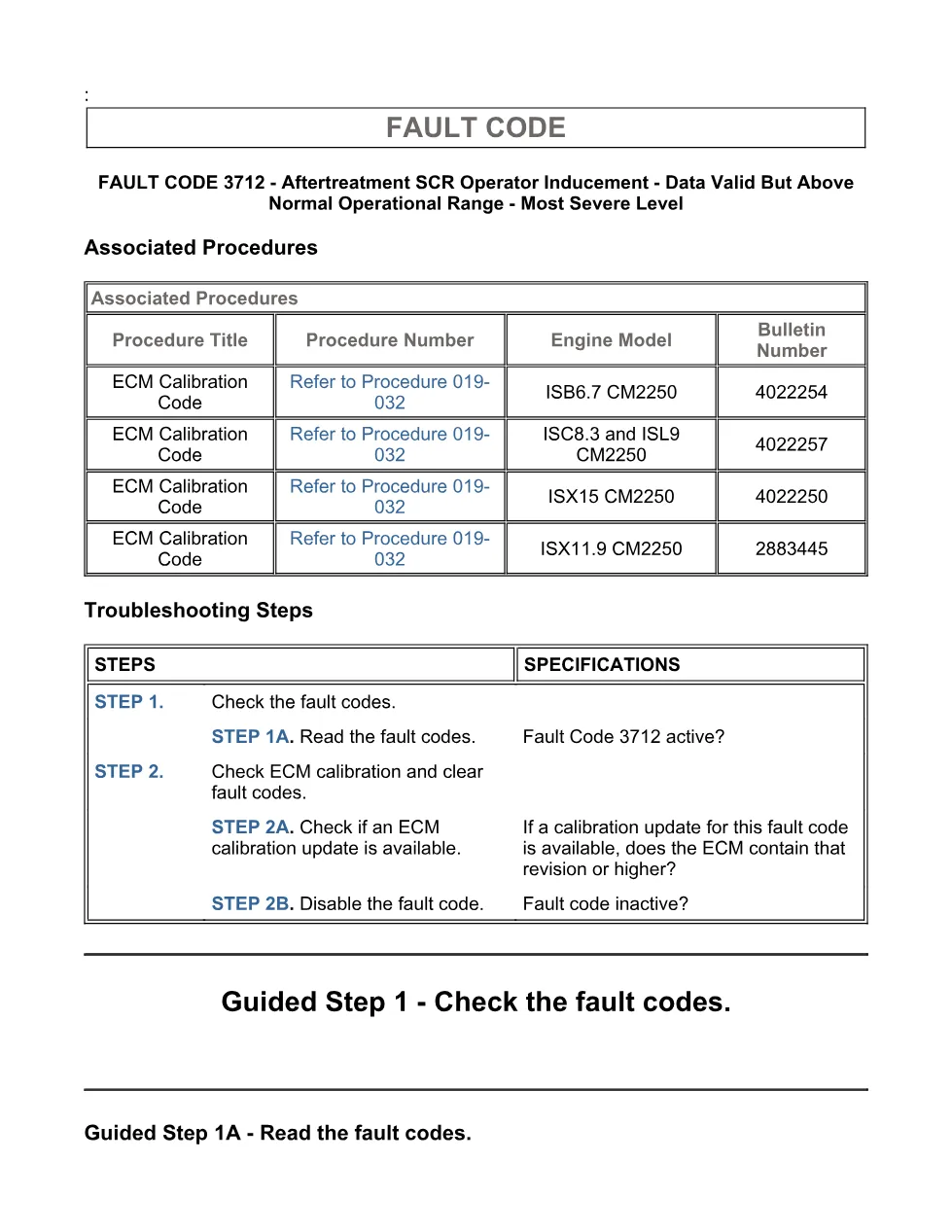

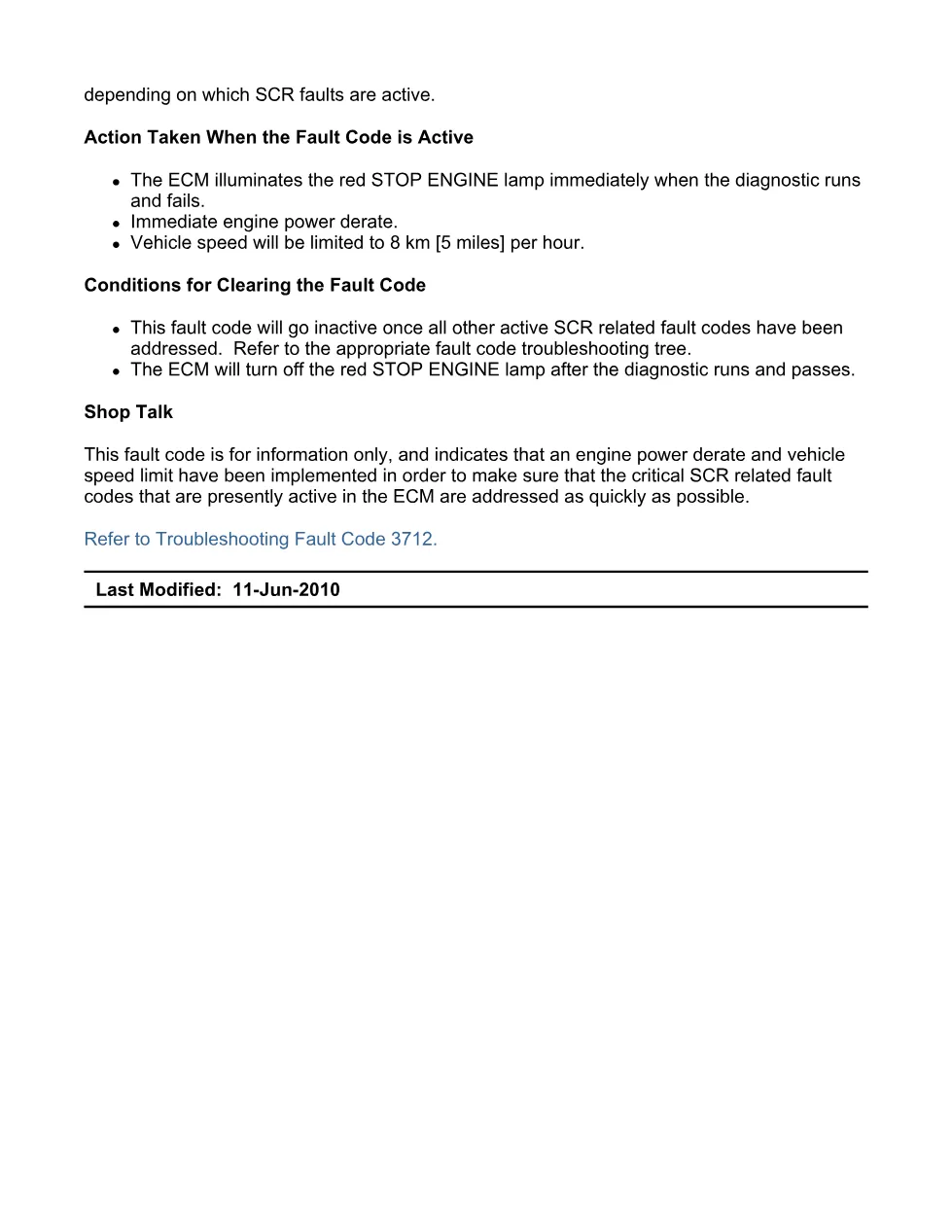

Clearing Cummins fault code 3712
Because fault code 3712 can share root causes with other SPN 5246 aftertreatment and engine codes, repair the confirmed fault, then restore the monitored conditions and check that the status changes to inactive in INSITE. This document was last revised on 11-Jun-2010 by Cummins. Open the full step-by-step tree from the DiagTechPro manuals library, and confirm current bulletins through official Cummins engine support before finishing the job.
