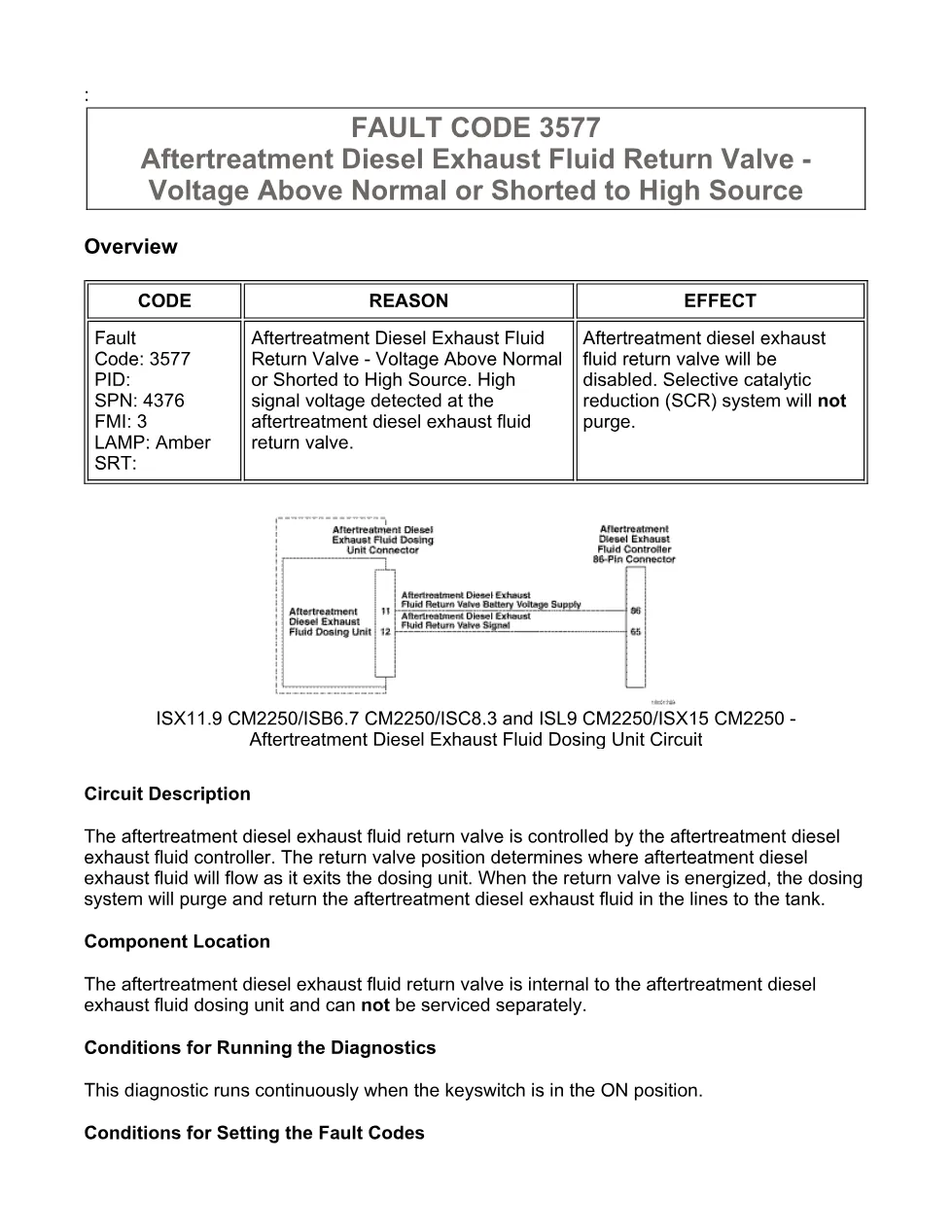

Cummins fault code 3577 is logged by the electronic control module (ECM) on Cummins ISX11.9 and ISX15 CM2250 engines when it detects a DEF return valve voltage high problem recorded as Aftertreatment Diesel Exhaust Fluid Return Valve – Voltage Above Normal or Shorted to High Source. This page in the DiagTechPro manuals library explains the SPN, FMI and lamp behaviour so a technician can plan the repair before the truck reaches the bay. Every entry in this library follows the same layout, so a workshop can move quickly from the dashboard warning to the correct wiring or component test.
What Cummins fault code 3577 means
Cummins identifies this event as SPN 4376, FMI 3, with an amber warning lamp. The ECM illuminates the amber CHECK ENGINE lamp, and engine torque is reduced if the engine is operated for an extended period.
How the ECM sets this code
The ECM drives the aftertreatment diesel exhaust fluid return valve and sets this code when the valve circuit voltage is above normal or shorted to a high source, consistent with FMI 3. Reading the exact SPN and FMI with a Cummins INSITE electronic service tool is the fastest way to confirm you are chasing the right circuit rather than a related aftertreatment code.
Possible causes and shop talk
The Cummins service information lists the following possible causes:
- Short to a high source or to battery voltage in the return valve circuit
- Damaged return valve wiring or connector
- Malfunctioning diesel exhaust fluid return valve

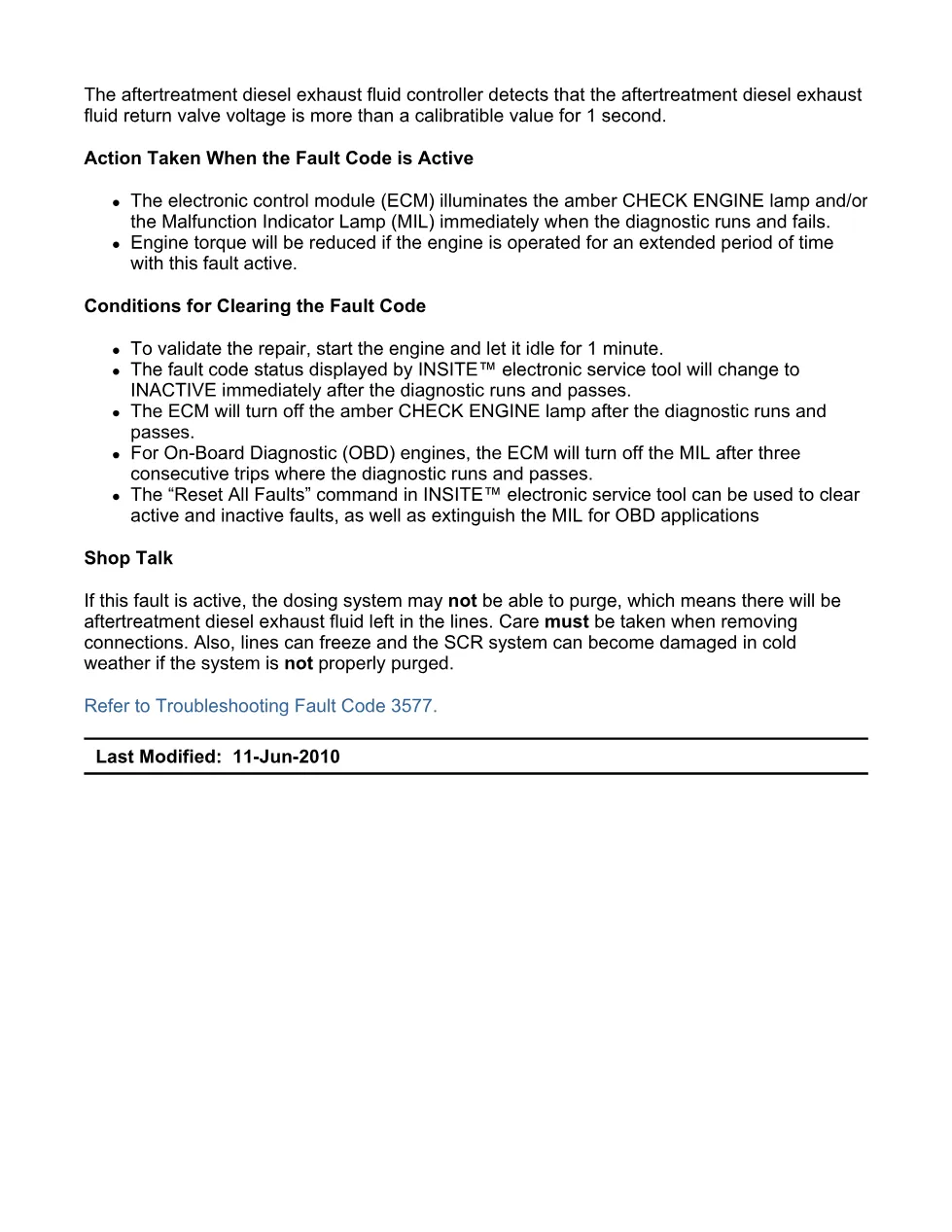

With this fault active the dosing system may not purge, so fluid can be left in the lines; take care when opening connections and protect the lines from freezing in cold weather.
Clearing Cummins fault code 3577

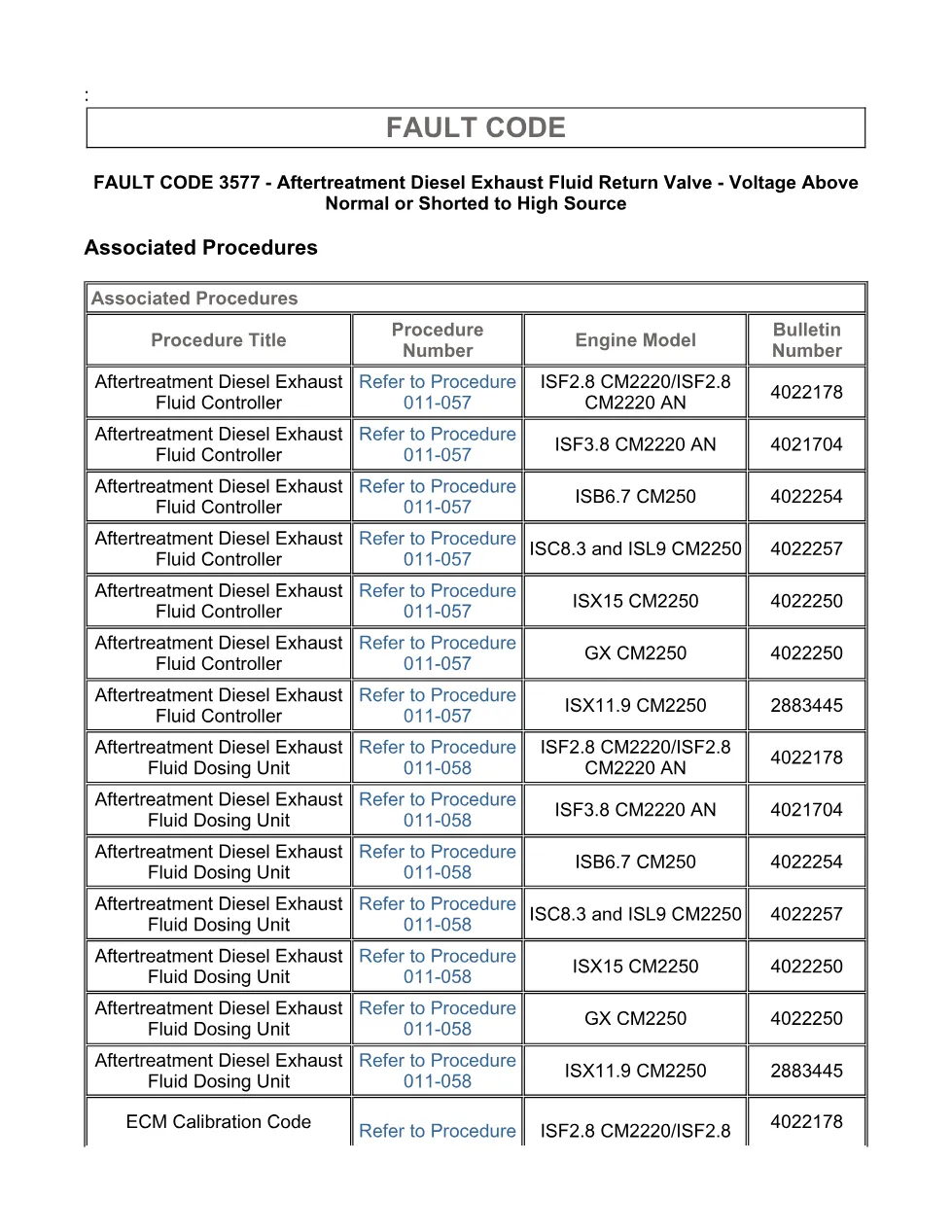

Because fault code 3577 can share root causes with other SPN 4376 aftertreatment and engine codes, repair the confirmed fault, then restore the monitored conditions and check that the status changes to inactive in INSITE. This document was last revised on 11-Jun-2010 by Cummins. Open the full step-by-step tree from the DiagTechPro manuals library, and confirm current bulletins through official Cummins engine support before finishing the job.
