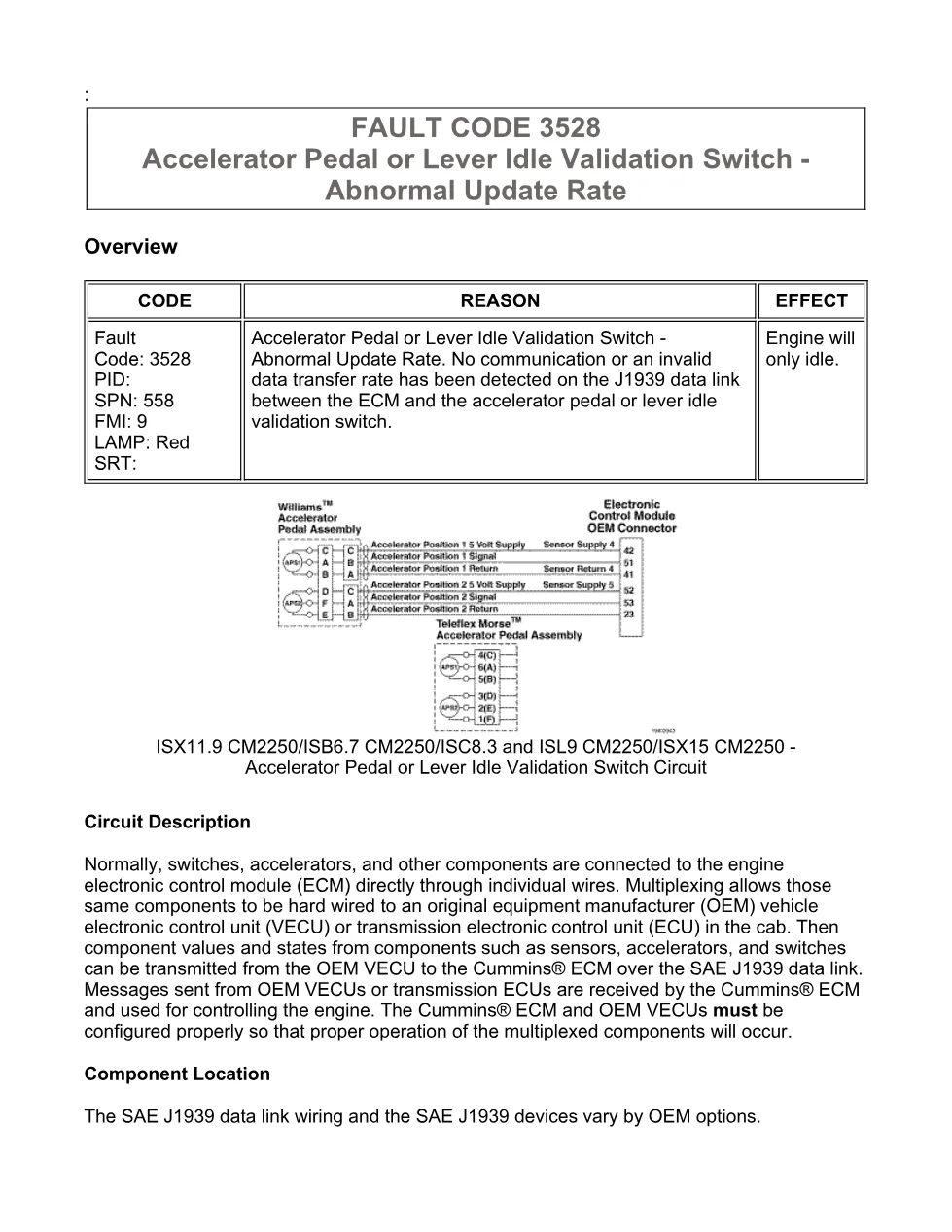

Cummins fault code 3528 is the official Cummins ISX11.9 CM2250 troubleshooting document for the accelerator pedal or lever idle validation switch circuit, reported as SPN 558, FMI 9 (“Abnormal Update Rate”) and lights the red warning lamp. This 14-page PDF covers the circuit description, the conditions that set the code, and the guided troubleshooting sequence run with INSITE electronic service tool.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISX11.9 CM2250 (2010-12), also ISX12 CM2250 (2010-12) |
| System / group | Accelerator Pedal or Lever Idle Validation Switch — DTC diagnostics |
| Fault code | 3528 (SPN 558, FMI 9) |
| Publication no. | 4022254, 4022257, 4022250, 2883445, 4022256, 4022255 |
| Year / revision | Last modified 11-Jun-2010 |
| Pages | 14 |
| File size | 0.2 MB |
| Format | |
| Language | English |
What Cummins fault code 3528 means

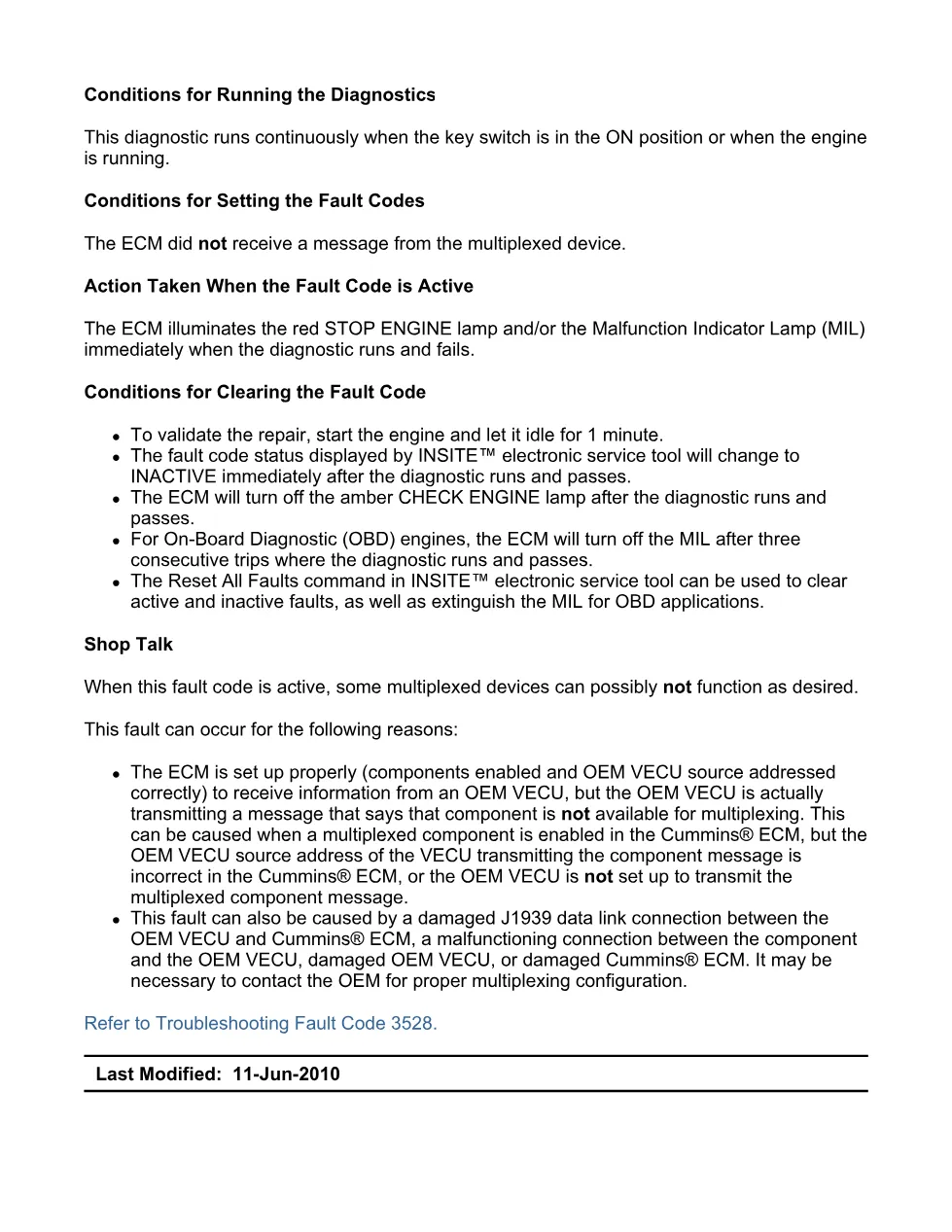

Normally, switches, accelerators, and other components are connected to the engine electronic control module (ECM) directly through individual wires. When the abnormal update rate condition is detected, SPN 558 / FMI 9 is logged. The document explains the component location, when the diagnostic runs, and how the code is validated and cleared after a repair.
Document table of contents
- Circuit Description
- Component Location
- Conditions for Running the Diagnostics
- Conditions for Setting the Fault Codes
- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code
- Shop Talk
- Associated Procedures
- Troubleshooting Steps
- Guided troubleshooting steps with INSITE electronic service tool
