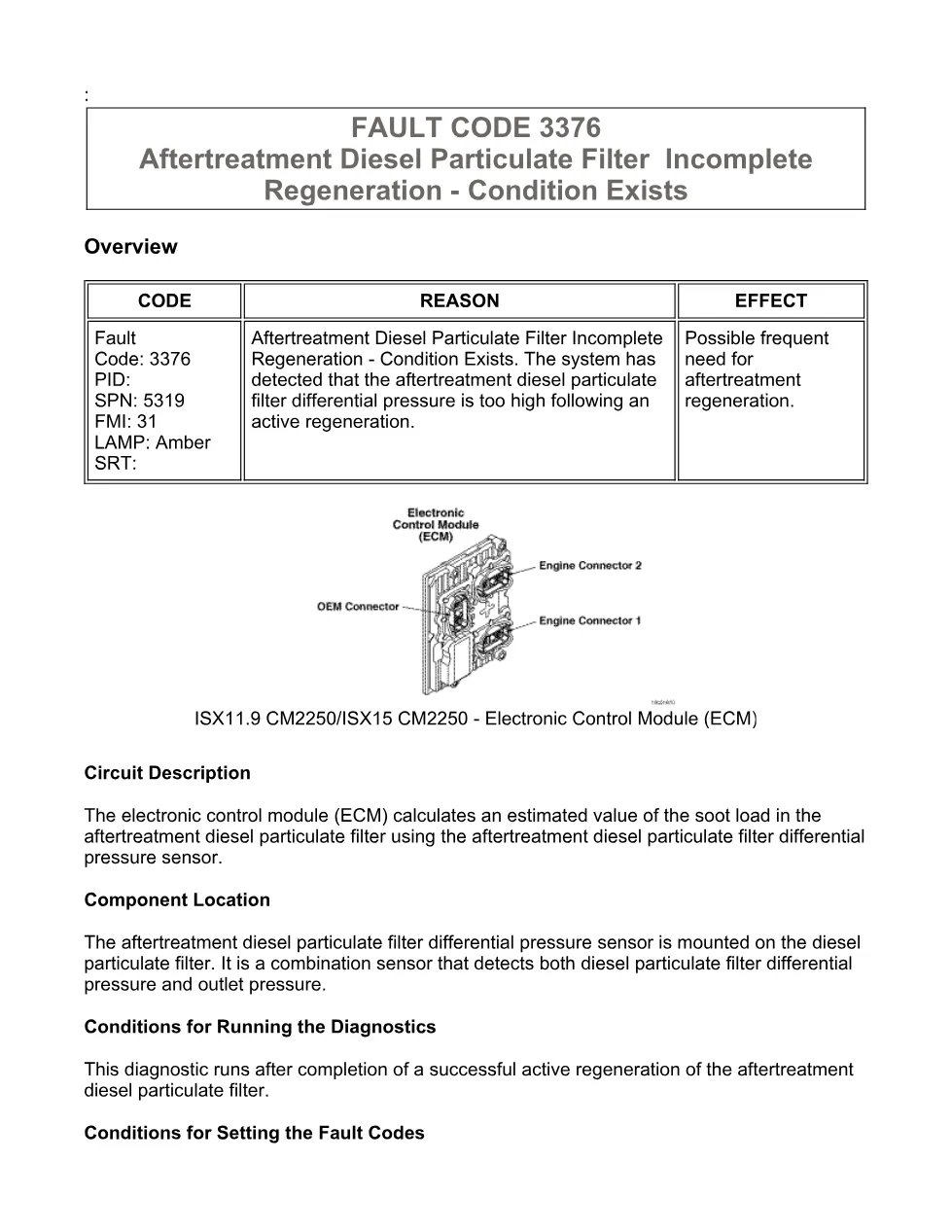

Cummins fault code 3376 is the official Cummins troubleshooting document for SPN 5319 FMI 31 — Aftertreatment Diesel Particulate Filter Incomplete Regeneration – Condition Exists — on the ISX11.9 CM2250 (2010-12) engine platform. This 12-page PDF is taken from the Cummins service manual and covers the circuit description, the conditions that set the code, and the full guided step-by-step repair. It references Cummins troubleshooting procedure 019-032, last revised 07-Jan-2011.
Official document details
| Brand | Cummins |
| Model coverage | ISX11.9 CM2250 (2010-12), ISX12 CM2250 (2010-12) |
| System / Group | Aftertreatment Diesel Particulate Filter Incomplete Regeneration – Condition Exists |
| Diagnostic identifier | SPN 5319 · FMI 31 · Amber lamp |
| Publication reference | Procedure 019-032 |
| Revision | 07-Jan-2011 |
| Pages | 12 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Overview and Circuit Description
- Conditions for Running the Diagnostics
- Conditions for Setting the Fault Code
- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code
- Troubleshooting Steps and Associated Procedures
- Guided repair steps with specifications
What Cummins fault code 3376 means
Aftertreatment Diesel Particulate Filter Incomplete Regeneration – Condition Exists. The system has detected that the aftertreatment diesel particulate filter differential pressure is too high following an active regeneration. Possible frequent need for aftertreatment regeneration. The manual explains that the electronic control module (ECM) calculates an estimated value of the soot load in the aftertreatment diesel particulate filter using the aftertreatment diesel particulate filter differential pressure sensor.. The document lists the exact ECM conditions under which this code is set and cleared, so a technician can confirm the diagnosis with INSITE electronic service tool before replacing parts.
Applicable truck models and engines
This troubleshooting procedure applies to Cummins ISX11.9 CM2250 (2010-12), ISX12 CM2250 (2010-12) engines from the 2010-2012 CM2250 electronic control family. The same guided steps are shared across the CM2250 range covered in this bulletin. Full engine and vehicle coverage should always be confirmed against the official Cummins Inc. website for your ECM calibration.
Who needs this Cummins fault code 3376 manual
Heavy-truck diesel technicians and workshop owners diagnosing SPN 5319 on ISX11.9 CM2250 engines need this document to follow the factory procedure instead of guessing. It is part of the wider DiagTechPro manuals library of Cummins troubleshooting manuals.
The complete PDF of this Cummins troubleshooting manual is available in the DiagTechPro manuals library — a free account is required to download.
