Cummins fault code 3245 is a diagnostic trouble code for the Cummins ISX11.9 CM2250 (2010-12) engine that documents the aftertreatment diesel particulate filter system. This 11-page troubleshooting manual explains what sets the code, the amber warning lamp it activates, and the guided repair steps a technician performs with the Cummins INSITE electronic service tool. It corresponds to SPN 3936 and FMI 7.
Official document details
| Brand | Cummins |
| Model coverage | ISX11.9 CM2250 (2010-12), ISX12 CM2250 (2010-12) |
| System / Group | DTCs – Aftertreatment Diesel Particulate Filter System |
| Reference codes | SPN 3936, FMI 7, Amber lamp |
| Revision | Last modified 11-Jun-2010 |
| Pages | 11 |
| File size | 0.21 MB |
| Format | |
| Language | English |
Document table of contents

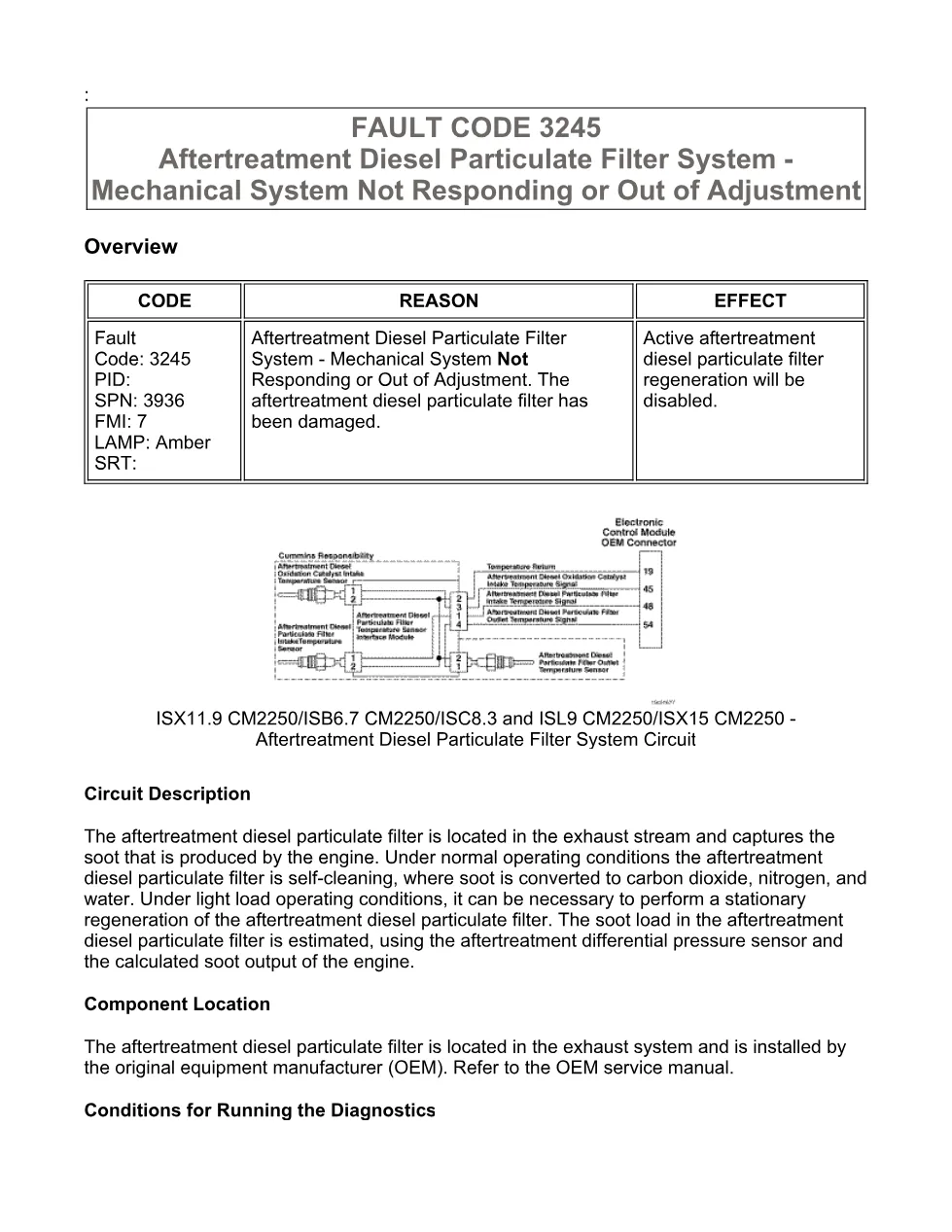

- Overview and circuit description
- Fault code information (SPN 3936, FMI 7, Amber lamp)

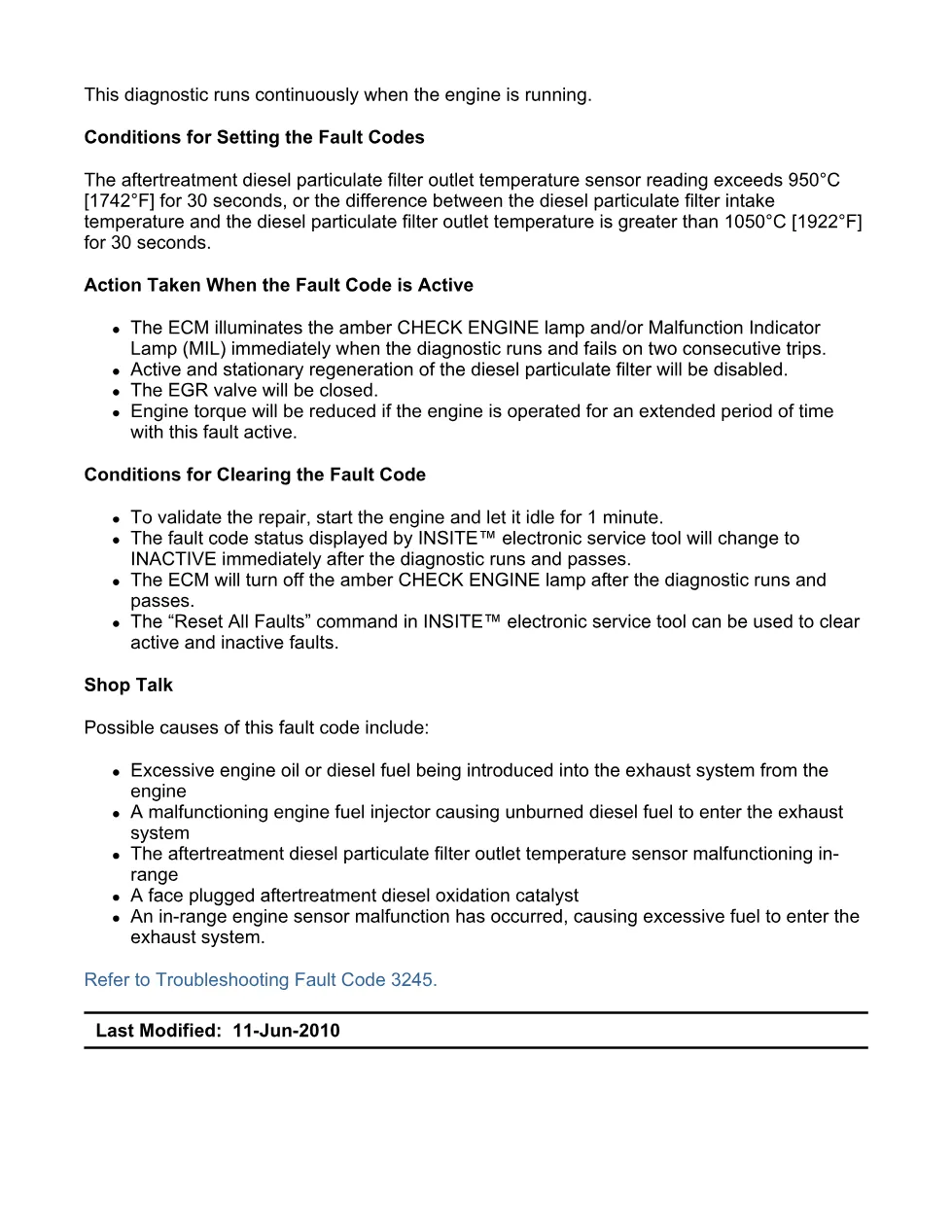

- Conditions for running the diagnostics
- Conditions for setting the fault code
- Action taken when the fault code is active
- Conditions for clearing the fault code
- Shop talk and possible causes

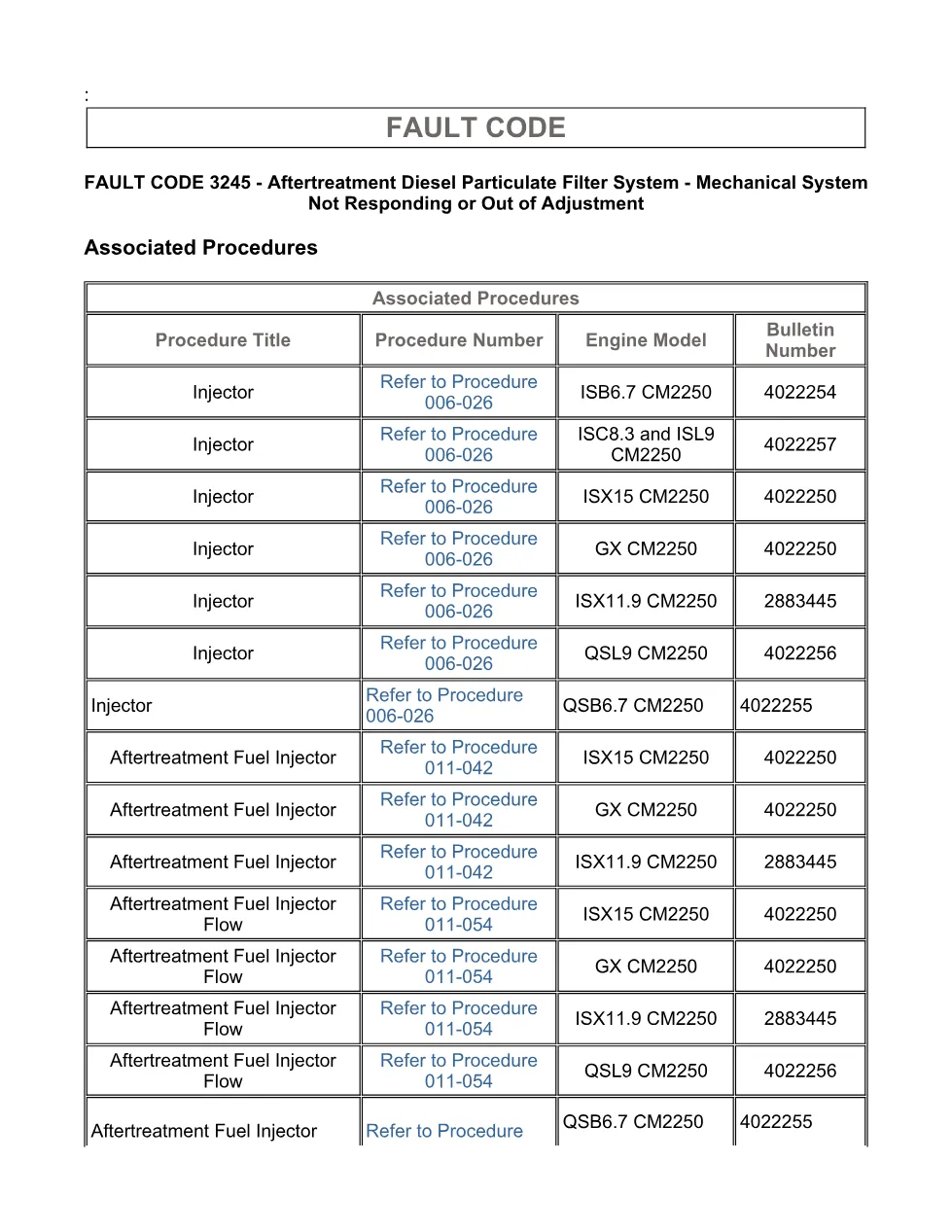

- Associated procedures and guided troubleshooting steps
Trucks affected by Cummins fault code 3245
The procedure applies to Cummins ISX11.9 CM2250 (2010-12) engines and the related ISX11.9 CM2250 (2010-12), ISX12 CM2250 (2010-12) platforms fitted to Class 8 on-highway trucks. The steps rely on the Cummins INSITE electronic service tool to read the fault code, monitor the aftertreatment diesel particulate filter system, and validate the repair. For engine and emissions specifications, consult the Cummins official website.
Who needs this Cummins fault code 3245 manual
Diesel technicians and fleet workshop owners diagnosing DPF not regenerating on ISX11.9 CM2250 engines use this manual to follow the factory-correct sequence instead of guessing at parts. Working from the documented running and setting conditions shortens diagnosis time and helps avoid unnecessary aftertreatment component replacement before the true root cause is confirmed.
Cummins lists the documented causes a technician should rule out, including:
- Excessive engine oil or diesel fuel being introduced into the exhaust system from the engine
- A malfunctioning engine fuel injector causing unburned diesel fuel to enter the exhaust system
- The aftertreatment diesel particulate filter outlet temperature sensor malfunctioning inrange
- A face plugged aftertreatment diesel oxidation catalyst
Related manuals library
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
