The Cummins fault code 3151 troubleshooting guide is the official Cummins diagnostic procedure for Aftertreatment SCR Catalyst System Missing – Condition Exists on the ISX11.9 CM2250 engine platform. This 14-page PDF documents the circuit description, the conditions that set and clear the fault, and the guided steps a technician follows to isolate and repair it.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISX11.9 CM2250/ISB6.7 CM2250/ISC8.3 and ISL9 CM2250/ISX15 CM2250 |
| System / Group | Electronic Control Module (ECM) |
| Fault code | 3151 (SPN 4794, FMI 31) |
| Warning lamp | Amber |
| Pages | 14 |
| File size | 0.2 MB |
| Format | |
| Language | English |
| Last revised | 21-Dec-2010 |
Cummins fault code 3151 contents
- Overview and circuit description
- Component location
- Conditions for running the diagnostics
- Conditions for setting the fault code
- Action taken when the fault code is active
- Conditions for clearing the fault code
- Shop Talk and guided troubleshooting steps
Fault meaning and symptoms

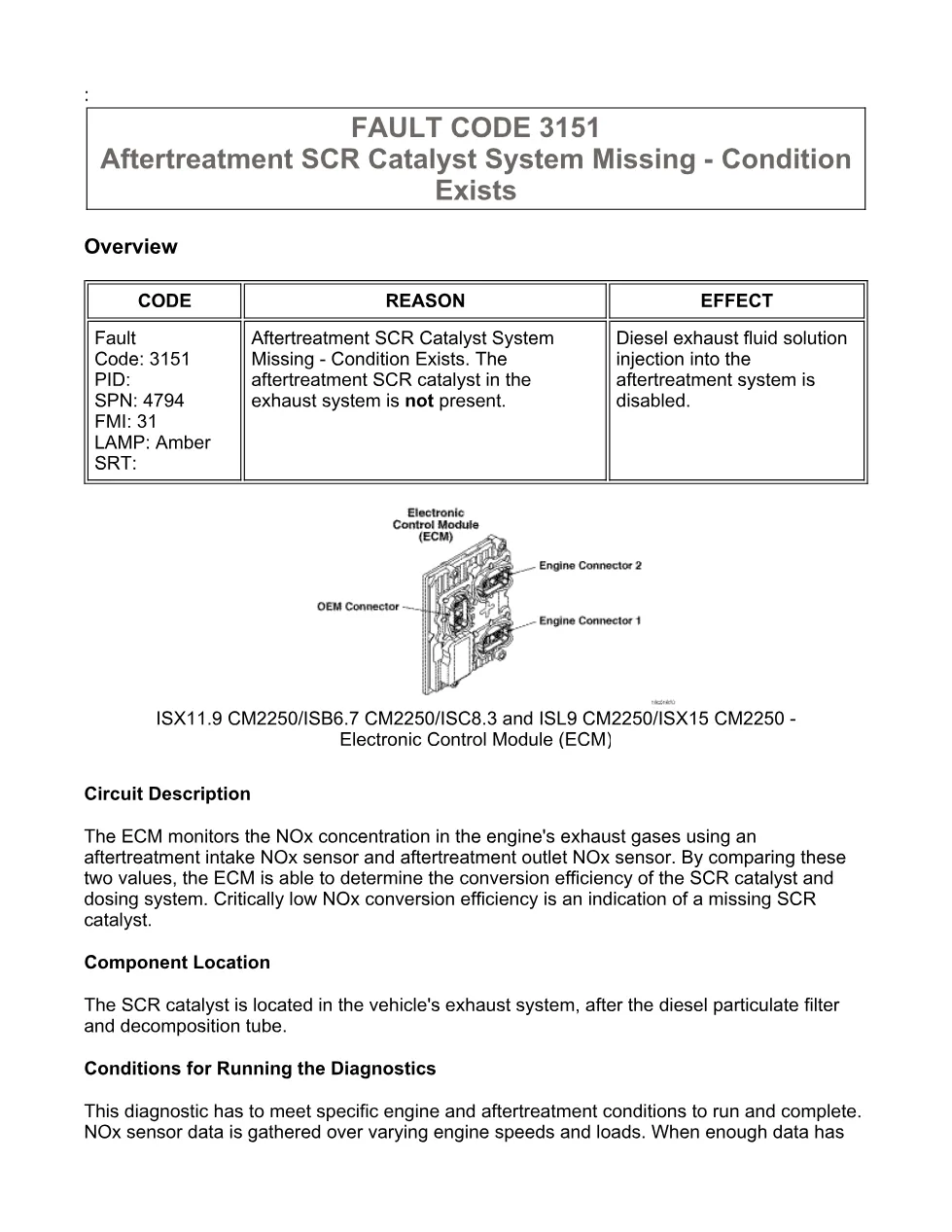

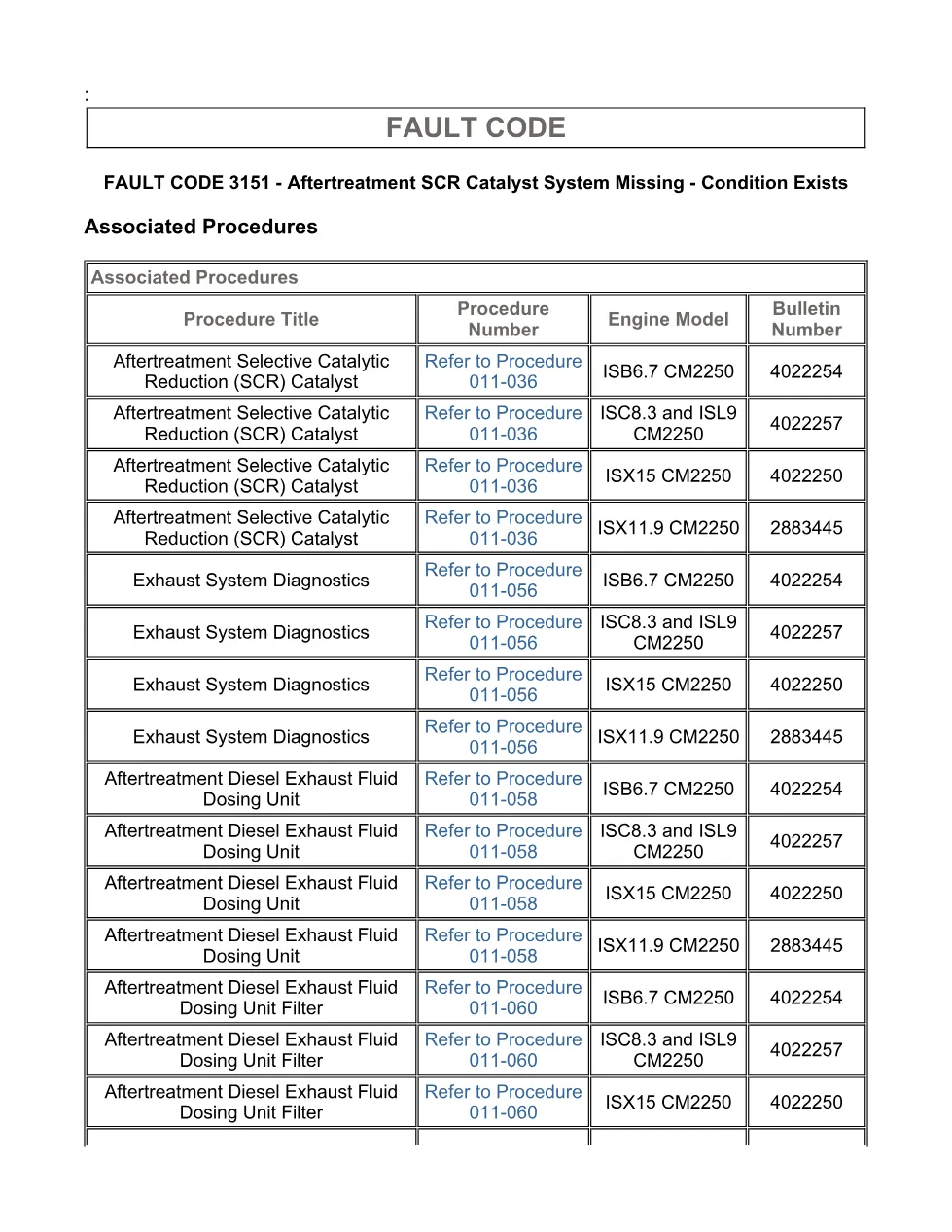

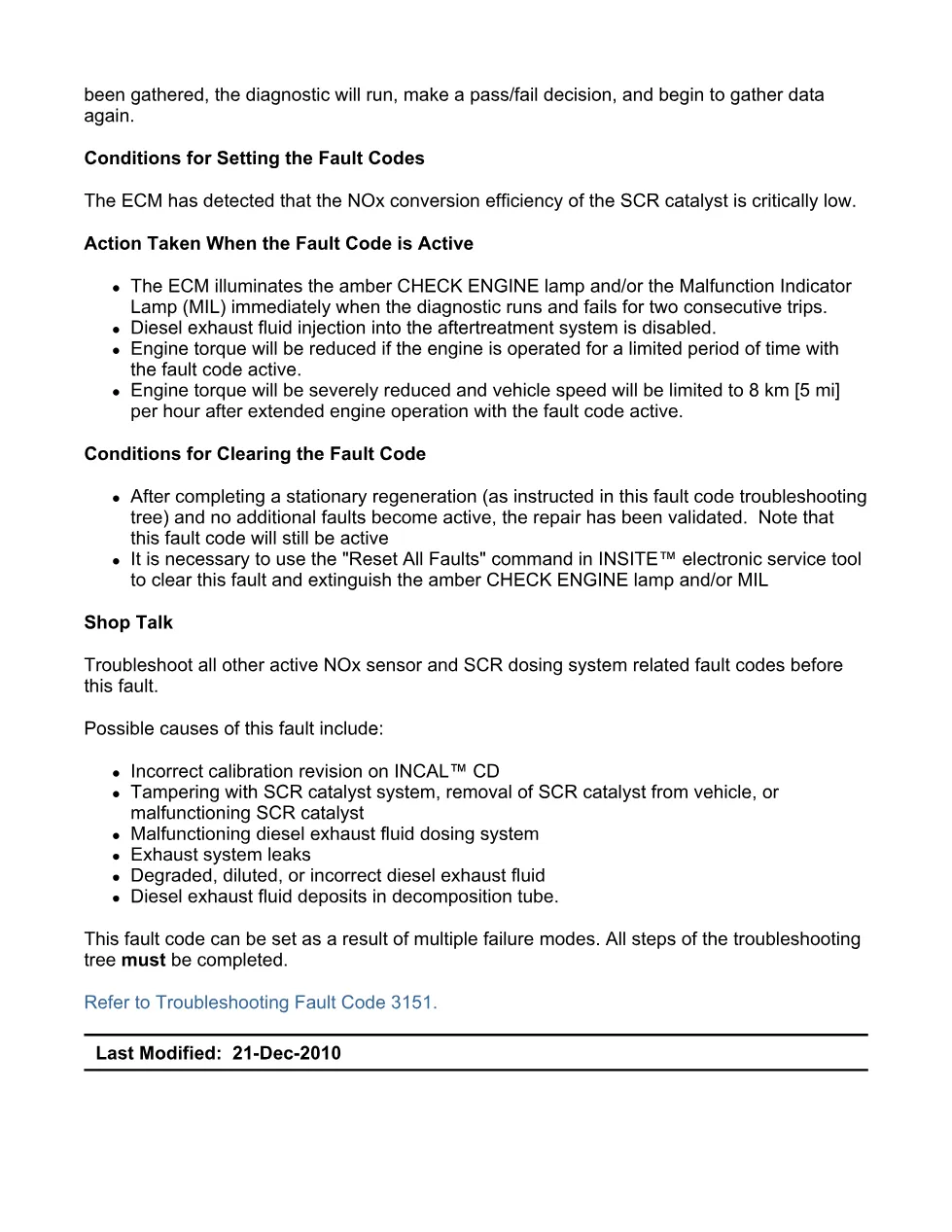

The document defines fault code 3151 as Aftertreatment SCR Catalyst System Missing – Condition Exists. The ECM monitors the NOx concentration in the engine’s exhaust gases using an aftertreatment intake NOx sensor and aftertreatment outlet NOx sensor. By comparing these two values, the ECM is able to determine the conversion efficiency of the SCR catalyst and dosing system. The condition is monitored on SPN 4794, FMI 31, and is annunciated with an amber CHECK ENGINE / malfunction indicator lamp. Each fault is worked with the INSITE electronic service tool, cross-referencing associated procedures 011-036, 011-056, 011-058, 011-060, 011-062, 011-063, 019-032.
Applicable truck models
This procedure covers Cummins ISX11.9 CM2250/ISB6.7 CM2250/ISC8.3 and ISL9 CM2250/ISX15 CM2250 engines built for the 2010-12 on-highway emissions platform, so it suits Class 8 trucks and vocational chassis running these engines. Confirm the exact application and current calibration against the official Cummins website before ordering parts.
Who needs this Cummins fault code 3151 manual
Diesel technicians and workshop owners who read 3151 on the INSITE service tool use this manual to follow the factory-approved diagnostic tree instead of replacing parts by guesswork. It is equally useful for fleet maintenance staff verifying a repair before returning a truck to service.
The full PDF is available in the DiagTechPro manuals library, a free account is required to download.
