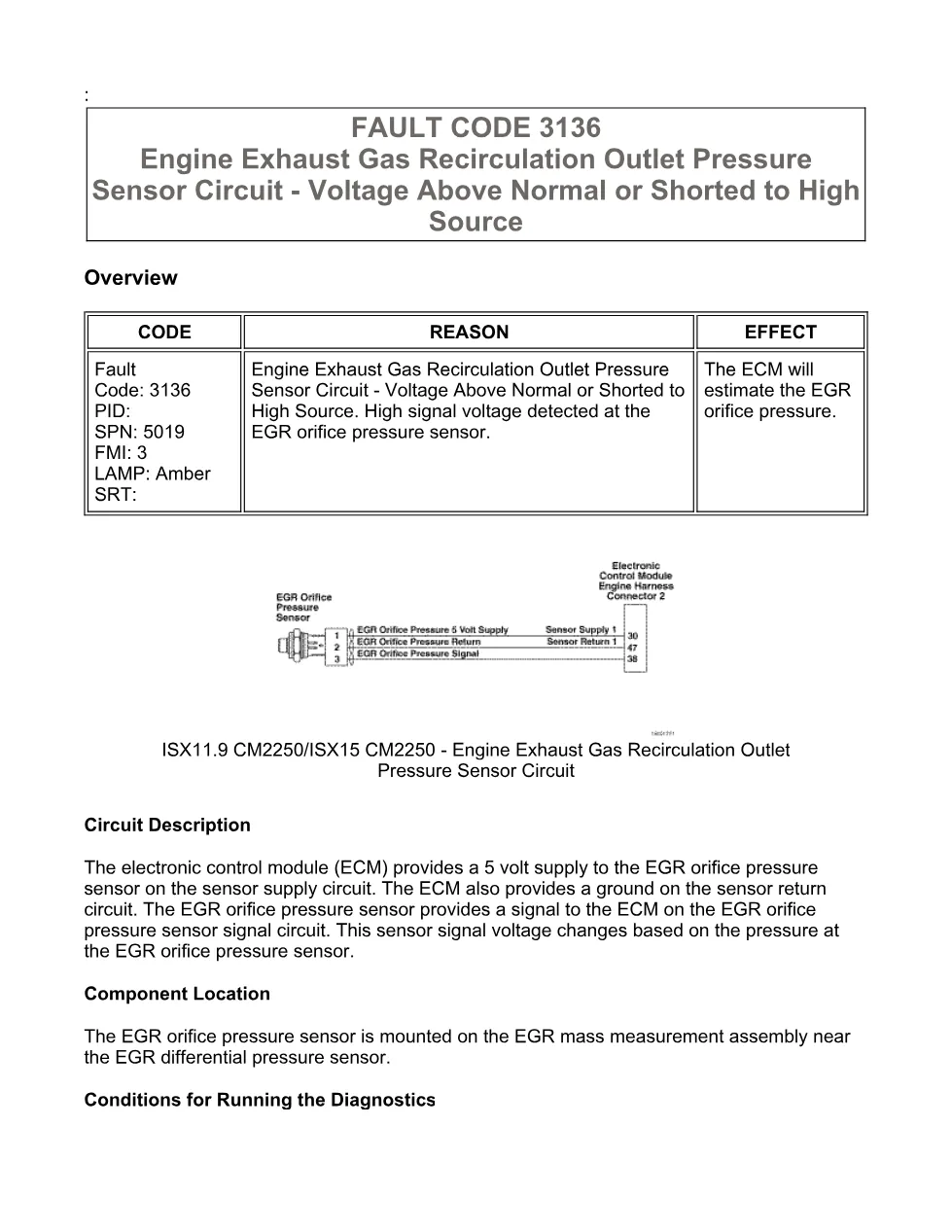

Cummins fault code 3136 is the Cummins ISX11.9 CM2250 troubleshooting document for Engine Exhaust Gas Recirculation Outlet Pressure Sensor Circuit – Voltage Above Normal or Shorted to High (SPN 5019, FMI 3). This 14-page factory guide explains the circuit, the conditions that set the code, and the guided repair steps used with the INSITE electronic service tool. The electronic control module (ECM) provides a 5 volt supply to the EGR orifice pressure sensor on the sensor supply circuit.
Official document details
| Brand | Cummins |
| Model coverage | ISX11.9 CM2250/ISX15 CM2250 |
| System / group | ISX11.9 CM2250 (2010-12) / DTCs |
| Fault code | 3136 |
| SPN / FMI | 5019 / 3 |
| Warning lamp | Amber |
| Bulletin number | 2883445 |
| Revision | Last modified 11-Jun-2010 |
| Pages | 14 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Cummins fault code 3136 table of contents
- Overview and circuit description
- Component location
- Conditions for running the diagnostics
- Conditions for setting the fault code
- Action taken when the fault code is active
- Conditions for clearing the fault code
- Shop Talk and possible causes

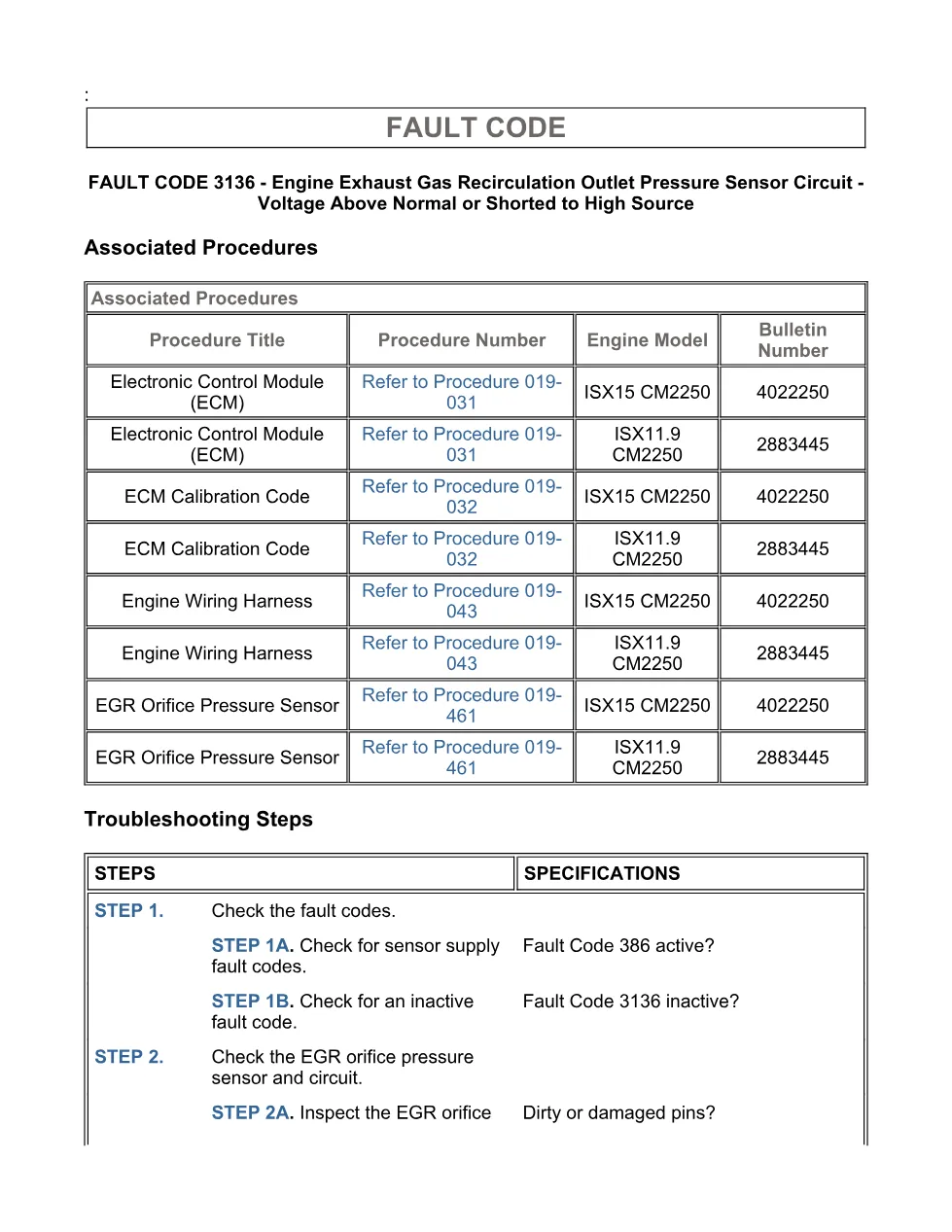

- Associated procedures table
- Guided troubleshooting steps
Applicable truck models

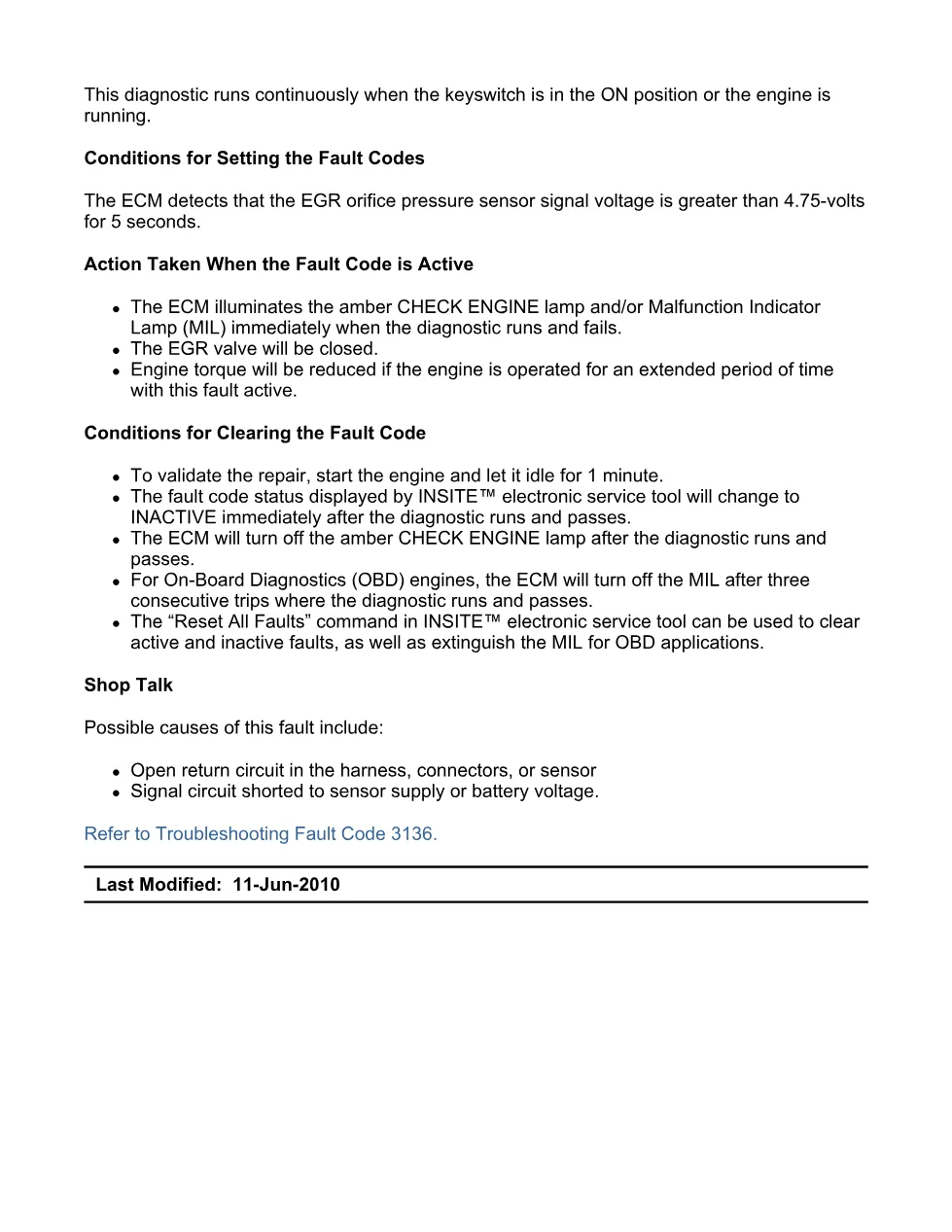

This troubleshooting procedure applies to Cummins ISX11.9 CM2250/ISX15 CM2250 engines. The EGR orifice pressure sensor is mounted on the EGR mass measurement assembly near the EGR differential pressure sensor. The document states the code is set when ecm detects that the egr orifice pressure sensor signal voltage is greater than 4.75-volts for 5 seconds. When the code is active, the amber warning lamp is illuminated when this diagnostic runs and fails. Full specifications and procedure references are published by Cummins on the Cummins official website.
Who needs this Cummins fault code 3136 manual
Diesel technicians and workshop owners diagnosing Voltage Above Normal or Shorted to High on ISX11.9 CM2250 engines need this reference. The guide walks through each guided step and the INSITE electronic service tool tests required to validate the repair and clear the code. Each guided step lists the keyswitch position, the required action, and the YES or NO branch that follows. The associated procedures table cross-references the component repair bulletins for the ISX11.9 and ISX15 CM2250 platforms.
Related manuals library
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download.
