Cummins fault code 2765 is the Cummins ISX11.9 CM2250 troubleshooting document for Engine Injector Bank 1 Barcodes – Out of Calibration (SPN 2797, FMI 13). This 6-page factory guide explains the circuit, the conditions that set the code, and the guided repair steps used with the INSITE electronic service tool. Each fuel injector has a specific barcode.
Official document details
| Brand | Cummins |
| Model coverage | ISX11.9 CM2250/ISC8.3 and ISL9 CM2250/ISX15 CM2250 |
| System / group | ISX11.9 CM2250 (2010-12) / DTCs |
| Fault code | 2765 (PID S392) |
| SPN / FMI | 2797 / 13 |
| Warning lamp | None |
| Bulletin number | 2883445 |
| Revision | Last modified 11-Jun-2010 |
| Pages | 6 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Cummins fault code 2765 table of contents

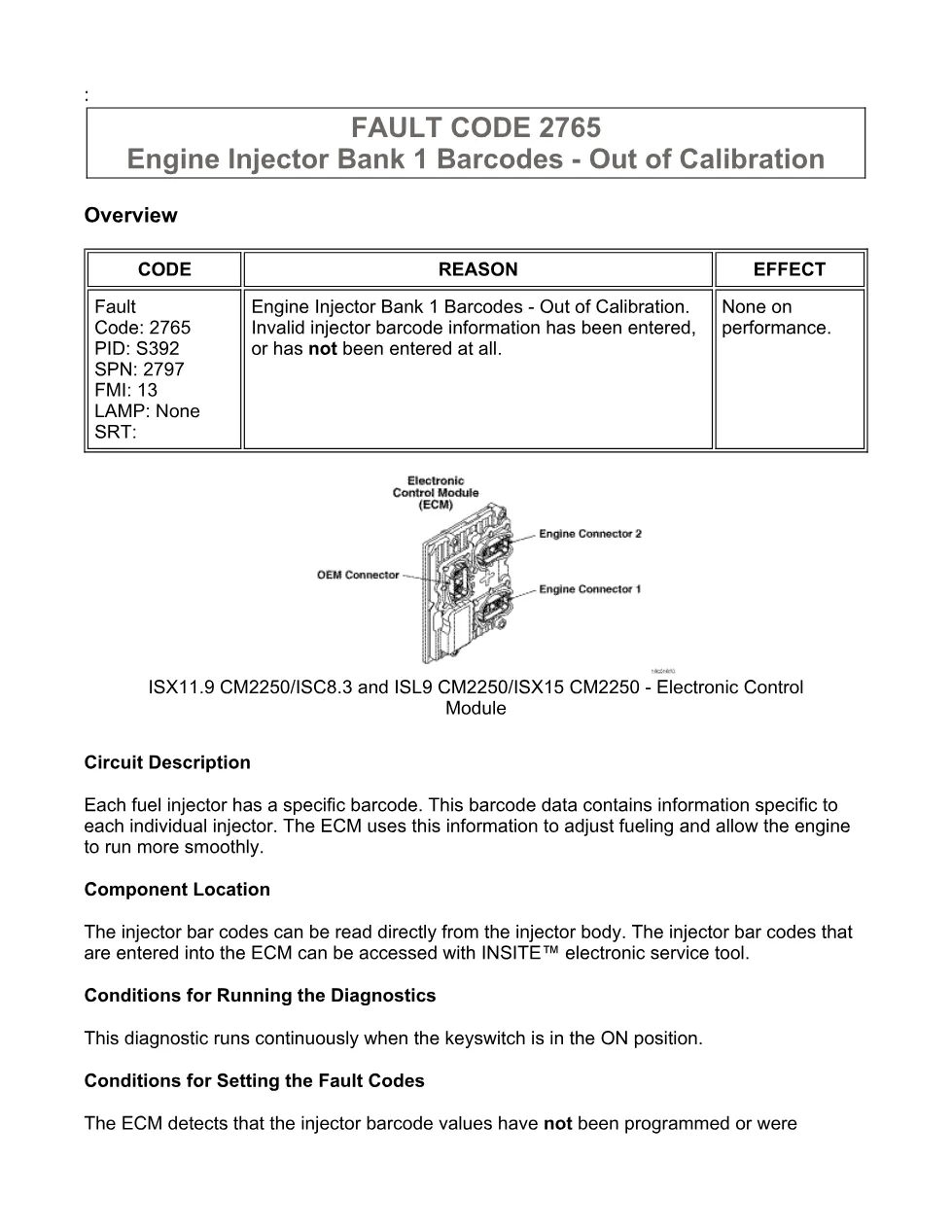

- Overview and circuit description
- Component location
- Conditions for running the diagnostics
- Conditions for setting the fault code

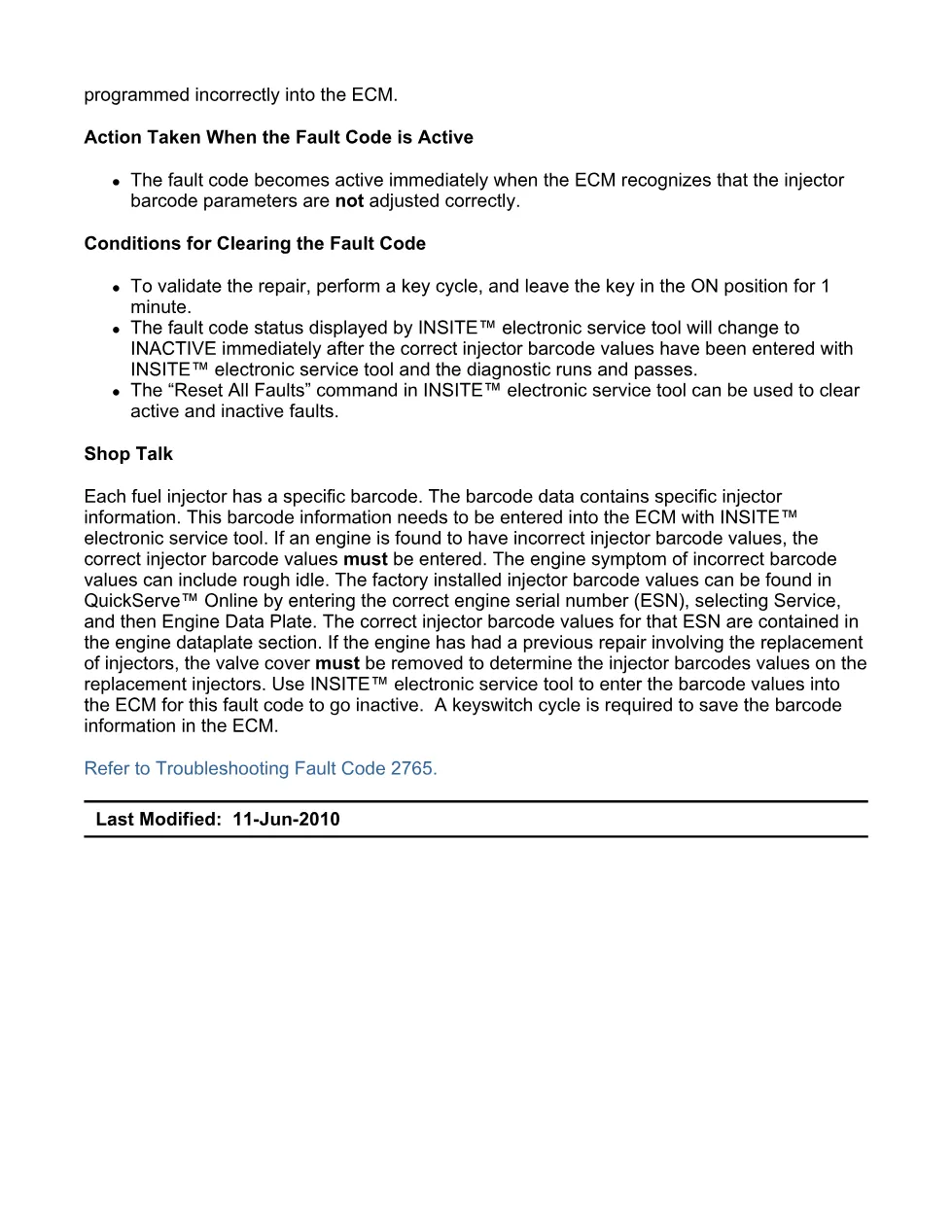

- Action taken when the fault code is active
- Conditions for clearing the fault code
- Shop Talk and possible causes
- Associated procedures table

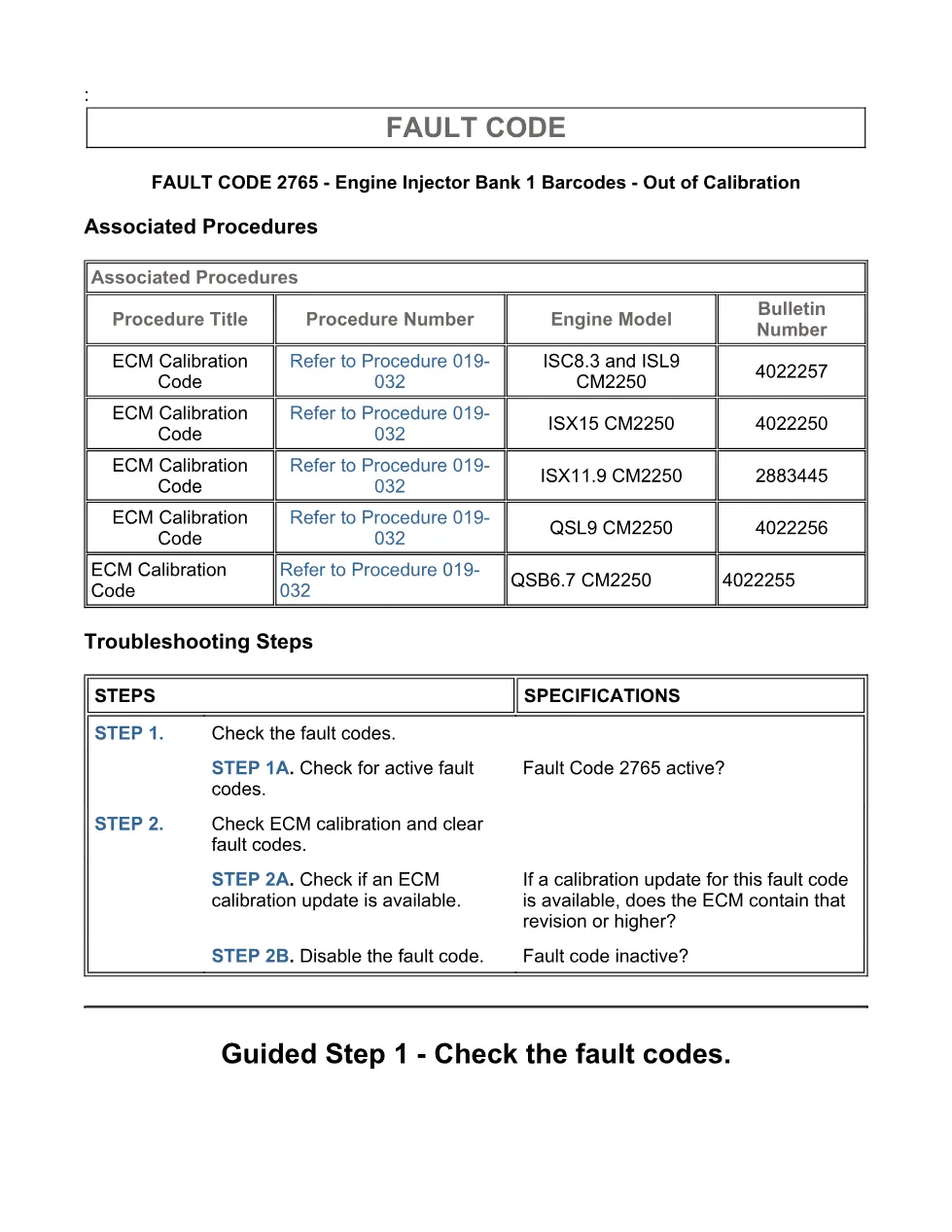

- Guided troubleshooting steps
Applicable truck models
This troubleshooting procedure applies to Cummins ISX11.9 CM2250/ISC8.3 and ISL9 CM2250/ISX15 CM2250 engines. The injector bar codes can be read directly from the injector body. The injector bar codes that are entered into the ECM can be. The document states the code is set when ecm detects that the injector barcode values have not been programmed or were. When the code is active, no dashboard warning lamp is commanded on for this information fault code. Full specifications and procedure references are published by Cummins on the Cummins official website.
Who needs this Cummins fault code 2765 manual
Diesel technicians and workshop owners diagnosing Out of Calibration on ISX11.9 CM2250 engines need this reference. The guide walks through each guided step and the INSITE electronic service tool tests required to validate the repair and clear the code. Each guided step lists the keyswitch position, the required action, and the YES or NO branch that follows. The associated procedures table cross-references the component repair bulletins for the ISX11.9 and ISX15 CM2250 platforms. Following the steps in the documented order helps confirm the root cause before any parts are replaced.
