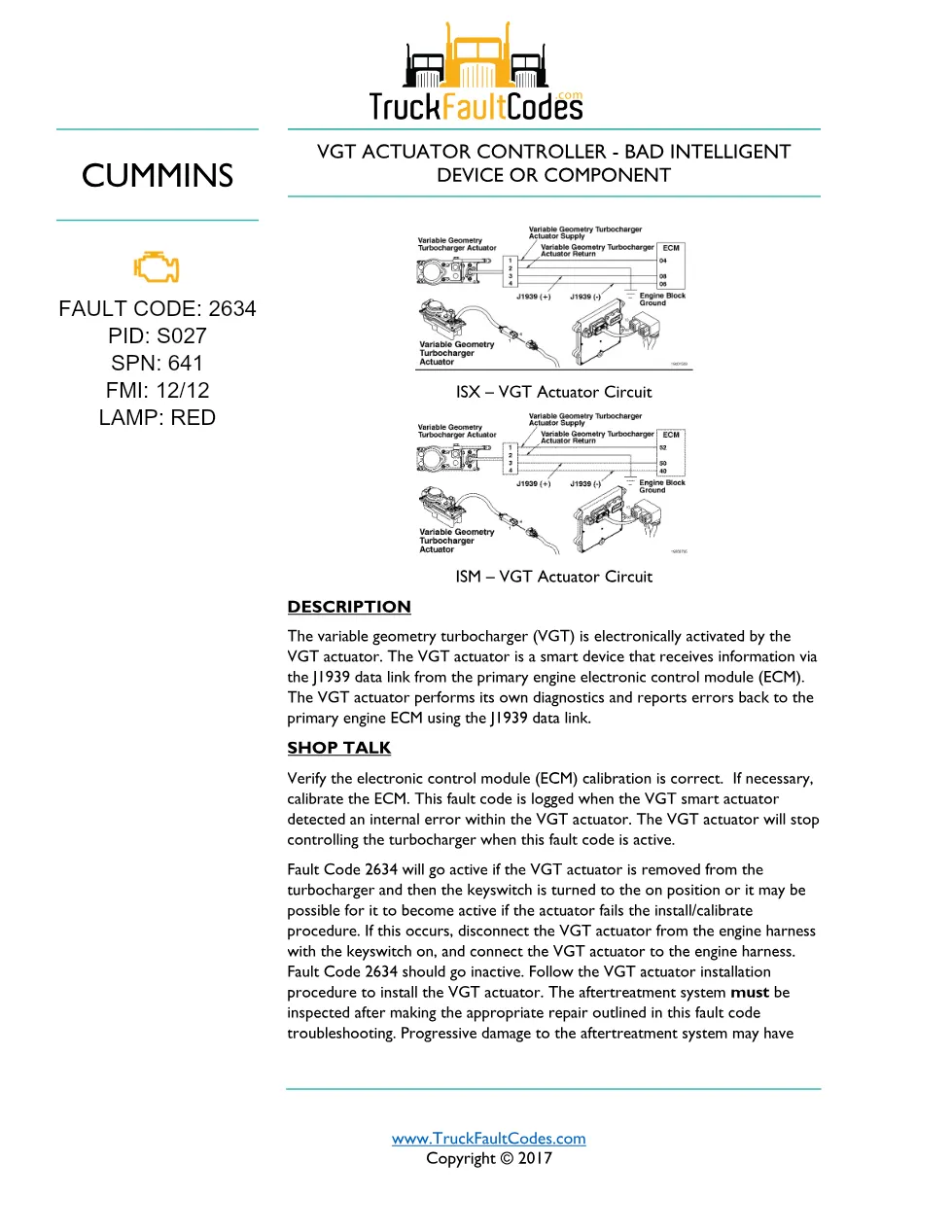

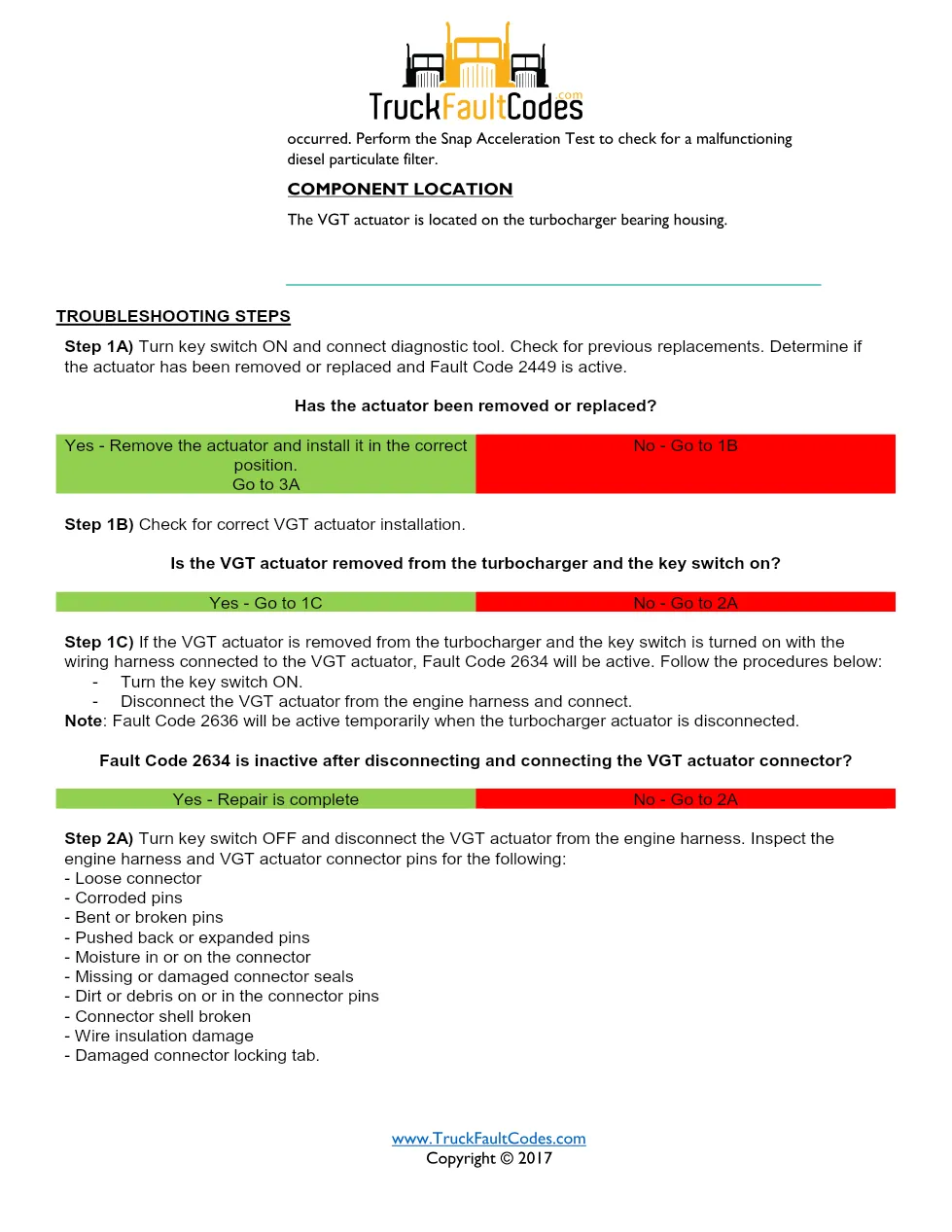

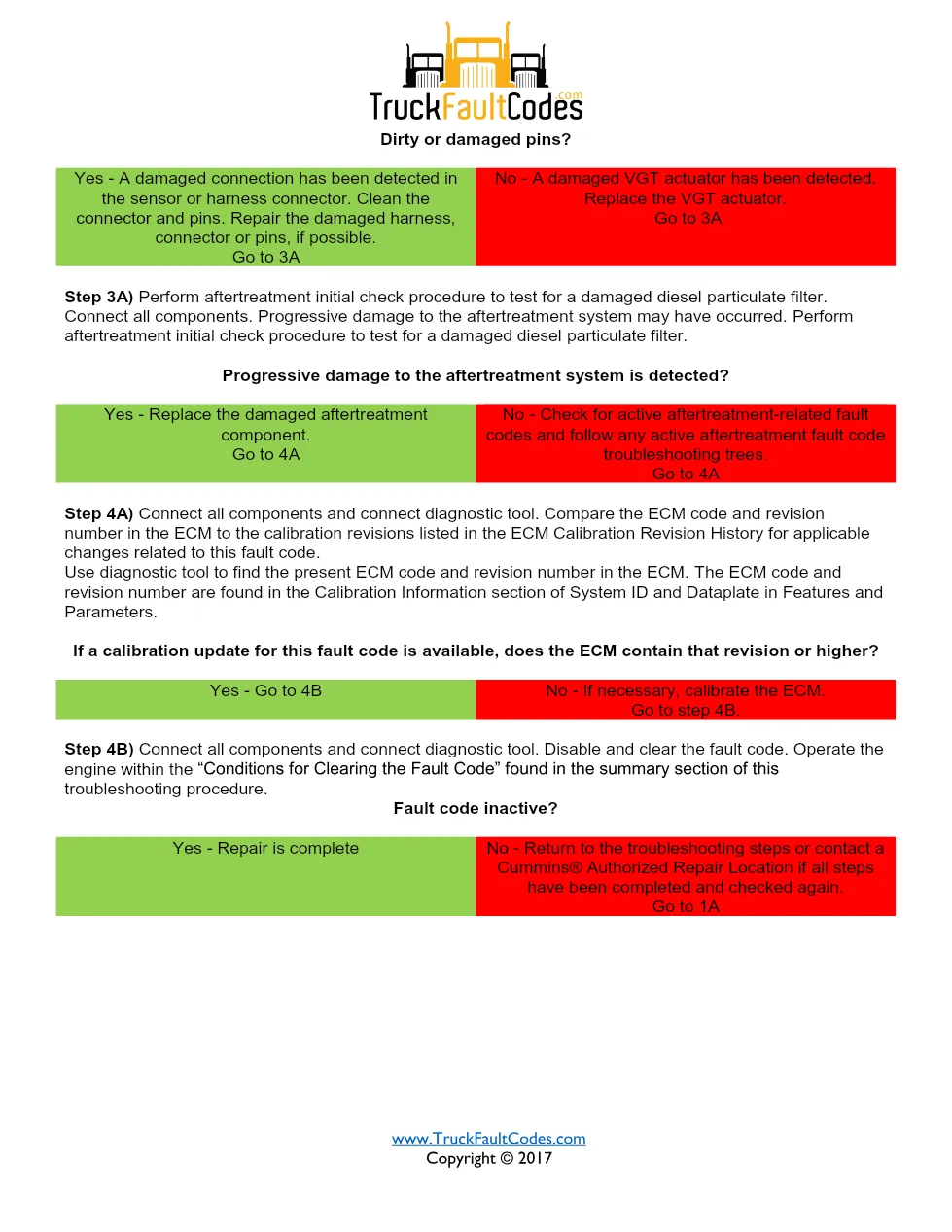

Cummins fault code 2634 is documented on this DiagTechPro library page for Cummins ISM CM871 (2007-09) engines, where it flags a VGT Actuator Controller condition (PID S027, SPN 641, FMI 12/12, Red lamp). This 3-page PDF reproduces the manufacturer description, shop talk, component location and step-by-step troubleshooting so technicians can confirm and clear the code.
Cummins fault code 2634 overview
Cummins defines this code as “VGT ACTUATOR CONTROLLER – BAD INTELLIGENT DEVICE OR COMPONENT” on the VGT Actuator Circuit. The variable geometry turbocharger (VGT) is electronically activated by the VGT actuator. The VGT actuator is a smart device that receives information via the J1939 data link from the primary engine electronic control module (ECM). The VGT actuator performs its own diagnostics and reports errors back to the primary engine ECM using the J1939 data link.
Official document details
| Brand | Cummins |
| Model coverage | Cummins ISM CM871 (2007-09); Cummins ISX CM871 (2007-09) |
| System / Group | VGT Actuator Circuit — ISM CM871 fault codes |
| Fault code | 2634 (SPN 641, FMI 12/12) |
| Source | TruckFaultCodes.com Cummins fault code reference (© 2017) |
| Pages | 3 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (PID, SPN, FMI, lamp)
- Description
- Shop Talk
- Component Location
- Troubleshooting Steps
Applicable truck models and engines
This document applies to Cummins ISM CM871 (2007-09); Cummins ISX CM871 (2007-09) equipped diesel engines that log Fault Code 2634. Always confirm engine calibration and use a Cummins diagnostic tool such as INSITE to read live data before starting repairs. Full specifications are published on the Cummins official website.
Who needs this fault code 2634 manual
Heavy-duty truck technicians, fleet workshops and owner-operators diagnosing an electronic control module warning on ISM CM871 engines will use this sheet to verify the fault before parts are replaced.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
