This 4-page PDF documents Cummins fault code 242, the vehicle speed sensor circuit on the Cummins M11 and N14 CELECT Plus (1995-98) engine platform. Published in the TruckFaultCodes.com fault code library (© 2017), it carries the yellow lamp, PID P084, SPN 84 and FMI 10 and service repair time code 00-097, and lays out the full factory troubleshooting tree.
Cummins fault code 242 document details
| Brand | Cummins |
| Model coverage | M11 and N14 CELECT Plus (1995-98) |
| System / group | Vehicle Speed Sensor VSS Circuit — Fault Code 242 |
| Publication reference | TruckFaultCodes.com fault code reference (© 2017) |
| Year / revision | 1995-98 platform, TruckFaultCodes.com 2017 edition |
| Pages | 4 |
| File size | 0.31 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (PID P084, SPN 84, FMI 10, yellow lamp)
- Circuit description
- Component location
- Shop talk on VSS anti-tampering settings

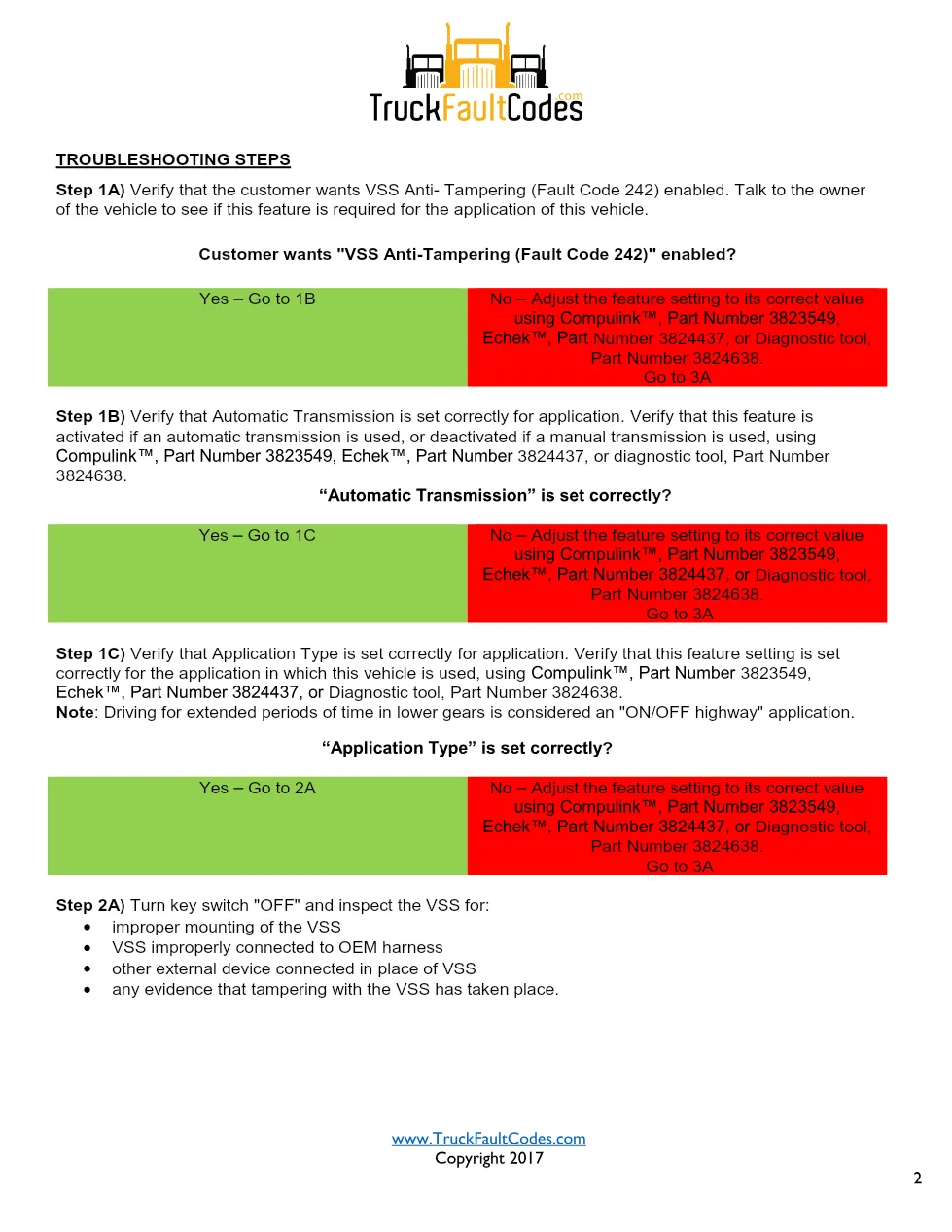

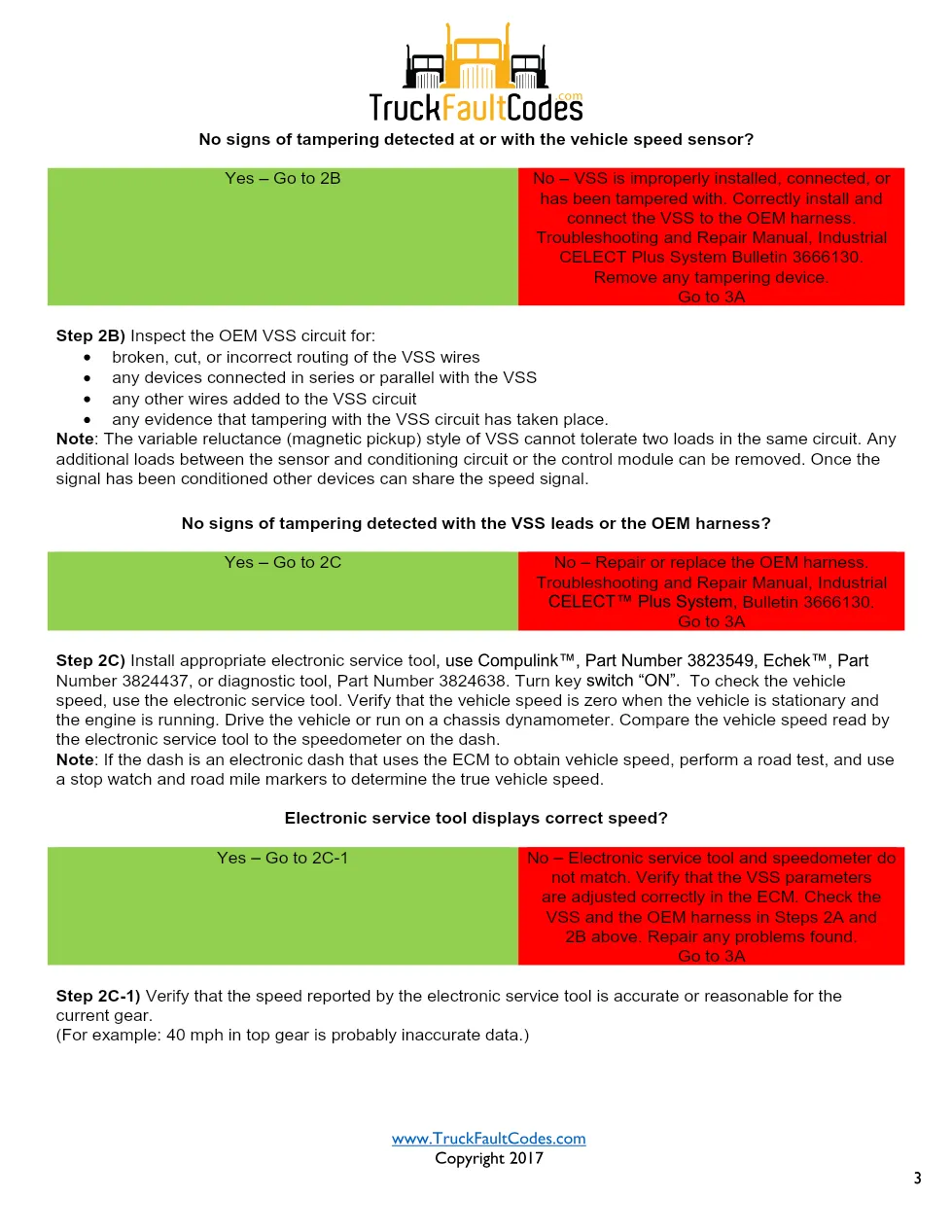

- Troubleshooting steps

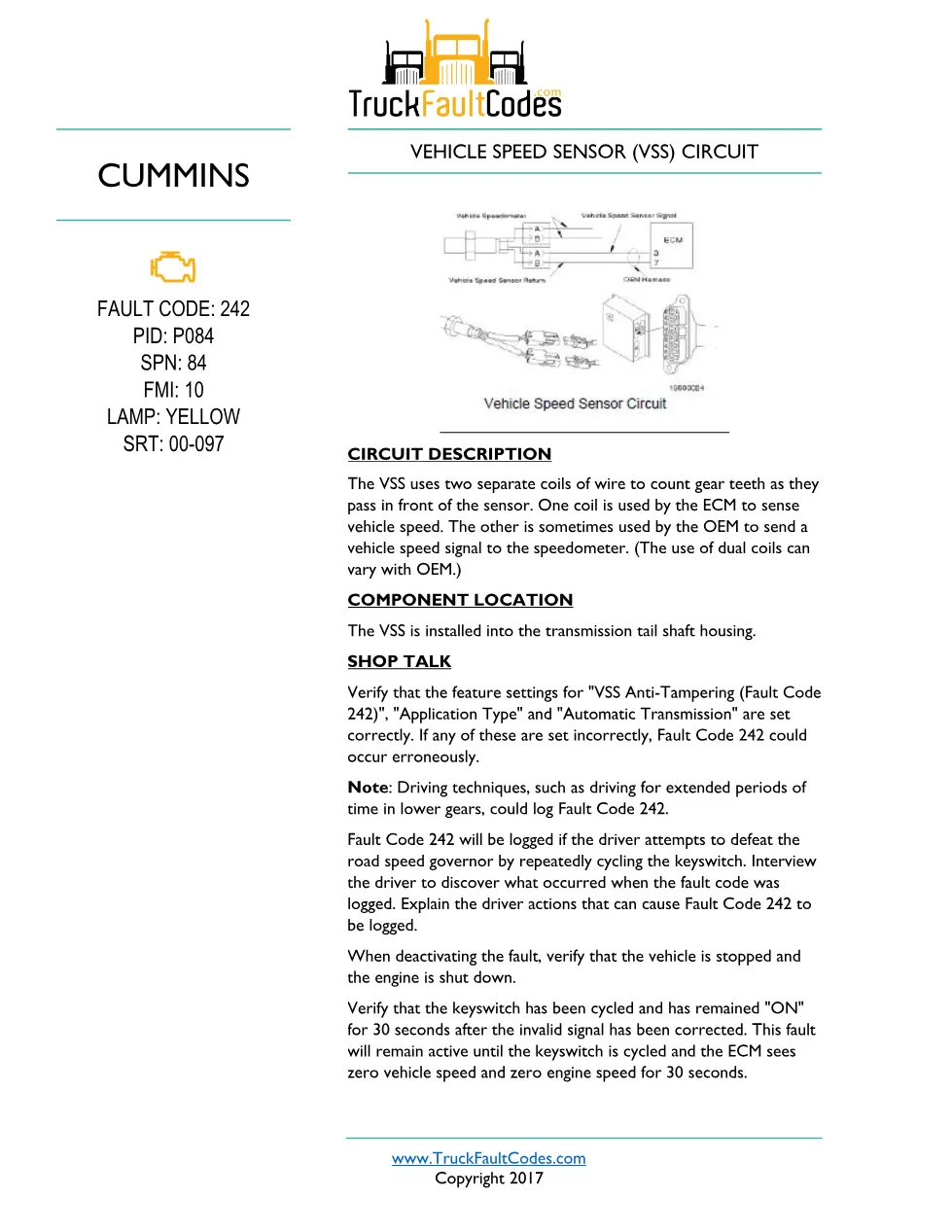

Circuit description and component location
The vehicle speed sensor uses two separate coils to count gear teeth as they pass the sensor; one coil feeds the ECM for road speed and the other can feed the OEM speedometer. This is an anti-tampering fault. The vehicle speed sensor is installed in the transmission tail shaft housing.
The VSS Anti-Tampering, Application Type and Automatic Transmission feature settings are verified, because incorrect settings, extended driving in low gears, or repeated keyswitch cycling to defeat the road-speed governor can log this fault. All checks are made with a Cummins service tool such as Compulink, Echek or a diagnostic tool, and inactive codes are cleared once the repair is confirmed.
Applicable truck models and engines
This document applies to Cummins M11 and N14 CELECT Plus (1995-98) electronic engines and is filed under the CELECT Plus diagnostic trouble codes group, so it suits on-highway and industrial installations that run these engines. For engine specifications and dealer support, see the official Cummins support site at the Cummins engine support portal. The full PDF is part of the vehicle speed sensor circuit chapter of the CELECT Plus fault code series held in the DiagTechPro manuals library.
Who needs this Cummins fault code 242 manual
Truck technicians and workshop owners need this document when a yellow lamp warns of a vehicle speed sensor circuit problem on M11 or N14 CELECT Plus engines, so they can follow the factory pin checks, resistance measurements and step-by-step decisions instead of guessing at parts.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
Applies to these truck models
This is the manufacturer document shared across 2 model families. It applies to:
- Cummins DTCs
- Cummins M11 CELECT Plus (1995-98)
