This 10-page PDF documents Cummins fault code 241, the vehicle speed sensor circuit on the Cummins M11 and N14 CELECT Plus (1995-98) engine platform. Published in the TruckFaultCodes.com fault code library (© 2017), it carries the yellow lamp, PID P084, SPN 84 and FMI 2 and service repair time code 00-097, and lays out the full factory troubleshooting tree.
Cummins fault code 241 document details
| Brand | Cummins |
| Model coverage | M11 and N14 CELECT Plus (1995-98) |
| System / group | Vehicle Speed Sensor Circuit — Fault Code 241 AUTO |
| Publication reference | TruckFaultCodes.com fault code reference (© 2017) |
| Year / revision | 1995-98 platform, TruckFaultCodes.com 2017 edition |
| Pages | 10 |
| File size | 0.32 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (PID P084, SPN 84, FMI 2, yellow lamp)
- Circuit description
- Component location
- Shop talk on VSS coil specifications

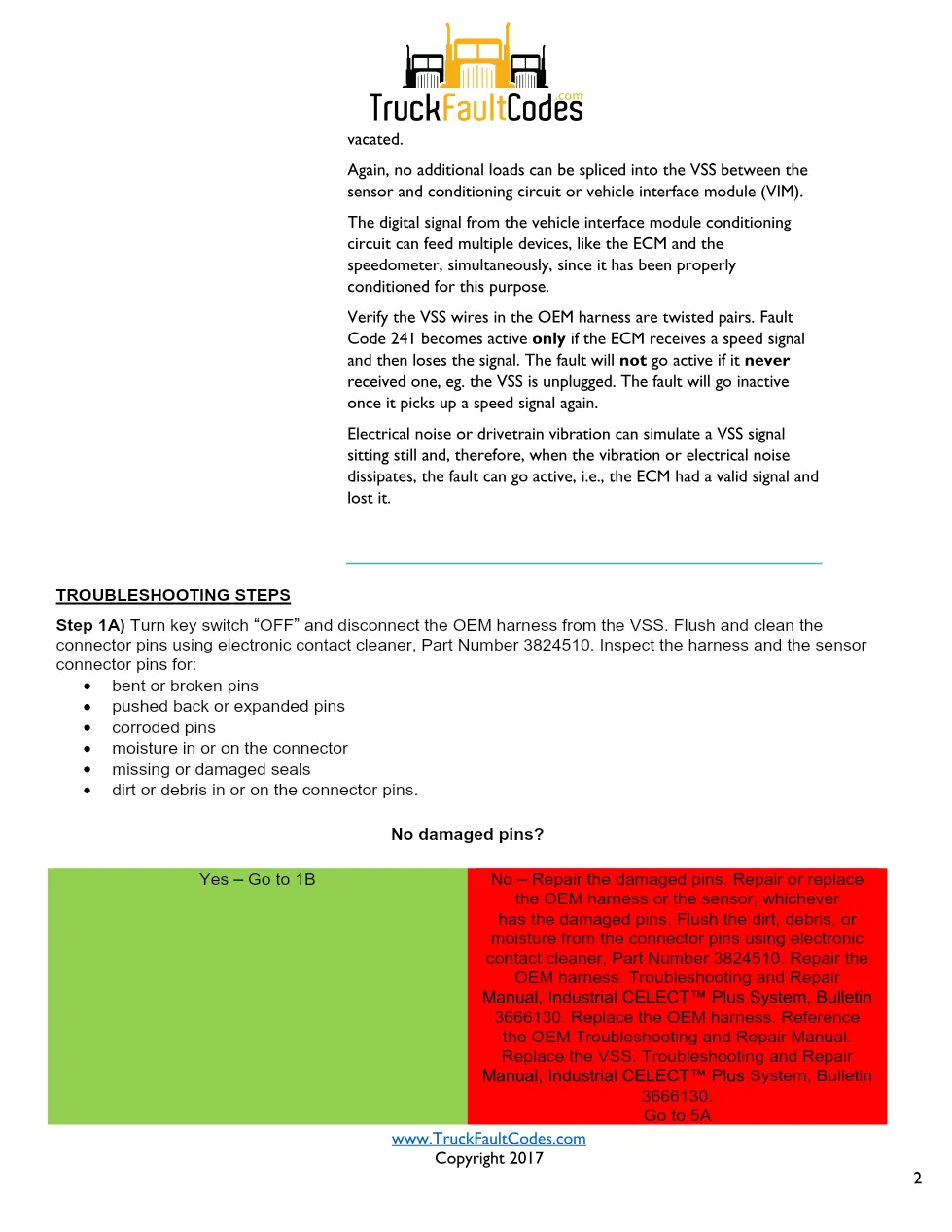

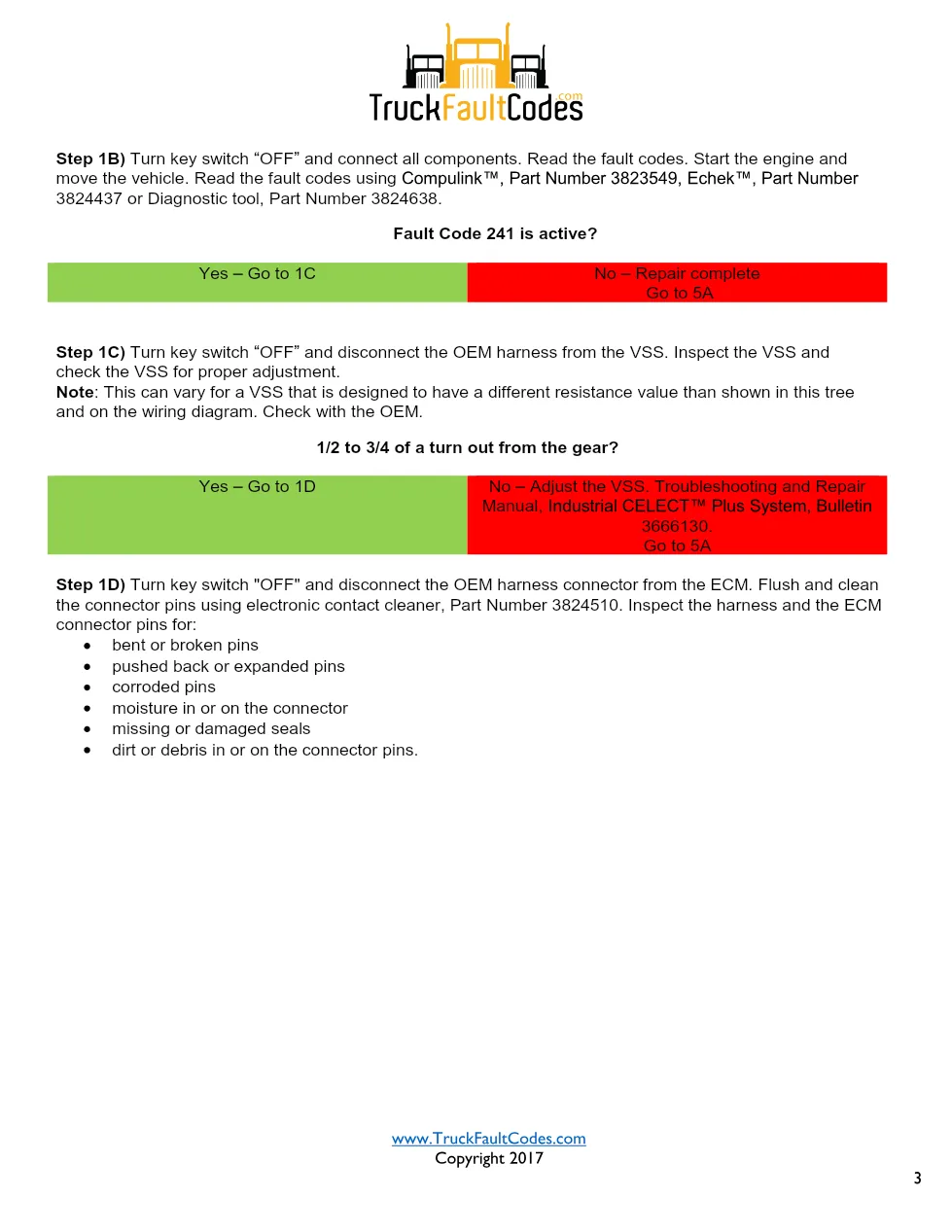

- Troubleshooting steps 1A onward
Circuit description and component location

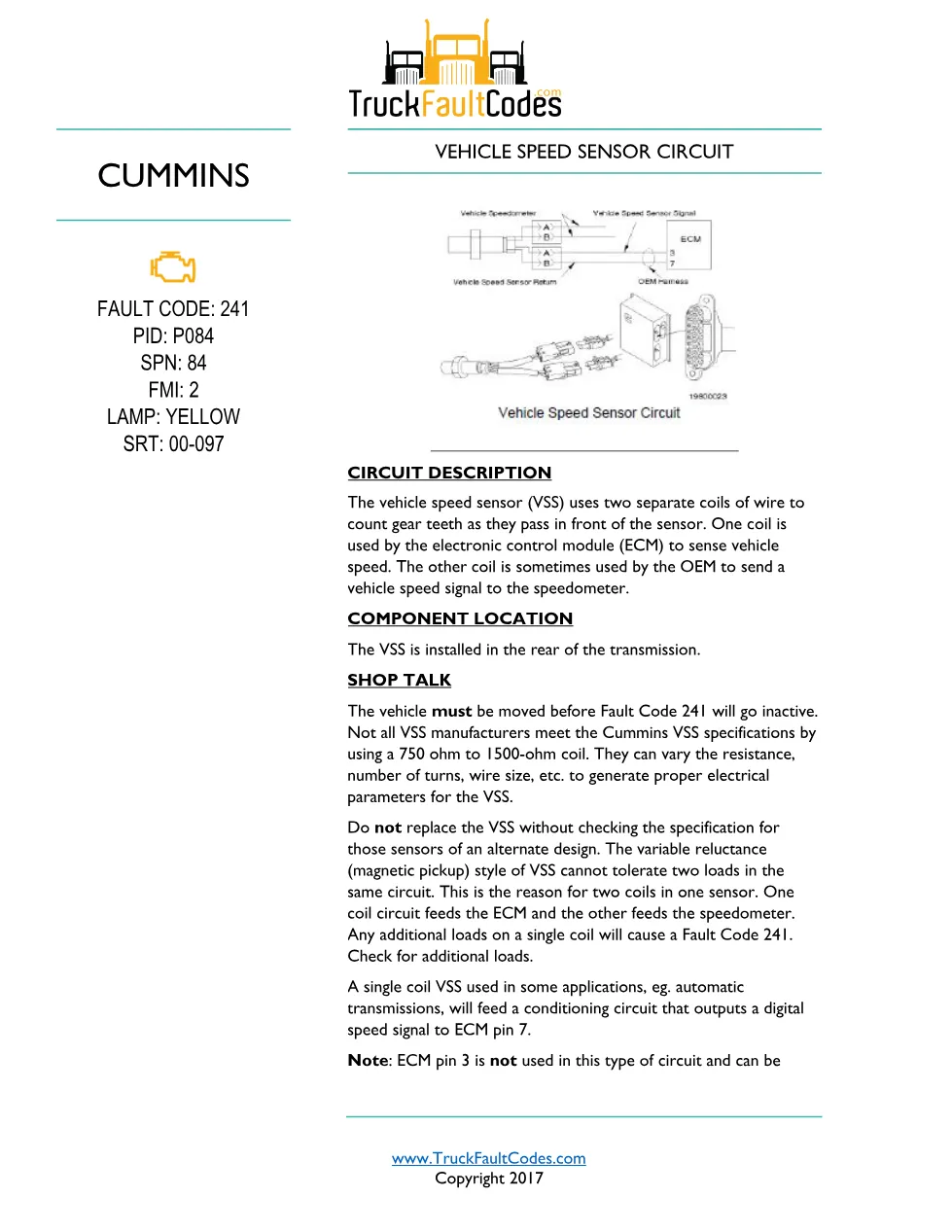

The vehicle speed sensor uses two separate coils to count gear teeth; one coil is used by the ECM to sense vehicle speed and the other is sometimes used by the OEM to feed the speedometer. This ten-page tree covers the sensor circuit. The vehicle speed sensor is installed in the rear of the transmission.
Cummins specifies a 750 to 1500 ohm coil, and a single-coil VSS used on some automatic transmissions feeds a conditioning circuit that outputs a digital speed signal to ECM pin 7; any additional load on a single coil can cause this fault. All checks are made with a Cummins service tool such as Compulink, Echek or a diagnostic tool, and inactive codes are cleared once the repair is confirmed.
Applicable truck models and engines
This document applies to Cummins M11 and N14 CELECT Plus (1995-98) electronic engines and is filed under the CELECT Plus diagnostic trouble codes group, so it suits on-highway and industrial installations that run these engines. For engine specifications and dealer support, see the official Cummins support site at the Cummins engine support portal. The full PDF is part of the vehicle speed sensor circuit chapter of the CELECT Plus fault code series held in the DiagTechPro manuals library.
Who needs this Cummins fault code 241 manual
Truck technicians and workshop owners need this document when a yellow lamp warns of a vehicle speed sensor circuit problem on M11 or N14 CELECT Plus engines, so they can follow the factory pin checks, resistance measurements and step-by-step decisions instead of guessing at parts.
