This 4-page PDF documents Cummins fault code 243, the engine brake supply circuit on the Cummins M11 and N14 CELECT Plus (1995-98) engine platform. Published in the TruckFaultCodes.com fault code library (© 2017), it carries the yellow lamp, PID P121, SPN 513 and FMI 4 and service repair time code 00-098, and lays out the full factory troubleshooting tree.
Cummins fault code 243 document details
| Brand | Cummins |
| Model coverage | M11 and N14 CELECT Plus (1995-98) |
| System / group | Engine Brake Supply Circuit — Fault Code 243 |
| Publication reference | TruckFaultCodes.com fault code reference (© 2017) |
| Year / revision | 1995-98 platform, TruckFaultCodes.com 2017 edition |
| Pages | 4 |
| File size | 0.26 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (PID P121, SPN 513, FMI 4, yellow lamp)
- Circuit description
- Component location

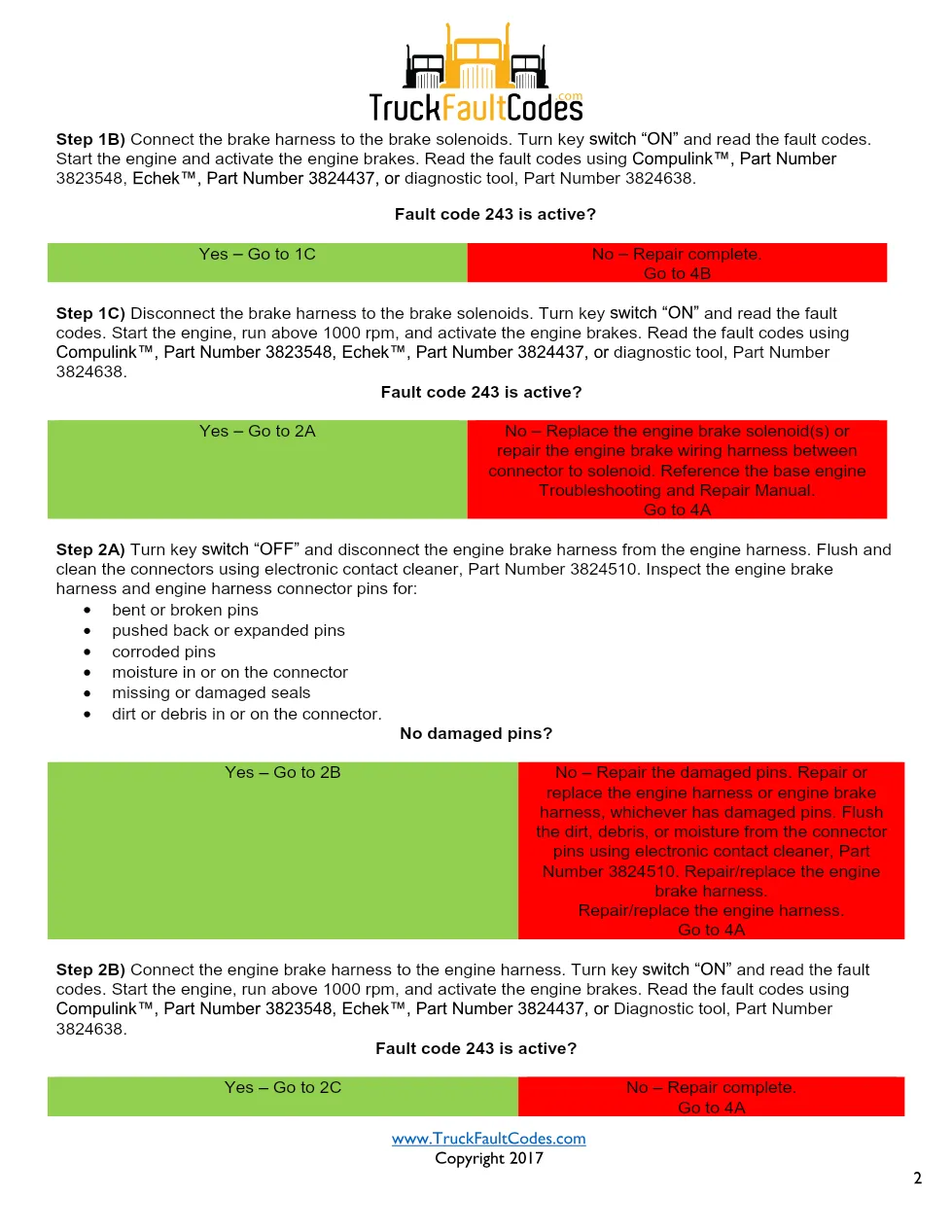

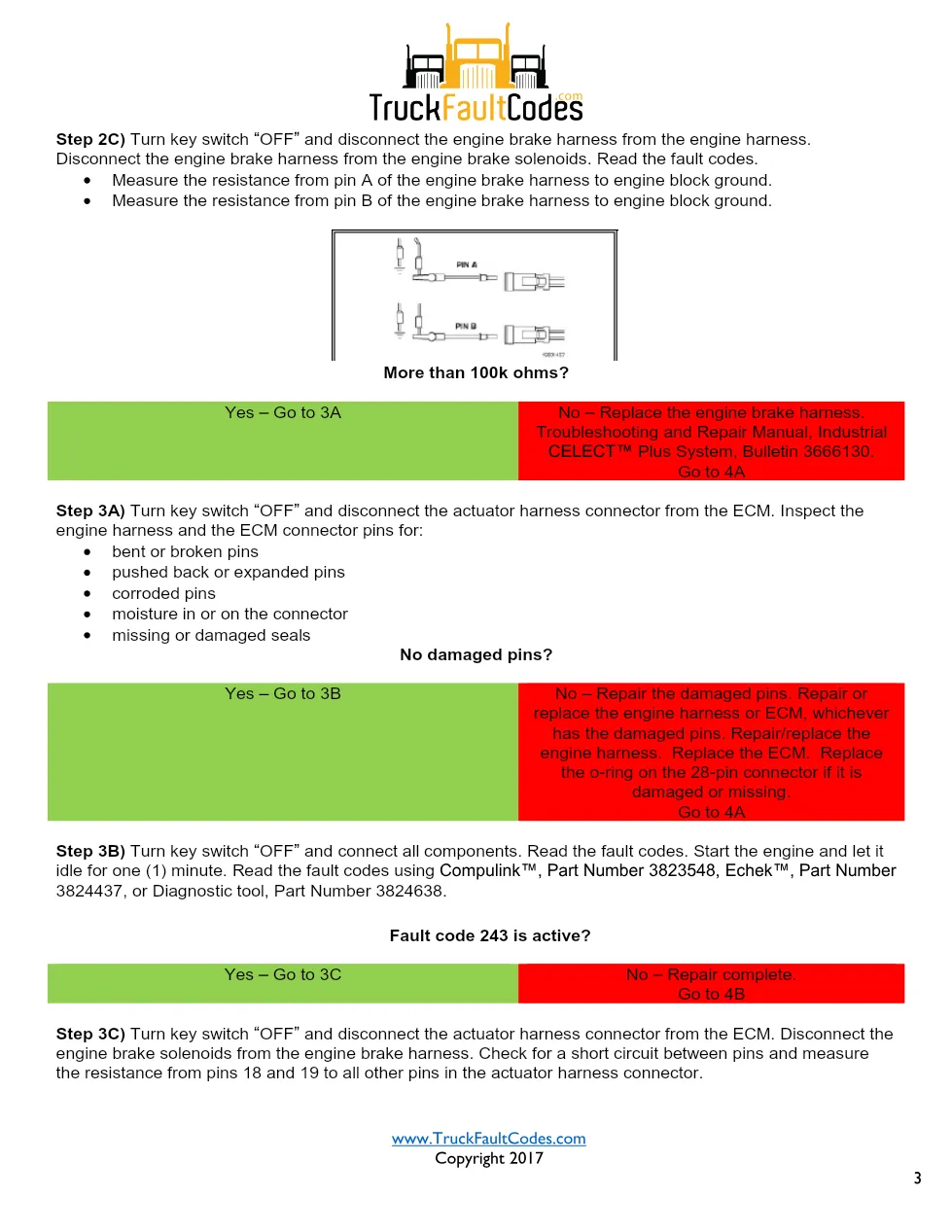

- Troubleshooting steps 1A through 4A
Circuit description and component location

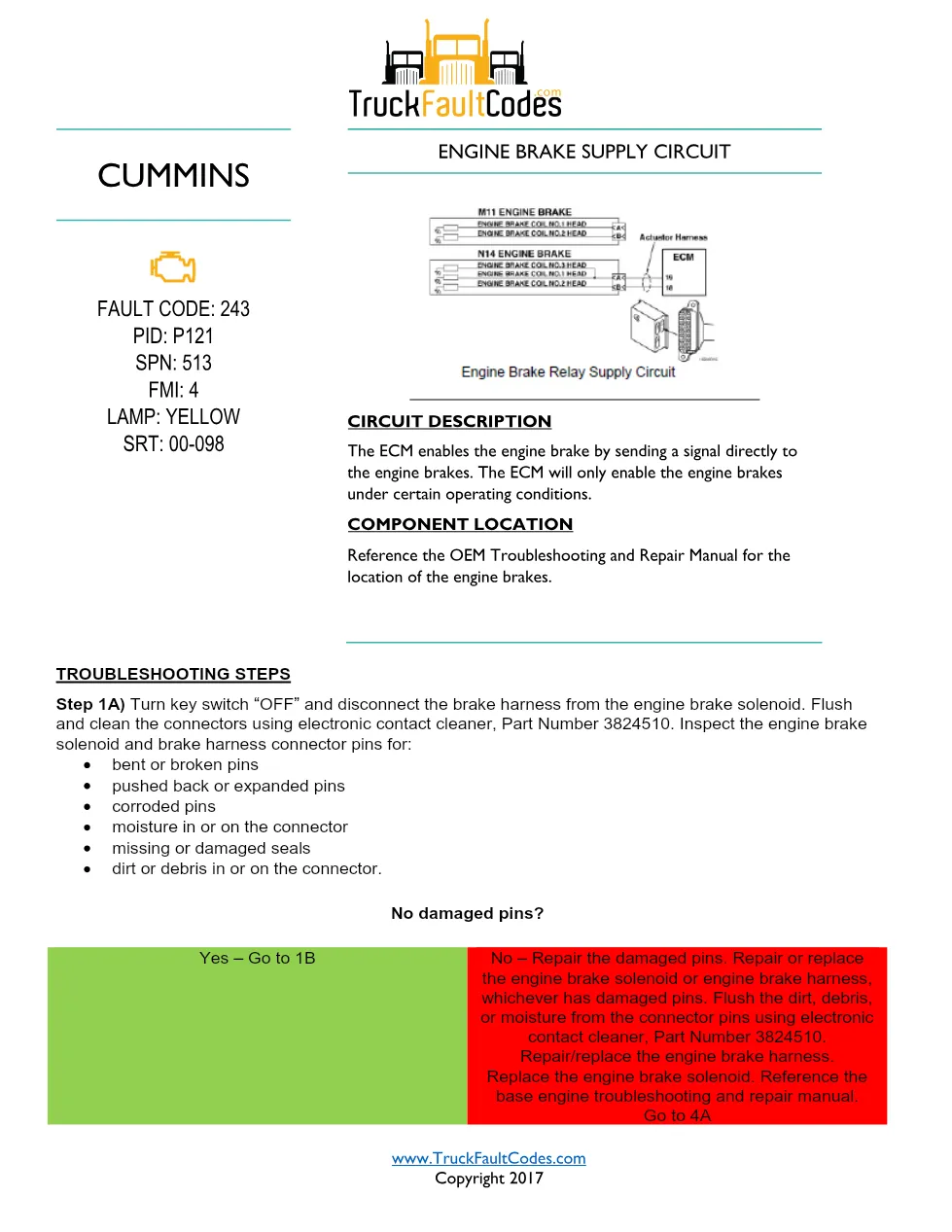

The ECM enables the engine brake by sending a signal directly to the brakes, and it only enables them under certain operating conditions. This code covers a fault in that supply circuit. The OEM Troubleshooting and Repair Manual is referenced for the location of the engine brakes.
The brake harness and engine brake solenoid connectors are flushed with electronic contact cleaner and inspected for bent, corroded or pushed-back pins before the harness or solenoid is repaired or replaced. All checks are made with a Cummins service tool such as Compulink, Echek or a diagnostic tool, and inactive codes are cleared once the repair is confirmed.
Applicable truck models and engines
This document applies to Cummins M11 and N14 CELECT Plus (1995-98) electronic engines and is filed under the CELECT Plus diagnostic trouble codes group, so it suits on-highway and industrial installations that run these engines. For engine specifications and dealer support, see the official Cummins support site at the Cummins engine support portal. The full PDF is part of the engine brake supply circuit chapter of the CELECT Plus fault code series held in the DiagTechPro manuals library.
Who needs this Cummins fault code 243 manual
Truck technicians and workshop owners need this document when a yellow lamp warns of a engine brake supply circuit problem on M11 or N14 CELECT Plus engines, so they can follow the factory pin checks, resistance measurements and step-by-step decisions instead of guessing at parts.
