Cummins fault code 1228 is the Cummins ISX11.9 CM2250 diagnostic trouble code for EGR Valve Position – Data Erratic, Intermittent, or Incorrect. This 7-page troubleshooting PDF is taken from the Cummins ISX11.9 CM2250 (2010-12) service documentation and explains the circuit, the conditions that set the fault, and the guided steps used to confirm the repair. It is logged as SPN 27, FMI 2/2 with amber warning lamp, and the failure typically points to an EGR valve that cannot reach its commanded position for more than 30 seconds.
Cummins fault code 1228 document details
| Brand | Cummins |
|---|---|
| Model coverage | Cummins ISX11.9 and ISX15 CM2250 |
| System / group | ISX11.9 CM2250 (2010-12) / DTCs |
| Fault code identifiers | PID P27 · SPN 27 · FMI 2/2 · Lamp Amber |
| Associated procedures | Cummins Procedures 011-022 and 019-032 |
| Revision | Last modified 20-Jul-2010 |
| Pages | 7 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents

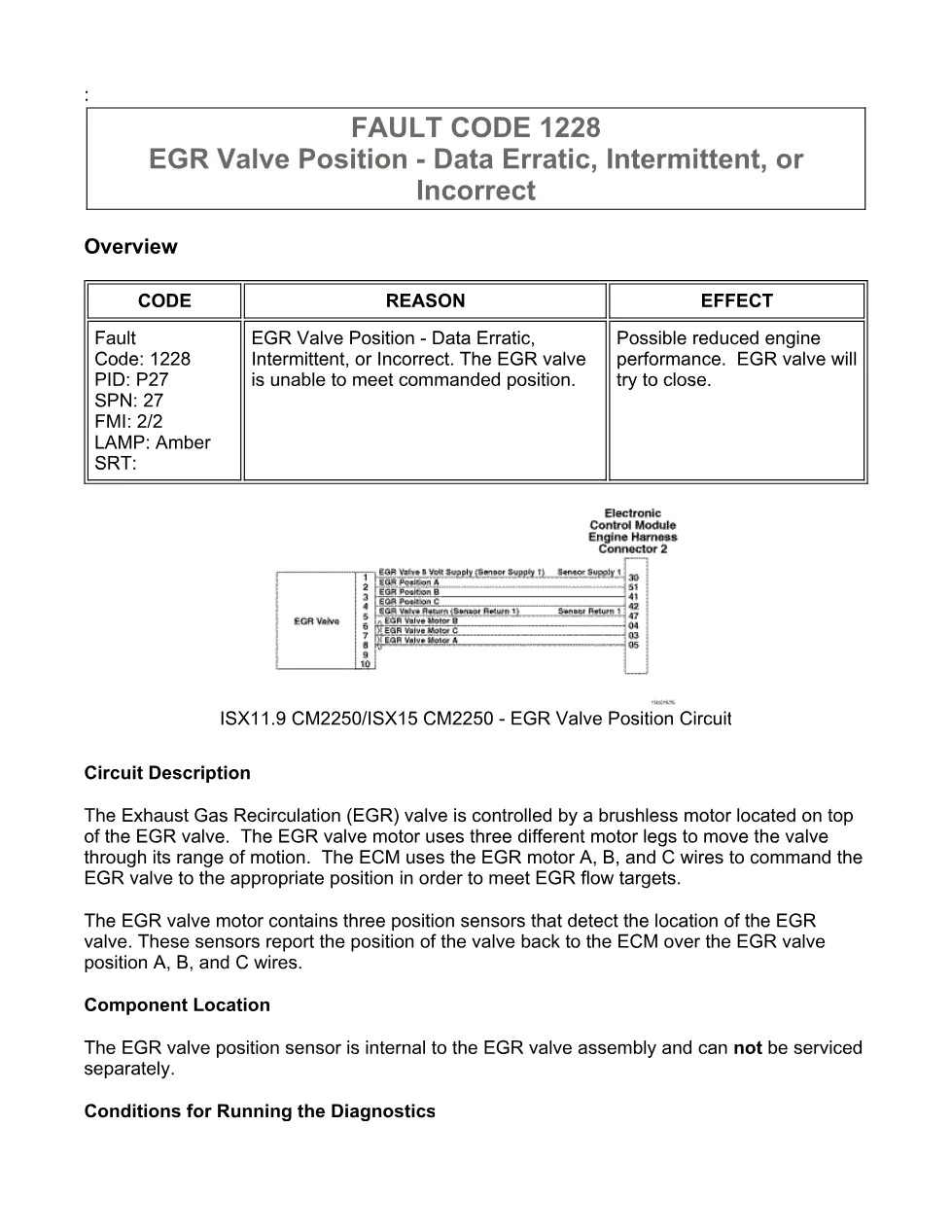

- Overview and circuit description
- Fault code reason, effect and identifiers

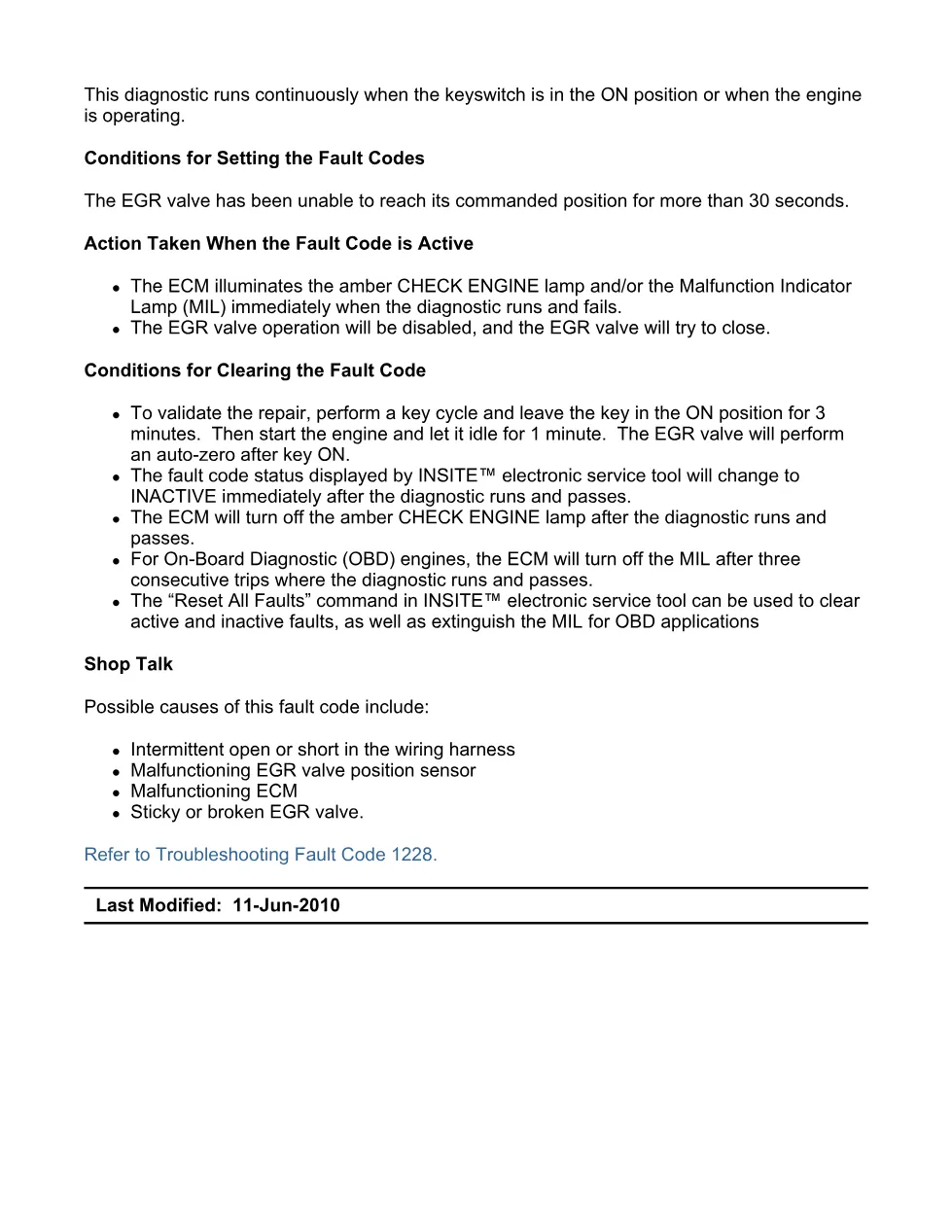

- Conditions for running and setting the diagnostic
- Action taken when the fault code is active
- Conditions for clearing the fault code
- Shop Talk and possible causes

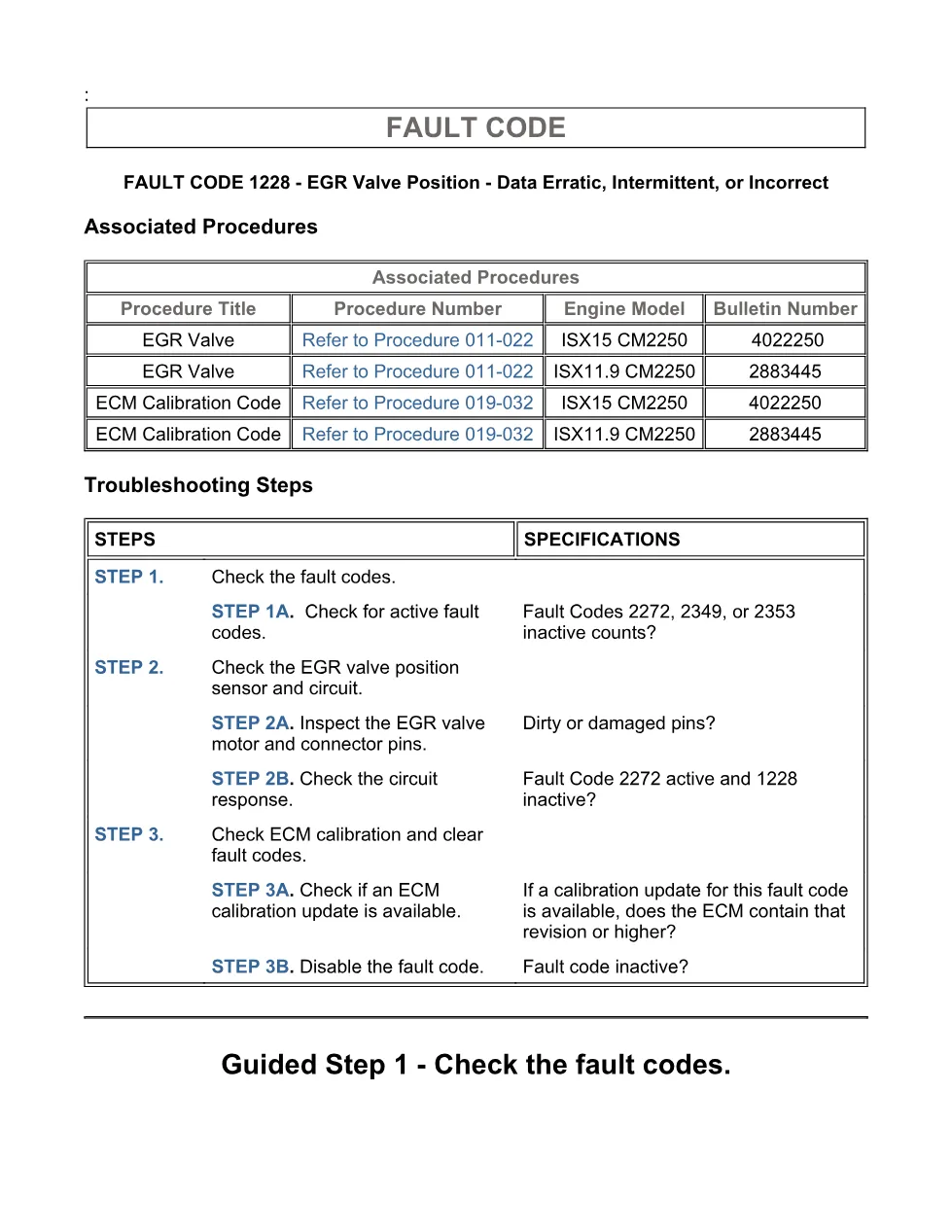

- Associated procedures and guided troubleshooting steps
Applicable truck models
This diagnostic trouble code applies to Cummins ISX11.9 and ISX15 CM2250 engines built in the 2010-12 CM2250 range and covers the EGR valve position circuit. Component locations vary by original equipment manufacturer, so the wiring and connector views in the manual should be read alongside the vehicle build. For calibration histories, INSITE service-tool resources and the latest revision of this Cummins troubleshooting procedure, see the Cummins engine support website.
