This Cummins fault 596 document is an 8-page troubleshooting file for high electrical charging system voltage on CM2250 engines. It explains the ECM power supply circuit, the Battery Voltage Monitor feature, diagnostic conditions, guided checks, INSITE™ clearing steps, and related ECM calibration procedure references.
Official Cummins fault 596 document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB6.7 CM2250, with associated CM2250 coverage listed for ISC8.3 and ISL9 CM2250, ISX15 CM2250, GX CM2250, ISX11.9 CM2250, QSL9 CM2250, and QSB6.7 CM2250 |
| System/Group | ISB6.7 CM2250 (2010-12) / DTCs; ECM Power Supply Circuit |
| Publication no. | 4022254 for ISB6.7 CM2250 in the Associated Procedures table |
| Year/Revision | Year unknown; last modified 11-Jun-2010 and 18-Jan-2011 |
| Pages | 8 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents

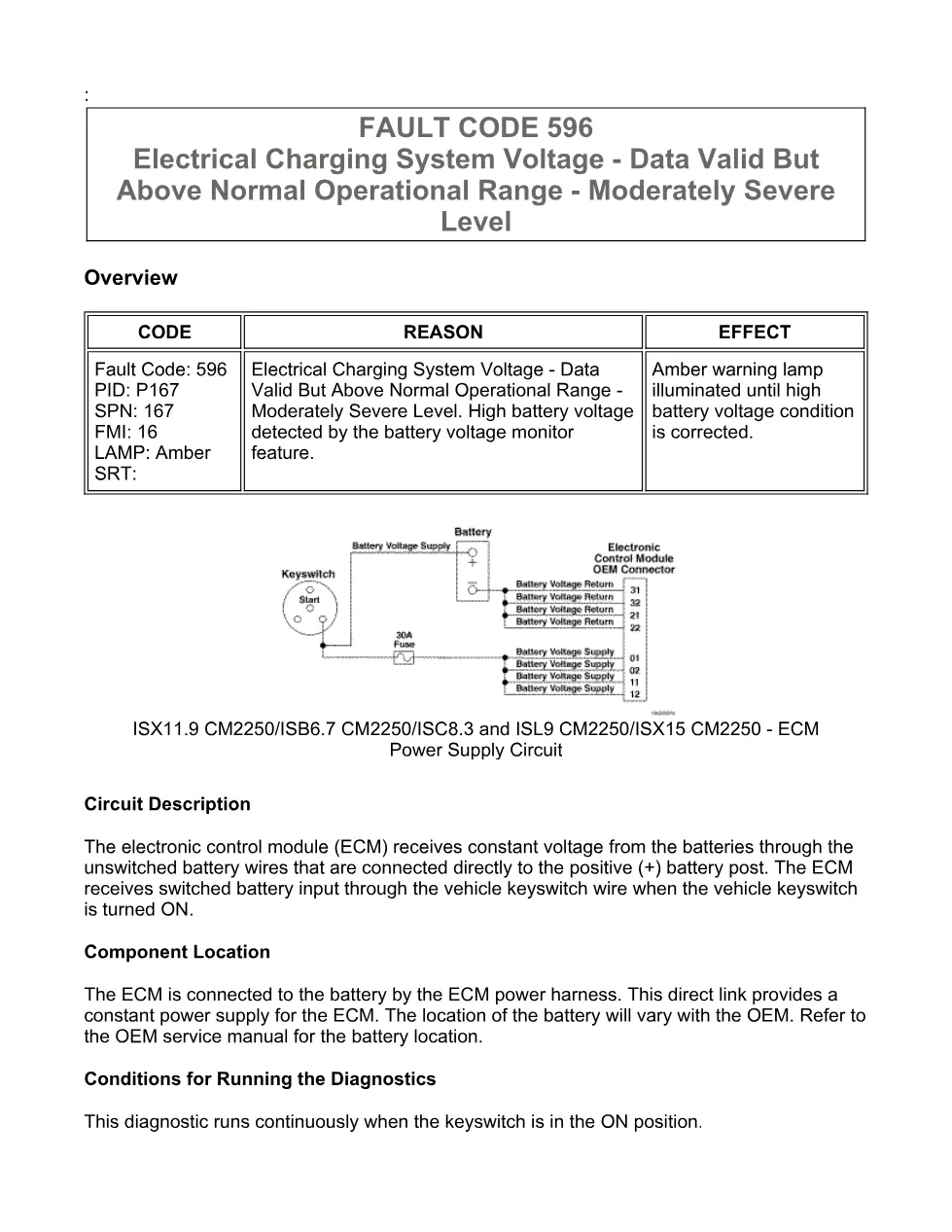

- Overview
- Circuit Description
- Component Location
- Conditions for Running the Diagnostics
- FAULT CODE 596 — Electrical Charging System Voltage – Data Valid But Above Normal Operational Range – Moderately Severe Level

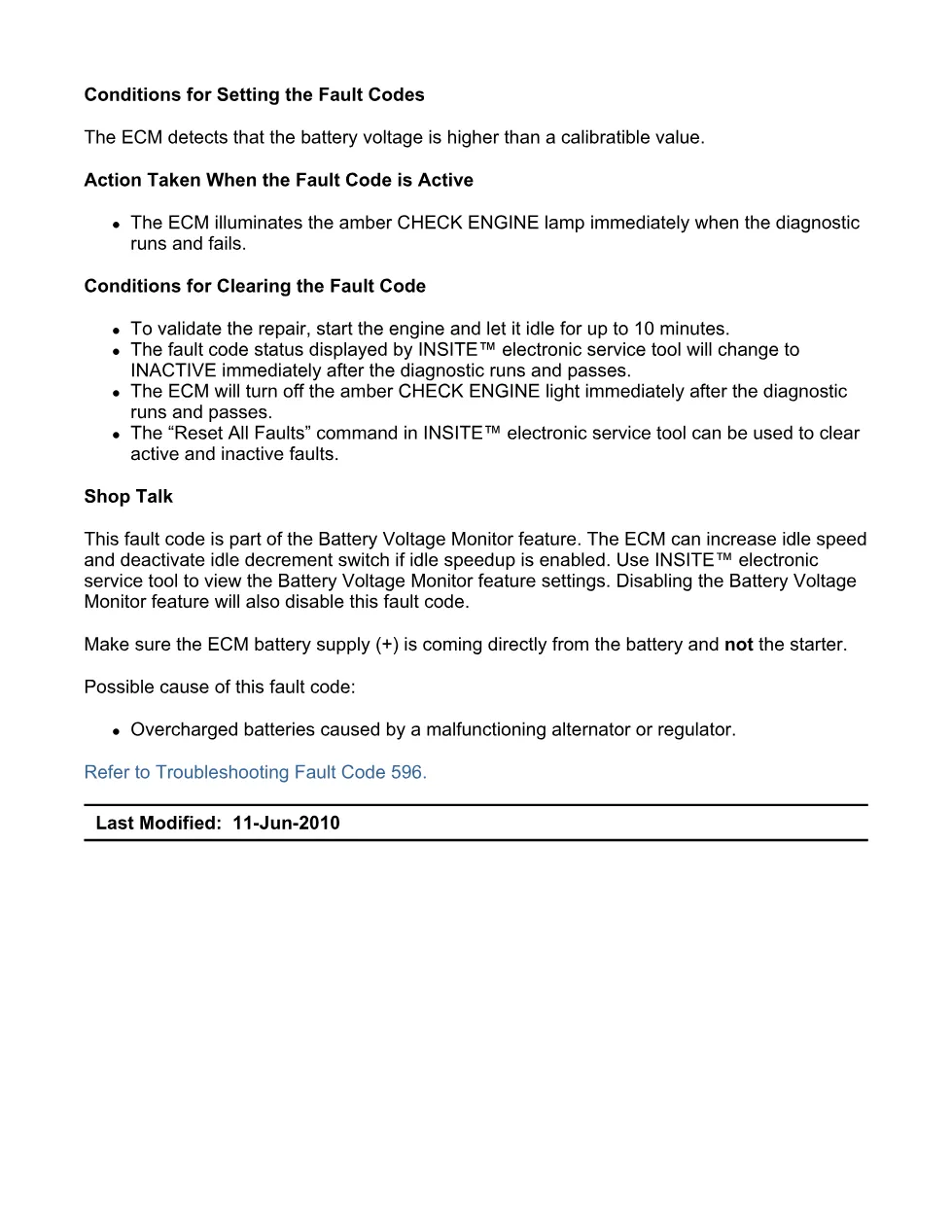

- Conditions for Setting the Fault Codes
- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code
- Shop Talk

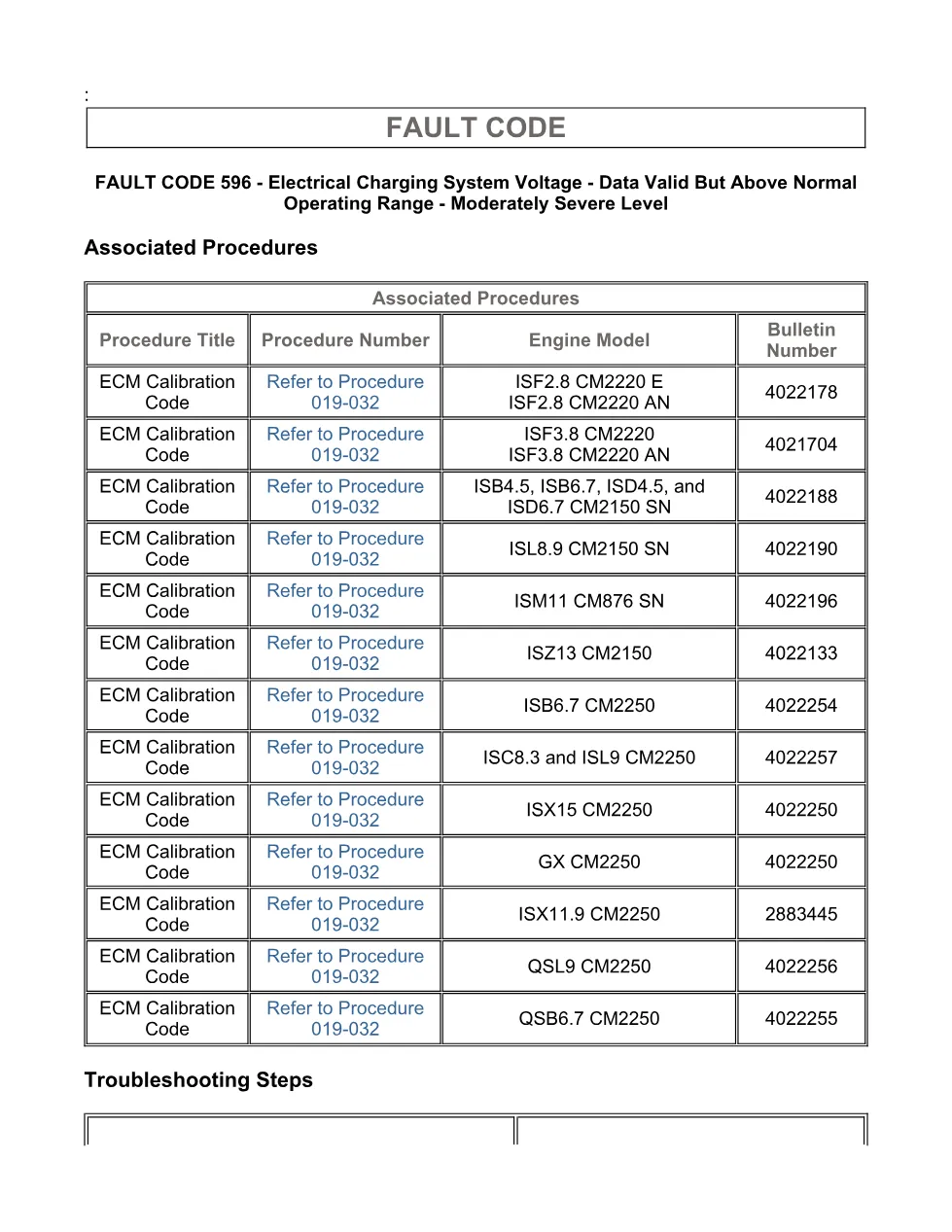

- Associated Procedures
- Troubleshooting Steps
- Guided Step 1 – Check the equipment battery system
- Guided Step 2 – Check the charging system
- Guided Step 3 – Check ECM calibration and clear fault codes
Applicable truck models
This file applies to Cummins ISB6.7 CM2250 diagnostic work and references the wider CM2250 ECM power supply circuit family shown in the extract: ISC8.3 and ISL9 CM2250, ISX15 CM2250, GX CM2250, ISX11.9 CM2250, QSL9 CM2250, and QSB6.7 CM2250. It also lists related ECM Calibration Code Procedure 019-032 entries for several engine models, but the file information identifies the shop library group as ISB6.7 CM2250 DTCs. See the official manufacturer site at Cummins.
Who needs this Cummins fault 596 manual
Workshop owners, diesel electricians, and mechanics need this Cummins fault 596 manual when an amber CHECK ENGINE lamp is active for SPN 167 FMI 16 and high battery voltage is suspected. The procedure supports battery cable inspection, battery voltage measurement, alternator charging-rate checks, regulator or OEM wiring repair decisions, and ECM calibration review in INSITE™ electronic service tool.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
