This Cummins fault 363 document is a 6-page troubleshooting manual for a VP44 fuel pump control valve feedback error on Cummins ISB CM550 engines. It identifies PID P0251/S251, SPN 1076, FMI 7, explains when the fault can be set, and gives step-by-step checks for pump supply voltage, grounds, connectors, fuses, relays, alternator influence, lift pump resistance, and final verification.
Official Cummins fault 363 document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB CM550 (1990-94) |
| System/Group | DTCs; VP44 Fuel Pump Circuit |
| Publication no. | Not shown |
| Year/Revision | Unknown; document copywrite 2017 |
| Pages | 6 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- FAULT CODE: 363
- PID: P0251, S251
- SPN: 1076
- FMI: 7
- VP44 FUEL PUMP CONTROL VALVE FEEDBACK ERROR
- VP44 Fuel Pump Circuit
- DESCRIPTION
- COMPONENT LOCATION
- TROUBLESHOOTING STEPS

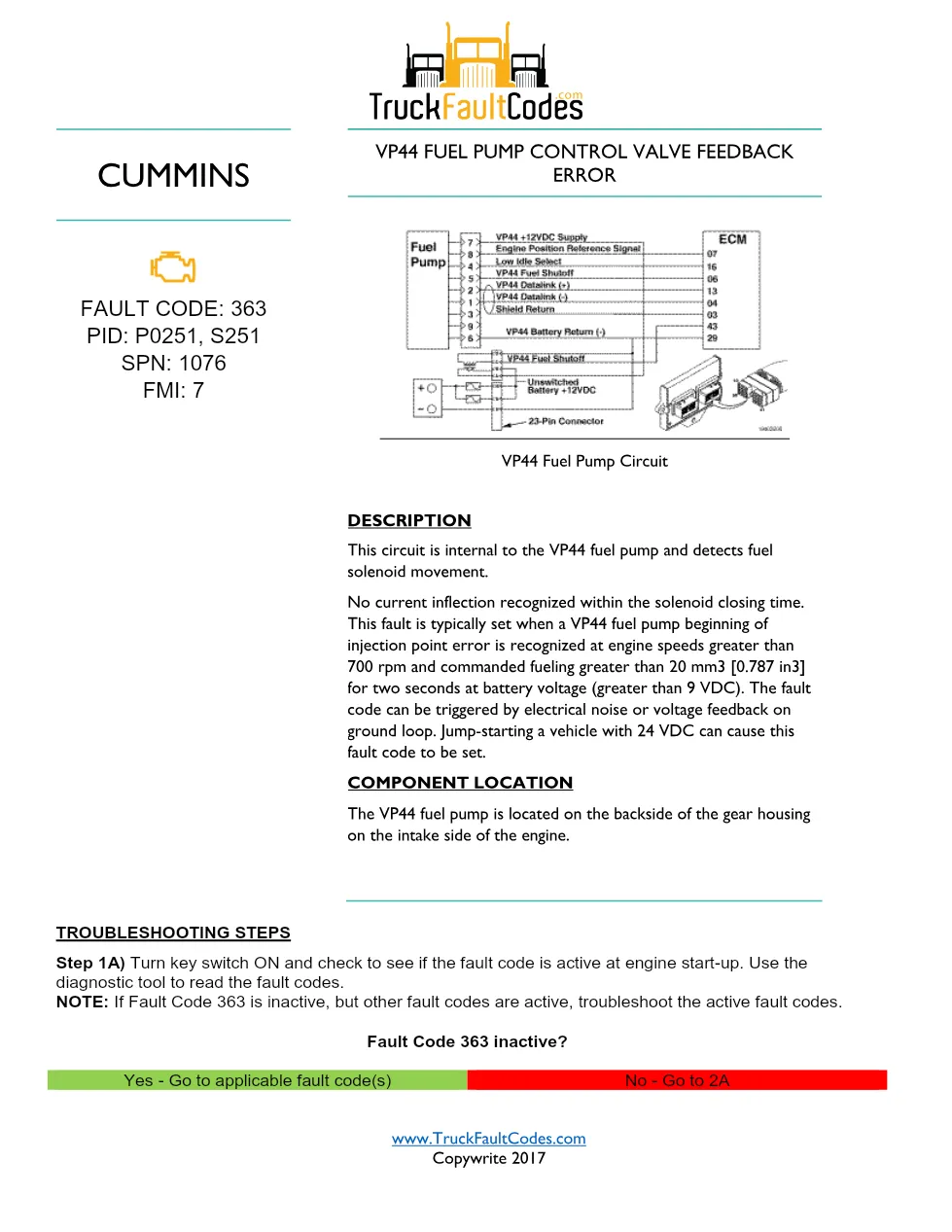

- Step 1A: read fault codes and confirm whether Fault Code 363 is inactive or active

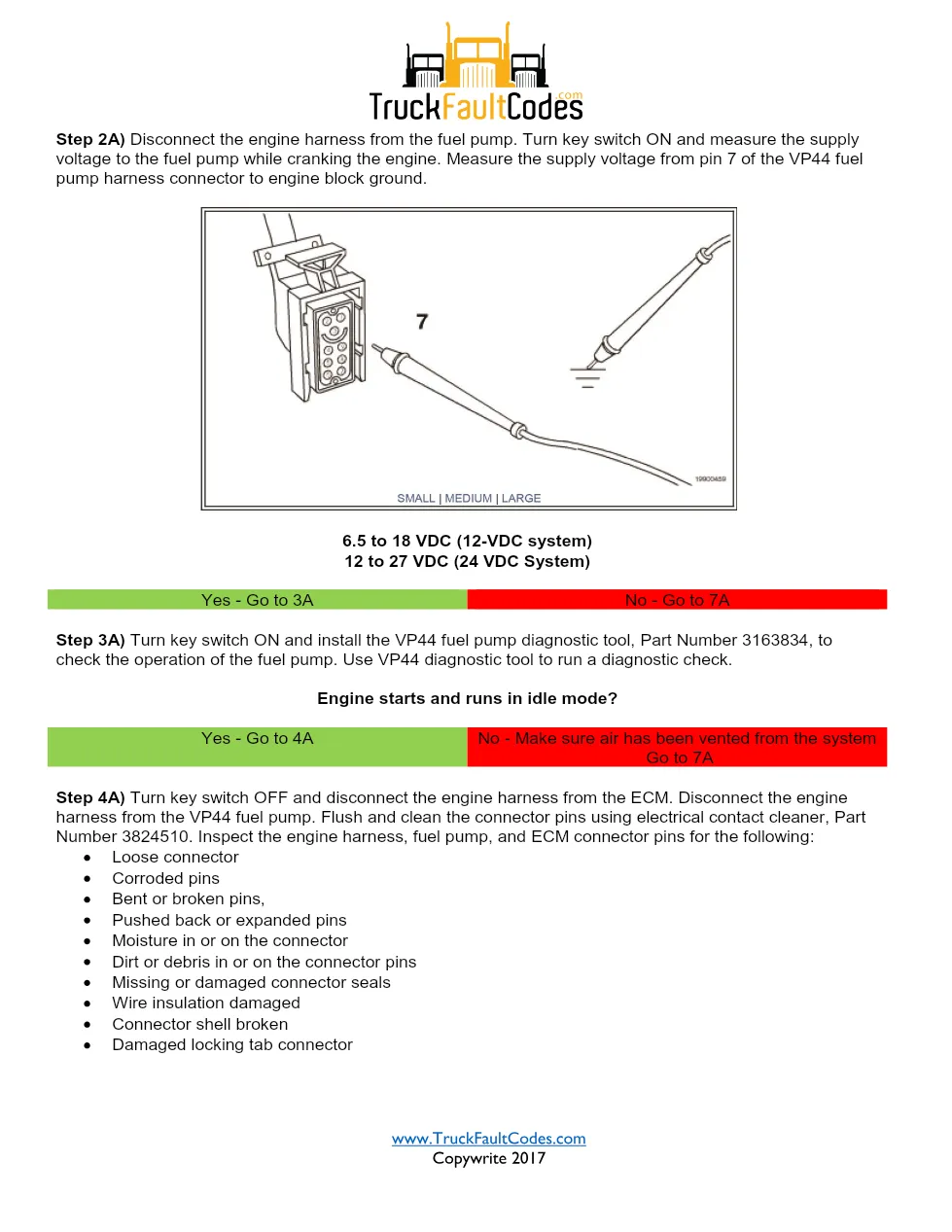

- Step 2A: measure VP44 fuel pump supply voltage while cranking
- Step 3A: use VP44 fuel pump diagnostic tool, Part Number 3163834

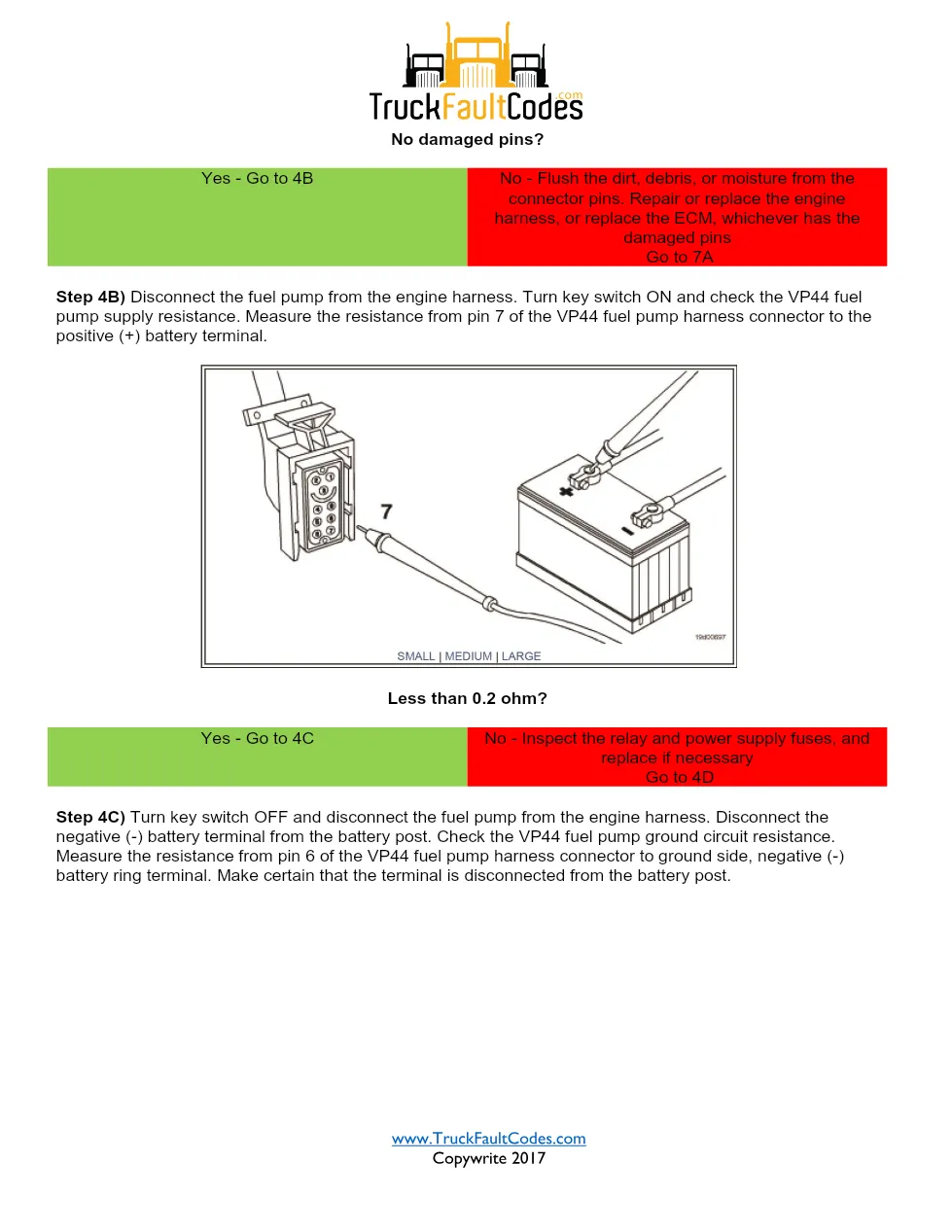

- Step 4A through 4D: inspect connectors, pins, harnesses, fuses, relays, and power supply resistance
- Step 5A: inspect fuel pump fuel solenoid wire leads
- Step 6A through 6F: inspect grounds, OEM distribution box wiring, alternator, lift pump resistance, key switch input line, and accessory electrical noise interference
- Step 7A and 7B: disable the fault code, road-test for 30 minutes, and clear inactive fault codes
Applicable truck models
This file covers Cummins ISB CM550 (1990-94) applications using the VP44 fuel pump circuit described in the document. The extract states that the VP44 fuel pump is located on the backside of the gear housing on the intake side of the engine, and it does not list specific truck makes or chassis models. For manufacturer information, visit Cummins official website.
Who needs this Cummins fault 363 manual
Workshop owners, diesel mechanics, and electrical diagnostic technicians need this Cummins fault 363 manual when diagnosing a VP44 fuel pump control valve feedback error that may involve pump internal feedback, ground loops, electrical noise, 24 VDC jump-starting, OEM harness resistance, alternator voltage, or lift pump resistance. The procedure is useful when a diagnostic tool shows Fault Code 363 and the repair path must confirm whether the cause is wiring, power supply, ground, relay, fuse, connector, alternator, lift pump, accessory interference, or the VP44 fuel pump circuit.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
