This Cummins fault 2183 document is a troubleshooting manual for the engine brake actuator circuit 1 low-voltage or short-to-low-source diagnostic. It explains the fault conditions, circuit checks, connector inspections, resistance tests, and INSITE™ steps used to confirm and clear Fault Code 2183.
Official Cummins fault 2183 document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB6.7 CM2150 (2007-09); extract also references ISB CM2100/CM2150, ISC CM2150, and ISL CM2150 service procedures |
| System/Group | DTCs; engine brake circuit; engine brake actuator circuit 1 |
| Publication no. | Not shown in extract |
| Year/Revision | Last Modified: 20-Jul-2010 |
| Pages | 14 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents

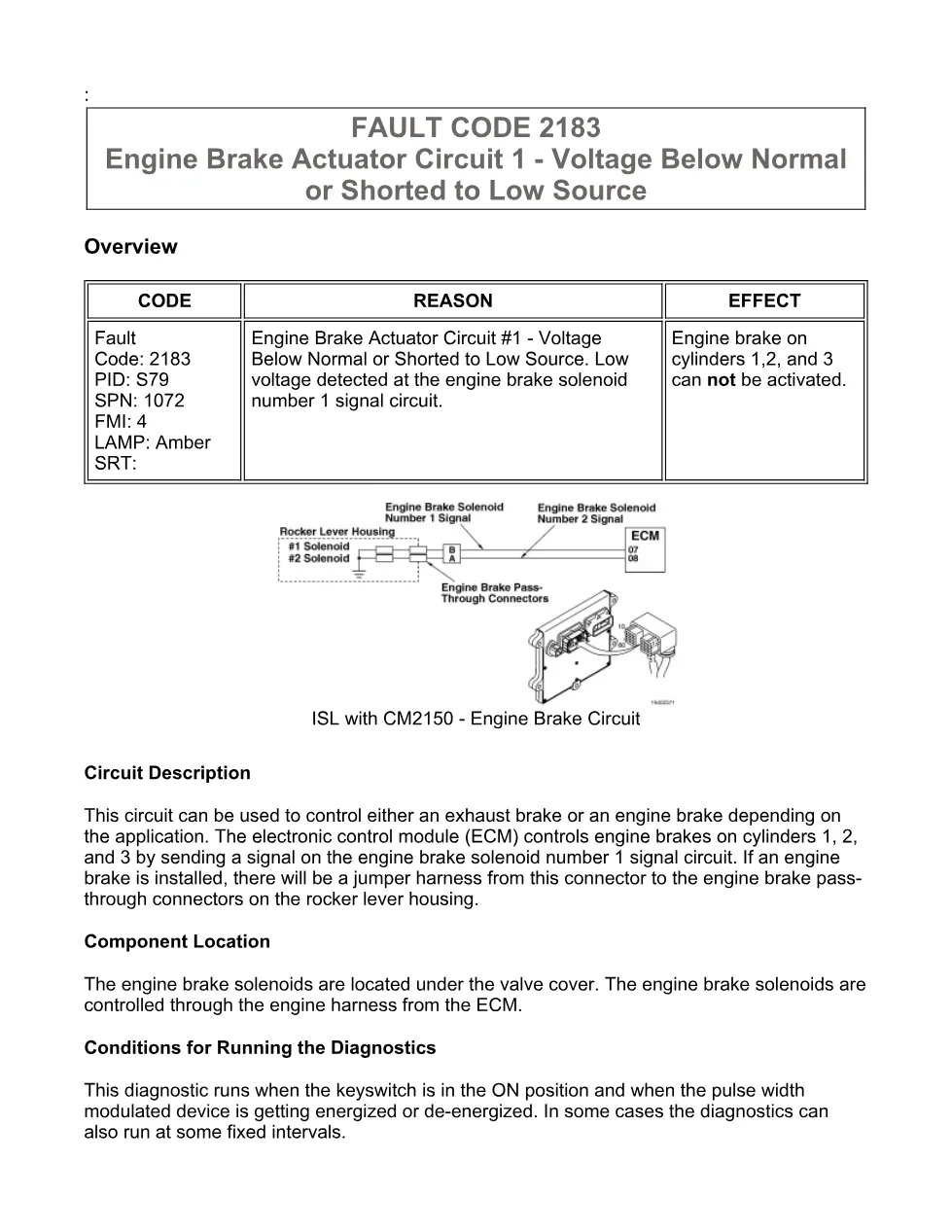

- Overview
- Circuit Description
- Component Location
- Conditions for Running the Diagnostics
- FAULT CODE 2183

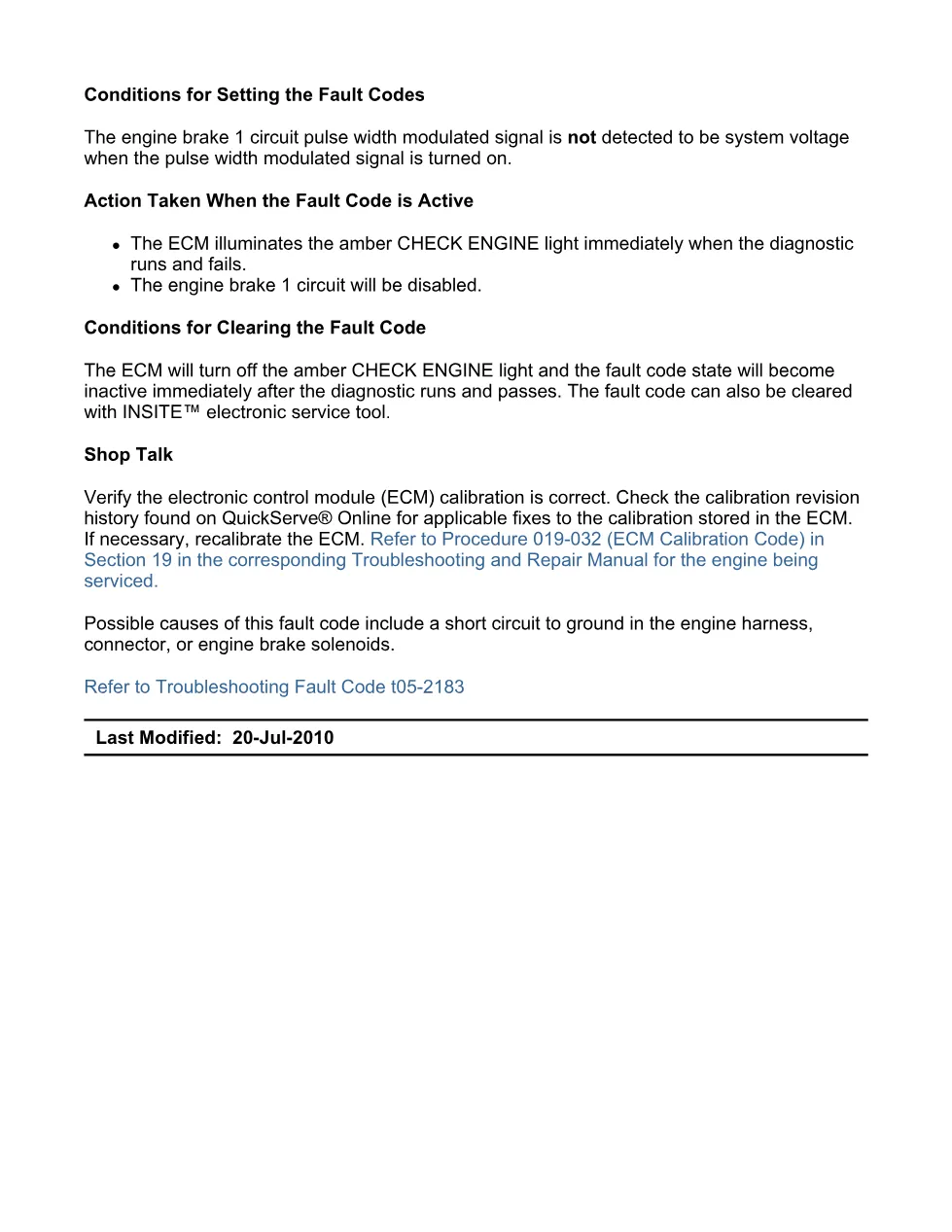

- Conditions for Setting the Fault Codes
- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code
- Shop Talk
- Associated Procedures
- Troubleshooting Steps

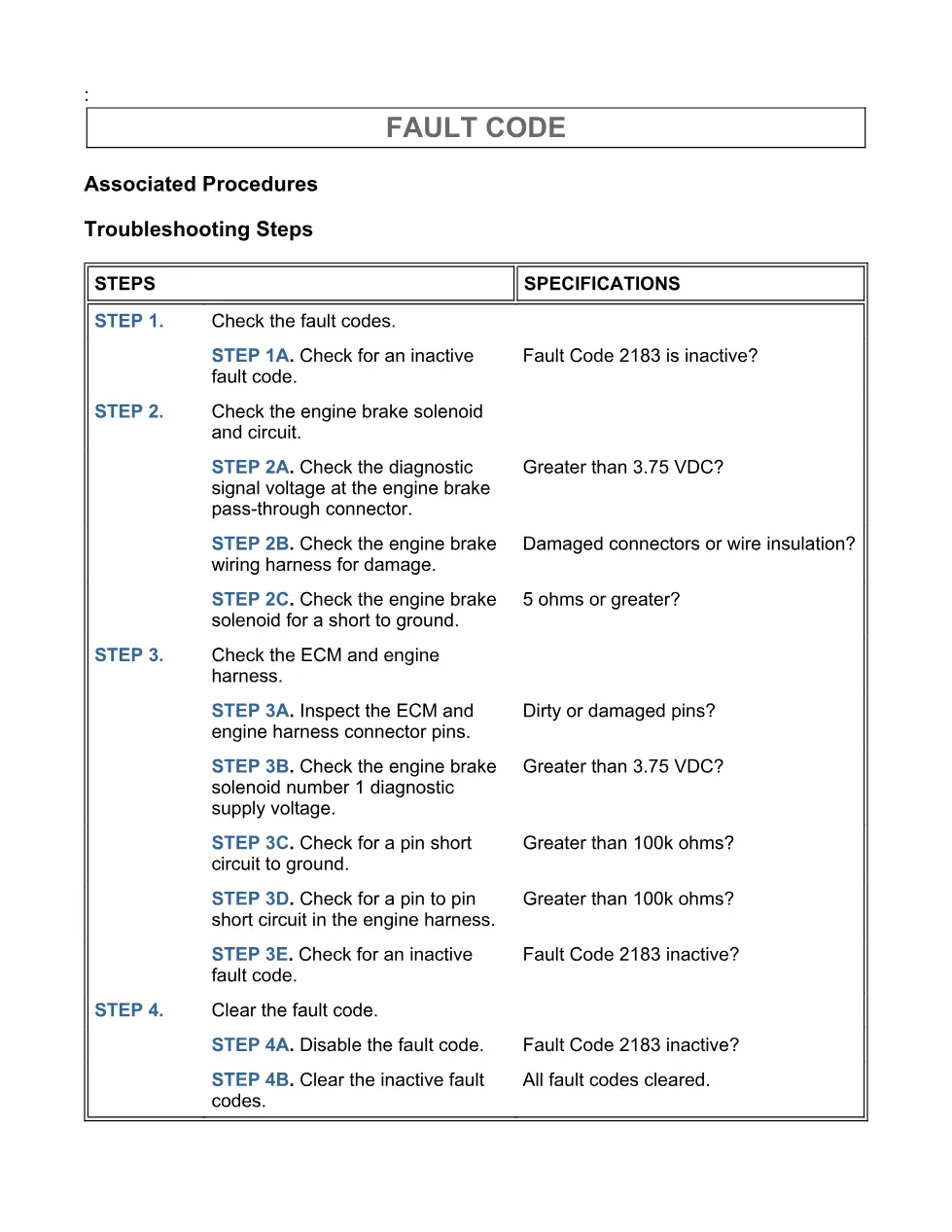

- Guided Step 1 – Check the fault codes.
- Guided Step 2 – Check the engine brake solenoid and circuit.
- Guided Step 3 – Check the ECM and engine harness.
- Guided Step 4 – Clear the fault code.
Applicable truck models
This file applies to Cummins CM2150 engine brake diagnostics where Fault Code 2183 is used for Engine Brake Actuator Circuit #1 – Voltage Below Normal or Shorted to Low Source. The file information lists ISB6.7 CM2150 (2007-09), while the extracted procedures reference ISB CM2100 and CM2150 engines, ISC CM2150 engines, and ISL CM2150 engines, including rocker lever cover removal and engine brake harness access. See the official manufacturer site at Cummins.
