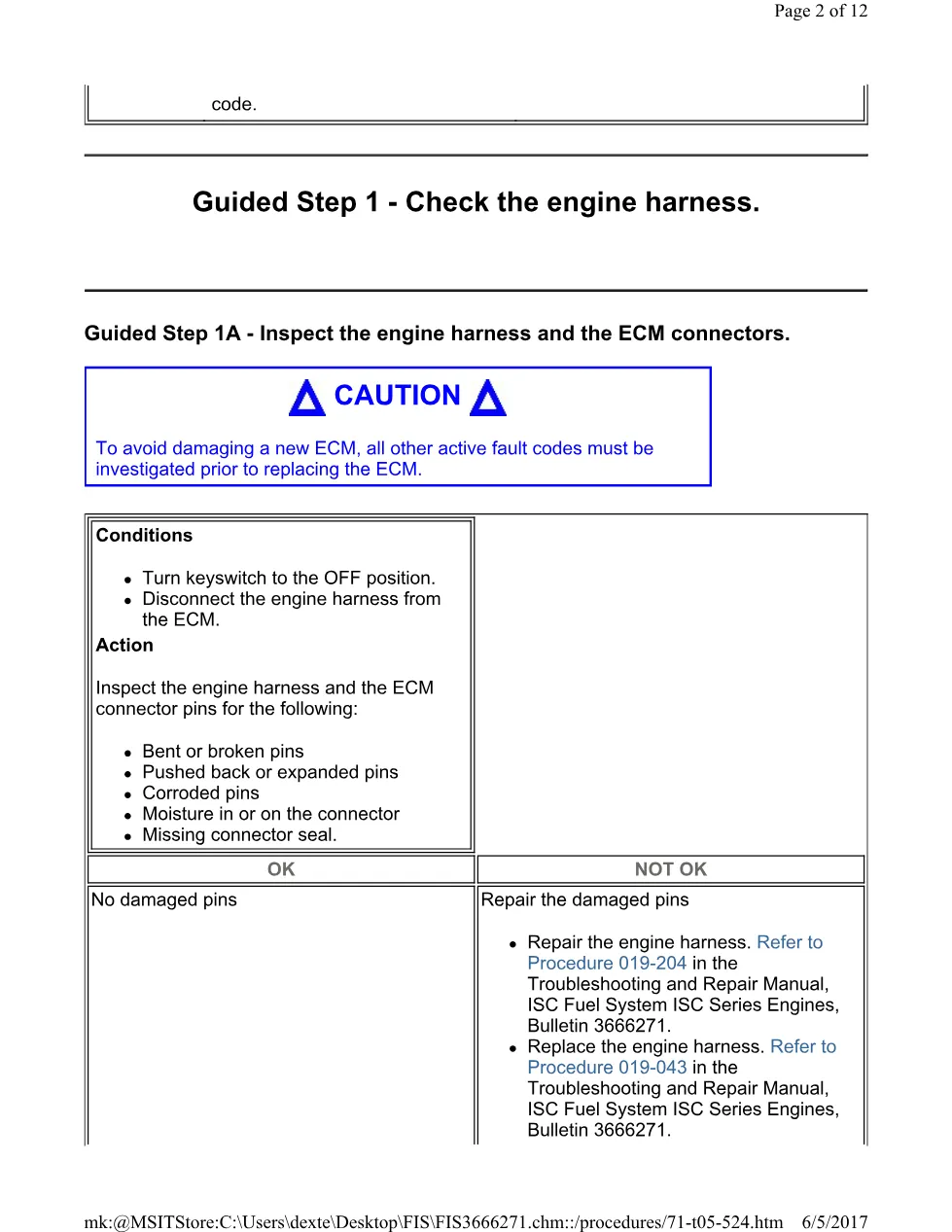

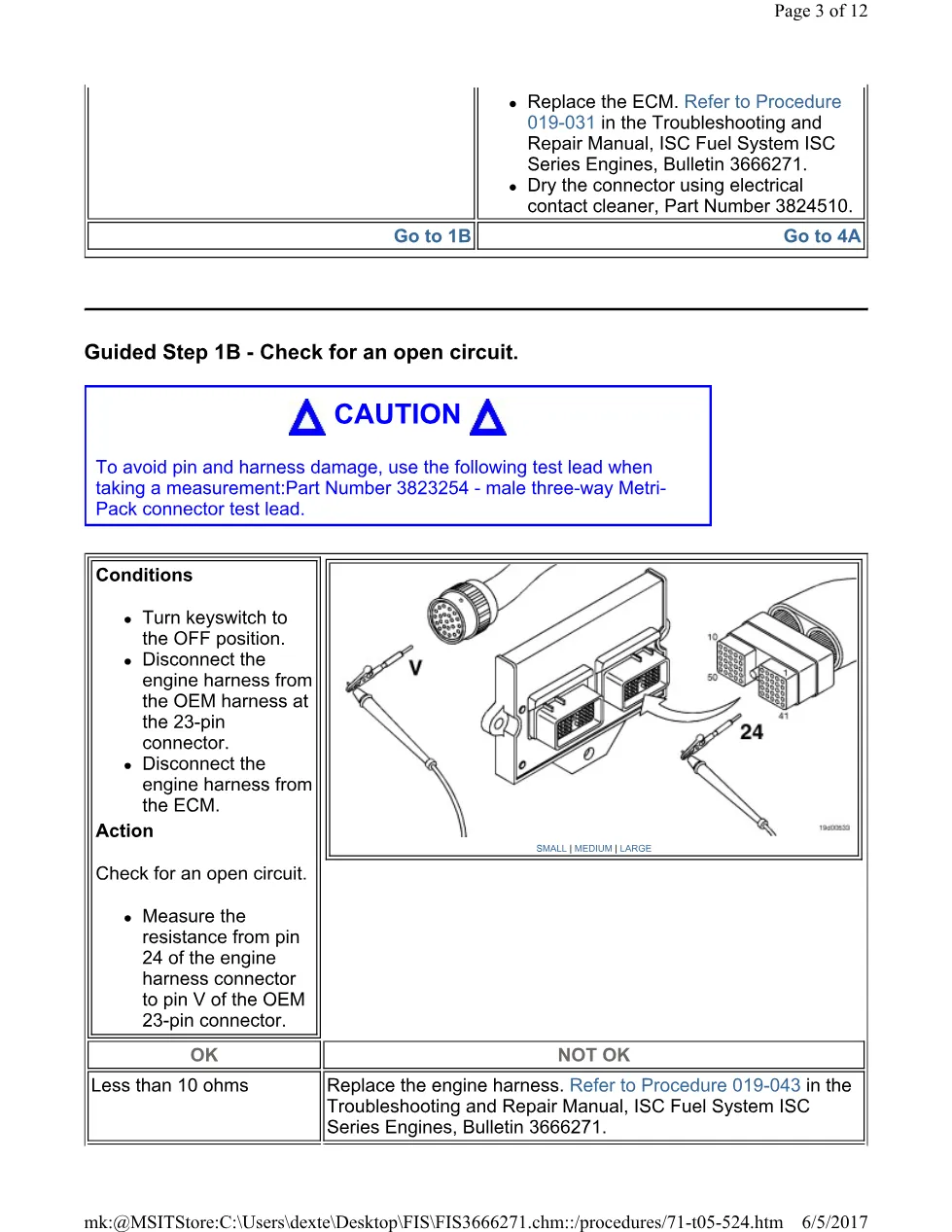

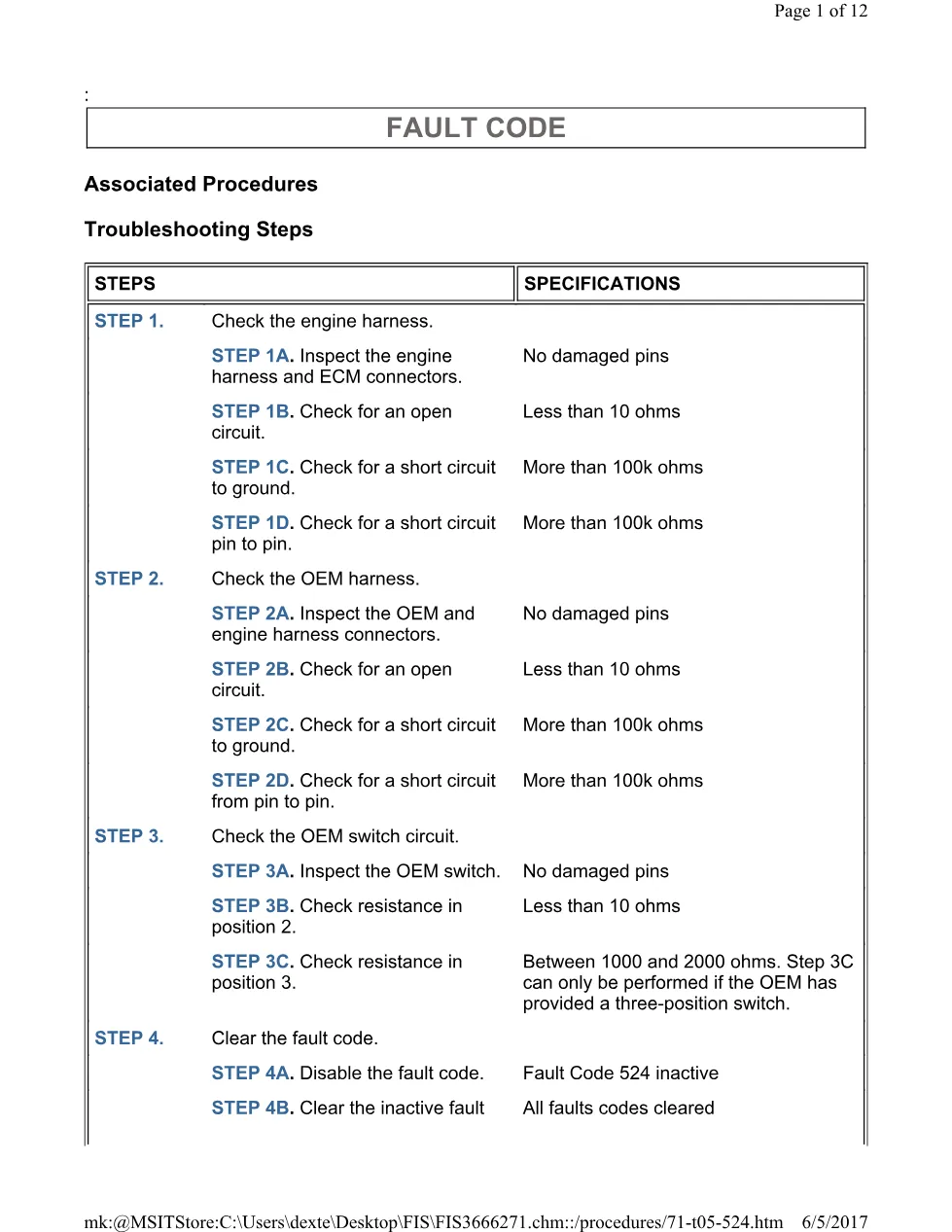

Cummins CM554 524 troubleshooting is a 12-page English PDF in the DiagTechPro truck-manual library. The file is titled 524(TS).pdf. The source extract begins with : Associated Procedures Troubleshooting Steps FAULT CODE STEPS SPECIFICATIONS STEP 1. Check the engine harness. STEP 1A. Inspect the engine harness and ECM connectors. No damaged pins STEP 1B. Check for an open circuit. Less than 10 ohms STEP 1C. Check for a short circuit to ground. More than 100k o. This new library response is based on the supplied document extract and replaces the earlier response associated with ISL 1998 03 TS Technical Document Reference – Cummins – 12 pages — ISL CM554 (1998-03). It is an official document reference for technicians, not a substitute for the complete workshop procedure or local safety requirements.
Official Cummins CM554 524 troubleshooting document details
| Brand | Cummins |
|---|---|
| Model coverage | ISL CM554 (1998-03) |
| System/Group | ISL CM554 (1998-03) |
| Publication no. | Not stated in the extract |
| Year/Revision | Not stated in the extract |
| Pages | 12 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Document table of contents
- Procedures Troubleshooting Steps FAULT CODE STEPS SPECIFICATIONS STEP 1
- procedures/71-t05-524
- Procedure 019-204 in the Troubleshooting and Repair Manual, ISC Fuel System ISC Series Engines, Bulletin 3666271
- Procedure 019-043 in the Troubleshooting and Repair Manual, ISC Fuel System ISC Series Engines, Bulletin 3666271
- procedures/71-t05-524
Applicable truck models
The model and system scope is identified by the source file and library group. Confirm the installed engine, emissions configuration, and control system before applying a diagnostic or service step. Read referenced figures, warnings, and decision points with the relevant procedure. Where the extract describes a test, use the stated order and values from the complete PDF, not an assumption based on a similar model. See the manufacturer official website for current product support information.
Who needs this Cummins CM554 524 troubleshooting manual
Workshop technicians and fleet maintenance staff can use this document to identify the correct reference material before diagnosis or repair. Record the vehicle configuration, active code information, and result of each stated check. Continue through the source procedure in sequence, then use its specified verification method after a repair. The library page provides a factual introduction to the PDF and should be read with complete manufacturer material.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
