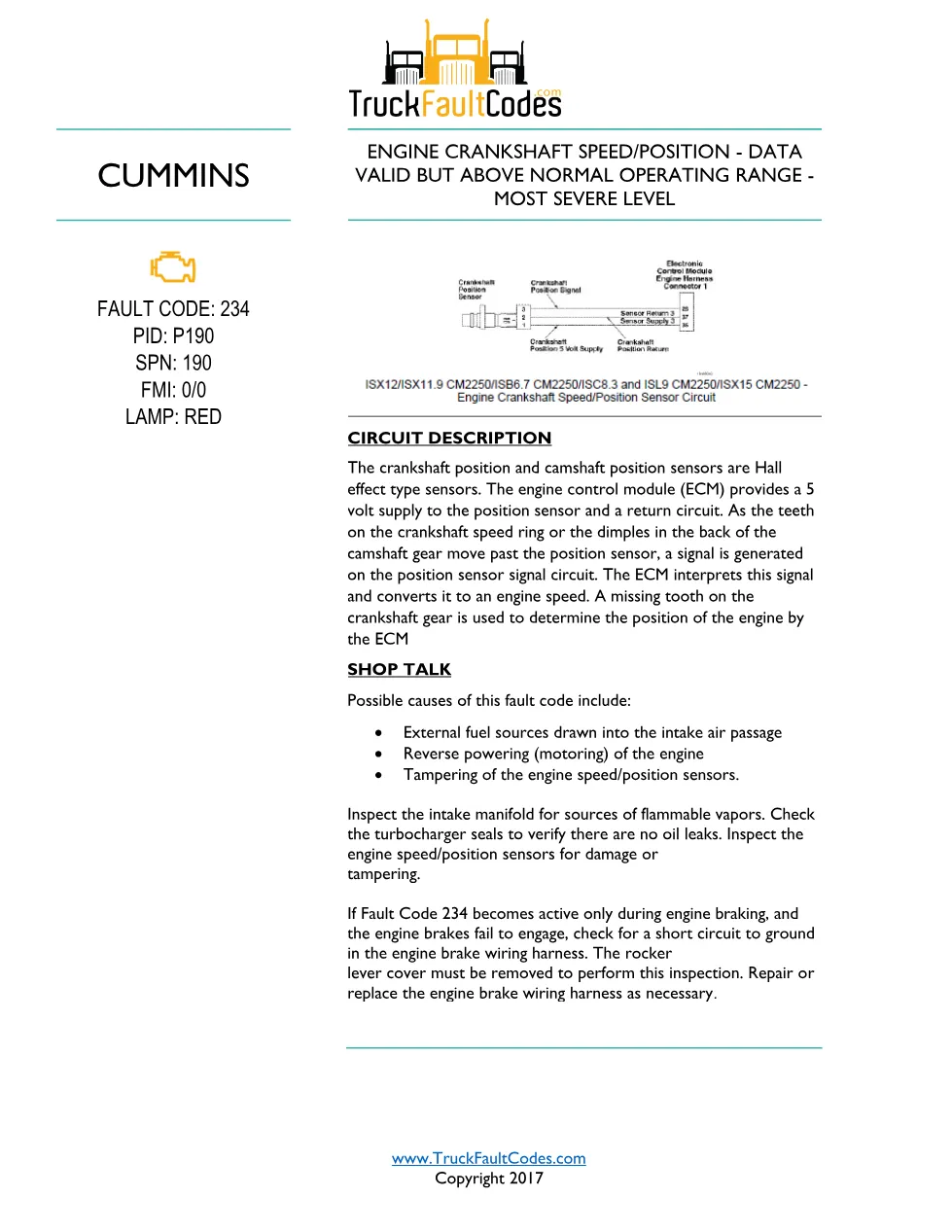

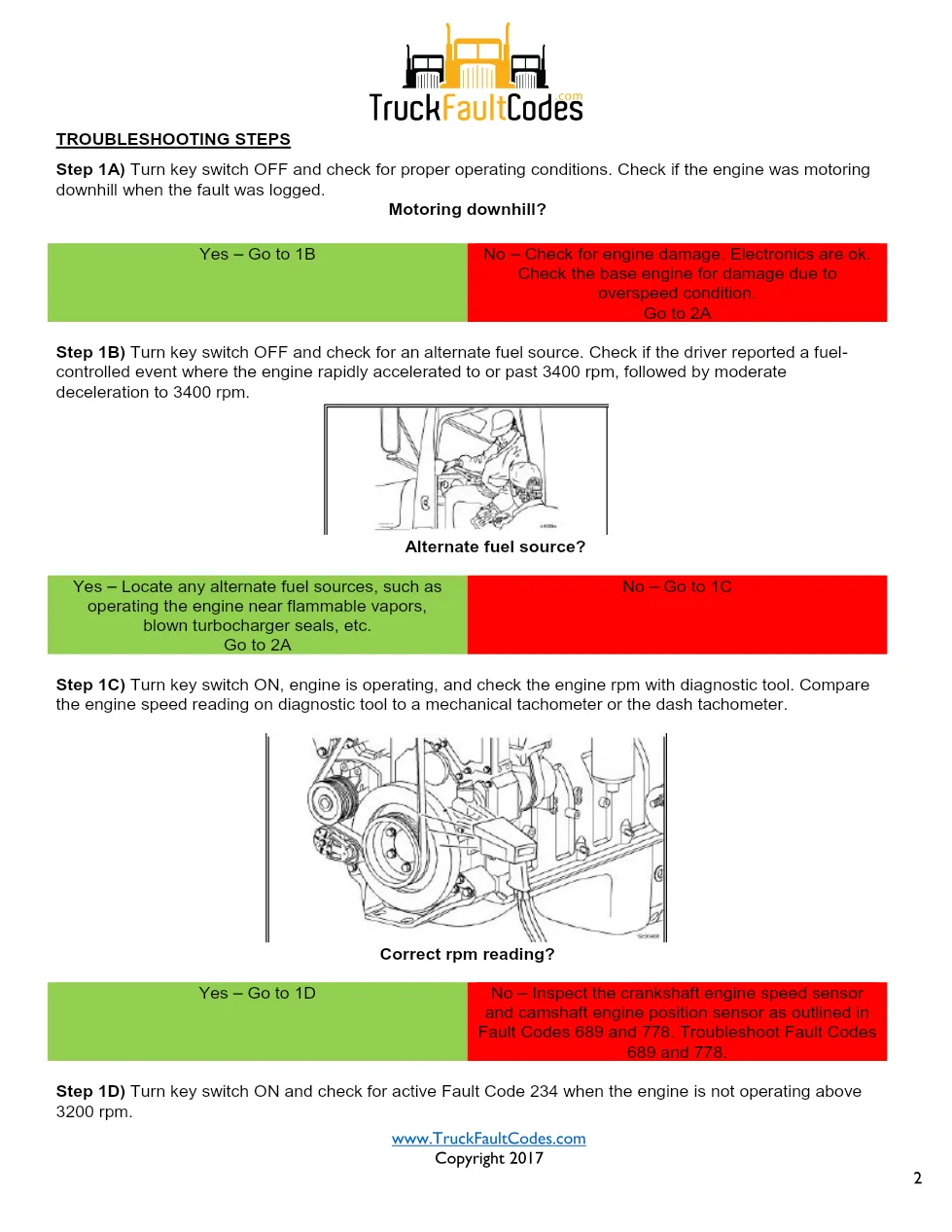

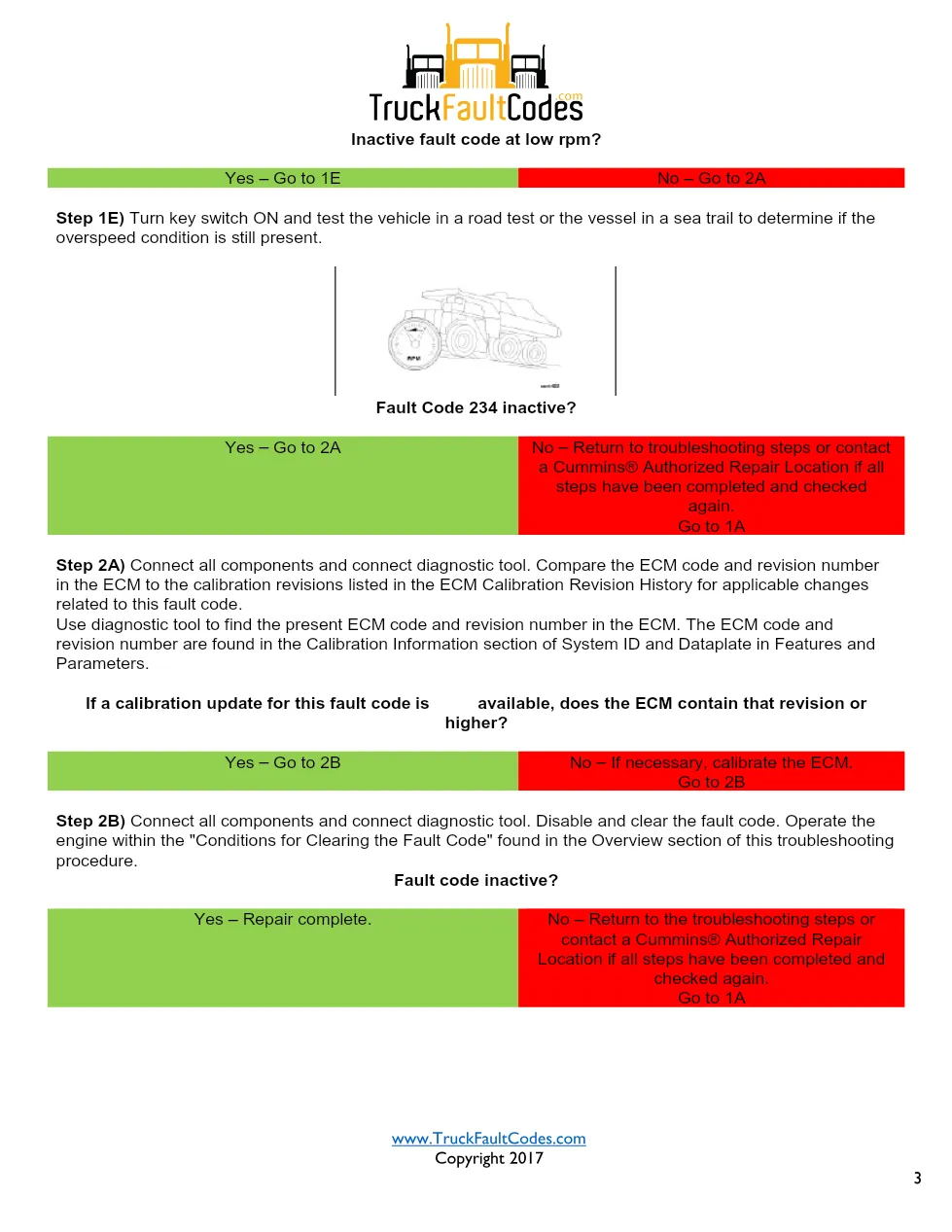

This Cummins CM2250 fault 234 fault guide is a 3-page troubleshooting document for the Cummins ISL9 CM2250 (2010-12) source group. The extract identifies the concern as: ENGINE CRANKSHAFT SPEED/POSITION – DATA VALID BUT ABOVE NORMAL OPERATING RANGE – MOST SEVERE LEVEL. It presents an ordered diagnostic procedure rather than a parts-only recommendation.
Official Cummins CM2250 fault 234 document details
| Brand | Cummins |
|---|---|
| Model coverage | Cummins ISL9 CM2250 (2010-12), as labelled by the source file |
| System/Group | ISL9 CM2250 (2010-12) / DTCs |
| Publication no. | Fault Code 234 |
| Year/Revision | Not stated in the extract |
| Pages | 3 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Fault-code identification and circuit description from the source extract.
- Component location and system context relevant to the reported code.
- Shop talk describing operating conditions and possible causes.
- Troubleshooting steps using a diagnostic tool and stated decision points.
- Connector, engine harness, ECM calibration, clearance, and repair confirmation checks where specified.
Applicable truck models
The work file identifies this procedure with the Cummins ISL9 CM2250 (2010-12) group. Use it only after confirming that the engine, control system, and fault-code configuration match the source. The extract should be followed in sequence, with recorded readings compared at its stated decision points; it does not replace the applicable service information. See Cummins support resources.
Who needs this Cummins CM2250 fault 234 manual
This document is for technicians investigating the listed code with a diagnostic tool. It supports a disciplined inspection of the named circuit or system, connections, sensor or actuator checks, and the final clearing or calibration checks described by the extract.
Use the document as a test sequence: record active or inactive status, perform only the checks it calls out, reconnect components before clearing the code, and verify the result at the indicated decision point. If a reading or condition does not fit the procedure, return to the relevant step and confirm the configuration before making a repair decision.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
