This Cummins accelerator pedal circuit guide covers Fault Code 432 (PID P091, SPN 91, FMI 13, SRT 00-612) for the SSS variant on the M11 CELECT Plus. It is a 6-page red-lamp document, so the fault can affect drivability.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | M11 CELECT Plus (1995-98) |
| System / group | Accelerator Pedal Circuit |
| Fault code | 432 (SSS) |
| PID / SPN | P091 / SPN 91 |
| FMI | 13 |
| Diagnostic lamp | Red |
| SRT | 00-612 |
| Pages | 6 |
| File size | 0.3 MB |
| Format | |
| Language | English |
| Source | Cummins fault code reference (TruckFaultCodes.com, 2017) |
Document table of contents
- Circuit description
- Component location
- Shop talk diagnostic notes
- Step-by-step troubleshooting
- Fault verification and clearing codes
Cummins accelerator pedal circuit checks

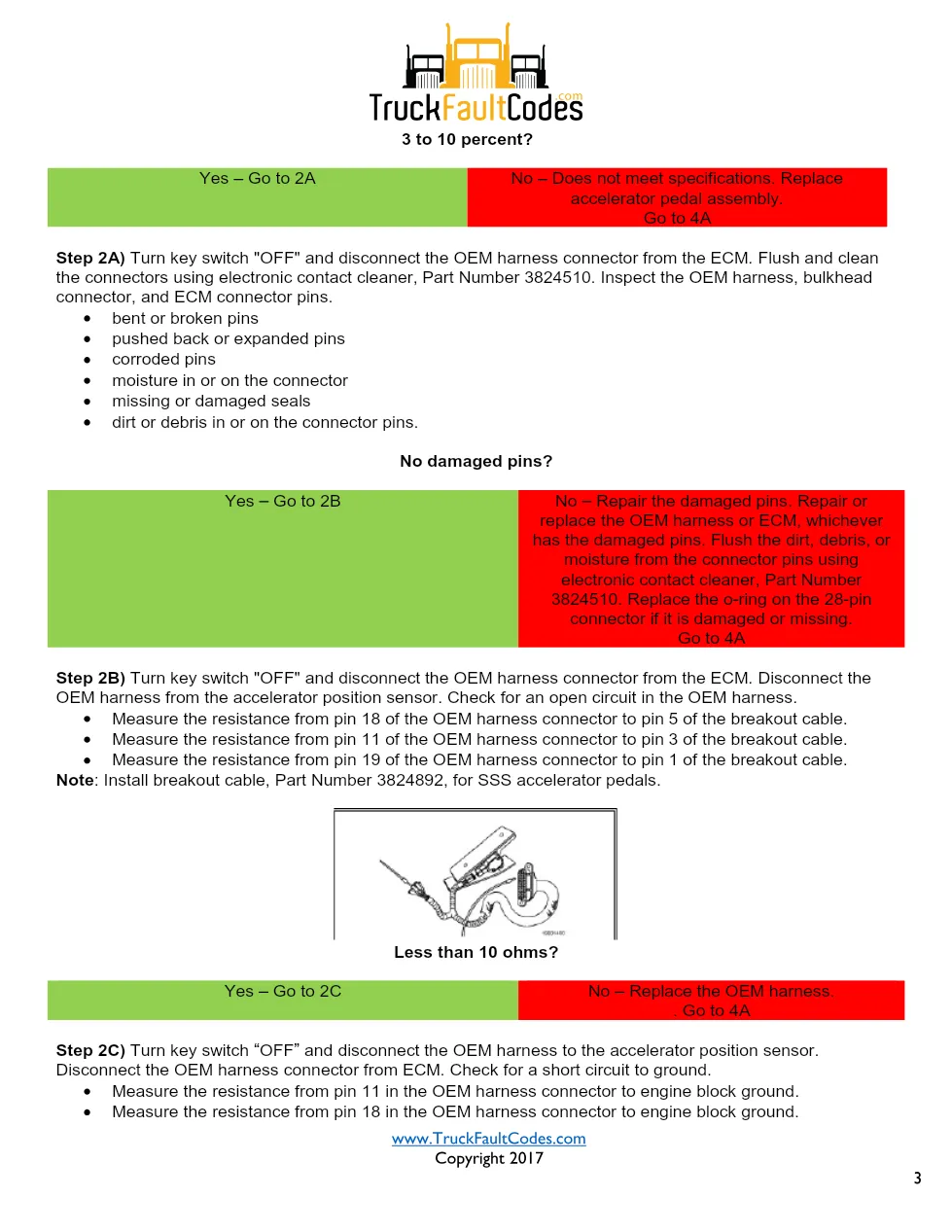

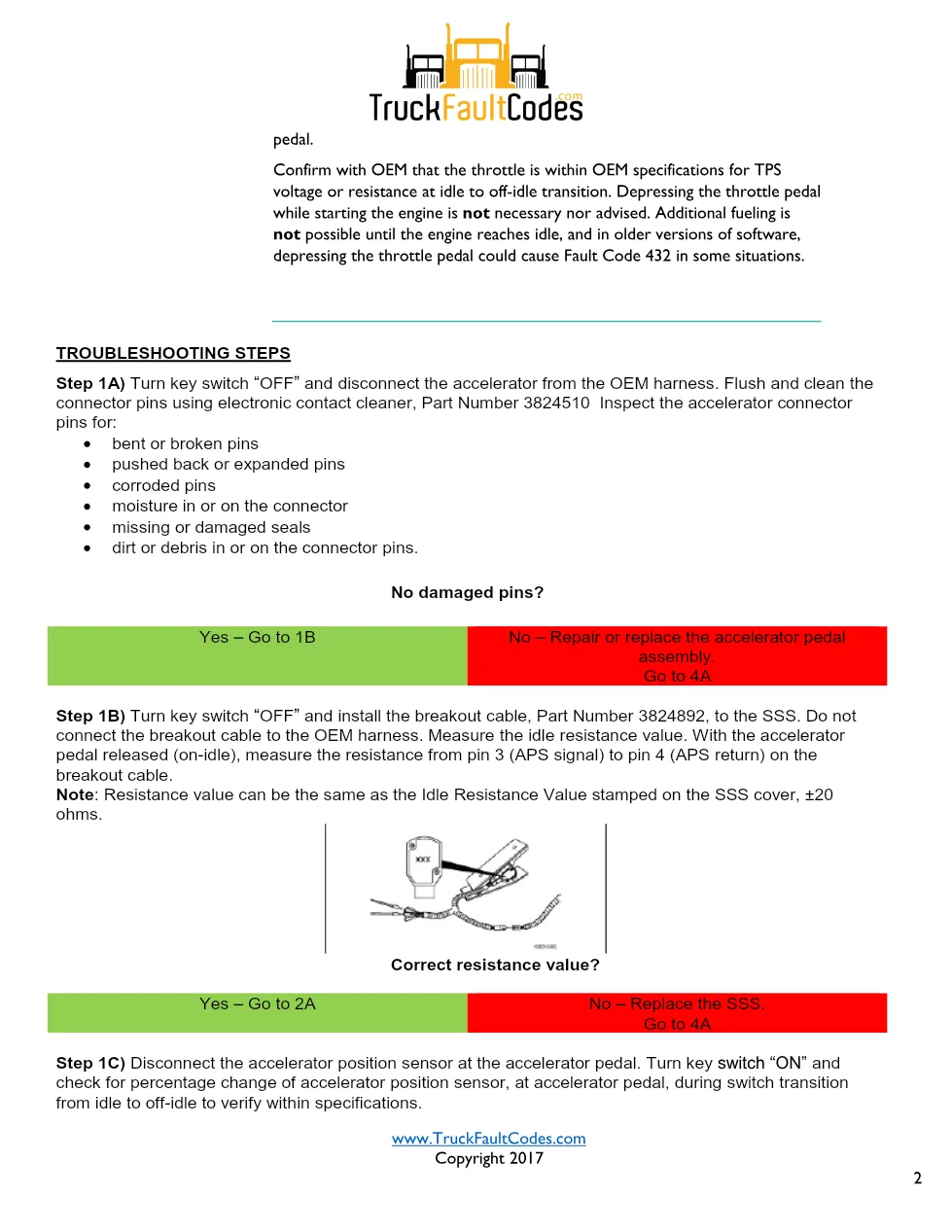

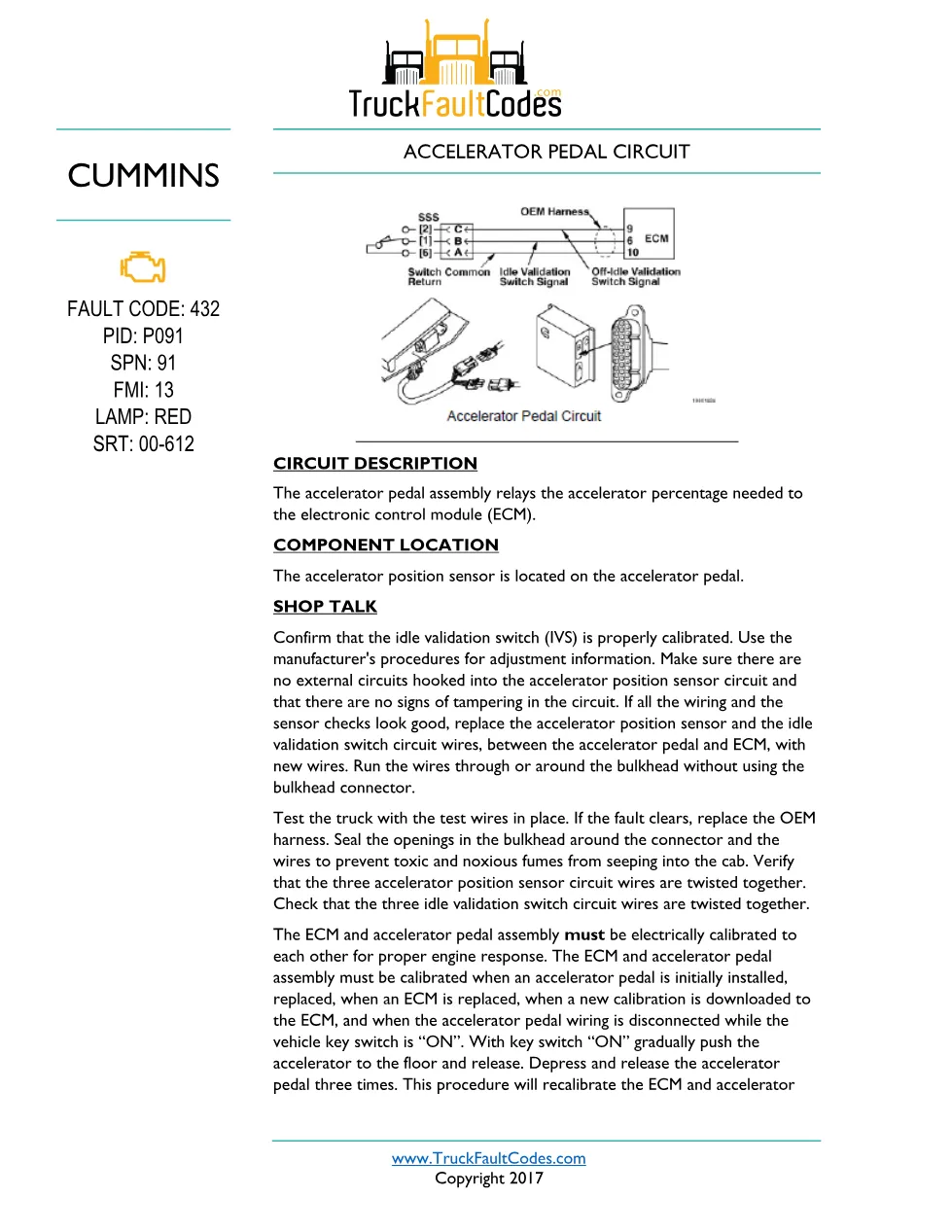

The pedal assembly relays the accelerator percentage the ECM needs, and the accelerator position sensor sits on the pedal itself. Shop talk directs the technician to confirm the idle validation switch is properly calibrated using the manufacturer’s procedure, to make sure no external circuits are tapped into the sensor circuit, and to look for signs of tampering. If the wiring and sensor checks pass, the manual calls for replacing the accelerator position sensor and idle validation switch circuit wires between the pedal and ECM, routing them around the bulkhead, testing with the temporary wires, and re-sealing the bulkhead openings to keep fumes out of the cab.
Applicable truck models
The sheet applies to the Cummins M11 CELECT Plus (1995-98) with the SSS accelerator pedal assembly. Follow the pedal-calibration procedure on the official Cummins website.
Who needs this accelerator pedal circuit manual
Technicians resolving red-lamp throttle faults, tampering, or pedal-calibration issues on M11 CELECT Plus trucks with the SSS pedal use this chart.
