This Cummins 3714 fault code document is a 6-page troubleshooting guide covering Fault Code 3714 — Engine Protection Torque Derate — Condition Exists. It applies to Cummins CM2250-controlled engines and provides circuit description, diagnostic conditions, step-by-step repair procedures, and ECM calibration verification instructions.
Official Cummins 3714 fault code document details
| Brand | Cummins |
| Model coverage | ISB6.7 CM2250, ISC8.3 CM2250, ISL9 CM2250, ISX15 CM2250, ISX11.9 CM2250 |
| System / Group | Diagnostic Trouble Codes (DTCs) — Engine Protection Torque Derate |
| Publication no. | — |
| Year / Revision | Last modified 03-Feb-2011 / 11-Jun-2010 |
| Pages | 6 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents

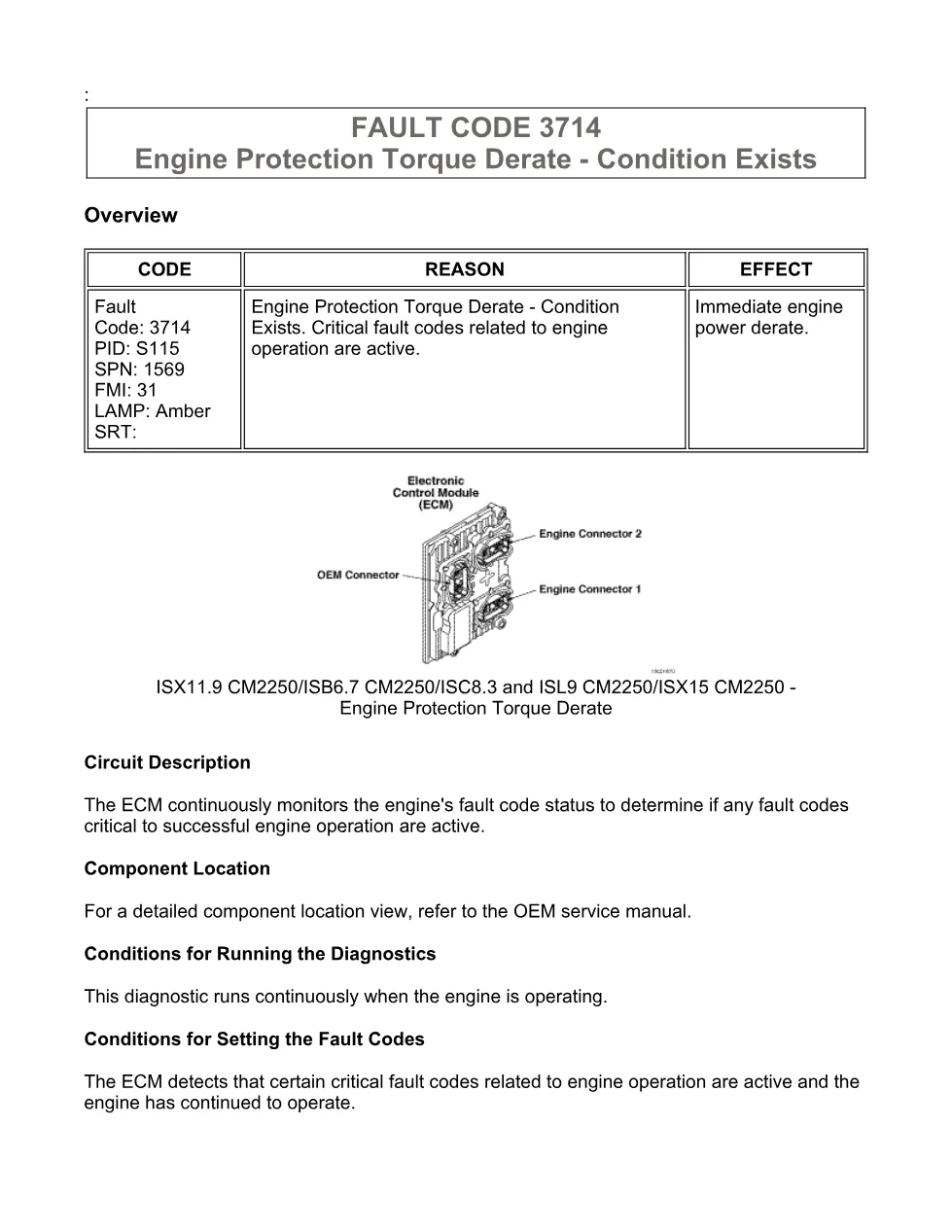

- Overview — Circuit Description
- Conditions for Running the Diagnostics
- Conditions for Setting the Fault Codes (SPN 1569, FMI 31, PID S115)

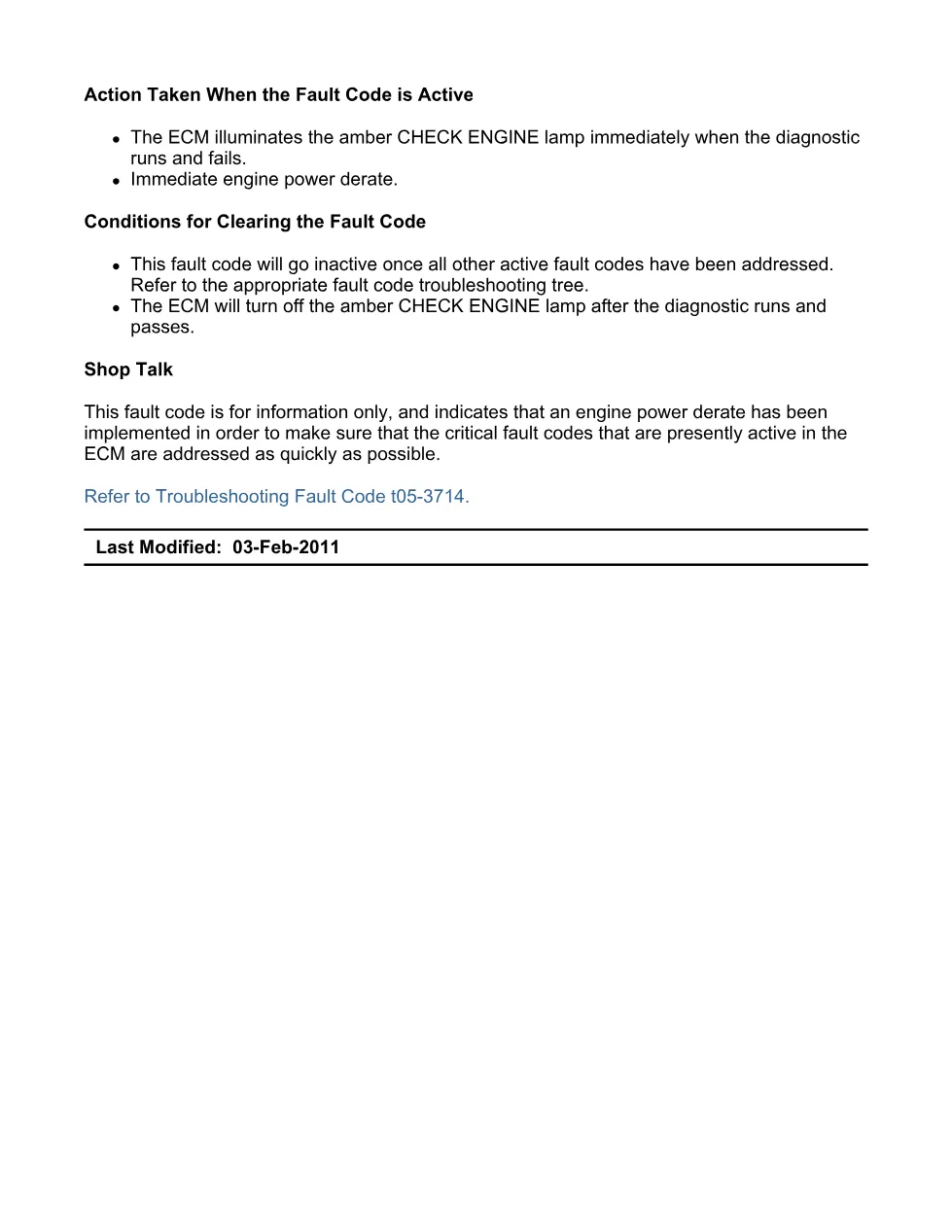

- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code
- Shop Talk

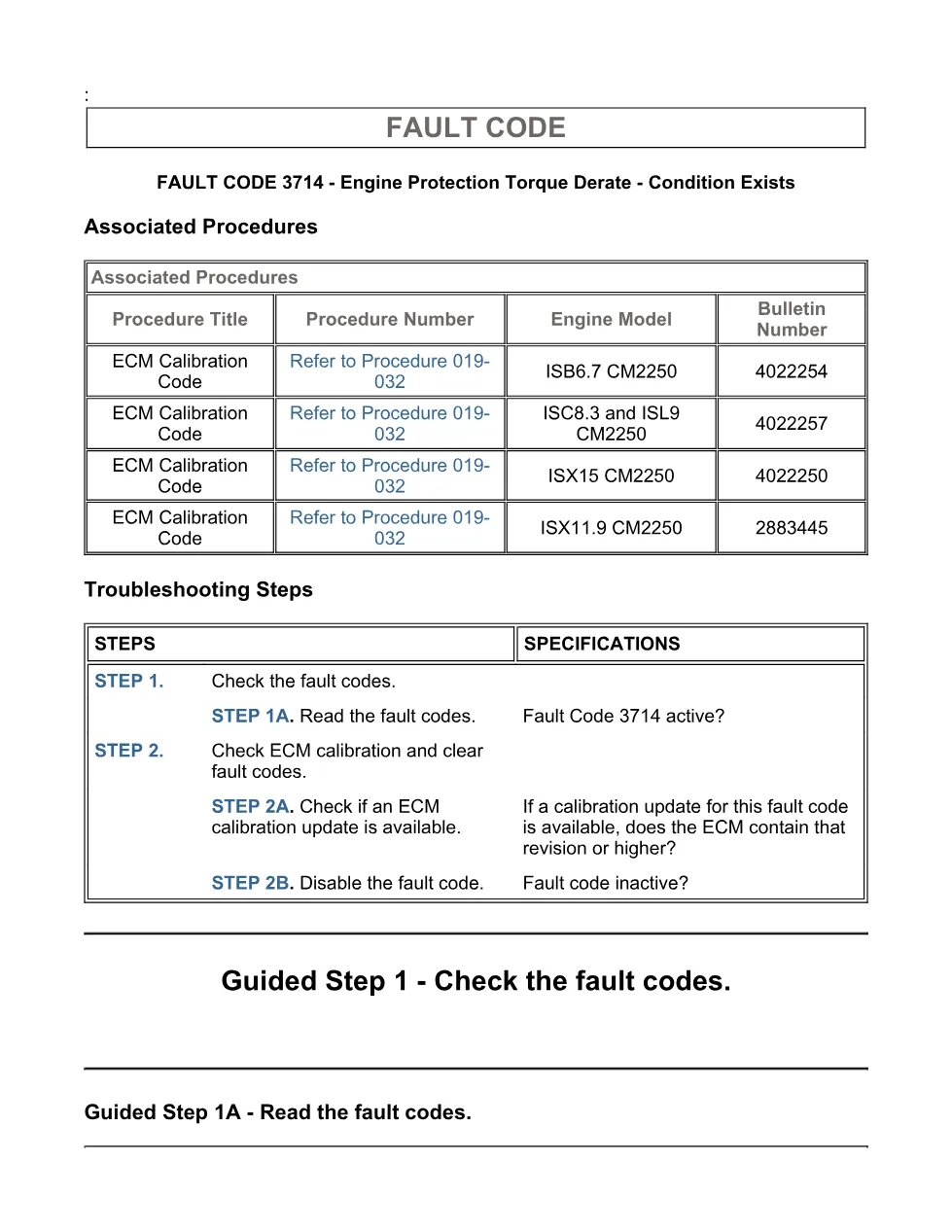

- Troubleshooting Steps — Guided Step 1: Check the Fault Codes
- Guided Step 1A: Read the Fault Codes
- Associated Procedures — ECM Calibration Code (Procedure 019-032)
- Guided Step 2: Check ECM Calibration and Clear Fault Codes
- Guided Step 2A: Check if an ECM Calibration Update is Available
- Guided Step 2B: Disable the Fault Code
Applicable truck models
This document covers Cummins engines equipped with the CM2250 electronic control module across multiple displacement families: the ISB6.7 (Bulletin 4022254), ISC8.3 and ISL9 (Bulletin 4022257), ISX15 (Bulletin 4022250), and ISX11.9 (Bulletin 2883445). These engines are found in medium- and heavy-duty trucks manufactured between 2010 and 2012. Fault Code 3714 is an information-only code triggered when other critical engine performance fault codes remain active; it causes an immediate engine power derate and illuminates the amber CHECK ENGINE lamp. The ECM monitors this condition continuously during engine operation. For official Cummins technical resources, visit the Cummins corporate website.
Who needs this Cummins 3714 fault code manual
Diesel technicians and workshop owners diagnosing a torque derate on CM2250-equipped trucks need this guide. It walks through reading fault codes with INSITE™ electronic service tool, verifying ECM calibration revision history, and clearing the code once all underlying faults are resolved.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
