This Cummins 3641 fault code troubleshooting document provides the complete diagnostic and repair procedure for Fault Code 3641 — Transmission Output Retarder Abnormal Update Rate — on Cummins CM2250 electronically controlled diesel engines. The 13-page guide details J1939 data link checks, multiplexing configuration verification, harness resistance measurements, and ECM calibration steps required to resolve the fault.
Official Cummins 3641 fault code document details
| Brand | Cummins |
| Model coverage | ISB6.7 CM2250 (2010-12), ISX11.9 CM2250, ISX15 CM2250, GX CM2250 |
| System / Group | Diagnostic Trouble Codes (DTCs) — Transmission Output Retarder |
| Publication no. | Referenced bulletins: 4022250, 2883445, 4021378 |
| Year / Revision | Last modified 27-Dec-2010 |
| Pages | 13 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents

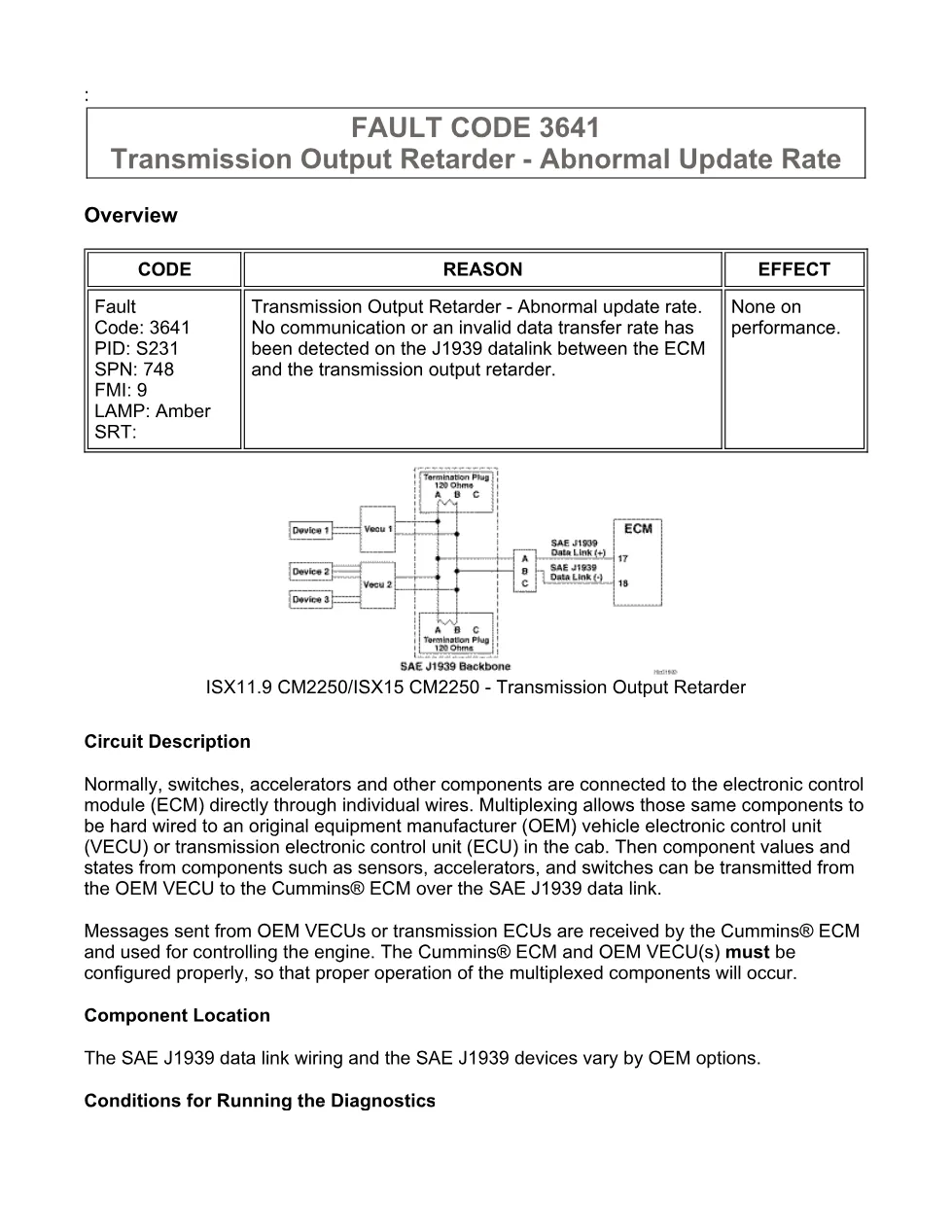

- Overview — Circuit Description and Component Location
- Conditions for Running the Diagnostics

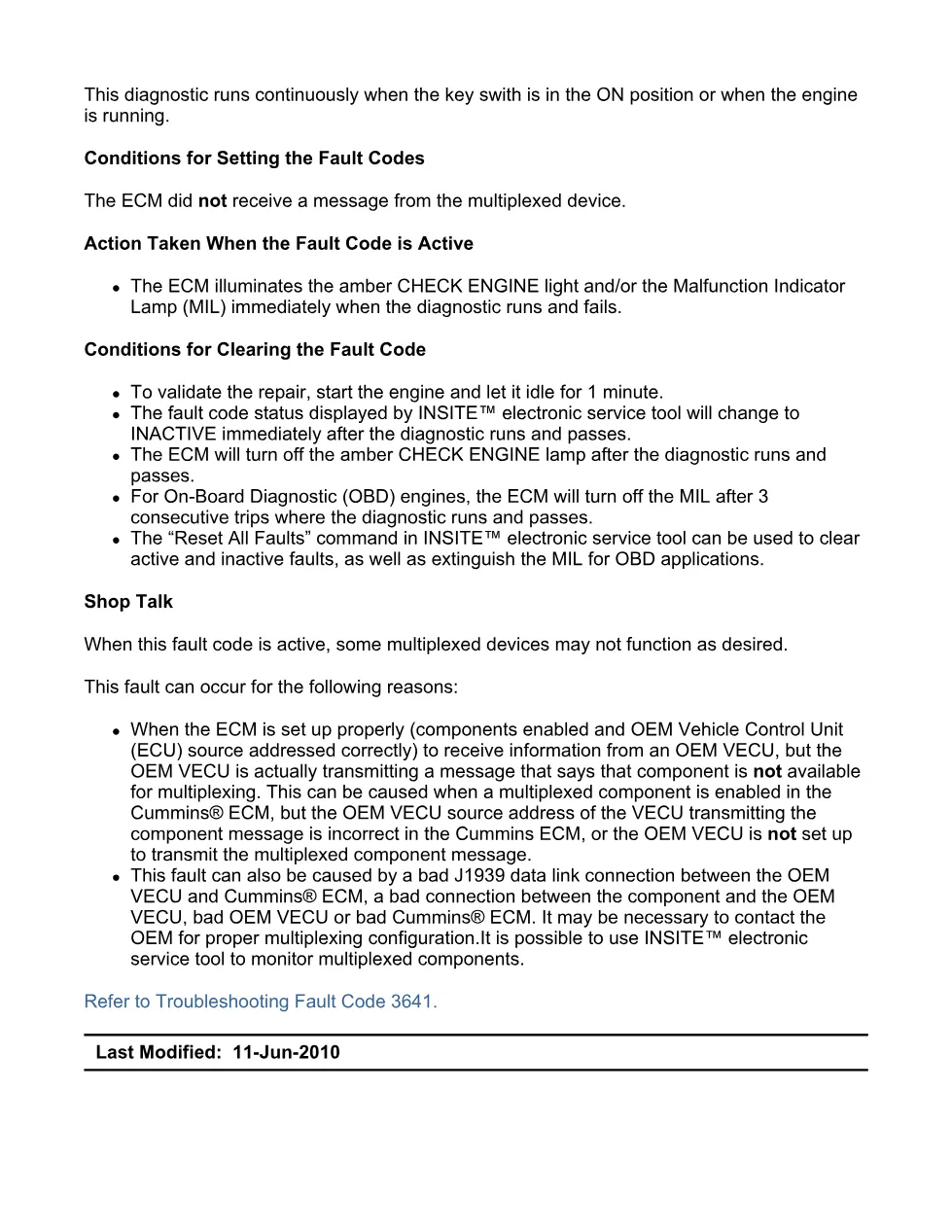

- Conditions for Setting the Fault Codes
- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code
- Shop Talk — Common Causes and Multiplexing Notes

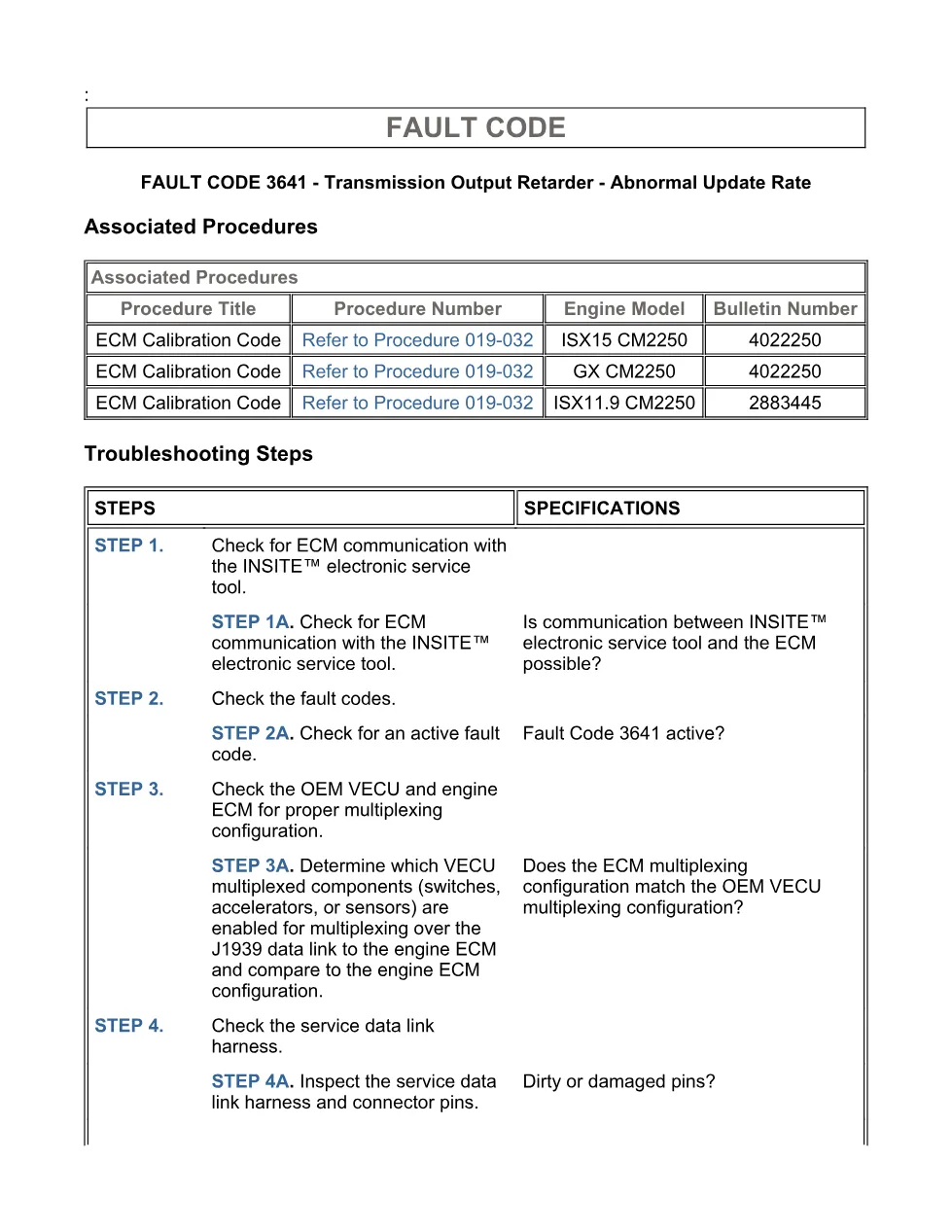

- Step 1 — Check for ECM Communication with INSITE™ Electronic Service Tool
- Step 2 — Check for Active Fault Code 3641
- Step 3 — Check OEM VECU and Engine ECM Multiplexing Configuration
- Step 4 — Inspect Service Data Link Harness and Connector Pins
- Step 5 — Check OEM Harness for Open or Short Circuit (J1939 Data Link)
- Step 5C — Short Circuit Check (Greater than 100k ohms specification)
- Step 6 — Check ECM Calibration and Clear Fault Codes
Applicable truck models
This procedure applies to trucks and equipment powered by Cummins ISB6.7 CM2250, ISX11.9 CM2250, ISX15 CM2250, and GX CM2250 engines from the 2010–2012 production period. The fault involves SAE J1939 data link communication between the Cummins ECM and the OEM vehicle electronic control unit (VECU) or transmission ECU. Resistance specifications referenced are 50–70 ohms across J1939 data link (+) and (−) wires and greater than 100k ohms for short circuit checks. Configuration details vary by OEM; Bulletin 4021378 provides OEM-specific multiplexing information. For official Cummins service literature visit Cummins official website.
Who needs this Cummins 3641 fault code manual
Diesel mechanics and workshop owners troubleshooting an amber CHECK ENGINE lamp triggered by SPN 748 / FMI 9 on CM2250-equipped trucks will find every guided step, wiring check, and calibration procedure required to diagnose and clear this fault. The document is also essential when verifying OEM VECU source address and multiplexed component configuration with the INSITE™ electronic service tool.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
