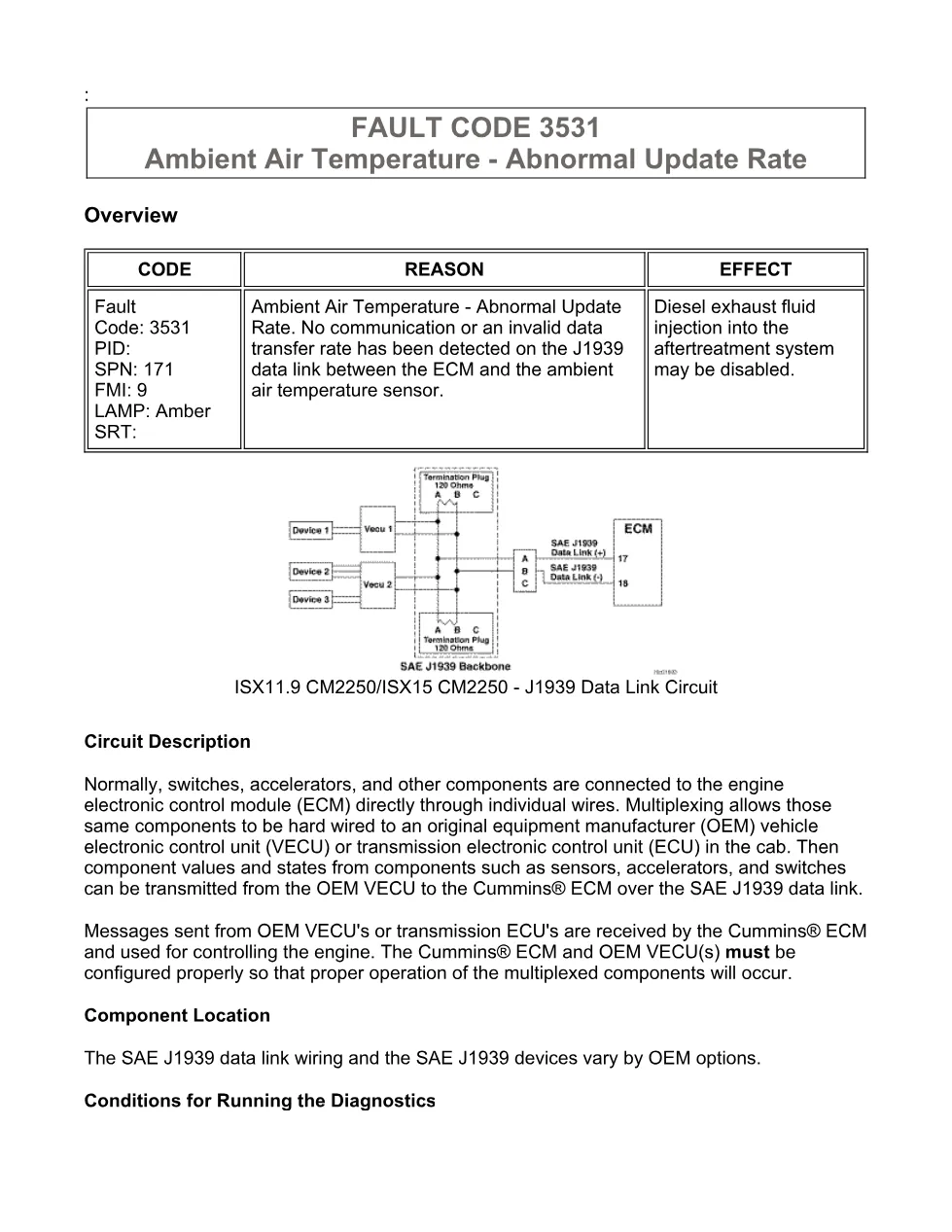

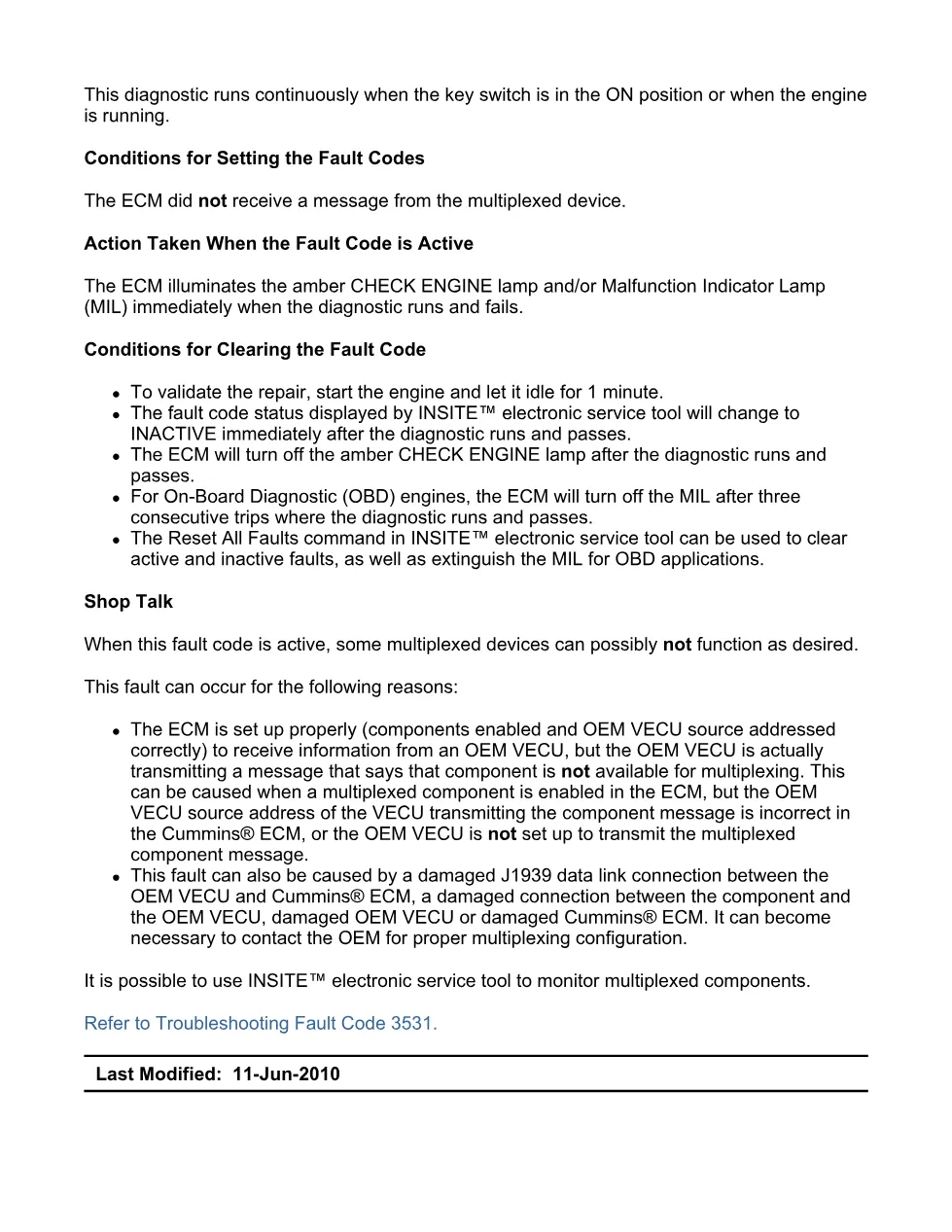

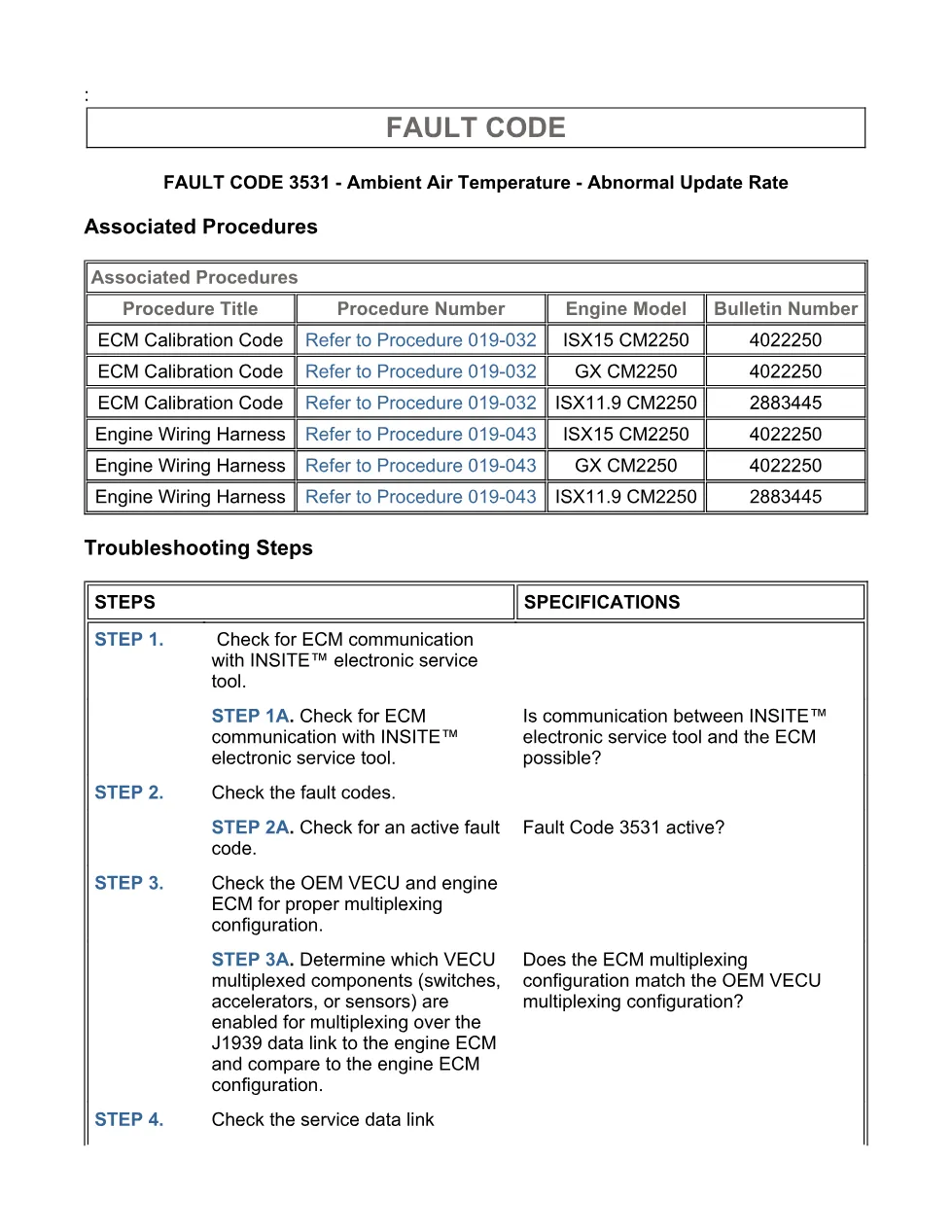

This Cummins 3531 troubleshooting manual is a 13-page diagnostic PDF for Fault Code 3531, Ambient Air Temperature – Abnormal Update Rate. It explains the J1939 multiplexed data link fault, the ECM response, INSITE checks, harness inspections, resistance tests, ECM calibration review, and fault clearing steps.
Official Cummins 3531 troubleshooting manual document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB6.7 CM2250 (2010-12); extract also references ISX11.9 CM2250, ISX15 CM2250, and GX CM2250 associated procedures |
| System/Group | DTCs; SAE J1939 Data Link Circuit; Ambient Air Temperature – Abnormal Update Rate |
| Publication no. | Not shown in the file information; associated procedure bulletins include 4022250 and 2883445 |
| Year/Revision | Unknown; last modified entries shown as 11-Jun-2010 and 06-Dec-2010 |
| Pages | 13 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Overview
- Circuit Description
- Component Location
- Conditions for Running the Diagnostics
- Conditions for Setting the Fault Codes
- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code
- Shop Talk
- Associated Procedures
- Troubleshooting Steps
- Guided Step 1 – Check for ECM communication with INSITE™ electronic service tool.
- Guided Step 3A – Determine which VECU multiplexed components (switches, accelerators, or sensors) are enabled for multiplexing over the J1939 data link to the engine ECM and compare to the engine ECM configuration.
- Guided Step 4 – Check the service data link harness.
- Guided Step 5 – Check the OEM harness
- Guided Step 6 – Check ECM calibration and clear fault codes.
- Guided Step 6B – Disable the fault code.
Applicable truck models
This file is listed for Cummins ISB6.7 CM2250 (2010-12) DTC coverage and addresses Fault Code 3531, SPN 171, FMI 9. The extract also names ISX11.9 CM2250, ISX15 CM2250, and GX CM2250 in the associated procedures table for ECM Calibration Code and Engine Wiring Harness references. The diagnostic concerns communication between the Cummins ECM, OEM VECU or transmission ECU, multiplexed components, and the SAE J1939 data link, so vehicle application depends on OEM configuration and source addresses. For manufacturer information, visit Cummins official website.
Who needs this Cummins 3531 troubleshooting manual manual
Workshop owners, diesel technicians, and fleet mechanics need this document when an amber CHECK ENGINE lamp or MIL is linked to Ambient Air Temperature – Abnormal Update Rate. It is useful for checking INSITE™ communication, active or inactive fault status, OEM VECU multiplexing configuration, service data link connector condition, J1939 harness resistance, shorts to other pins, and ECM calibration status.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
